JWA JARVIS 74673 Assembly Instruction Manual

Lingerie chest
Hide thumbs

Advertisement

Quick Links

Download this manual

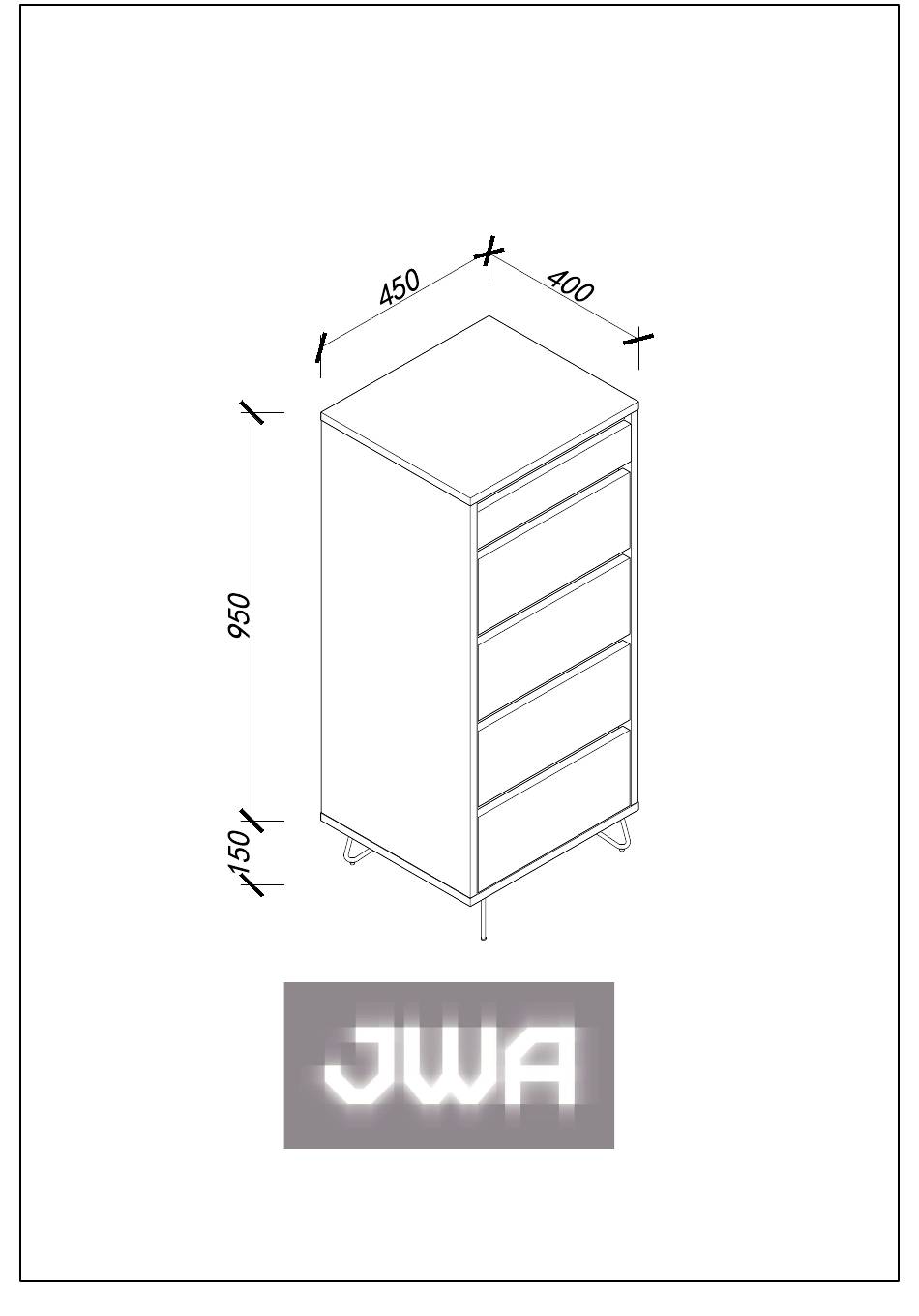

ASSEMBLY INSTRUCTION
JARVIS Lingerie Chest
ITEM CODE 74673
Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia.
For any assistance with assembly or for missing parts please refer to your receipt
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the JARVIS 74673 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JWA JARVIS 74673

Summary of Contents for JWA JARVIS 74673

  • Page 1 ASSEMBLY INSTRUCTION JARVIS Lingerie Chest ITEM CODE 74673 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.

  • Page 4: Parts List

    PARTS LIST Ø15x12mm M6x40mm 8x30mm 22pcs 22pcs 6pcs 20pcs 1 pc M6x15mm 4pcs 16pcs V2=12pcs I2=2pcs 4pcs Ø12x10.5 mm M3.5x12 M6x34mm 32pcs 32pcs 48pcs 16pcs 16pcs...
  • Page 6 STEP 1: Fix dowel (B) and cam pin (A) to panel (2) (3) (4) (5).
  • Page 7 STEP 2: Fix rails (N-1) to panel (3) (4) with screw (V1) . N-1=8 V1=24 Front Back hole location...
  • Page 8 STEP 3: Fix panel (6) to panel (5) with cam lock (C). STEP 4: Fix panel (8) to panel (5) with cam lock (C) . Fix panel (5) (6) (8) (14) (15) to panel (3) (4) with cam lock (C)
  • Page 9 STEP 5: Insert panel (7) into grooves between panel (2) (3) (4).
  • Page 10 STEP 6: Fix panel (2) to panel (3) (4) with cam lock (C) .
  • Page 11 STEP 7: Fix metal leg (J) to bottom panel (2) with bolt (G) , lock washer (Z1), washer (Z2). Using allen key ( ) to fix 100% as shown.
  • Page 12 STEP 8: Attach pneumatic rod (S-1) to panel (3) with screw. Insert soft closing bumper (T) into hole panel (4).
  • Page 13 STEP 9: Attach hinge (I1) to panel (1) with screw (V2). STEP 10: Fix top panel (1) to panel (6) with screw (V2).
  • Page 14 STEP 11: Adjust to proper position.
  • Page 15 STEP 12: Attach pneumatic rod (S-2) to panel (1) with screw.
  • Page 16 STEP 13-1:Fix cam pin (O) to panel (9) (10) (11) (12). STEP 13-2: Fix panel (10) to panel (11) (12) with cam lock (P). Insert panel (13) into grooves between panel (10) (11) (12). Fix panel (11) (12) to panel (9) with cam lock (P). STEP 13-3:Fix rails (N-2) to panel (11) (12) with screw (V1)
  • Page 17 STEP 14: Adjust to proper position.
  • Page 18 STEP 15:Insert the back panel hook (E) into the back and using screw to fix , as shown.
  • Page 19 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
  • Page 20 ASSEMBLY COMPLETE...
  • Page 21 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
