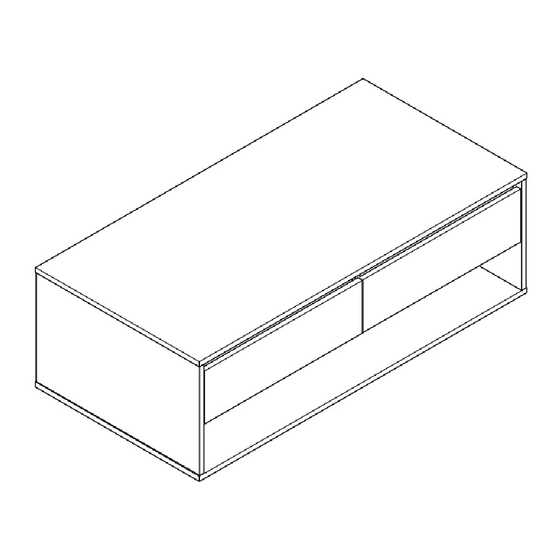

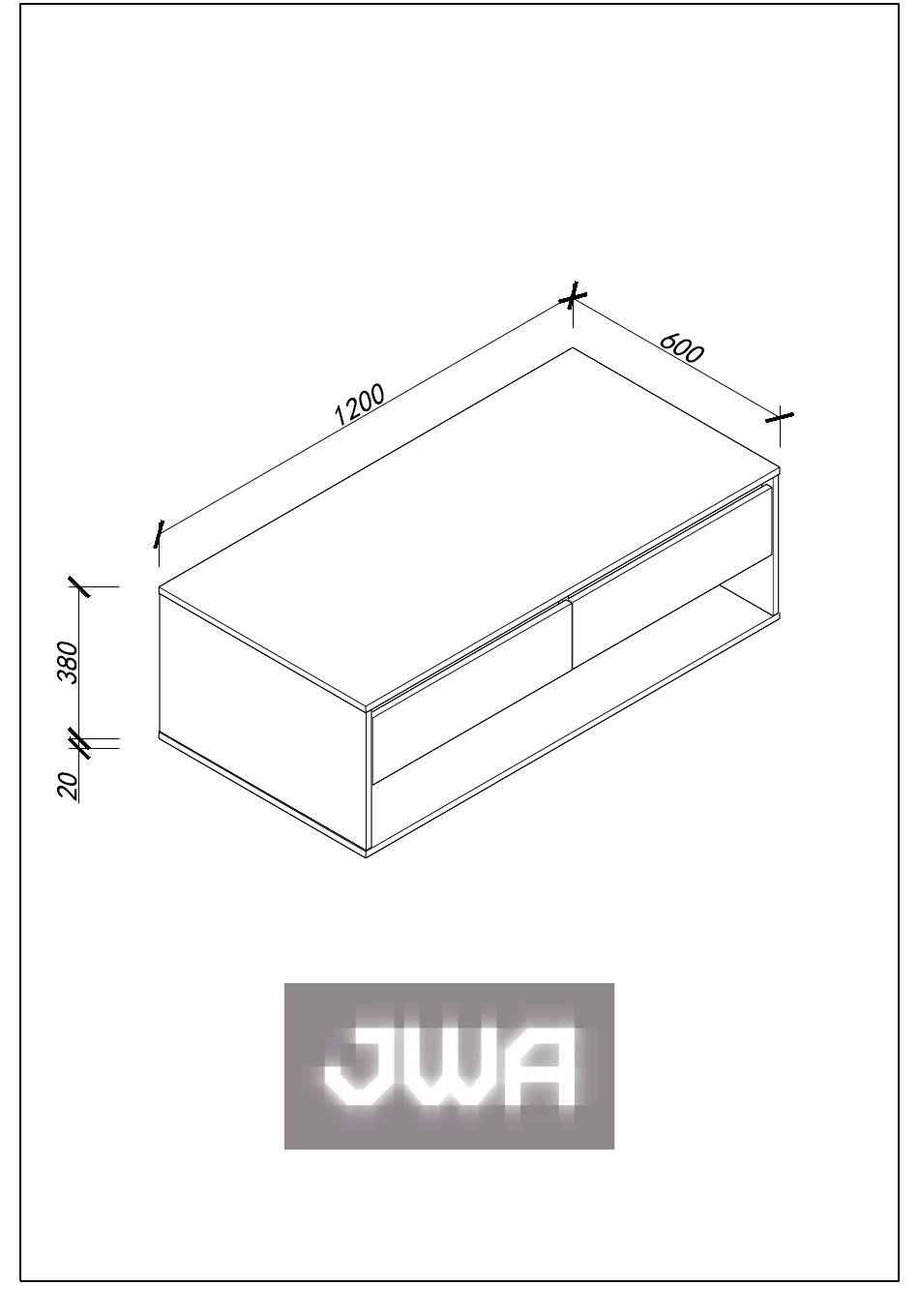

- Page 1 ASSEMBLY INSTRUCTION HARMON COFFEE TABLE ITEM CODE 74699 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 4: Parts List
PARTS LIST Ø15x12mm M6x40mm 8x30mm 2pcs 31p cs 28p cs 31p cs Ø12x10.5 mm M7x50 M4x35 M3.5x12 M6x34mm 7pcs 14pcs 16pcs 16pcs 16pcs... - Page 6 STEP 1: Fix rails (N-1) to panel (3) (4) (5) with screw (V1) . N-1=4 V1=8 hole location hole location...
- Page 7 STEP 2:Fix dowel (B) and cam pin (A) to panel (1) (2) (3) (4) (5) (8). A=31...
- Page 8 STEP 3: Fix panel (5) (6) (7) to panel (8) with cam lock (C). STEP 4: Fix panel (9) to panel (3) (4) (5) with cam lock (C). Fix panel (3) (4) to panel (8) with cam lock (C).
- Page 9 STEP 5: Fix panel (1) to panel (3) (4) (5) (6) (9) with cam lock (C). STEP 6: Fix panel (2) to panel (3) (4) (7) with screw (Q).
- Page 10 STEP 7: Fix panel (16) (17) (18) to panel (2) with screw (V3). V3=14...
- Page 11 STEP 8-1:Fix cam pin (O) to panel (10) (11) (12) (13) (14). STEP 8-2: Fix panel (12) to panel (13) (14) with cam lock (P). Insert panel (15) into grooves between panel (10) (11) (12) (13) (14). Fix panel (13) (14) to panel (10) / (11) with cam lock (P). STEP 8-3:Fix rails (N-2) to panel (13) (14) with screw (V1) N-2=2 V1=4...
- Page 12 STEP 9: Adjust to proper position.
- Page 13 ASSEMBLY COMPLETE...
- Page 14 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
