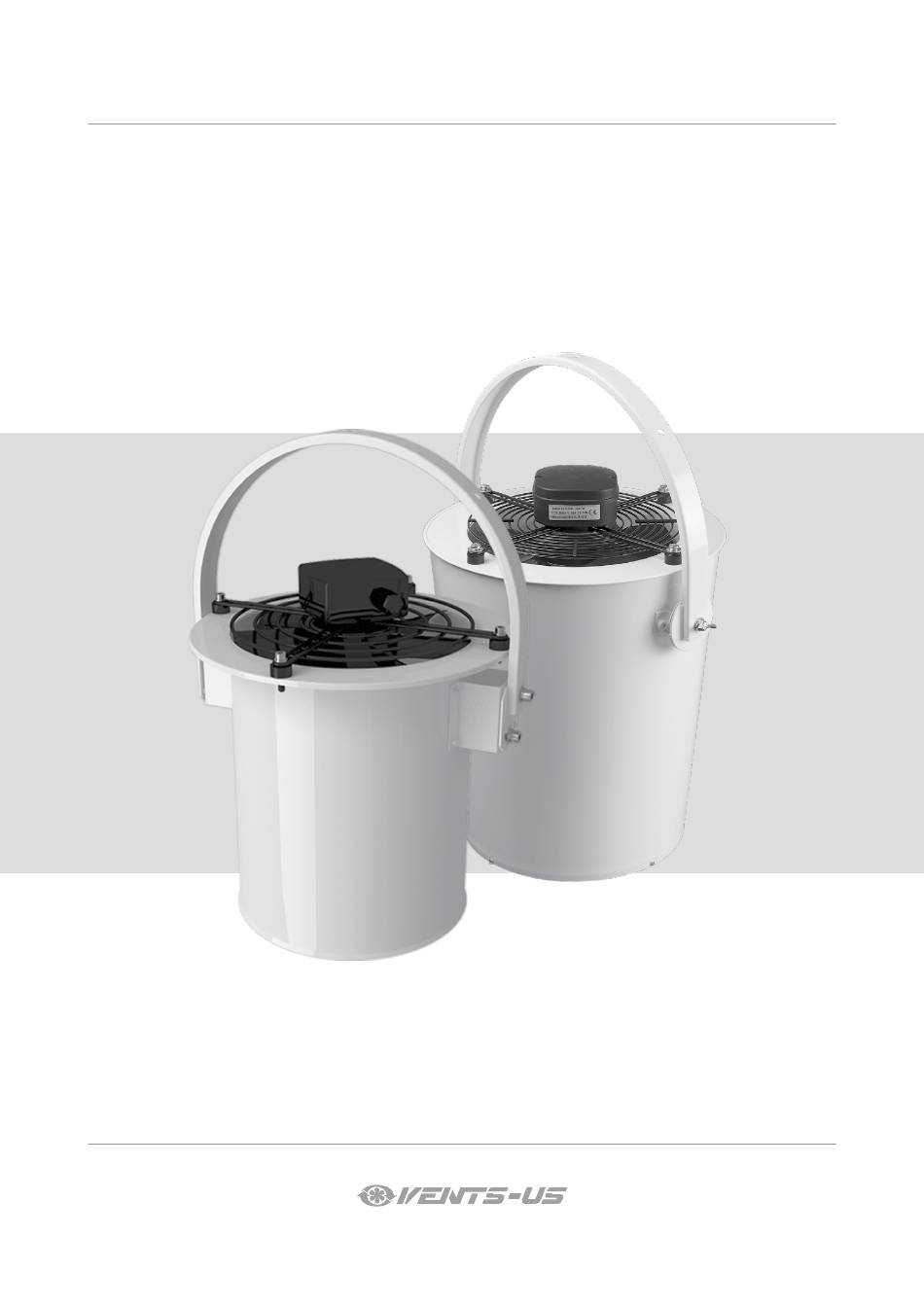

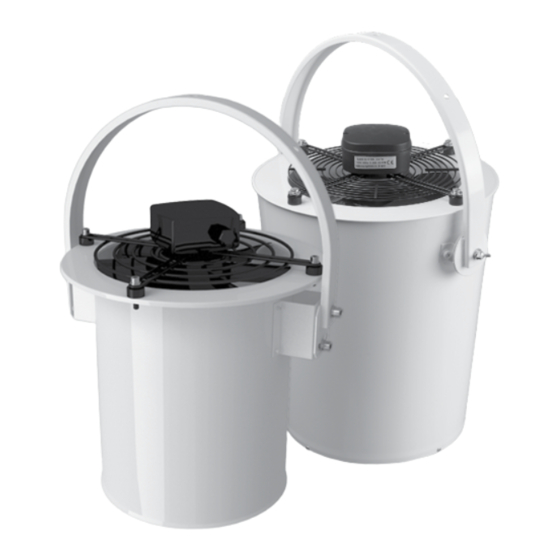

- Page 1 USER’S MANUAL Bucket Fan Bucket Fan Whisper Destratificator...
-
Page 2: Table Of Contents
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of gas or other fuel-burning appliances. Caution: mount with the lowest moving parts at least 8 ft (2.5 Meters) above floor or grade level www.vents-us.com... - Page 3 Never touch the unit with wet or damp hands. Never touch the unit when barefoot. the prODuct Must Be DispOseD separateLY at the enD OF its serVice LiFe. DO nOt DispOse the unit as unsOrteD DOMestic Waste. www.vents-us.com...
-
Page 4: Purpose
User's manual 1 item Packing box 1 item Power cord (optional) 1 item DesiGnatiOn keY Bucket Fan 420 r power cord _ — not included in the delivery set R — power cord Destratificator airflow [cFM] 420, 1055, 1460 unit designation Bucket Fan —... -
Page 5: Technical Data
The destratificator undergoes continuous improvement - therefore, some models may slightly differ from the ones described in the User’s manual. Air flow speed depending on Bucket fan distance point (ft), fpm Model Bucket Fan 420 1700 0.51 20”-30” 301-689 378 270 220 156 90 –... -
Page 6: Design And Operating Principle
9 27/32 ft (3 m) long. The destratificator position can be fixed every 15°. Mounting kit Safety kit The fan with a terminal box and a protective grid Bow bracket Bolts for mounting the Vibration mount bow bracket to the casing Casing Air flow rectifier Sound-insulation layer (Bucket Fan Whisper) www.vents-us.com... -
Page 7: Mounting And Set-Up
Attach the other end of the safety cable to the destratificator bracket (Fig. 2). • Loosen the fastening bolts between the destratificator and the bracket, turn the destratificator and direct its nozzle toward the intended air supply area (see Fig. 3). • Tighten the bolts between the casing and the bracket. www.vents-us.com... -
Page 8: Connection To Power Mains
The same regulator device can be used for connecting several destratificators simultaneously provided that their combined capacity and working current remain within the nominal parameters of the speed regulator. Bucket Fan, Bucket Fan Whisper wiring diagram ~120 V 60 Hz www.vents-us.com... -
Page 9: Technical Maintenance
The unit must be transported only in the working position. • Avoid sharp blows, scratches, or rough handling during loading and unloading. • Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at least 3-4 hours. www.vents-us.com... -
Page 10: Manufacturer's Warranty
If proof of sales date is absent, warranty period is calculated from the production date. The unit can be exchanged at the following address: Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 E-mail: support@ventsus.com... -
Page 11: Certificate Of Acceptance
The unit has been installed in accordance with the provisions of all the applicable local and national construction, electrical and technical codes and standards. The unit operates normally as intended by the manufacturer. signature: WarrantY carD unit type Destratificator Model serial number Manufacture Date purchase Date Warranty period seller Seller’s Stamp www.vents-us.com... - Page 12 VUSA96EN-05...
