- Page 1 PRODUCT DATA COMFORT 600 BY NILAN Ventilation & passive heat recovery Domestic Passive Ventilation heat recovery < 800 m...
-
Page 2: Product Description

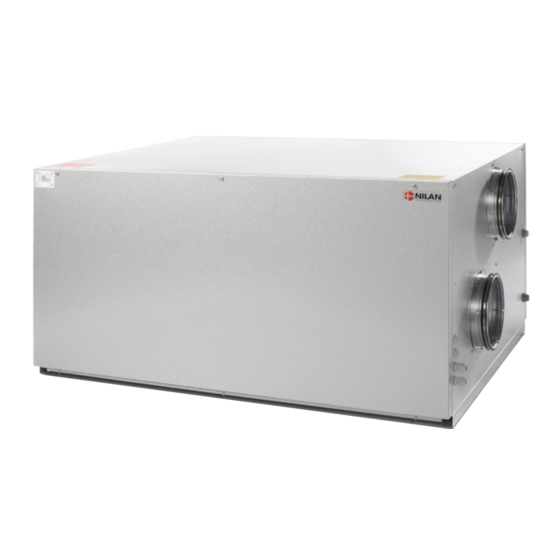

COMFORT 600 Product description The Comfort 600 is an energy-efficient ventilation unit with heat recovery for homes and smaller commercial buildings with a ventilation requirement of up to 800 m This unit has been thoroughly tested, with improvements being continually made during its manufacture for more than 15 years. - Page 3 COMFORT 600 BY NILAN Counterflow heat exchanger made of polystyrene, which has a higher temperature efficiency than aluminium exchangers. Prepared for an integrated or external water heating element. Time controlled alarm for filter change. Easy filter access - the top front panel manually unscrews easily.
-
Page 4: Technical Data
* 5 Input without heating element (accessory). * 6 Power consumption on comtinuous operation for system with SFP value 1000 J/m ved 500 m Unit data for ecodesign Trade mark Nilan Model Comfort 600 Type Two-way ventilation unit not for residential Type of drive... -
Page 5: Dimensional Drawing
COMFORT 600 BY NILAN Dimensional drawing Left model 1200 Ø Ø 1200 Ø Ø 1200 Ø Ø Right model 1200 Ø Ø All dimensions are in mm Connections 1: Fresh air 5: Condensate drain 2: Supply air 6: Electric and water heating... -
Page 6: Planning Data
PLANNING DATA Nilan units are tested in accordance with the valid standards of accredited independent test institutes. Capacity Capacity of standard unit as a function of q and P t, ext SFP values according to EN 13141-7 are for standard units with ISO Coarse >90% (G4) filters and no heating element. -
Page 7: Sound Data
COMFORT 600 BY NILAN Sound data Sound output level (L Octave band Surface Supply air Extract air Sound data for q = 600 m /h and P = 100 Pa according to t, ext dB(A) dB(A) dB(A) EN 9614-2 for surfaces and EN 5136 for ducts. -
Page 8: Operation
OPERATION Intelligent humidity control Nilan’s humidity control automatically adapts to the needs of the family or the building. Forced ventilation The intelligent CTS 602 control unit does not need to have a set level input for air humidity (RH) to control the air exchange. By... - Page 9 Capacity - Heating element (accessory) Electrical heating element The electrical heating element is fitted in the air inlet duct at a distance of min. 2 x duct diameter from the system´s fresh air inlet connection pipe (normally min 400 mm.) and connected to the CTS 602 control panel and 230 V supply.
-
Page 10: External Communication
A Nilan gateway is fitted as standard on the Comfort 600, where the user can gain access to the unit via a Nilan User APP. The APP enables the user to access and monitor the current operation, also from the outside of the property. - Page 11 COMFORT 600 BY NILAN Functions overview + Standard - Accessories Alarms Description of errors indicated with alarms. Alarm log displaying the latest 16 alarms. Joint alarm The CTS602 control system has an output signal that is activated in the case of an alarm. It can be con- nected to, for example, external automation.
-
Page 12: Water Trap
However, during the summer months when there is no condensation of extract air, the water trap will dry out (and therefore cease to prevent ”false” air intake). A Nilan water trap with ball prevents ”false” air flow all year round. - Page 13 COMFORT 600 BY NILAN Electrical heating element incl. regulation When you fit an electrical heating element, you can raise the fresh air temperature to the desired level at any time. The electrical heating element is supplied ready to fit into the fresh air duct and, for easy fitting, the device is pre-fitted with all the required sensors.
-
Page 14: Frost Protection
OPERATION Frost protection All ventilation units with a counterflow heat exchanger will ice up if the outdoor temperature is below freezing for a prolonged period. ɳt[%] The extracted air condenses when it is cooled down during heat With pre-heater recovery. The high temperature efficiency will slowly turn the condensate to ice, which will block up the counterflow heat >... -
Page 15: Transport And Storage
DELIVERY COMFORT 600 BY NILAN AND HANDLING Transport and storage Comfort 600 comes in factory packaging that protects it during transport and storage. Comfort 600 must be stored in a dry place in its original packaging until installation. The packaging should only be removed immediately prior to installation. - Page 16 INFORMATION FROM A TO Z Nilan develops and manufactures premium-quality, energy-saving ventilation and heat pump solutions that provide a healthy indoor climate and low-level energy consumption with the greatest consideration for the environment. In order to facilitate each step in the construction process – from choosing the solution through to planning, installation and maintenance –...
