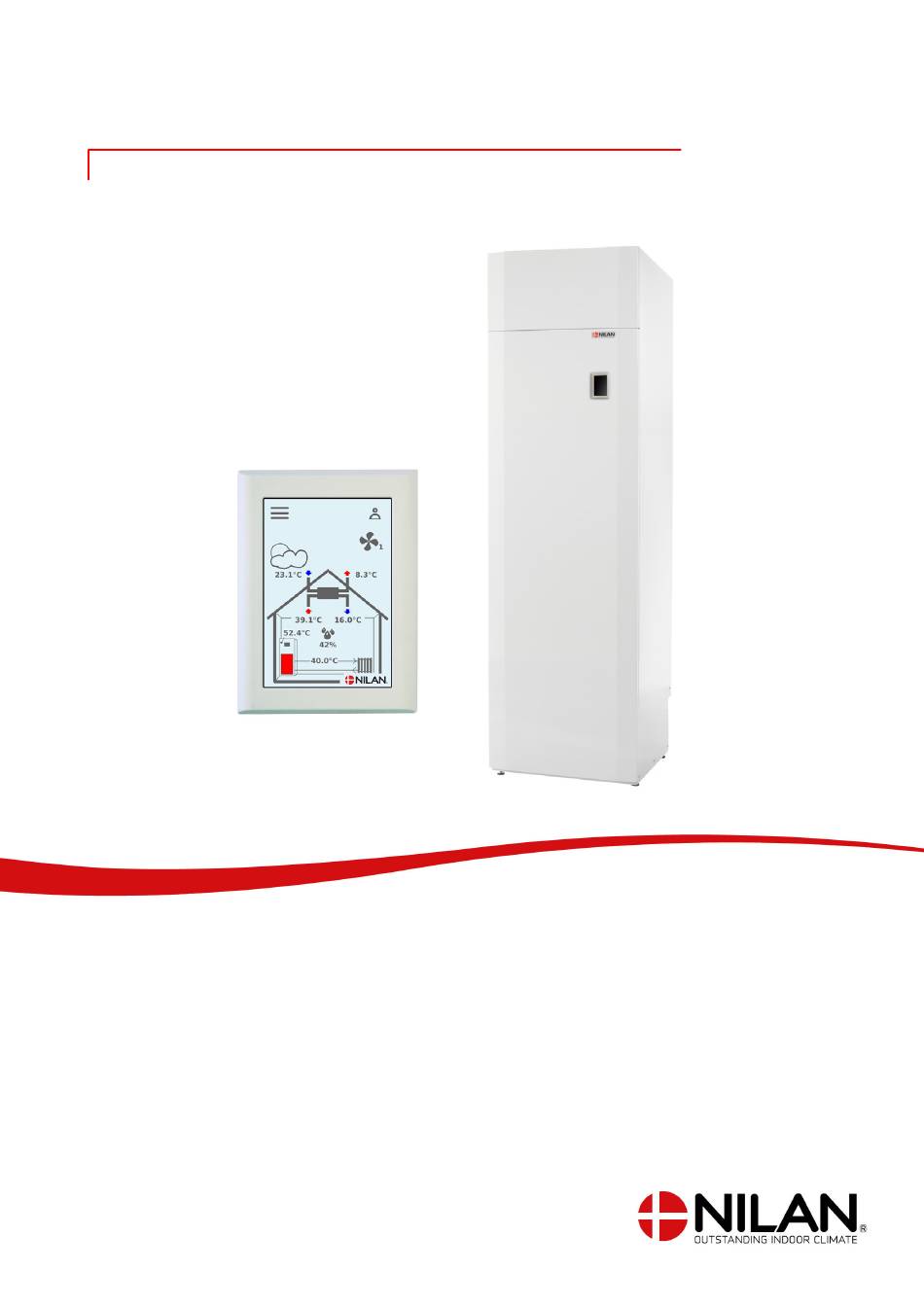

- Page 1 INSTALLATION INSTRUCTIONS CTS602 HMI BY NILAN VP18 M2 EK "RS" (English) Version 3.20 - 11.03.2021...
-
Page 2: Table Of Contents
Positioning the unit ................................................Electric installation Safety ........................................................Connections overview ............................................... Control panel ......................................................Connection of CTS602 HMI control panel ....................................Electrical connection of the unit ............................................Electrical connections accessories ..........................................Connection to user selection and modbus ....................................External electrical pre-heating element ....................................... - Page 3 VP18 M2 EK "RS" (English) BY NILAN Unit .......................................................... Extract air ......................................................Supply air ......................................................Roof stacks ....................................................Balancing ........................................................Important information ..............................................Troubleshooting Emergency mode ....................................................Emergency mode, domestic hot water ......................................Domestic hot water ..................................................Errors and solutions, domestic hot water...
-
Page 4: Power Supply
Responsibility for maintenance of the heat pump rests with the owner/user. Disposal Ventilation unit Nilan’s units consist mainly of recyclable materials. They must, therefore, not be mixed with household waste, but must be delivered to your local recycling center for disposal. -
Page 5: General Information Introduction
If you have questions regarding installation of the unit after having read the instructions, contact your nearest dealer of Nilan products. You can find Nilan dealers on www.nilan.dk/en-gb/frontpage/ download/dealers. The purpose of these instructions is to advice the installer on correct installation and maintenance of the unit. -
Page 6: Unit Type

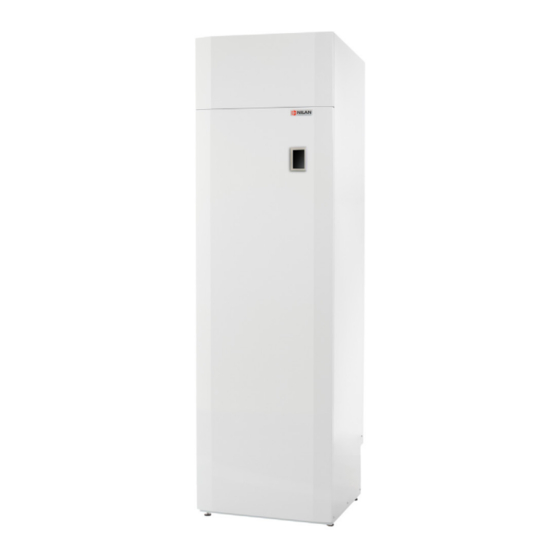

Unit type Product description VP18 is a ventilation unit with active heat recovery that also produces domestic hot water. VP18 is intended for air volumes of up to 425 m /h at 100 Pa external counter-pressure. The ventilation draws humid and vitiated air out of the dwelling via bathroom, lavatory, kitchen and utility room. -
Page 7: The Unit
VP18 M2 EK "RS" (English) BY NILAN The unit Duct connections Filter replacement door Outdoor air filter (if purchased as an accessory, a pollen filter should be fitted here) Extract air filter Exhaust fan Supply air fan Heat pump Automation 180 L hot water tank 10. -
Page 8: Temperature Sensor Overview
Temperature sensor overview T2 T1 Temperature sensor in the unit Temperature sensor in the hot water tank T1: Outdoor air (install in the outdoor air duct) T11: Top of tank T2: Supply air T12: Bottom of tank T5: Condenser T14: Supply flow T6: Evaporator T10: Extract air RH: Humidity sensor... -
Page 9: Dimensional Drawing
VP18 M2 EK "RS" (English) BY NILAN Dimensional drawing Connections: 1. Outdoor air 2. Supply air 3. Extract air 4. Discharge air Weight: 154 kg. -
Page 10: Accessories
To make it easy to service the unit in the future, we recommend that you fit a flexible connection between the unit and the duct system. Nilan's flexible sound damper absorbs sounds effectively from both the duct system and from roof stacks. -
Page 11: Trolley
VP18 M2 EK "RS" (English) BY NILAN Trolley A trolley makes it possible to lift the unit of the pallet without physical strain. The same trolley can be moved to wheel the unit around. -
Page 12: Set Up
When lifting the unit using the supplied straps, these must be at an angle of max. 45° from vertical. Nilan can provide a lift with which the unit can be hoisted from the pallet and driven directly into the building. -
Page 13: Electric Installation
VP18 M2 EK "RS" (English) BY NILAN Electric installation Safety ATTENTION All work must be carried out by qualified persons and in compliance with existing legislation and regulations. ATTENTION It is important that the power is off, if you do work to the electrical components of the unit. -
Page 14: Control Panel
Control panel Connection of CTS602 HMI control panel The control panel is connected to the CTS602 circuit board and is installed in the front part of the unit. 8-pole plug located on top of the unit. Use this if you want to move the control panel away from the unit. -
Page 15: Electrical Connections Accessories
VP18 M2 EK "RS" (English) BY NILAN Ventilation and domestic hot water Safety switch Electrical connections accessories Connection to user selection and modbus User selection: Connection to the user selection can be used, for instance, to control operation of a cooker hood. - Page 16 Unit 8-pole plug Panel CTS/Computer Converter Modbus Unit 8-pole plug Panel...
-
Page 17: External Electrical Pre-Heating Element
VP18 M2 EK "RS" (English) BY NILAN External electrical pre-heating element If your unit is not the Polar version with an integrated pre-heating element, you can purchase and retrofit an external electrical pre-heating element. Install the electrical pre-heating element together with the required temperature sensor in the outdoor air duct before the unit. -
Page 18: Co2 Sensor
sensor You can purchase a CO sensor as an accessory if you want to control the fan speed level in accordance with the CO level in the dwelling. CAUTION Always disconnect the power supply to the unit before opening its doors or working on its electrical installations. - Page 19 VP18 M2 EK "RS" (English) BY NILAN Run the wire from the CO sensor to the circuit board and connect it as shown below: Pre-fuse Resistor For software version 2.00x and below, the resistor must be connected in series with a black signal wire.
-
Page 20: Fire Connection
Fire connection You can connect a fire thermostat or an external fire automation system. It must be a closed signal, so that the unit will register that there is a fire if the signal is interrupted. Fire thermostat CTS602 Shunt if not installed NB! If you connect the unit to an external fire automation system, set the software: Service settings/ Restart/Fire. -
Page 21: Mounting Of Expansion Pcb On Cts602 Circuit Board
5. Connect the wires as indicated on the electrical diagram. ATTENTION The expansion PCB and the connections must be installed by an authorised electrician. The expansion PCB is an accessory to the CTS602 circuit board. Nilan does not supply external components. -
Page 22: External Heating Control
External heating control The unit can control an external heat supply, such as electric radiators or an underfloor heating system. The unit monitors the room temperature and blocks the external heat supply when heating is not required. If, through ventilation alone, the unit is unable to heat the room to the desired temperature, the external heat supply will be released until the room temperature has reached the desired level. -
Page 23: Plumbing Installation Condensate Drain
VP18 M2 EK "RS" (English) BY NILAN Plumbing installation Condensate drain Important information VP18 is supplied with a reinforced 20 mm condensate drain pipe with an integral water trap. ATTENTION Run the condensate drain to the nearest drain, allowing an even fall of at least 1 cm per m. The overflow from the safety valve for domestic cold water must likewise be led to a visible drain. -
Page 24: Hot Water Tank
Hot water tank Connections overview Rear view of unit View from below Bottom Front Connections: Filling 1. Supply flow central heating Safety valve (central heating) 2. Return flow central heating Sensor tube 3. Vent valve Hot water out (drain) Cold water in Expansion vessel central heating Anti-scalding fuse The scalding fuse is delivered together with the unit and must be installed by a plumber. -
Page 25: Connection "Rs
Softened water If it is wished to soften water with salt in a Nilan hot water tank, the following must be observed: • The conductivity must be between 30 mS/m og 150 mS/m (millisiemens per m) •... -
Page 26: Ventilation Installation
Nilan offers flexible Sound Flex tubes that provide a flexible connection between the unit and the duct system, but also reduce the sound transmission from the unit to the duct system. -
Page 27: Extract Air
VP18 M2 EK "RS" (English) BY NILAN Extract air Install exhaust air valves in rooms that generate humidity. Place them strategically where they can extract humidity most effectively. Rooms that generate humidity: • Bathroom • Lavatory • Kitchen • Utility room Supply air Install supply air valves in living areas. -
Page 28: Troubleshooting
Troubleshooting Emergency mode Emergency mode, domestic hot water If the unit stops as a result of an error in the control system or in one or more components, it will not be able to produce domestic hot water. If the installer is not available immediately, you will be able to get domestic hot water by setting the unit to emergency mode. -
Page 29: Domestic Hot Water
VP18 M2 EK "RS" (English) BY NILAN Domestic hot water Errors and solutions, domestic hot water Issue Possible cause Solution The unit does not produce enough domestic hot The filters may be blocked, causing an insufficient Replace the filters and consider setting filter water amount of air to reach the unit. - Page 31 VP18 M2 EK "RS" (English) BY NILAN...
- Page 32 United Kingdom: S L Services 25 St Leonards Road, Horsham RH13 6EH West Sussex Tlf. +44 (0) 7919 444452 stuart315@aol.com www.nilanuk.com Ireland: Nilan Ireland Ballylahive, Abbeydorney Tlf. +353 (0) 87 9798361 maurice@nilan.ie www.nilanireland.ie Nilan A/S Nilanvej 2 DK-8722 Hedensted Tlf.
