nilan CTS602 LIGHT Installation Instructions Manual
Hide thumbs
Also See for CTS602 LIGHT:
- User manual ,
- Installation instructions manual (48 pages) ,
- Manual (40 pages)
Subscribe to Our Youtube Channel
Related Manuals for nilan CTS602 LIGHT
Summary of Contents for nilan CTS602 LIGHT
- Page 1 INSTALLATION INSTRUCTIONS CTS602 LIGHT BY NILAN Comfort 252 / 302 Top Version 4.00 - 01.05.2020 M24_Comfort-252-302-Top_GB...
-
Page 2: Table Of Contents
External connections ..................................23 External pre-heating element ................................24 Installation of electrical pre-heating element for integration ....................25 Installation of expansion PCB on CTS602 Light circuit board ....................27 Electrical after heating element ..............................28 Water after heating element ................................29 CO2 sensor ......................................30 Joint alarm ......................................31... - Page 3 Fire automatic General information ....................................35 Safety ........................................35 Usage ........................................35 Electrical connection fire automation system ............................ 35 Connection of fire damper ................................35 Alarm code ......................................36 Start-up and annual testing ................................36 Schedule for functional testing ............................... 38 Ventilation installation Duct system .......................................
-
Page 4: General Information
The instructions can be downloaded from https://www.nilan.dk/en-gb/frontpage/download. If you have questions regarding installation and operation of the unit after having read the instructions, please contact your nearest Nilan dealer. A list of Nilan dealers is available on www.nilan.dk/forhandlere. ATTENTION The unit must be started up immediately after installation and connection to the duct system. -
Page 5: Unit Type

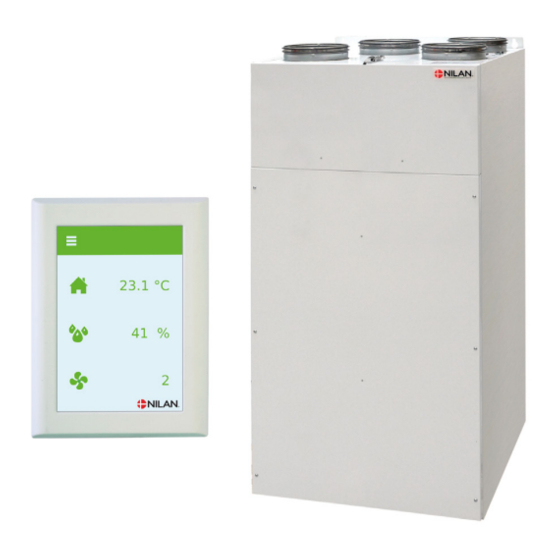

Unit type Product description Comfort 252/302 Top is a ventilation unit with heat recovery. The unit is intended for air volumes of up to 253/345 m /h at an external duct pressure of 100 Pa. The unit is used primarily in residential buildings. Due to its low sound level it is particularly suitable for ventilation in apartments. The unit ventilates the dwelling by drawing out damp and vitiated air through valves placed in, for instance, bathroom, lavatory, kitchen and utility room. -
Page 6: Dimensional Drawing
Dimensional drawing All listed measurements are in mm. Right model: Left model: Connections: 11. Outdoor air 12. Supply air 13. Extract air 14. Discharge air 15. Condensate drain... -
Page 7: Functional Block Diagram
Functional block diagram... -
Page 8: Accessories
Accessories Electrical pre-heating element for frost protection of the unit If your ventilation unit is not a Polar version with an integral pre-heating element, we recommend that you purchase an external pre-heating element as frost protection of the ventilation unit. During prolonged periods of frost, the high efficiency counterflow heat exchanger will ice up. -
Page 9: Dtbu Damper
Every autumn it is therefore important to check that there is water in the water trap. However, if you install a Nilan water trap with ball, the ball will ensure permanent function of the water trap. This saves you refilling the water trap manually every autumn to ensure that it works. -
Page 10: Vibration Absorbers
It is important to ensure that the ventilation unit does not transfer vibrations to the building. The ventilation unit should therefore be placed on a vibration absorbing material. Nilan can supply effective vibration absorbers to place under the ventilation unit. They are sold in packs of 4. Flexible sound damper To make it esay to service the unit in the future, we recommend that you fit a flexible connection between the unit and the duct system. -
Page 11: Extension Cable Hmi Control Panel
• Fire thermostat or external fire automation system You can adapt an RJ45 connector yourself in line with the instructions. To facilitate installation, Nilan can supply a 10 m LAN cable with the correct RJ45 connector for the three functions. -
Page 12: Installation
Installation Placement Positioning of the ventilation unit ATTENTON When positioning the unit, you should always consider future service and maintenance. It must be easy to replace filters, and it must be possible to remove, for instance, the exchanger, and to replace fans or other components. -
Page 13: Mounting The Ventilation Unit
Mounting the ventilation unit The unit is equipped with mounting brackets with holes for wall mounting at the top back of the unit. Wall brackets for mounting unit You can purchase wall brackets to use for mounting Top ventilation units. Included are 4 sylomers (vibration absorbers) that will ensure effective absorption of potential vibrations from the ventilation unit to the underlying surface/wall. -
Page 14: Electrical Installation
Electrical installation Electrical connections Safety ATTENTION All work must be carried out by qualified persons and in compliance with existing legislation and regulations. ATTENTION It is important that the power is off, if you do work to the electrical components of the unit. It is important to check that wires are not damaged or squeezed during connection and use. -
Page 15: User Panel
ATTENTION If you want a longer cable, use a standard LAN cable, max 50 meters. Nilan offers a 15 meter cable with plugs on both ends. Wall bracket Mount the HMI panel on the wall using the integrated wall bracket.. -
Page 16: Electrical Connection Unit
Electrical connection unit Power supply CAUTION The power supply is plugged into a 230V socket with a safety switch. It is important that the unit has ground connection. The unit is supplied with an EU plug for a 230V power supply. This means that, in principle, you have no protection of electrical grounding. -
Page 17: Electrical Connections Accessories
If you adapt an RJ45 cable yourself, be aware that wire 8 (Brown) can become live with 12V and must not be short circuited. In Nilan’s LAN cable the wires that are not used are not connected up to the RJ45 connector. With Nilan’s LAN cable there is therefore no risk of short circuits. -
Page 18: User Selections 1 And 2 (Cooker Hood)
In that case you can have a potential-free contact that is activated, causing ventilation to increase, for example for an hour, before operation ceases again. Connection via Nilan Functional cable 1. Green/white 2. Green User selection 1 3. Orange/white User selection 2 4. -
Page 19: Modbus
The CTS602Light control system has open Modbus RS485 communication that allows you to communicate with and control the ventilation unit via external control systems. Please consult the software instructions and the Modbus protocol for further information on settings and registers. Connection via Nilan Functional cable 1. Green/white 2. Green 3. -
Page 20: Fire Thermostat / External Fire Automation System
When you connect up an external fire automation system, it will be necessary for the ventilation unit to restart automatically. You can set for this to happen on the control panel. Please consult the software instructions for further information. Connection via Nilan Functional cable 1. Green/white 2. -
Page 21: Em-Box (Damper Solution)
Also connect up Modbus and the fire thermostat/external fire automation system through the Nilan Fire box. You can connect up User selection 2 via S1 and S2 under fire damper connection in the Nilan Fire box. NB! Wiring for 230V supply to EM-box damper not included. -
Page 22: Dtbu Damper Solution
Also connect up Modbus and the fire thermostat/external fire automation system through the Nilan Fire box. You can connect up User selection 2 via S1 and S2 under fire damper connection in the Nilan Fire box. NB! Wiring for 230V supply to DTBU damper not included. -
Page 23: External Connections
External connections When connecting external components, run the wires through the built-in guide tube and directly to the control board. Remove the cover plate so it is easier to see where the guide tube starts. Run the wire to point 4 (See connections overview). Connection through frommet to external connections. -
Page 24: External Pre-Heating Element
External pre-heating element It is possible to purchase an external electric pre-heating element for frost protection of the ventilation unit. The electric preheating element is mounted in the outdoor air duct before the unit with the necessary temperature sensor. Min. 32 cm 1x230V ~ 50 Hz max. -
Page 25: Installation Of Electrical Pre-Heating Element For Integration
Installation of electrical pre-heating element for integration Comfort 252/302 Top is ready for installation of an integral pre-heating element. WARNING The power supply of the ventilation unit must be switched off before you open the doors of the unit. 1. Open the toggle case latch catch on top of the unit (shown 2. - Page 26 7. Make sure the wire is fed into the customized groove so it 8. Carefully move the exchanger back into place and push is below the top edge (shown in the red circle). Otherwise the sensor back into the slat. The sensor from the electrical the exchanger cannot be pushed back in again.
-
Page 27: Installation Of Expansion Pcb On Cts602 Light Circuit Board
5. Connect the wires up in accordance with the wiring diagram. ATTENTION The expansion PCB and the connections must be installed by a certified electrician. The expansion PCB is an accessory for the CTS602 circuit board. Nilan does not supply external components. -
Page 28: Electrical After Heating Element
0-10V Optionsprint Connection at the CTS602 PCB board: Connection on the CTS602 Light board: T7: Temperature sensor (Black) 0-10V (Brown) - GND (Blue) Run the wires along the duct and through a grommet on the unit down to the circuit board. Connect the wires in accordance with the wiring diagram. -
Page 29: Water After Heating Element
Min. 2 x Ø CTS602 Light 0-10V Optionsprint Connection to the CTS602 PCB board: Connection to the CTS602 Light board: Connection of the reg. valve: 0-10V (Orange) - GND (Orange/white) T7: Temp. sensor (Brown) - GND (Brown/white) 0-10V (Grey) B3: Frost protect. (Green) - GND (Green/white) GND (Black) T9: Temp. -
Page 30: Co2 Sensor
sensor If the extent to which a dwelling/building is used varies considerably, you will benefit from installing a CO -sensor to control the air exchange. The CO -sensor measures the CO -level in the extract air. It then regulates the fan speed level accordingly. ATTENTION In order to be able to connect up a CO -sensor, the ventilation unit must have an expansion PCB. -
Page 31: Joint Alarm
Joint alarm It may be difficult to notice alarms if the unit is located in a place where access is difficult or infrequent, and if the control panel is locat- ed in the same place. An external alarm indicator in the form of an electric bulb or an acoustic signal can be connected to the ventilation unit and announce when an alarm occurs. -
Page 32: Plumbing Installation
USEFUL INFORMATION As an accessory, Nilan can supply a water trap with ball. When the water trap dries out, the ball closes it off and ensures that air cannot be drawn into the ventilation unit. When condensate water is formed again, it will lift the ball, and the water will be able to drain away without problems. -
Page 33: Installation Water Trap With Ball
Installation water trap with ball It is important that the water trap complies with the measurements below. If the water trap is placed outside the climate screen, it should be protected against frost. Left model Right model Ø20 mm Ø20 mm Glue the supplied fittings to the existing spout at the bottom of the ventilation unit. -
Page 34: Water After-Heating Element - Duct Installation
1. Water heating element with T9 temperature sensor and frost thermostat B44 2. Actuator and regulation valve Danfoss AME 140/24V 0-10V signal, 2-way valve VZ2 Kv 0.4 (Nilan supply) the Kvs value must be checked against the power supply. Differential pressure: 0.1 - 0.6 bar. -
Page 35: Fire Automatic
It is important to check that wires are not damaged or squeezed during connection and use. Usage Nilan's fire automation system is used to monitor, test and check the fire protection components of the ventilation system: • Fire and smoke damper, and fire thermostat Important functions: •... -
Page 36: Alarm Code
Connect up L1 (brown) in S Green LED for active damper RJ45 connection to Nilan's ventilation unit Alarm code Set an alarm 96 - "Damper test" if a position (open / closed) has not been fulfilled within the maximum moving time of 120 seconds. - Page 37 If the test fails, the display will show "ERROR". The fault must then be rectified. The ventilation unit will shut down as in case of fire. The test must be performed again until "OK" is displayed in the menu. For the overall system, all requirements in DS 428 must be met before a delivery can be made. Manual test of fire and smoke dampers You should checked that all dampers change position physically.
-
Page 38: Schedule For Functional Testing
Schedule for functional testing Date: Comments: Tested by:... -
Page 39: Ventilation Installation
This is to avoid vibrations from the unit being transmitted to the duct system. It will also make it easier to move the unit, which may be necessary during future services of the unit. Nilan can supply Soundflex tubes that you can use as flexible connections between the ventilation unit and the duct system. They will also reduce sounds from the system considerably. -
Page 40: Supply Air
Extract air Install the extract air valves in high-humidity rooms and place them strategically where they can extract humid and vitiated air from the dwelling/building most efficiently. High-humidity rooms are, for example: • Bathroom • Lavatory • Kitchen • Utility room Supply air Install supply air valves in living areas. -
Page 41: Balancing
Balancing Important information ATTENTION To ensure the ventilation system operates optimally, it is important that it is balanced correctly. We recommend that experts do this. It is important to measure the total supply air and the total extract air. The system must have a minimum vacuum, which means it draw out more air than it blows in. -
Page 42: Pressure Loss Diagram
Pressure loss diagram CT250 med Klingenburg GSK 378 mm qv [m3/h]... - Page 44 S L Services 25 St Leonards Road, Horsham RH13 6EH West Sussex Tel: +44 (0) 79 19 44 44 52 Service@nilanuk.com www.nilanuk.com Ireland: Nilan Ireland Ballylahive, Abbeydorney Tel: +353 (0) 87 97 98 361 maurice@nilan.ie www.nilanireland.ei Nilan A/S Nilanvej 2...
