Master Appliance ECOHEAT EC-100 Instruction Manual

Instruction Manual
Please read, understand and keep this manual for future reference.
DESCRIPTION AND INTRODUCTION

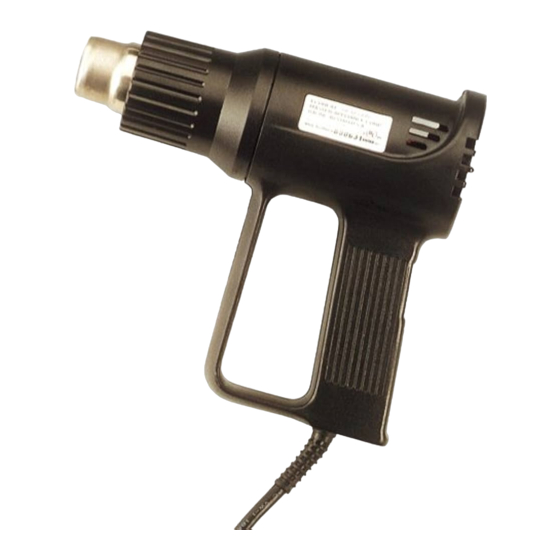

The Ecoheat is an economical, lightweight, multi-use heat gun. Two heat settings — 500° and 1000° F — make it well suited to a wide variety of automo-
tive and commercial applications. Because it weighs 1 lb., it's easy to use for extended periods of time, which cuts down on operator fatigue. When not
in use, the heat gun can be set down in an upright position on its very stable built-in stand.
Important Safety Instructions
Warning: THIS PRODUCT IS A SOURCE OF VERY HIGH TEMPERATURE FLAMELESS HEAT. AS WITH ANY ELECTRICAL TOOL, WHEN USING HEAT
TOOLS, ALWAYS FOLLOW SAFETY PRECAUTIONS TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY.
1. Read and understand this instruction manual before using this
product. Save this manual for future reference.
2. WARNING: To reduce the risk of fire or electric shock, do not expose
heat guns to rain or moisture. Store indoors. Connect to grounded
outlet only.
3. WARNING: This product, when used for soldering and similar applica-
tions, produces chemicals known to the State of California to cause
cancer and birth defects or other reprodcutive harm.
4. Do not use plug adaptors or remove the ground prong from the plug.
This tool is equipped with a 3-prong plug and a 3-wire grounding
system. Connect to properly grounded outlets only.
5. Use heat gun only on adequately rated circuits to avoid overheating
of electrical systems.
6. This heat gun can produce up to 1000°F (540° C) of flameless heat
out of the nozzle. Do not direct this hot air stream at your clothing,
hands or other body parts. Do not use as a hair dryer.
7. Do not touch nozzle until cool. Extreme heat is generated in that area.
Always hold tool by the handle.
8. Do not touch work surface with nozzle. Keep nozzle face at least 1" away.
9. Keep a clean work area. Messy or cluttered work areas invite
accidents or injury.
10. Keep away from children. All visitors should be kept at a safe distance
from the work area. Do not let visitors touch the tool or extension cord.
This datasheet has been downloaded from
EC-100 ECOHEAT
Model EC-100K Heat Gun Kit
same as above EC 100 Heat Gun
plus accessories and carrying case
Accessories in standard kit:
7/8" - 1 1/4" 1 15/16" -
reducer reflector spreader
35225 accessory kit -
all four tips listed above
35215 carrying case
11. Use tool in a well ventilated area. Do not use near flammable liquids
or in an explosive environment (where fumes, gases or dust are present).
12. Remove all highly flammable materials and other debris from the
work area.
13. Wear safety glasses at all times.
14. When using an extention cord, use only a
3-wire grounded cord with a minimum of 14 gauge capacity. We
recommend they be listed by Underwriters Laboratories (UL) in the
U.S.A. or (CSA) Canadian Standards Association in Canada and be
suitable for outdoor use. Cords marked for out door use are also
suitable for indoor use.
15. Don't abuse cordset. Never yank by cord to remove from electical
outlet or carry tool by cord.
16. When not using, place tool on a level sur- face and set heat gun down
in an upright position.
17. Keep a fullly charged fire extinguisher close at hand.
18. Do not leave heat gun unattended while running or cooling down.
19. Stay alert. Do not operate tool when you are tired. Use common
sense and watch what you are doing.
20. Store properly. Do not store while hot. Store in a dry, high or
locked-up location. Keep out of the reach of children.
21. Do not attempt to repair or disassemble this heat gun yourself.
For service information see the Warranty information on the last page
of this manual section.
http://www.digchip.com
HEAT GUN
SPECIFICATIONS
Model EC-100 Heat Gun
2 heat settings, 500° and 1000° F
2 fan speeds: Low & High
Resettable thermostat protection
120 Volts Max., 1200W. Max
Airflow, 9 CFM, 1100 FPM/720 FPM
Size 8 1/4" (L) X 3 1/8" (W) X 7 1/8" (H)
Net weight 1 lb.
UL & CUL listed, 3 wire grounding system
3 1/8" -
spreader
at this page
T M
