Magtek DynaProx Quick Installation Manual page 2

4. Assembly is complete.
Additionally, you can secure the base plate to almost any surface using (2)
additional screws, not included.
Dimensions
Ensure to provide ample space for easy access.
PN Description
21078040 KIT, STAND, COUNTERTOP, DYNAPROX
21078043 DYNAPROX, PCI, BLACK, USB AND RS-232, WITH
STAND
21078044 DYNAPROX, PCI, BCR, BLACK, USB AND RS-232,
WITH STAND
5 4
DynaProx & DynaProx BCR
EMV and NFC Contactless
EMV® is a registered trademark in the U.S. and other countries and an unregistered trademark elsewhere. The EMV trademark is owned by EMVCo, LLC. The Contactless Indicator mark, consisting of four graduating arcs, is a trademark owned by and used with
permission of EMVCo, LLC.
Assembly (continued), Installation, and Disassembly
3
MagTek Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 651-415-6800 | f 562-546-6301 | www.magtek.com
®

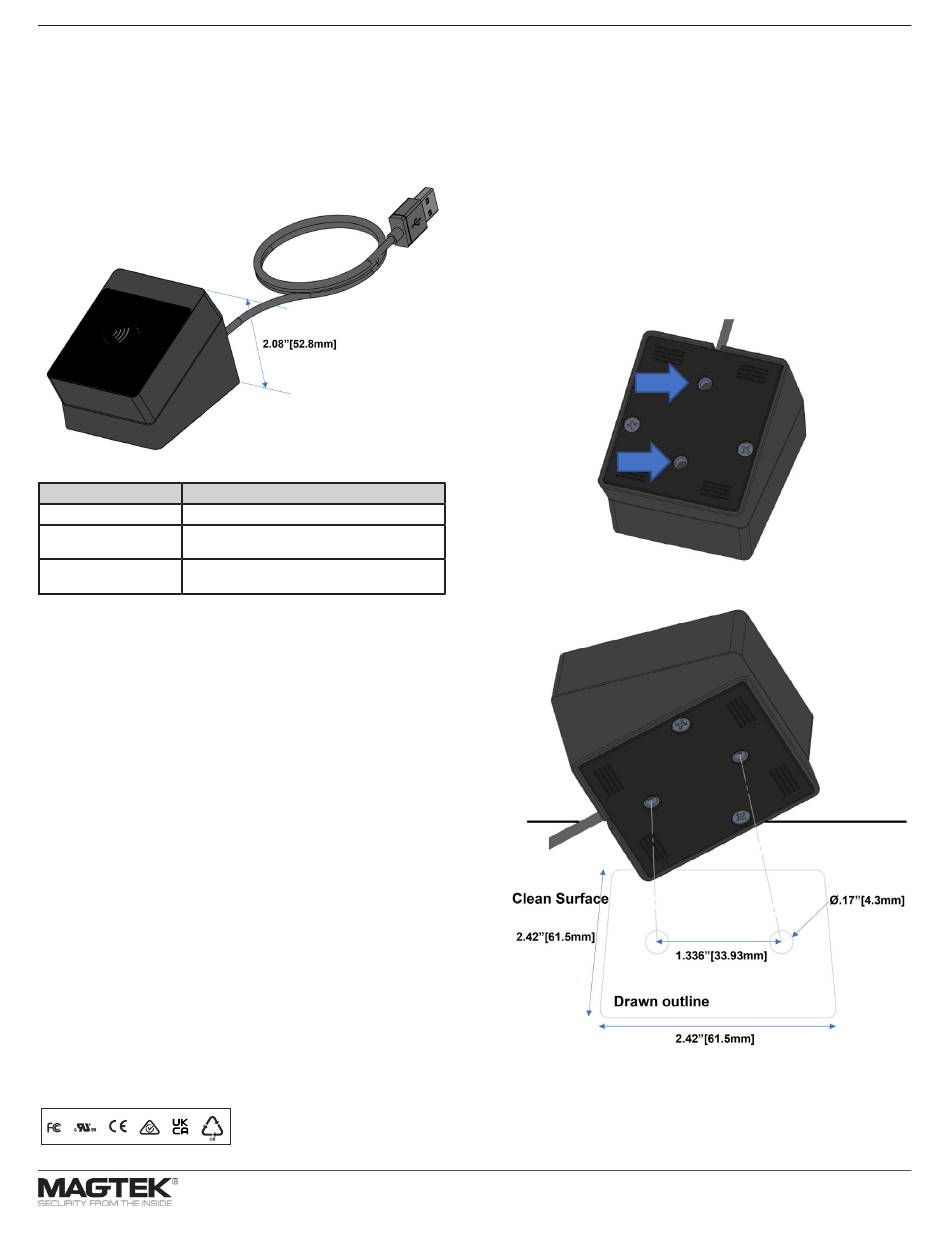

Securing DynaProx Stand to Surface
Follow Steps 1 through 2, then -
a. Place baseplate on the location where you want to secure the device.
Trace the baseplate and mark the two screw set locations (Drawn Outline).
Remove the baseplate and drill down through the surface, checking to make
certain everything is clear beneath.
b. Attach the baseplate to the stand body following step 3. Then align on the
surface to the tracing.
c. Using (2) M4 x 0.7mm thread pitch (not included) screws, screw up
through the pre-drilled holes to the baseplate. Screws should be long
enough to go through the surface and no more than 0.25" into the stand
body.
2 1
Disassembly
Repeat assembly in reverse order to remove device from counter installation
and stand.
MAGTEK: Registered to ISO 9001:2015 © Copyright 2022 MagTek, Inc. PN D998200511 rev. 10 2/22
