2.7

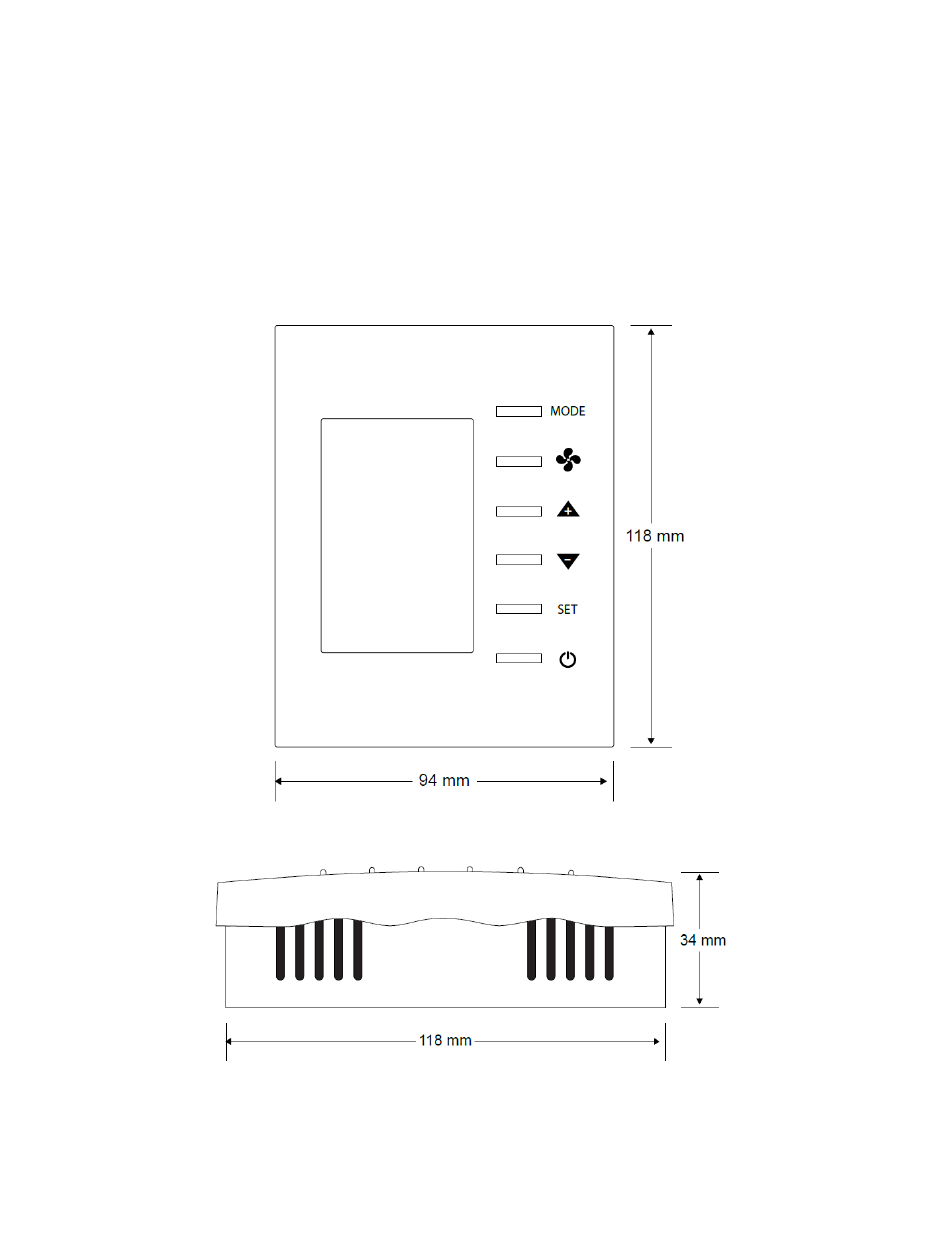

Mechanical (all dimensions are in mm)

Wiring: 14 to 22 AWG wires or 1.5mm

wires

Mounts directly onto wall, panel, standard 65×65mm junction box (hole pitch 60 mm) or

standard 2×4-inch vertical junction box (hole pitch 83.5mm)

Width: 94mm Height: 118mm Depth: 34mm

UM-15090500-AA1

Page 9
