Reset Settings
The BASstat will store configuration in the event of power loss. If configuration fails or the
thermostat needs to be configured to use a different Wi-Fi access point, the thermostat must be
reset and reconfigured. There are 2 reset settings options for the Wi-Fi thermostat:
• Boot will restore Wi-Fi communication parameters to default, but it will maintain
control algorithm settings. Select (boot) engineering menu item and press MODE to
confirm.
• Reset will restore all values to default and can be selected from engineering menu
(rSt).
Foreign Device Registration (FDR)
Communication across IP subnets requires a Broadcast Management Device (BBMD) device or
support for Foreign Device Registration (FDR) feature. The BASstat supports the FDR feature to
register with a remote BBMD which could be a BACnet client or a BMS headend. To
communicate with BACnet clients across subnets, the BAST-221C/CH-BW2 can do FDR
registration with a remote BBMD. The BACnet BBMD feature requires a BACnet device with
BBMD capability, such as a BACnet router or other, to be installed and configured on the network.
BBMD allows discovery of all BACnet/IP devices in the IP subnet instead of just the FDR device.

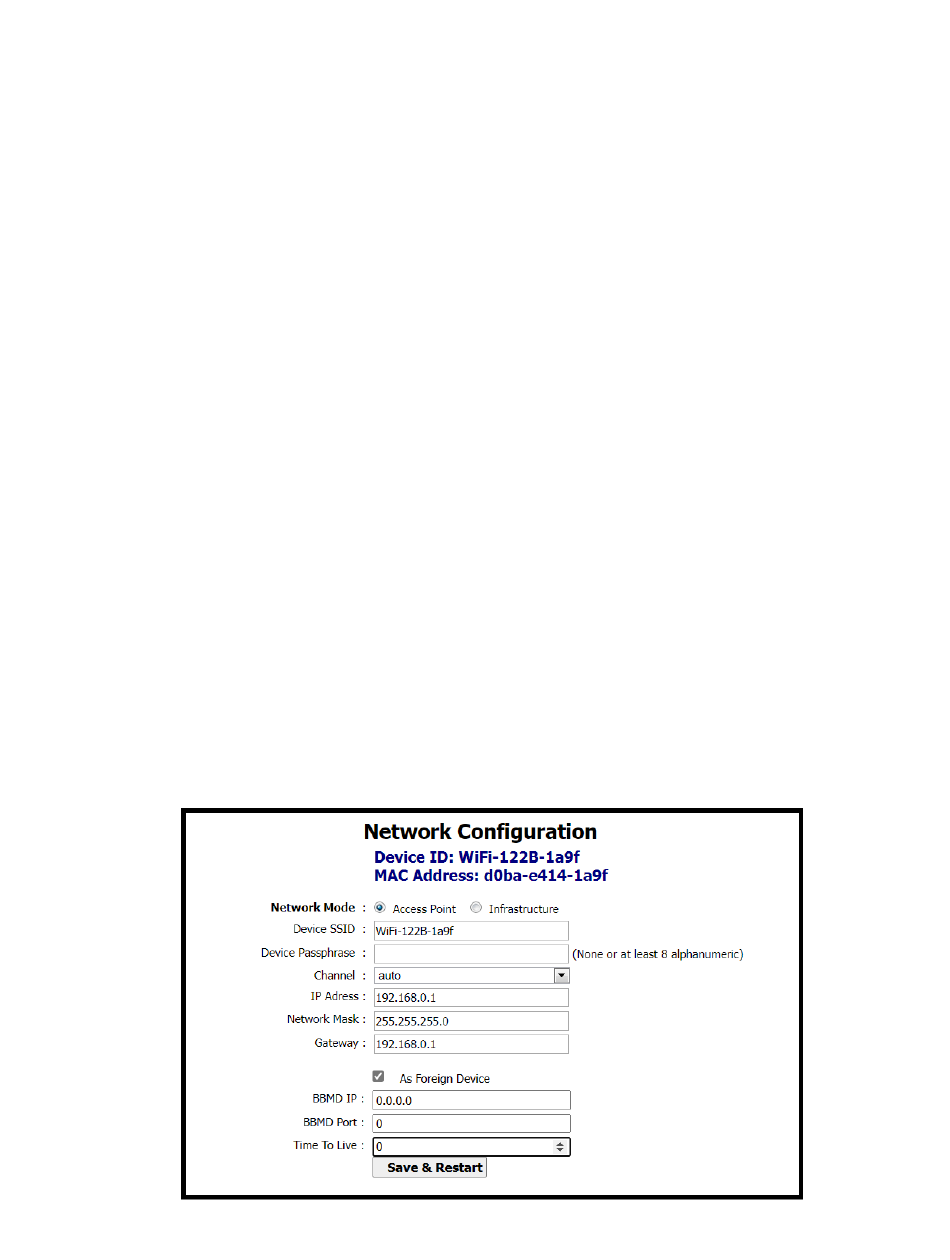

• Select As Foreign Device.
• The BBMD IP is the address of the BBMD device on the remote network. Enter the
address of the BBMD with which the BAST-221C/CH-BW2 will perform Foreign
Device Registration (FDR) if there is no local BBMD device in the same subnet as
the BAST-21C/CH-BW2 providing communication to the remote subnet.
• Enter the UDP port for BBMD.
• Time to Live is the BBMD registration time. Specify the seconds between
successive FDR registrations. Recommended value is 100.
