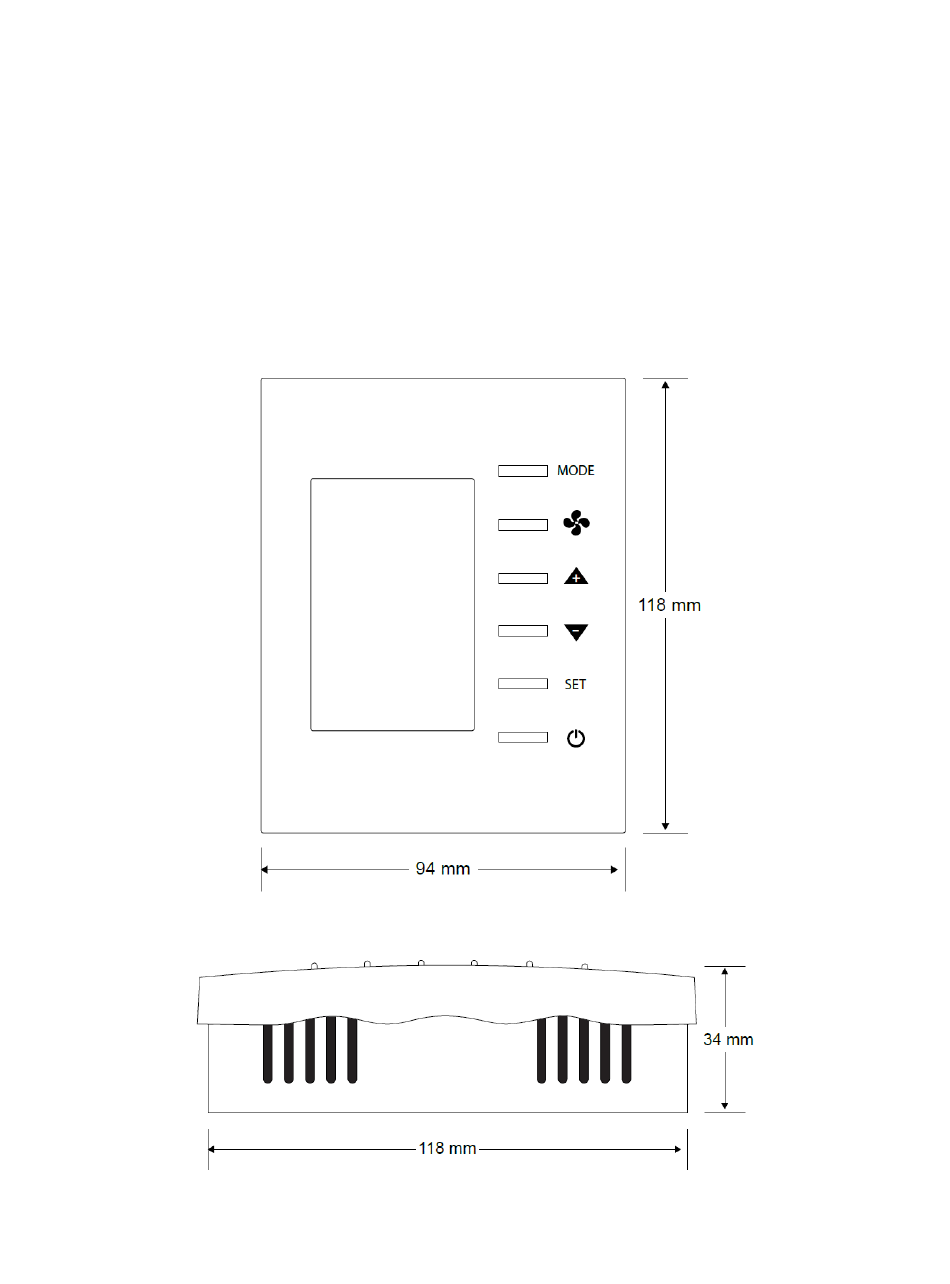

Mechanical (all dimensions are in mm)
2.7
Mounts directly onto wall, panel, standard 65×65mm junction box (hole pitch 60 mm) or
standard 2×4-inch vertical junction box (hole pitch 83.5mm)
Width: 94mm
Height: 118mm
Depth: 34mm
UM-15090000-AA4
Page 9
