5. Off-loading and unpacking instructions

The Hydraloop unit will be transported to your location mounted and strapped onto a HL-Transport plate,
wrapped in protective foil and mounted onto a wooden pallet. When moving the Hydraloop unit it is
important to always keep it in an upright, vertical position. Bringing the Hydraloop unit into a horizontal
position may cause damage to its internal components and seals. It is very important to handle the
Hydraloop with care and to leave the protective foil on until it is placed at its final installation position. After
it is removed from the wooden pallet leave it strapped on the wooden transportation plate and the unit can
be moved with a 2-wheel trolley. Only when it is near its final position then remove the foil and carefully lift
the unit from the plate and place it at its final position.

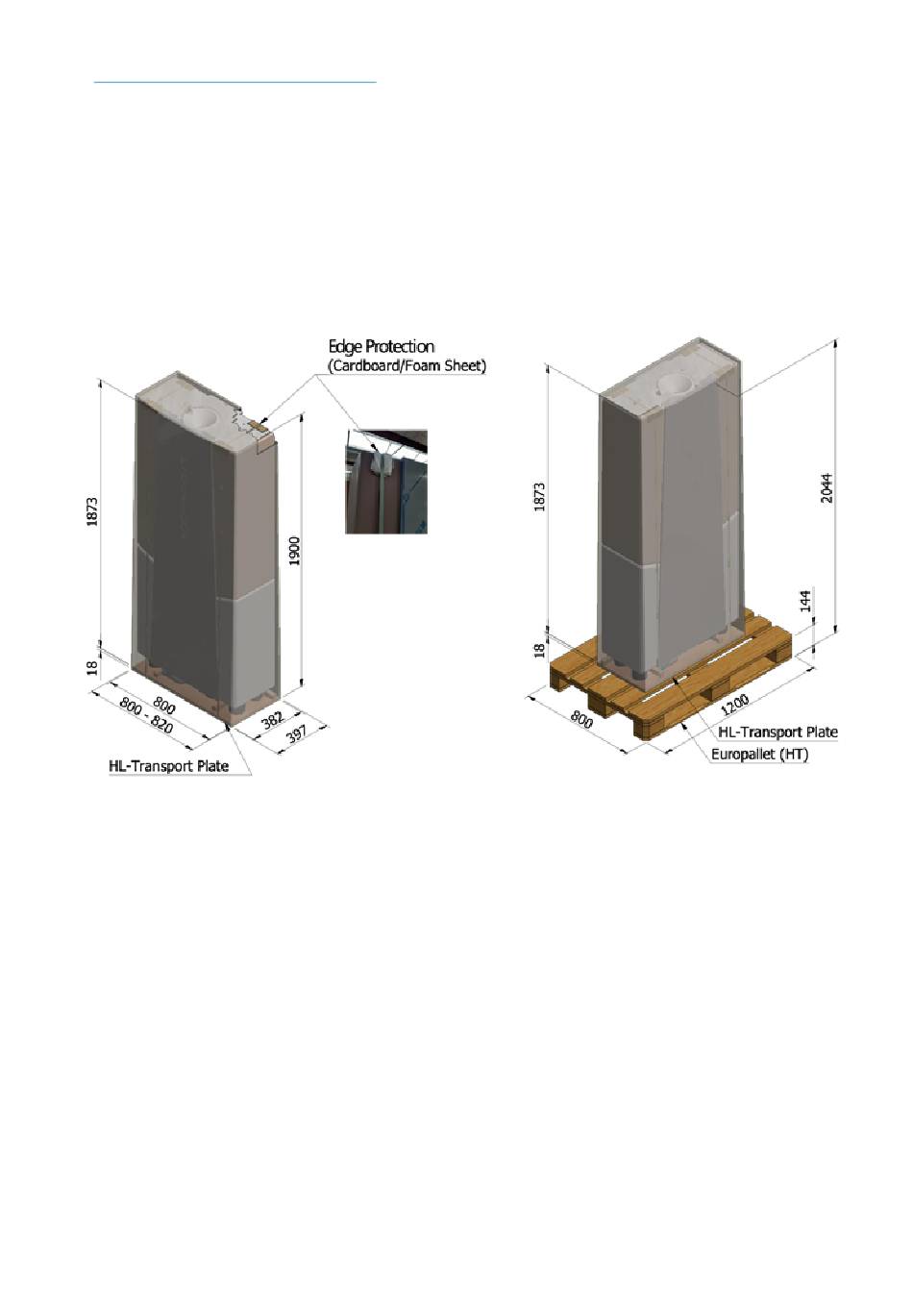

Transportation of Hydraloop H300
1x Hydraloop H300 on HL-transport plate
(Transport upright!)
System individually secured to HL-transport plate with
strapping and packed in bubble- and shrink wrap.
Total dimensions (H x W x L):
190x82x40 [cm] / 74.8x32.3x15.8 [in]
Combined weight approx.:
100 [kg] / 220.5 [lb]
HL-20210202
1x Hydraloop H300 on HL-transport plate + Europallet
(Transport upright!)
System individually secured to HL-transport plate with
strapping and packed in bubble- and shrink wrap. Placed
secured onto Europallet.
Total dimensions (H x W x L):
205x80x120 [cm] / 80.7x31.5x47.2 [in]
Combined weight approx.:
125 [kg] / 275.6 [lb]
Hydraloop Installation Manual 7
