Summary of Contents for HYDRALOOP H350

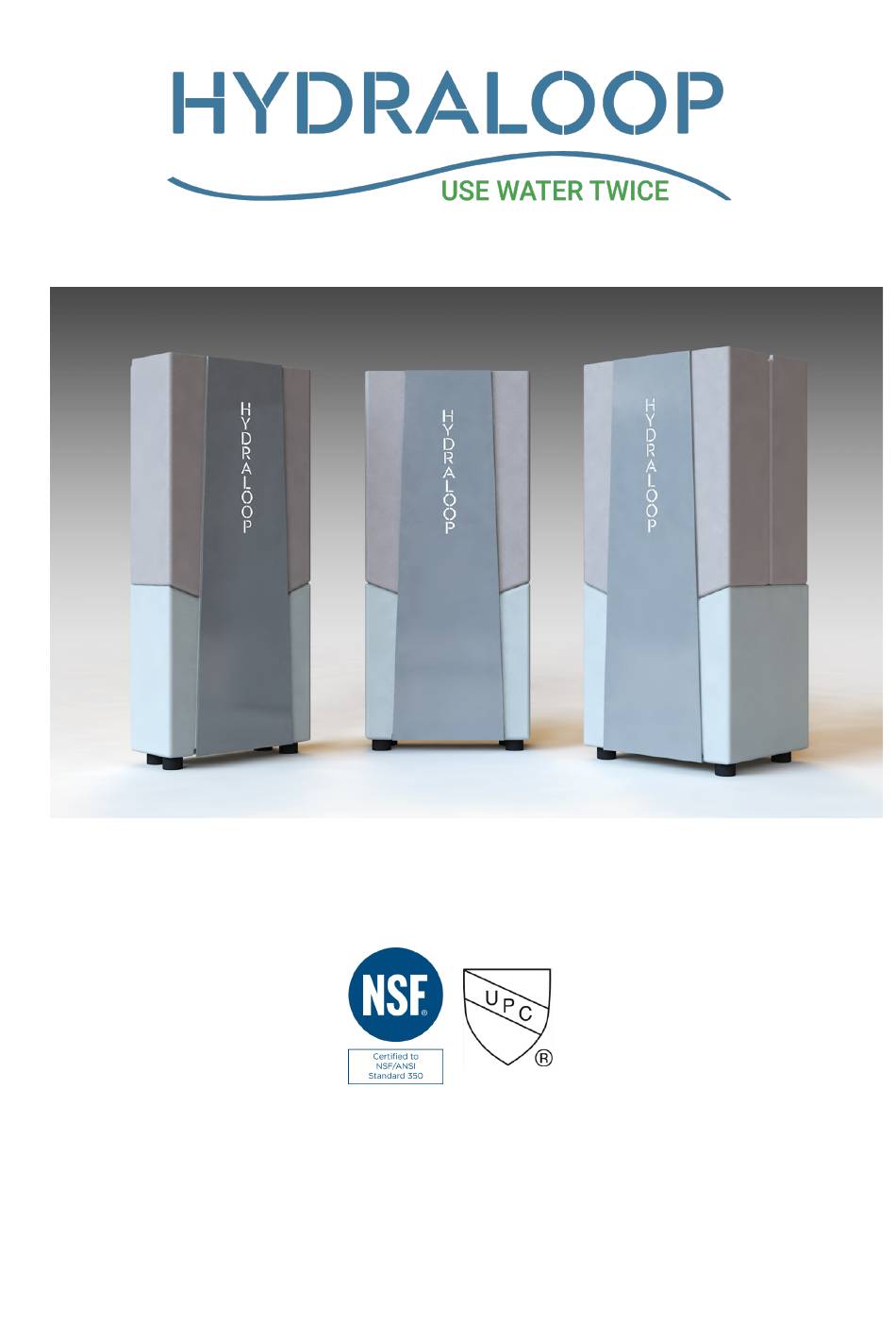

- Page 1 Hydraloop H350, H300 & H600 Owner Manual Original Instructions Hydraloop H350/H300 is certified by IAPMO R&T against NSF/ANSI 350.
- Page 2 Dear customer, Thank you for purchasing this Hydraloop unit. Read this manual before using the product and keep it in a safe place for future reference. To ensure safe and proper operation, we recommend regular maintenance of the product. Our service and customer service organization can help with this.
-
Page 3: Table Of Contents
System malfunction ................................. 8 10. Explanation visual alarm light and audible alarm ...................... 8 11. Maintenance ..................................9 12. FAQs ....................................9 13. Limitations ..................................13 14. Warranty ................................... 14 15. Specifications & Data Plate ............................14 HL-20220107 Hydraloop Owner Manual... -
Page 4: Safety
The Hydraloop unit should always be easily accessible for service and maintenance ATTENTION The Hydraloop unit should only be moved or transported in an upright, vertical position. ATTENTION Never use greywater from kitchen sinks or dishwashing machines as input water to the Hydraloop unit. -
Page 5: Responsibility And Liability
Inadequate or insufficient maintenance of the device. 1.3.2 Installer The installer is responsible for the installation and initial commissioning of the Hydraloop unit device. The Hydraloop unit device should always be installed according to the local legislation and standards. Perform initial commissioning and necessary checks. -
Page 6: Introduction
Hydraloop. * Product availability may vary by state or country. It is not allowed to feed the Hydraloop unit with water from hand basins, dishwashers, kitchen sink or floor drains. 4. Design, construction & components The Hydraloop unit is a turnkey water recycling product. The Hydraloop unit is a pre-assembled product that... -
Page 7: Installation Principle
5. Installation principle The installation and commissioning of the Hydraloop unit can only be carried out by approved installers who have been trained by Hydraloop Systems B.V. The image below shows an overview of the installation principle. (Use this image for reference). -
Page 8: Startup Time
Hydraloop unit switched on and never disconnect the Hydraloop unit when leaving the house for some weeks up to one month. If the Hydraloop unit does not detect any incoming or outgoing water flow for a period of 72 hours, it assumes there is no occupancy of the house and activates the purge valve to empty the lower recycled water storage tank until 15 lit|3.5 gal is left in the storage tank. -
Page 9: Maintenance
In case of a water distribution pump failure, it can happen that water distribution to the users is blocked or limited If you need assistance, call your Hydraloop dealer or contact Hydraloop technical support via email support@hydraloop.com or phone on number: +31 88 100 3500 (EU) | +1 414 89 500 21 (USA) 11. Maintenance We recommend a check performed by a Hydraloop accredited installer once every two years. - Page 10 To transfer surplus recycled water into the rainwater tank Can I collect rainwater, and have it treated No, the tank size of each Hydraloop unit is designed for a daily input of by Hydraloop? shower water. Rainwater comes in large volumes and storage capacity of the Hydraloop tanks are not designed for these volumes.
- Page 11 Hydraloop water is available, the system automatically starts to supply this recycled water again. What happens when I go away for a few days? If no water comes in or leaves the Hydraloop for more 72 hours, the Hydraloop system will automatically switch to ‘holiday mode’. If you start using water again, the system automatically returns back into operation.
- Page 12 540 liters. What is the tank capacity of a Hydraloop H600? Each Hydraloop unit has three tanks. The upper two tanks, where the cleaning process takes place, has a capacity of 360 liters (95 gallons).
-
Page 13: Limitations
Hydraloop’s biological treatment system and may also affect its seals. If this happens by accident, you have to set the Hydraloop unit to backup water with the smartphone App and contact your installer. We recommend using environmentally friendly cleaning products. If using more regular cleaning products, please check they do not contain bleach. -
Page 14: Warranty
Product warranty will be void if greywater from other sources such as the kitchen / bathroom sinks, or dishwasher water is fed to the Hydraloop unit. Hydraloop units equipped with the optional washing machine water recycle option can also recycle about 50% of the washing machine water. - Page 15 Data Plate / Service Label: The Hydraloop unit has a permanent data plate attached on the top of the unit that should look like the example below. HL-20220107 Hydraloop Owner Manual...
- Page 16 This document and its contents are the sole property of Hydraloop Systems B.V. and must not be copied to a third party either in part or whole without prior written consent of Hydraloop Systems B.V. Hydraloop reserves the right to change the specifications stated in this document.
