Summary of Contents for HYDRALOOP H150

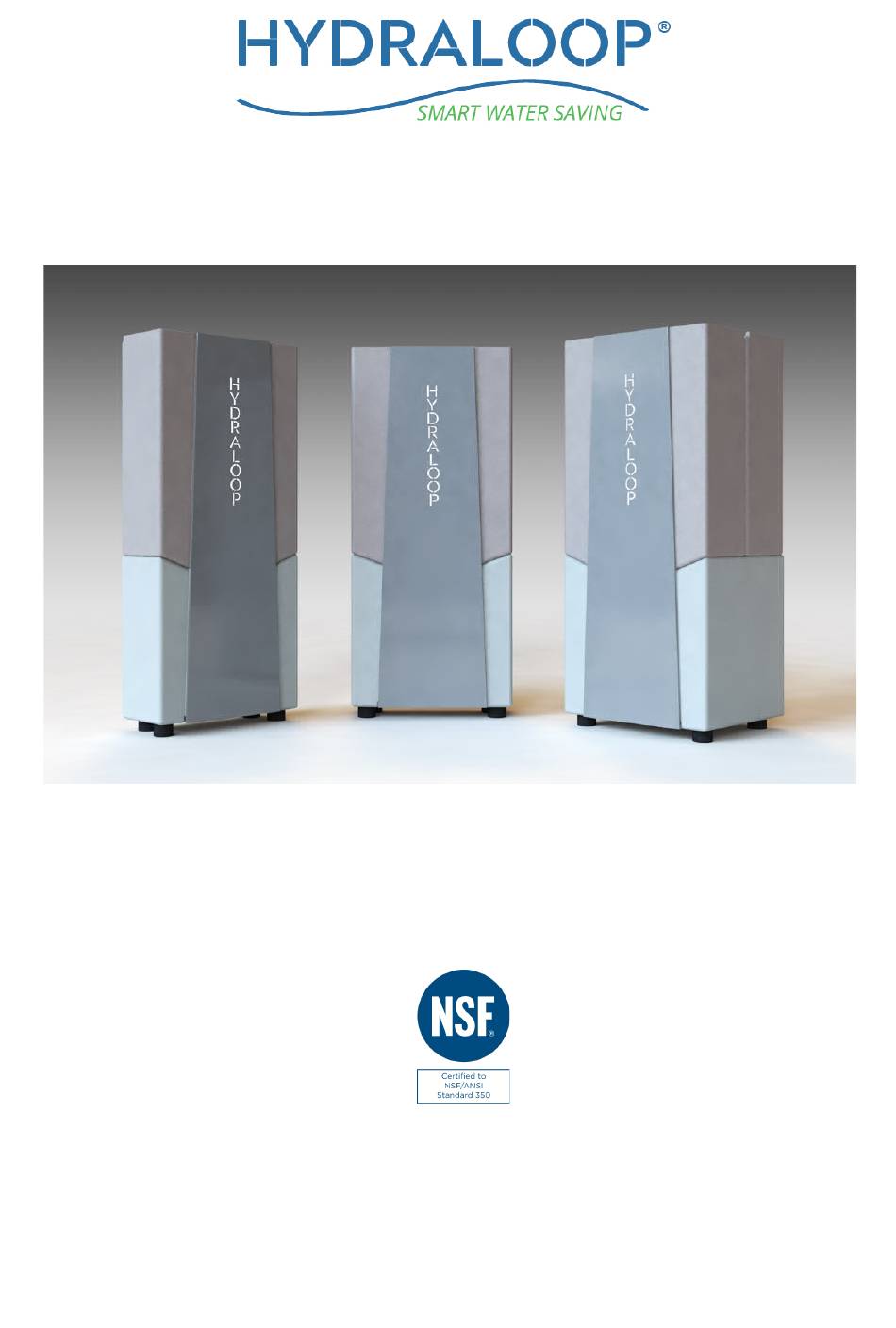

- Page 1 Hydraloop H350, H300 & H600 Installation manual...
- Page 2 Dear customer, Thank you for purchasing this Hydraloop device. Read this manual before using the product and keep it in a safe place for future reference. To ensure safe and proper operation, we recommend regular maintenance of the product. Our Service and customer service organization can help with this.
-
Page 3: Table Of Contents
Using a lift pump ............................ 11 Water in/outlets ............................12 Hydraloop wastewater outlet installation ..................... 13 Commissioning & Initial startup of the Hydraloop unit ................. 14 Startup time ..............................16 Potable water backup & backflow prevention ....................16 10. Plumbing backup facility ..........................17 11. -
Page 4: Safety
The Hydraloop should only be moved or transported in an upright, vertical position. ATTENTION Never use greywater from kitchen sinks, dishwashing machines or laundry machines as input water to the Hydraloop. Only use water from shower, bath, or air conditioning units. HL-20210202... -
Page 5: Responsibility And Liability
1.3 Responsibility and Liability 1.3.1 Manufacturer Hydraloop warrants the proper working of the system according to its general sales conditions. As a manufacturer, Hydraloop is not liable in the following cases: Failure to follow the instructions for installation and maintenance of the Hydraloop. -
Page 6: Introduction
+ 50% of the laundry water can be recycled by the Hydraloop. * Product availability may vary by state or country. It is not allowed to feed the Hydraloop unit with water from hand basins, dishwashers, kitchen sink or floor drains. -
Page 7: Off-Loading And Unpacking Instructions
It is very important to handle the Hydraloop with care and to leave the protective foil on until it is placed at its final installation position. After it is removed from the wooden pallet leave it strapped on the wooden transportation plate and the unit can be moved with a 2-wheel trolley. -
Page 8: Installation
With the laundry machine recycle option installed, the wastewater tube from the laundry machine needs to be fed into the inlet of the Hydraloop system via a sanitary lift pump with a built-in overflow. The power cord of the sanitary lift pump should be connected to the Hydraloop system so... -
Page 9: Installation Considerations
Note; The plumbing connections for greywater and backup water inlets and recycled water outlets and Hydraloop wastewater outlet can be installed concealed in the floor, under the floor or mounted on the floor & wall behind the Hydraloop unit. An example of concealed connections can be seen in the left images below. -
Page 10: Installation Preparation
6.2 Installation preparation We strongly recommend - in case of new build - not to place, connect and commission the Hydraloop unit during the building process but only after the house is fully ready and all works are finished. At all times avoid that building dirt, chemicals or sand can enter into the Hydraloop unit as it will cause damage. -
Page 11: Hydraloop Greywater Inlet Installation
6.6 Using a lift pump If the Hydraloop unit is on the same or higher floor as the shower/bath or laundry machine an appropriate lift pump has to be installed to pump the greywater from the source up into the Hydraloop system. -
Page 12: Water In/Outlets
6.7 Water in/outlets The Hydraloop can feed multiple toilets. A second Hydraloop outflow valve feeds the laundry machine. The Hydraloop unit can have optionally a third valve-controlled water output which can supply recycled water to the garden or pool. Note that this outlet will not be permanently pressurized, unlike the other water outlets. -
Page 13: Hydraloop Wastewater Outlet Installation
6.8 Hydraloop wastewater outlet installation The 40mm|1.5" wastewater drainpipe below the Hydraloop unit has to be connected to the sewer with PVC eccentric adapter ring or *rubber reducing sleeve trough the floor (first image) or backwards to the wall (second image) -
Page 14: Commissioning & Initial Startup Of The Hydraloop Unit
The Hydraloop unit will now only supply backup water to the house because at this stage the Hydraloop unit is not yet activated for recycling. The LED light on the front plate will be green. You can now check all connections to and from the Hydraloop unit for leaks. - Page 15 Note: Check the Hydraloop unit for water leaks during the test routine. If you need assistance call your Hydraloop dealer or contact Hydraloop technical support via email support@hydraloop.com or phone on number: +31 88 100 3500 (EU) | +1 414 89 500 21 (USA) HL-20210202...
-
Page 16: Startup Time
(potable or rainwater). As soon as new recycled water is available the Hydraloop unit will automatically switch to supply recycled water. The Hydraloop unit is connected to its backup water supply via an air gap to protect the tap water against back flow or cross contamination. Additionally, a non-return valve is mounted on the point of incoming backup water. -
Page 17: Plumbing Backup Facility
Hydraloop server through the WiFi internet connection. In the unlikely event a component fails - for example the UV lamp - the Hydraloop unit will automatically switch to its backup water and everything in-house will function as usual, but no recycled water will be distributed as a precaution. The... -
Page 18: Explanation Visual Alarm Light And Audible Alarm
12. Explanation visual alarm light and audible alarm If one of the below mentioned alarms are activated, the Hydraloop unit will stop offering recycled water and will offer backup water unless in case of Water distribution pump failure. High water alarm: Audible alarm 2 beeps every minute, visual alarm 2 light pulses every minute... -
Page 19: Specifications & Data Plate
Certified to NSF/ANSI Standard 350 Noise level: + 44 dB Data Plate / Service Label: The Hydraloop unit has a permanent data plate attached on the top of the unit that should look like the example below. HL-20210202 Hydraloop Installation Manual... - Page 20 This document and its contents are the sole property of Hydraloop Systems B.V. and must not be copied to a third party either in part or whole without prior written consent of Hydraloop Systems B.V. Hydraloop reserves the right to change the specifications stated in this document.
