6.2 Installation preparation

We strongly recommend - in case of new build - not to place, connect and commission the Hydraloop unit
during the building process but only after the house is fully ready and all works are finished. At all times
avoid that building dirt, chemicals or sand can enter into the Hydraloop unit as it will cause damage.

6.3 Front plate removal

Remove the stainless-steel front plate, using a lever, on the lower side of the front plate to carefully lift the
stainless plate up. The plate is holding its position due to its shape so once it comes upwards it will be free
to remove. Perform with care.

6.4 Hydraloop wall mounting instructions

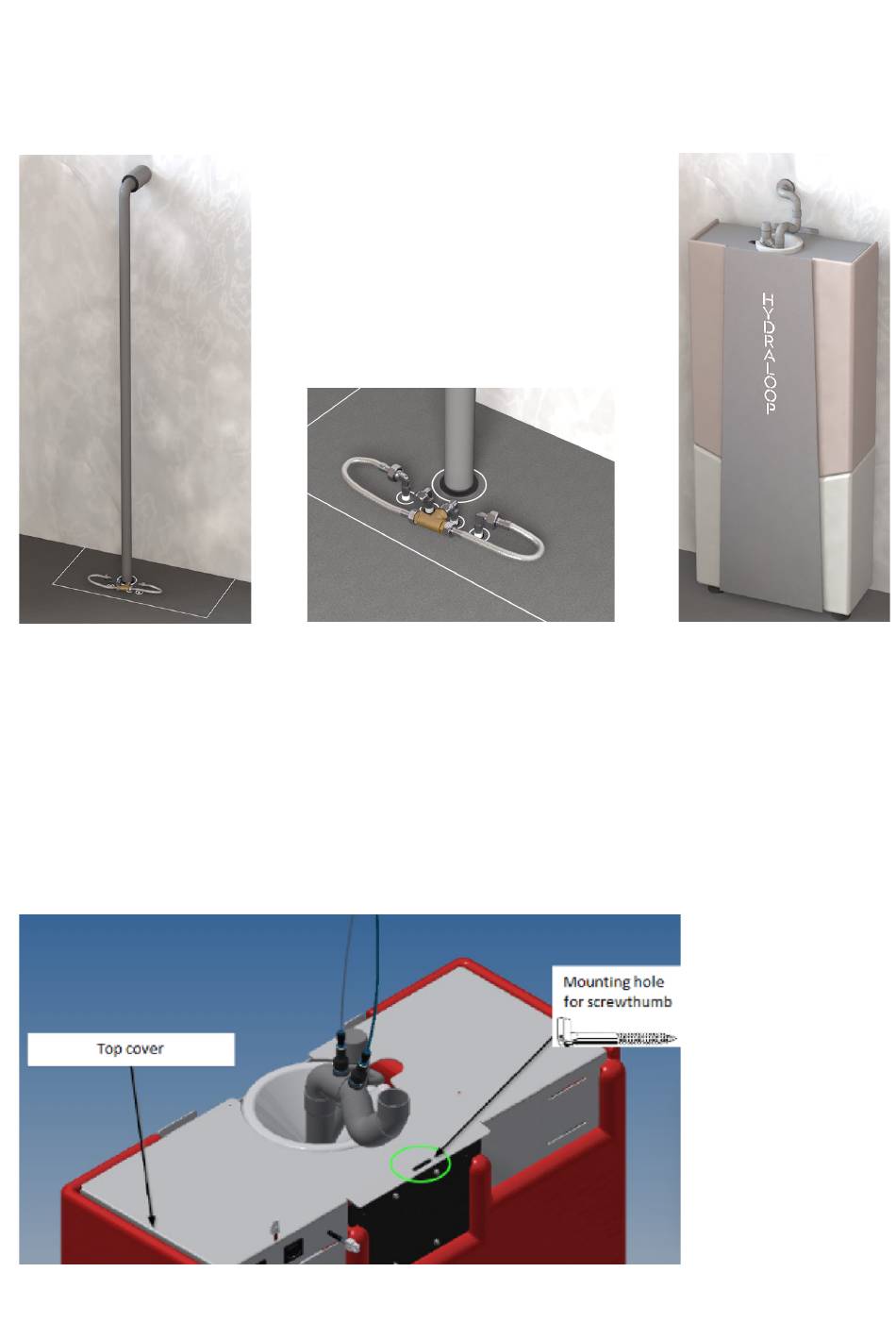

Hook the mounting hole of the Hydraloop top plate onto the screw thumb, which you should plug into the
wall, so the Hydraloop is fixed to the wall and protected against falling over.
HL-20210202
A temporary bridge connection can be installed
so that backup water (freshwater or rainwater)
can serve the toilets and laundry machine and
greywater from showers flows direct to the
sewer until the Hydraloop unit is installed. More
information regarding installation preparation
can be found in our FACT SHEET "Have your
building Recycle Ready" .
