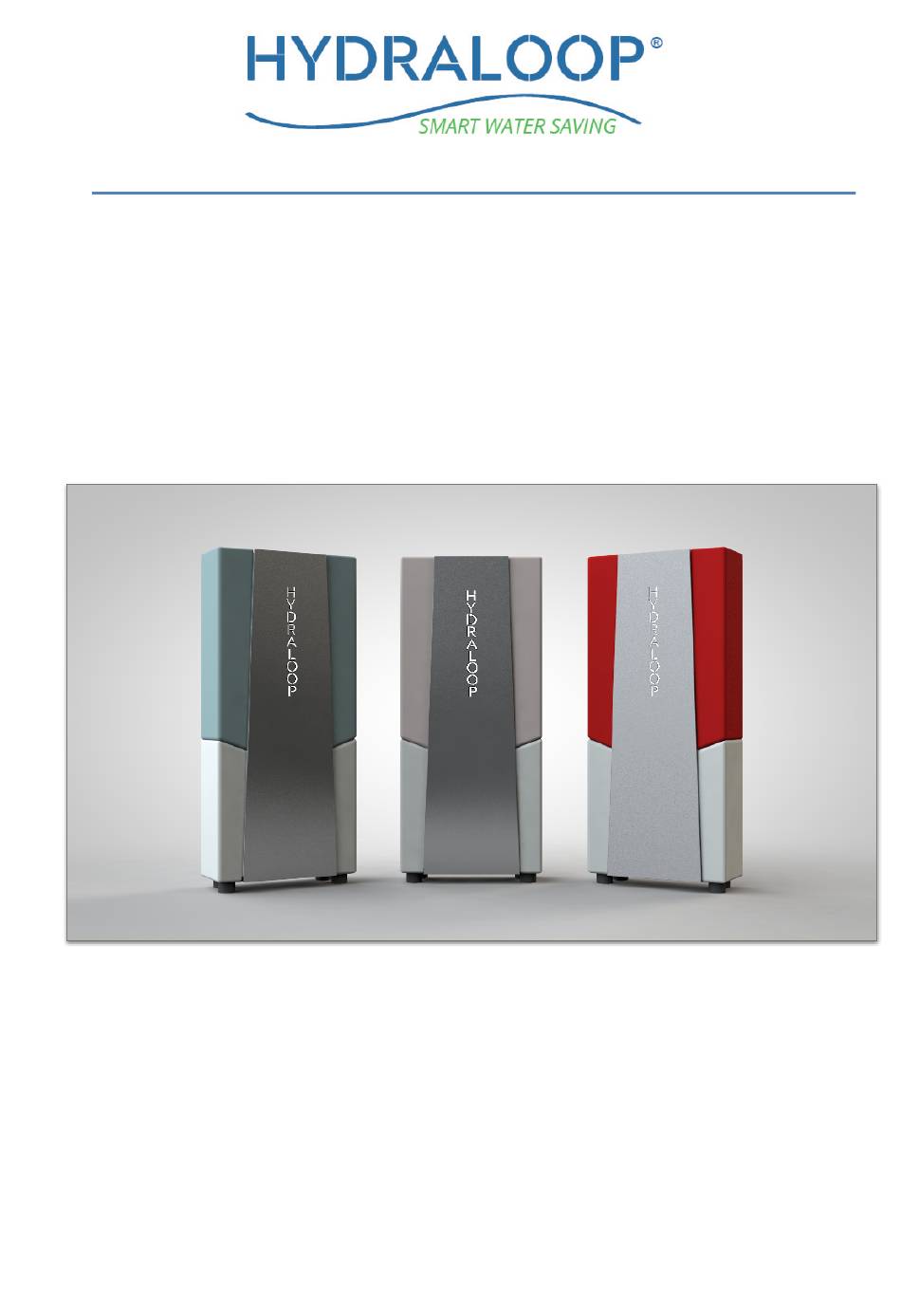

  • Page 1 Hydraloop Home, Garden & Pool User & installation manual Hydraloop User & Installation Manual V3.5 2020...

  • Page 2: Table Of Contents

    1. Introduction 2. Product definition 3. Transportation 4. Installation considerations 5. Plumbing 6. Initial starting up of Hydraloop unit 7. Period of ‘non activity’ 8. Electric power cut 9. Mains water backup 10. System malfunction 11. Explanation of LED lighting 12.

  • Page 3: Introduction

    • Shower and bath water entering the Hydraloop unit still has a temperature of + 32 degrees C. The Hydraloop unit radiates the remainder of this warmth until it ia reduced to ambient temperature.

  • Page 4: Product Definition

    Hydraloop unit via its own sanitary liftpump * Patents pending Greywater from bath and shower enters the Hydraloop unit via gravity or via a sanitary liftpump* if the unit is based on the same level as the bathroom. The distribution centre of the Hydraloop unit pumps its recycled water to multiple toilets.

  • Page 5: Transportation

    We strongly recommend - in case of new build - not to install and start up the Hydraloop unit during the building process but only after the house is fully ready and all works are finished. At all times please avoid that building dirt, chemicals or sand can enter into the Hydraloop unit as it will damage the Hydraloop unit.
  • Page 6 If the washing machine is placed on the same floor as the Hydraloop but in another room, the lift pump can be installed close to the washing machine and the greywater is lifted up, and from there flows into the Hydraloop unit.

  • Page 7: Plumbing

    Overview of Hydraloop plumbing options (see drawing on next page) • A. Greywater flows by gravity from shower & bath on 1st floor to the Hydraloop unit on the ground floor.
  • Page 8 Hydraloop User & Installation Manual V3.5 2020...
  • Page 9 Hydraloop User & Installation Manual V3.5 2020...
  • Page 10 Hydraloop is secured. Hydraloop waste water system installation Hydraloop Inlet Scheme & Incoming Water Sensor 1. Place the blue sealing ring first in the top lid infeed channel 2. Install the infeed tube system into the sealing ring with a minimal amount of grease (Vaseline) applied on the Y-tube end 3.
  • Page 11 75m adapter ring in combination with a 50/40mm reducing rubber sealing sleeve (not delivered with the Hydraloop system). The bend at the end of the Hydraloop Drain System is inserted into the rubber sealing sleeve.
  • Page 12 Watts Ocean NN non return valve art number 2300151165 is fixed between the float valve and the flexible tube that is connected to the mains water supply. If not installed the mains water connection does not comply with the Kiwa certification. Hydraloop User & Installation Manual V3.5 2020...
  • Page 13 Waste water to sewer 40mm connection to sewer Sewer connection 85 to 50mm with rubber manchet underneath the Hydraloop system (see drawing) or behind the Hydraloop system into the floor or wall Recycled water to toilet 1/2 inch male thread prepare plumbing underneath or behind Hydraloop system.
  • Page 14 Installation / drill template The drawing below can be used to prepare an installation /drilling template so the the plumbing connections can be prepared and checked before the Hydraloop unit arrives and will be placed and installed. Hydraloop User & Installation Manual...
  • Page 15 Hydraloop User & Installation Manual V3.5 2020...

  • Page 16: Initial Starting Up Of Hydraloop Unit

    Hydraloop system, or press ‘scan barcode’ and scan the bar code that is visible on the same sticker that is attached on the top of the Hydraloop unit.
  • Page 17 It is necessary to do a testroutine to check for possible damage caused by transportation of the unit. Open the Hydraloop front plate by shifting it up, you need a lager tool to make a lever to shift the front plate from the floor up and then you can remove it upwards.

  • Page 18: Period Of 'Non Activity

    7. Period of ‘non activity’ If the Hydraloop unit does not detect any incoming or outgoing water flow for a period of 72 hours, it assumes there is no occupancy of the house and activates the purge valve to empty the recycled water storage tank until + 15 liters is left in the tank.

  • Page 19: System Malfunction

    The Hydraloop is a very reliable system and all critical components are monitored continuously within the Hydraloop server. In the unlikely event a component fails - for example the UV lamp - the Hydraloop unit will automatically switch to mains water and everything in-house will function as usual, but no recycled water will be available as a precaution.
  • Page 20 Hydraloop unit ready again for another load of washing. Please note that if you wish to do another load of washing after this, you should wait a few minutes so the Hydraloop unit is reset. With the smart phone App you can end the washing machine mode manually. We advise to do 1 load of washing per day, to optimize using recycled water.

  • Page 21: Warranty

    12. Warranty Hydraloop Systems B.V. provides a 5-year warranty starting on the delivery date on all non-wearing parts, and a 2-year warranty on all other parts except the UV bulb. 13. FAQs. How does the Hydraloop unit treat the greywater? The Hydraloop unit uses a unique patented water cleaning and disinfection technology.
  • Page 22 Hydraloop system with automatically switch back to provide recycled water. What happens whilst I am on holiday? In case the Hydraloop system detects no activity in the house it will switch over to ‘standby mode’. When activity is detected again the system automatically returns into normal operation.

  • Page 23: Limitations

    Can I use a water softener? There is no problem using a water softener if you have a Hydraloop unit installed, however you have to reduce the amount of soap you use in the shower and washing machine with +75%.

  • Page 24: Certification

    Doing so may damage the functioning of Hydraloop’s biological treatment system and may also effect its seals. If this happens by accident, you have to set the Hydraloop to mains water with the smartphone App and contact your installer. We recommend using environmental friendly cleaning products, but at least cleaning products without bleach.
  • Page 25 Agora 4 2280 AB RIJSWIJK 8934 CJ LEEUWARDEN The Netherlands Tel. +31 88 1003500 Tel. +31 88 998 44 00 info@h draloop.com Fa +31 88 998 44 20 .h draloop.com info@ki a.nl .ki a.nl Hydraloop User & Installation Manual V3.5 2020...

  • Page 26: Specifications

    Hydraloop Home with washing machine recycle option greywater from shower & bath into Hydraloop unit washing machine waste water (as of third cycle) fed into Hydraloop unit via its own liftpump 2 outlets: Hydraloop recycled water from Hydraloop unit to toilets...
  • Page 27 Hydraloop recycled water from Hydraloop unit to toilets Hydraloop recycled water from Hydraloop unit to washing machine Hydraloop recycled water from Hydraloop unit to garden water tank or pool mains water to Hydraloop unit for backup Hydraloop waste water and over flow to sewage Hydraloop User &...
  • Page 28 This document and its contents are the sole property of Hydraloop Systems B.V. and must not be copied to a third party either in part or whole without prior written consent of Hydraloop Systems B.V. This document has been produced by: Hydraloop Systems B.V.
