HIKVISION DS-KD9403-E6 Quick Start Manual

Face Recognition Door Station
Quick Start Guide
2022 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to firmware updates or other
reasons. Please find the latest version of this Manual at the Hikvision website (https://
www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in supporting the
Product.
Trademarks
and other Hikvision's trademarks and logos are the properties of Hikvision in various
jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND
"WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A
PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT
WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT
DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION,
WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT
LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS,
AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY
LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS
INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT
RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF
HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.
Data Protec�on
During the use of device, personal data will be collected, stored and processed. To protect data,
the development of Hikvision devices incorporates privacy by design principles. For example, for
device with facial recogni�on features, biometrics data is stored in your device with encryp�on
method; for fingerprint device, only fingerprint template will be saved, which is impossible to
reconstruct a fingerprint image.
As data controller, you are advised to collect, store, process and transfer data in accordance with
the applicable data protec�on laws and regula�ons, including without limita�on, conduc�ng
security controls to safeguard personal data, such as, implemen�ng reasonable administra�ve and
physical security controls, conduct periodic reviews and assessments of the effec�veness of your
security controls.
Scan the QR code to get the user manual for detailed informa�on.
Product Model
Face Recognition
DS-KD9403-E6
Door Station

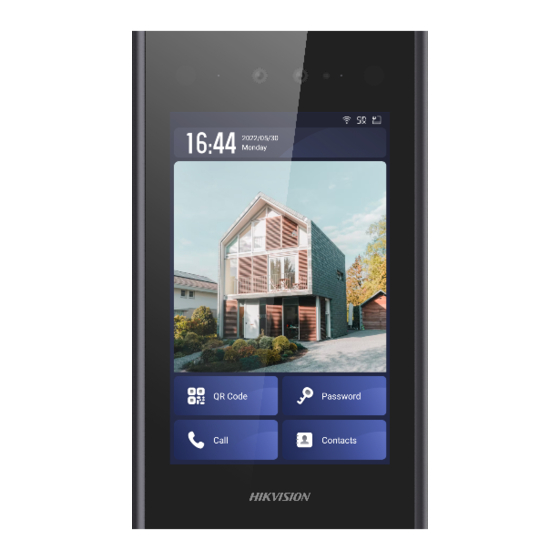

Appearance
1
Microphone Camera Ambient Light Sensor
UD27979B
Installation
3
Mounting Plate
The dimension of the mounting plate is 233
mm (W) × 112.4 mm (H) × 21 mm (D).
80
60
112.4
Wiring Terminal
IR Supplement
Light
TAMPER
Loudspeaker
Gang Box
The dimension of the gang box is 236.9 mm (H) ×
128.4 mm (W) × 40.8 mm (D).
The installation hole should be bigger than the actual
size. The suggested dimension of the installation hole
is 237.5 mm (H) × 128.9 mm (W) × 41.3 mm (D).
4
60
2
21
128.4
Unit:mm
2 Wiring
Type-A Interface
RJ45 (Reserved)
Network Interface
TF Card Slot
Debugging Port
microUSB Interface
Before you begin:
1. Accessories that you need to prepare for installation are in the package.
2. Make sure the power supply meet the power requirements of the door station (12 VDC, 2 A).
3. Make sure all the related equipment is power-off during the installation.
4. Wire the cables during installation.
Surface Mounting
3
Set Screw Door Station Screws Mounting Plate
Paste the mounting template on the wall according to the installation
1
requirements. Drill holes acording to the template. Insert the expansion
bolts into the screw holes.
2 Fix the mounting plate to the wall with 4 supplied screws.
Fix the device to the mounting plate and fix the device with the set
3
screws.
Do not touch the TF card slot and other devices during the process of plugging in and unplugging
40.8
the power interface.
Apply Silicone sealant among the joints between the device and the wall (except the lower side) to
Unit:mm
keep the raindrop from entering.
DC 12V IN
Red
GND
Black
Yellow/Red AIN1
AIN2
Yellow/White
Yellow/Blue AIN3
AIN4
Yellow/Green
GND
Blue/Black
Yellow 485A+
485A-
Blue
Green 485B+
485B-
White
Yellow/Black GND
Brown AO1+
Gray
AO1-
Orange AO2+
AO2-
Purple
White/Blue NC1
COM1
White/Green
NO1
White/Red
Gray/Blue AUI
Gray/Green AUO
GND
Black
1
2
Mounting Template Wall
