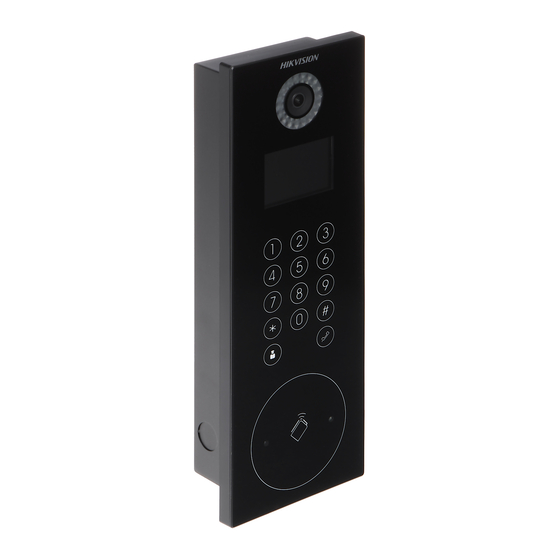

HIKVISION DS-KD8002-VM User Manual

Video intercom door station d series
Hide thumbs Also See for DS-KD8002-VM:
Table of Contents

Advertisement

Quick Links

Video Intercom
Door Station (D Series)
User Manual
UD.6L0206D1098A01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-KD8002-VM and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-KD8002-VM

Summary of Contents for HIKVISION DS-KD8002-VM

  • Page 1 Video Intercom Door Station (D Series) User Manual UD.6L0206D1098A01...
  • Page 2 Trademarks and other Hikvision marks are the property of Hikvision and are registered trademarks or the subject of applications for the same by Hikvision and/or its affiliates. Other trademarks mentioned in this manual are the properties of their respective owners. No right of license is given to use such trademarks without express permission.
  • Page 3 Video Intercom Door Station·User Manual SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY OR CERTAIN DAMAGES, SO SOME OR ALL OF THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. Support Should you have any questions, please do not hesitate to contact your local dealer. 0103001060116...

  • Page 4: Regulatory Information

    Video Intercom Door Station·User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Video Intercom Door Station·User Manual 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
  • Page 6 Video Intercom Door Station·User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Warnings and Cautions: Warnings: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
  • Page 7 Video Intercom Door Station·User Manual Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden (ignorance can cause fire danger). Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time.

  • Page 8: Table Of Contents

    5.1.2 Wall Mounting with Gang Box of DS-KD8102-V ..........14 5.2 Installation of DS-KD8002-VM ................15 5.2.1 Gang Box for DS-KD8002-VM ................15 5.2.2 Wall Mounting with Gang Box of DS-KD8002-VM ........... 16 5.3 Installation of DS-KD6002-VM ................18 5.3.1 Gang Box for DS-KD6002-VM ................18 5.3.2 Wall Mounting with Gang Box of DS-KD6002-VM ...........
  • Page 9 Video Intercom Door Station·User Manual 8 Batch Configuration Software..............36 8.1 Activating Device Remotely ................... 36 8.2 Editing Network Parameters .................. 37 8.3 Adding Device ......................38 8.3.1 Adding Online Devices ..................38 8.3.2 Adding by IP Address, IP Segment or Port No..........39 8.4 Remote Configuration ...................
  • Page 10 Video Intercom Door Station·User Manual 10.5.5 Volume Settings .................... 81 10.5.6 About ......................82 Appendix ...................... 83 Installation Notice ....................... 83 Wiring Cables ....................... 83 Specification ........................ 83 Specification of DS-KD8102-V .................. 83 Specification of DS-KD8002-VM ................85 Specification of DS-KD6002-VM ................87...

  • Page 11: Overview

    Video Intercom Door Station·User Manual 1 Overview 1.1 Introduction The video intercom system can realize functions such as video intercom, resident-to-resident video call, live view of HD video, access control, one-card system, elevator linkage, 8-ch zone alarm, notice information and visitor messages to provide a complete smart community video intercom solution.

  • Page 12: Appearance

    Video Intercom Door Station·User Manual 2 Appearance 2.1 Front Panel and Keys (DS-KD8102-V) Figure 2-1 Front Panel Keys Figure 2-2 Side View...
  • Page 13 Video Intercom Door Station·User Manual Table 2-1 Descriptions of Front Panel Keys Description Low Illumination Supplement Light Built-in Camera LCD Display Screen Numeric Keypad Calling Button Calling Center Key Microphone Card Induction Area IR Emission IR Receiver Loudspeaker Tamper Button...

  • Page 14: Front Panel And Keys (Ds-Kd8002-Vm)

    Video Intercom Door Station·User Manual 2.2 Front Panel and Keys (DS-KD8002-VM) Figure 2-3 Front Panel Keys Figure 2-4 Side View...
  • Page 15 Video Intercom Door Station·User Manual Table 2-2 Descriptions of Front Panel Keys Description Low Illumination Supplement Light Built-in Camera LCD Display Screen Card Induction Area Loudspeaker Numeric Keypad Calling Button Microphone Calling Center Key Tamper Button The appearance of the devices is only for reference, and the actual appearance of it depends on the actual object.

  • Page 16: Front Panel And Keys (Ds-Kd6002-Vm)

    Video Intercom Door Station·User Manual 2.3 Front Panel and Keys (DS-KD6002-VM) Figure 2-5 Front Panel Keys and Rear Panel Keys Table 2-3 Descriptions Keys Description Low Illumination Supplement Light Built-in Camera Loudspeaker LCD Display Screen Card Induction Area Numeric Keypad...
  • Page 17 Video Intercom Door Station·User Manual Description Calling Button Calling Center Key Microphone Tamper Button The appearance of the devices is only for reference, and the actual appearance of it depends on the actual object.

  • Page 18: Typical Application

    Video Intercom Door Station·User Manual 3 Typical Application Please refer to the following figure for typical application of door station. Building Client Software Indoor Indoor Extension 1 Extension 2 Resident 1 Resident 2 Video/Audio Distributor Center Master Station (Master Station) Resident 1 Resident 2 Switch...

  • Page 19: Terminals And Interfaces

    Video Intercom Door Station·User Manual 4 Terminals and Interfaces 4.1 Terminals and Interfaces of DS-KD8102-V/ DS-KD8002-VM Figure 4-1 Terminals and Interfaces Table 4-1 Descriptions of Terminals and Interfaces Name Interface Description USB Interface LAN1 Network Interface LAN2 Reserved Power DC 12V...
  • Page 20 Video Intercom Door Station·User Manual Name Interface Description Card Reader Indicator Output (Invalid Card Output) Card Reader Indicator Output (Valid Card Output) TAMP Tamper-proof Input of Wiegand Card Reader AO2- Alarm Relay Output 2 AO2+ ALARM AO1- Alarm Relay Output 1 AO1+ Alarm Input 4 Alarm Input 3...

  • Page 21: Terminals And Interfaces Of Ds-Kd6002-Vm

    Video Intercom Door Station·User Manual 4.2 Terminals and Interfaces of DS-KD6002-VM Figure 4-2 Terminals and Interfaces of DS-KD6002-VM Table 4-2 Descriptions of Terminals and Interfaces Name Interface Description USB Interface LAN1 Network Interface LAN2 Reserved Power DC 12V DC 12V Power Supply Input Supply Card Reader Power Supply Output Grounding...
  • Page 22 Video Intercom Door Station·User Manual Name Interface Description AO2- Alarm Relay Output 2 AO2+ ALARM AO1- Alarm Relay Output 1 AO1+ Grounding Serial Port Debugging/Receive data DEBUG Serial Port Debugging/Send data 3.3V Serial Port Debugging/Power Supply Door Lock Power Supply Output Grounding Door Lock Relay Output/Connect Electric Bolt or Magnetic Lock...

  • Page 23: Installation And Wiring

    Video Intercom Door Station·User Manual 5 Installation and Wiring 5.1 Installation of DS-KD8102-V To install the door station onto the wall, you are required to use a matched gang box. 5.1.1 Gang Box for DS-KD8102-V Refer to the following figures for the dimensions of gang box for DS-KD8102-V door station.

  • Page 24: Wall Mounting With Gang Box Of Ds-Kd8102-V

    Video Intercom Door Station·User Manual 5.1.2 Wall Mounting with Gang Box of DS-KD8102-V Steps: 1. Take the gang box and screws from the packing box. 2. Chisel a hole in the wall for inserting the gang box. The size of the hole should be larger than that of the gang box.

  • Page 25: Installation Of Ds-Kd8002-Vm

    5.2 Installation of DS-KD8002-VM To install the door station onto the wall, you are required to utilize a matched gang box. 5.2.1 Gang Box for DS-KD8002-VM Please refer to the following figures for the dimensions of gang box for DS-KD8002-VM door station. 407.5...

  • Page 26: Wall Mounting With Gang Box Of Ds-Kd8002-Vm

    Video Intercom Door Station·User Manual Figure 5-7 Overhead (Plan) View  The dimension of gang box for model DS-KD8002-VM door station is: 407.5 mm × 135 mm × 55 mm.  The dimensions above are for reference only. The actual size can be slightly larger than the theoretical dimension.
  • Page 27 Video Intercom Door Station·User Manual 3. Insert the gang box into the hole and fix it with 4 PA4 screws, as shown in the figure below. Figure 5-9 Insert the Gang Box into the Wall 4. Make sure the edges of the gang box align to the wall and the hook A and hook B of the gang box hook onto the wall.

  • Page 28: Installation Of Ds-Kd6002-Vm

    Video Intercom Door Station·User Manual Figure 5-11 Secure the Door Station 5.3 Installation of DS-KD6002-VM To install the door station onto the wall, you are required to use a matched gang box. 5.3.1 Gang Box for DS-KD6002-VM Refer to the following figures for the dimensions of gang box for DS-KD6002-VM door station.

  • Page 29: Wall Mounting With Gang Box Of Ds-Kd6002-Vm

    Video Intercom Door Station·User Manual  The dimension of gang box for model DS-KD6002-VM door station is: 343 (length)× 113(width)×55depth) mm.  The dimensions above are for reference only. The actual size can be slightly different from the theoretical dimension. 5.3.2 Wall Mounting with Gang Box of DS-KD6002-VM Steps: 1.

  • Page 30: Wiring Description

    Video Intercom Door Station·User Manual Figure 5-14 Install the Door Station 7. Fix the door station to the gang box with 4 crews. Figure 5-15 Tighten the Screws of Device 5.4 Wiring Description 5.4.1 Door Lock Wiring...

  • Page 31: Door Magnetic Wiring

    NO2/COM2/NC2 to be electric lock with Batch Configuration Tool or iVMS-4200. 5.4.2 Door Magnetic Wiring Door Magnetic Wiring for DS-KD8102-V/DS-KD8002-VM For DS-KD8102-V/DS-KD8002-VM, there are two optional ways of door magnetic wiring. Figure 5-17 Door Magnetic Wiring for DS-KD8102-V/DS-KD8002-VM (1)
  • Page 32 To connect the door magnetic, it is required to set the output of terminal AI2 to be door magnetic with Batch Configuration Tool or iVMS-4200. Figure 5-18 Door Magnetic Wiring for DS-KD8102-V/DS-KD8002-VM (2) Terminal S2 is set as default for connecting door magnetic.

  • Page 33: Exit Button Wiring

    5.4.3 Exit Button Wiring Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM For DS-KD8102-V/DS-KD8002-VM, there are two optional ways of exit button wiring. Figure 5-20 Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM (1) To connect the exit button, it is required to set the output of terminal AI1 to be exit button with Batch Configuration Tool or iVMS-4200.

  • Page 34: External Card Reader Wiring

    Video Intercom Door Station·User Manual Exit Button Wiring for DS-KD6002-VM Figure 5-22 Exit Button Wiring for DS-KD6002-VM Terminal S1 is set as default for connecting exit button. 5.4.4 External Card Reader Wiring Please refer to the following figure for external card reader wiring. Figure 5-23 External Card Reader Wiring...

  • Page 35: Alarm Device Input Wiring

    Video Intercom Door Station·User Manual 5.4.5 Alarm Device Input Wiring Alarm Device Input Wiring for DS-KD8102-V/DS-KD8002-VM Figure 5-24 Alarm Device Input Wiring for DS-KD8102-V/DS-KD8002-VM Alarm Device Input Wiring for DS-KD6002-VM Figure 5-25 Alarm Device Input Wiring for DS-KD6002-VM...

  • Page 36: Alarm Device Output Wiring

    Video Intercom Door Station·User Manual 5.4.6 Alarm Device Output Wiring Alarm Device Output Wiring for DS-KD8102-V/DS-KD8002-VM Figure 5-26 Alarm Device Output Wiring for DS-KD8102-V/DS-KD8002-VM Alarm Device Output Wiring for DS-KD6002-VM Figure 5-27 Alarm Device Output Wiring for DS-KD6002-VM...

  • Page 37: Before You Start

    Video Intercom Door Station·User Manual 6 Before You Start For the first time use of the device, you are required to activate the device and set the device password. You can activate the device via internet with Batch Configuration Tool, or with iVMS-4200 client software, or with Video Intercom Set-up Tool.

  • Page 38: Video Intercom Device Set-Up Tool

    Video Intercom Door Station·User Manual 7 Video Intercom Device Set-up Tool Purpose: You can assign the device to the community, active and set the device by using the video intercom device set-up tool. 7.1 Setting a Community Structure Purpose: You can set a community structure, based on the real community situation, on the video intercom device set-up tool, and then assign devices to the community accordingly.

  • Page 39: Setting Community

    Video Intercom Door Station·User Manual Figure 7-2 Project Settings 3. Click the Apply button to enable the settings. The default amount of project is 1 if the amount is not set in the textbox. 7.1.2 Setting Community Steps: 1. Check the checkbox of a certain project from the community structure. 2.

  • Page 40: Setting Building

    Video Intercom Door Station·User Manual If you check the checkbox of All, then all projects in the community structure will be selected, and will be added the same amount of community. 7.1.3 Setting Building Steps: 1. Check the checkbox of a certain community from the community structure. 2.

  • Page 41: Setting Room

    Video Intercom Door Station·User Manual Figure 7-5 Floor Settings 3. Click the Apply button to enable the settings.  If you check the checkbox of All, then all buildings in the community structure will be added the same amount of floor. ...

  • Page 42: Activating And Setting Main Door Station

    Video Intercom Door Station·User Manual 3. Click the Apply button to enable the settings.  If you check the checkbox of All, then all floors in the community structure will be selected, and will be added the same amount of room. ...

  • Page 43: Activating And Setting Sub Door Station

    Video Intercom Door Station·User Manual 4. Click the Calculate button to generate the main door station end IP address automatically. 5. Set the main door station floor No.. 6. Enter the SIP IP address, master station IP address, center IP address, center port No., subnet mask, and gateway address.
  • Page 44 Video Intercom Door Station·User Manual You can activate the online sub door station, and configure the number of online sub door station. Before You Start: Press the Sub Door Station tab to switch to the sub door station settings. Steps: 1.
  • Page 45 Video Intercom Door Station·User Manual Figure 7-10 Sub Door Station Settings Interface  The default sub door station floor No. is 1.  The sub door station amount should be no higher than 8.  You can select one project or multiple projects; one community or multiple communities;...

  • Page 46: Batch Configuration Software

    Video Intercom Door Station·User Manual 8 Batch Configuration Software 8.1 Activating Device Remotely Purpose: The device cannot be operated until it is activated. You can remotely activate the device via Batch Configuration Tool or via iVMS-4200 client. Here take the Batch Configuration Tool as example, and for further information, please refer to the user manual in the disk.

  • Page 47: Editing Network Parameters

    Video Intercom Door Station·User Manual When the device is not activated, the basic operation and remote operation of device cannot be performed. 8.2 Editing Network Parameters Purpose: You can edit the network parameters of online devices. Steps: 1. Select an online device in the online devices list in the lower part of the batch configuration software interface.

  • Page 48: Adding Device

    Video Intercom Door Station·User Manual 8.3 Adding Device The software provides 4 ways for adding the devices. You can add the active online devices within your subnet, add devices by IP address, add devices by IP segment or add devices by device port No. range. 8.3.1 Adding Online Devices Steps: 1.

  • Page 49: Adding By Ip Address, Ip Segment Or Port No

    Video Intercom Door Station·User Manual Figure 8-6 Login Dialog Box 4. Enter the user name and password. 5. Click the OK button to save the settings. Only the devices that are successfully logged in will be added to the device list for configuration.
  • Page 50 Video Intercom Door Station·User Manual Purpose: You can add many devices at once whose IP addresses are among the IP segment. Steps: 1. Select IP Segment in the adding mode drop-down list. 2. Set the Start IP Address and End IP Address. 3.

  • Page 51: Remote Configuration

    Video Intercom Door Station·User Manual  You cannot add the device(s) to the device list if the user name and password are not identical.  When you add devices by IP Address, IP Segment or Port No., the devices should be online devices.
  • Page 52 Video Intercom Door Station·User Manual Figure 8-13 Device General Parameters Settings Interface Time Steps: 1. Click the Time button to enter the device time settings interface. Figure 8-14 Time Settings Interface 2. Select Time Zone or Enable NTP  Time Zone Select a time zone from the drop-down list menu.
  • Page 53 Video Intercom Door Station·User Manual 1. Click the System Maintenance button to enter the system maintenance interface. Figure 8-15 System Maintenance Interface 2. Select System Management or Remote Upgrade.  System Management • Reboot Click the Reboot button to pop up the reboot dialog box. Figure 8-16 Reboot Click the Yes button to reboot the system.
  • Page 54 Video Intercom Door Station·User Manual Figure 8-17 Restore Default Settings Click the Yes button to restore the default parameters. • Restore All Click the Restore All button to pop up the restore all settings dialog box. Figure 8-18 Restore All Settings Click the Yes button to restore all parameters of device and reset the device to inactive status.
  • Page 55 Video Intercom Door Station·User Manual Figure 8-20 Reboot Information • Export Configuration File Click the Export Configuration File button to pop up the export file window. Figure 8-21 Export Configuration File Window Select the save path of remote configuration files. Click the Save button to export the configuration file, and pop up an information box for exporting.
  • Page 56 Video Intercom Door Station·User Manual Figure 8-23 Window for Opening Upgrade File Select the upgrade file, and click the Open button. Click the Upgrade button to remotely upgrade the device. Figure 8-24 Remote Upgrade User Purpose: You can edit the password to log in the device. Steps: Steps: 1.
  • Page 57 Video Intercom Door Station·User Manual Figure 8-26 User Parameter Interface 3. Enter the new password, and confirm it. 4. Click the Apply button to realize the editing of password.  The new password and confirm password should be identical.  After editing the password of device, click button from the device list, the added device will not be there.

  • Page 58: Video Intercom

    Video Intercom Door Station·User Manual 8.4.2 Video Intercom Device Number Configuration Steps: 1. Click the Device Information button to enter device number configuration interface.  Door Station Select door station from the drop-down list of the device type Figure 8-28 Device Number Configuration (Door Station) Enter the project No., community No., building No., floor No., and serial No.
  • Page 59 Video Intercom Door Station·User Manual Time Parameters Steps: 1. Click the Time Parameters button to enter time parameters settings interface. Figure 8-30 Time Parameters Settings Interface 2. Set the maximum speaking time and the maximum message time. 3. Click the Apply button to enable the time parameters settings. Maximum speaking time cannot exceed 120s;...
  • Page 60 Video Intercom Door Station·User Manual Access Control and Elevator Steps: 1. Click the Access Control and Elevator button to enter password changing interface. Figure 8-32 Access Control and Elevator Settings Interface 2. Set corresponding parameters on the access control and elevator settings interface. ...
  • Page 61 2. Select I/O input No., input mode, output No., and output mode. 3. Click the Apply button to enable the settings.  For DS-KD8102-V/DS-KD8002-VM, there are 8 I/O input terminals. Terminal 1~4 correspond to SENSOR interfaces (S1, S2, S3, S4) of door station. Terminal 5~8 correspond to AlARM IN interfaces (AI1, AI2, AI3, AI4) of door station.

  • Page 62: Network

    Video Intercom Door Station·User Manual 8.4.3 Network Local Network Configuration Steps: 1. Click the Local Network Configuration button to enter the local network configuration interface. Figure 8-35 Local Network Configuration Interface 2. Enter the local IP address, subnet mask, gateway address, and port No.. 3.
  • Page 63 Video Intercom Door Station·User Manual 3. Enter the IP address of the master station, SIP server address, management center IP address, and management center port No.. 4. Click the Apply button to link the master station, SIP server and management center to the device.

  • Page 64: Video Display

    Video Intercom Door Station·User Manual 8.4.4 Video Display Steps: 1. Click the Video Display button to enter the video parameters interface. Figure 8-38 Video Parameters Interface 2. Select the channel No.. 3. Select the video format (PAL and NTSC can be selected). 4.

  • Page 65: Setting The Door Station Via Ivms-4200

    Video Intercom Door Station·User Manual 9 Setting the Door Station via iVMS-4200 9.1 System Configuration After running the iVMS-4200, enter Control Panel -> Maintenance and Management -> System Configuration -> Video Intercom to configure the video intercom parameters accordingly. You can configure the ringtone, Max. ring duration, Max. speaking time with indoor station and Max.
  • Page 66 Video Intercom Door Station·User Manual 1. Enter the main view interface of iVMS-4200 client software to display the live view of door station. Figure 9-2 Live View of Door Station (D Series) 2. Right click on the live view interface to display the menu and select Unlock Door to remote unlock the door.

  • Page 67: Picture Storage On Storage Server

    Video Intercom Door Station·User Manual 9.4 Picture Storage on Storage Server 9.4.1 Adding Storage Server Purpose: When the device is under armed status, it will capture the picture automatically after unlocking the door. The captured picture can be uploaded and stored in the storage server.

  • Page 68: Formatting The Hdds

    Video Intercom Door Station·User Manual Figure 9-5 Storage Server Interface You can add the storage server by referring to Section 8.3 Adding Device. This function only applies to the door station (D series and V series). 9.4.2 Formatting the HDDs The HDDs of the storage server need to be formatted for the captured picture storage.

  • Page 69: Group Management

    Video Intercom Door Station·User Manual You can click Storage Server Management to add, edit or delete the storage server. 4. Check the checkbox of Picture Storage to store the alarm pictures of the camera when event occurs. Figure 9-7 Record Schedule Settings 5.

  • Page 70: Adding Group

    Video Intercom Door Station·User Manual You can add groups to community, outer door station, or other, and assign devices to each group. 9.5.1 Adding Group 1. Click the Group Management tab to enter the group management interface. Figure 9-9 Group Management Interface 2.

  • Page 71: Assigning Devices To Group

    Video Intercom Door Station·User Manual Figure 9-11 Group Adding Interface (Outer Door Station) 1) Check the checkbox of outer door station. 2) Enter the project No..  Selecting Other as Group Type Figure 9-12 Group Adding Interface (Other) 1) Check the checkbox of other. 2) Enter the name.

  • Page 72: Modifying Device Information

    Video Intercom Door Station·User Manual Figure 9-13 Resident Adding Interface 2. Check the checkbox of device and enter the Room No. of indoor stations to assign the device to the community. 3. Click the OK button to save the settings. 9.5.3 Modifying Device Information 1.

  • Page 73: Card Management

    Video Intercom Door Station·User Manual Figure 9-15 Group Deleting Interface 3. Click the OK button to complete the group deleting operation. 9.6 Card Management Purpose: You can add unauthorized cards to the community and then you can assign the cards to the corresponding indoor station and outdoor stations.
  • Page 74 Video Intercom Door Station·User Manual 2. Select card adding mode: In Batch, By Single, Card Reader. 3. Select card type: Resident Card, Other Card. 4. Enter Start Card No. and End Card No. (adding in batch), or enter card No. (adding by single or card reader).
  • Page 75 Video Intercom Door Station·User Manual Figure 9-19 Card Issuing Interface 2. Issue Resident Card or Other Card.  Issuing Resident Card 1) Select Community on the left and the indoor stations of the community will be listed in the resident list. Figure 9-20 Resident Card Issuing Interface 2) Click the button to pop up card selection...
  • Page 76 Video Intercom Door Station·User Manual Figure 9-21 Resident Card Selection Interface 3) Check the checkboxes of the cards that need issuing to the indoor station, and check the checkbox of door stations, doorphones and outer door stations (only resident cards can be assigned to indoor stations). 4) Click the Issue Card button to complete the resident card issuing settings.
  • Page 77 Video Intercom Door Station·User Manual Click the button to pop up card selection interface for selecting unauthorized cards to be issued to the indoor station. Figure 9-23 Other Card Selection Interface 3) Check the checkboxes of the cards that need issuing to the indoor station, and check the checkbox of door stations, doorphones and outer door stations (only resident cards can be assigned to indoor stations).
  • Page 78 Video Intercom Door Station·User Manual 3) Click the OK button to delete the card(s).  Deleting Issued Card 1) On the resident/other card issuing interface (Figure 9-15, Figure 9-17), select a community group or an Other group. 2) Click the button to enter the card selection interface for deleting issued card.
  • Page 79 Video Intercom Door Station·User Manual Figure 9-26 Template File Exporting Interface 3. Fill in the template of the batch import file and click the Save button to save it. 4. Click the button to select the batch import file. Figure 9-27 Batch Import File Opening Interface 5.

  • Page 80: Normal Card Management

    Video Intercom Door Station·User Manual Figure 9-28 Batch Export Interface 2. Select the saving file path and click the Save button. 3. Generate an excel file in the saving directory after exporting unauthorized cards in batch. 9.6.2 Normal Card Management On card management interface, click the normal card button to enter the normal card interface for listing normal cards including resident card and other card.

  • Page 81: Notice Management

    Video Intercom Door Station·User Manual directory of Video Intercom->Card Management->Unauthorized Card->Add Card. Swipe the unauthorized card in turn and the card No. will be read and added to the device automatically.  After issuing each card via iVMS-4200, the device plays the voice prompt: Issuing card finished.
  • Page 82 Video Intercom Door Station·User Manual Figure 9-31 Tool Menu 2. Set the arming status of the device as armed, and the alarm information will be auto uploaded to the client software when alarm occurs Figure 9-32 Device Arming Control Figure 9-33 Alarm Events After adding the device to the client software, it will be armed automatically.

  • Page 83: Local Operation

    Video Intercom Door Station·User Manual 10 Local Operation  The number key 2, 8, 4, 6 as direction keys ▲, ▼ , ◄, ► to turn down, up, left and right.  The # key works as a confirm key. ...

  • Page 84: Unlocking Door

    Video Intercom Door Station·User Manual Icon Description SIP server rejected to login the device. Check if the device No. has been registered. The network connection of the main door station/outer door station is normal, and the main door station/outer door station has been successfully registered to the SIP server.

  • Page 85: Unlocking Door By Swiping Card

    Video Intercom Door Station·User Manual 10.3.2 Unlocking Door by Swiping Card Purpose: After issuing the cards, you can unlock the door by swiping the assigned card. Step: 1. Swipe the card on the card induction area. 2. Hear a voice prompt of the device: Door is open. You cannot open the door by swiping the main card.

  • Page 86: Setting Parameters

    Video Intercom Door Station·User Manual Figure 10-3 Main Interface of Outer Door Station 2. Enter the project No. + the # key + the communication No. + the # key + the building No. + the # key + the Room No. + the Call key to start a video call of a certain resident.

  • Page 87: Network Configuration

    Video Intercom Door Station·User Manual Figure 10-4 Admin Password Interface 3. Enter the admin password and end with the # key to enter the settings interface. 4. Click the left/right direction key (number key 4 and number key 6) to realize the change among different settings interfaces.

  • Page 88: Local Settings

    Video Intercom Door Station·User Manual Figure 10-6 Network Parameters Settings Interface 4. Move the cursor to parameters to be configured. 5. Press the # key to enter/exit the editing mode. 6. Press the * key to exit the network configuration interface after accomplishing network parameters settings.

  • Page 89: Issuing Card

    Video Intercom Door Station·User Manual Figure 10-8 Local Parameters Settings Interface (Main/Sub Door Station) Figure 10-9 Local Parameters Settings Interface (Outer Door Station) 4. Move the cursor to parameters to be configured. 5. Press the # key to enter/exit the editing mode. 6.

  • Page 90: Changing Password

    Video Intercom Door Station·User Manual Figure 10-10 Card Issuing Interface 3. Press the # key to enter the main card swiping interface. 4. Swipe the main card in the card induction area, and it produces a voice prompt: Issuing card succeeded. 5.

  • Page 91: Volume Settings

    Video Intercom Door Station·User Manual Figure 10-11 Password Settings Interface 3. Press the # key to enter the local parameters changing interface. Figure 10-12 Password Changing Interface 4. Move the cursor to the old password textbox. 5. Press the # key to enter/exit the editing mode, and enter the old password. 6.

  • Page 92: About

    Video Intercom Door Station·User Manual Figure 10-13 Volume Settings Interface 3. Press the # key to enter the volume parameters settings interface. Figure 10-14 Volume Parameters Settings Interface 4. Press the # key + numeric key + the # key to edit the value of volume. 5.

  • Page 93: Appendix

    Video Intercom Door Station·User Manual Appendix Installation Notice While installing the indoor station, make sure that the distance between any two devices is far enough to avoid the howling and echo. The distance between two devices is recommended to be longer than 10 meters. Here devices refer to indoor station, outdoor station and master station.
  • Page 94 Video Intercom Door Station·User Manual Model DS-KD8102-V Parameters Video Compression H.264 Standards Resolution 1280 × 720 Video Standard PAL: 25 fps, NTSC: 30 fps Display Parameters Display Screen 3.5-Inch Colorful TFT LCD Resolution 480 × 320 Operation Method Capacitive Touch Keypad Operation Interface LCD Display, Easy Menu Audio Parameters...

  • Page 95: Specification Of Ds-Kd8002-Vm

    Working Humidity 10% to 90% Dimension 418 mm × 145 mm × 61 mm (16.5" × 5.7" × 2.4") Certification FCC, IC, CE, C-TICK, ROHS, REACH, WEEE Specification of DS-KD8002-VM Model DS-KD8002-VM Parameters System Parameters Processor High-Performance Embedded SOC Processor...
  • Page 96 Video Intercom Door Station·User Manual CMOS Low Illumination 1.3 MP HD Colorful Camera Camera Video Compression H.264 Standards Resolution 1280 × 720 Video Standard PAL: 25 fps, NTSC: 30 fps Display Parameters Display Screen 3.5-Inch Colorful TFT LCD Resolution 480 × 320 Operation Method Physical Touch Keypad Operation Interface...

  • Page 97: Specification Of Ds-Kd6002-Vm

    Video Intercom Door Station·User Manual Device Interfaces 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Internet Interface Interface RS-485 1 RS-485 Half-Duplex Port I/O Input I/O Output 1 Wiegand Port for Accessing Wiegand IC Card Wiegand Reader 1 USB 2.0, Supporting U-disk Other Parameters Material Aluminum Alloy...
  • Page 98 Video Intercom Door Station·User Manual PAL: 25 fps, NTSC: 30 fps Video Standard Display Parameters Display Screen 3.5-Inch Colorful TFT LCD Resolution 480 × 320 Physical Touch Keypad Operation Method Operation Interface LCD Display, Easy Menu Audio Parameters Audio Input Built-in Omnidirectional Microphone Audio Output Built-in Loudspeaker...
  • Page 99 Video Intercom Door Station·User Manual I/O Input I/O Output 1 Wiegand Port for Accessing Wiegand IC Card Wiegand Reader 1 USB 2.0, Supporting U-disk Other Parameters Material Aluminum Alloy DC 12V Power Supply Power Consumption ≤15 W Working -40° C to +70° C (-40° F to 158° F) Temperature Working Humidity 10% to 90%...
  • Page 100 Video Intercom Door Station·User Manual...
