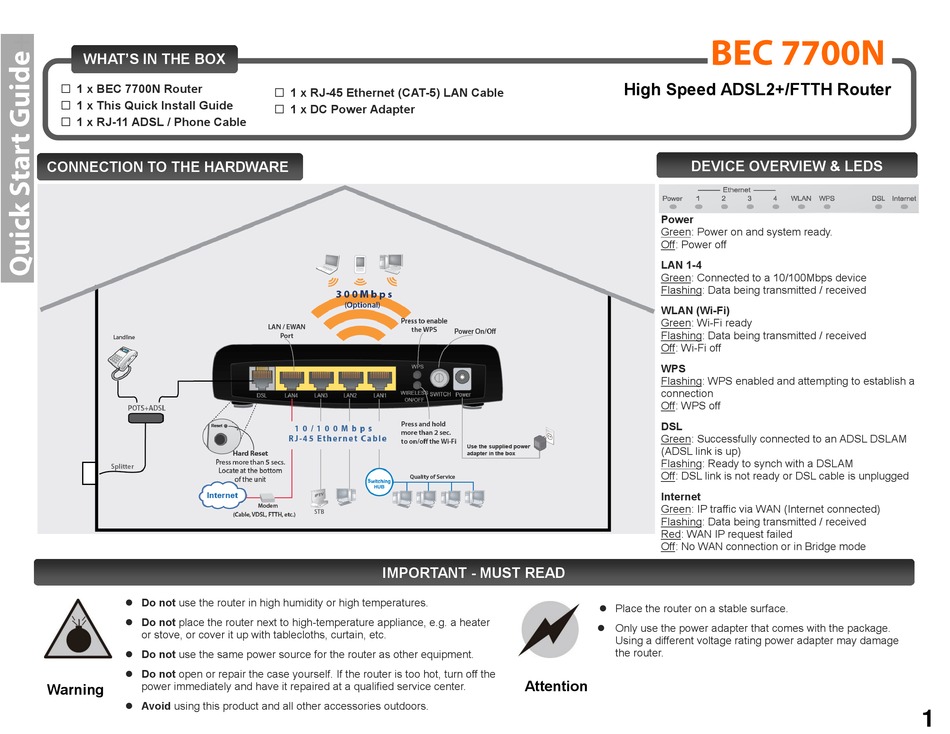

BEC 7700N Quick Start Manual

WHAT'S IN THE BOX
 1 x BEC 7700N Router
 1 x This Quick Install Guide
 1 x RJ-11 ADSL / Phone Cable
CONNECTION TO THE HARDWARE
⚫ Do not use the router in high humidity or high temperatures.
⚫ Do not place the router next to high-temperature appliance, e.g. a heater
or stove, or cover it up with tablecloths, curtain, etc.
⚫ Do not use the same power source for the router as other equipment.
⚫ Do not open or repair the case yourself. If the router is too hot, turn off the
power immediately and have it repaired at a qualified service center.
Warning
⚫ Avoid using this product and all other accessories outdoors.
 1 x RJ-45 Ethernet (CAT-5) LAN Cable
 1 x DC Power Adapter

IMPORTANT - MUST READ

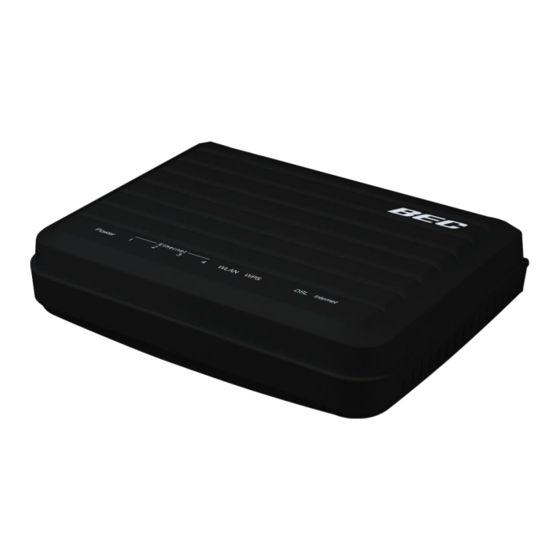

High Speed ADSL2+/FTTH Router
DEVICE OVERVIEW & LEDS
Power
Green: Power on and system ready.
Off: Power off
LAN 1-4
Green: Connected to a 10/100Mbps device
Flashing: Data being transmitted / received
WLAN (Wi-Fi)
Green: Wi-Fi ready
Flashing: Data being transmitted / received
Off: Wi-Fi off
WPS
Flashing: WPS enabled and attempting to establish a
connection
Off: WPS off
DSL
Green: Successfully connected to an ADSL DSLAM
(ADSL link is up)
Flashing: Ready to synch with a DSLAM
Off: DSL link is not ready or DSL cable is unplugged
Internet
Green: IP traffic via WAN (Internet connected)
Flashing: Data being transmitted / received
Red: WAN IP request failed
Off: No WAN connection or in Bridge mode
⚫ Place the router on a stable surface.
⚫ Only use the power adapter that comes with the package.
Using a different voltage rating power adapter may damage
the router.
Attention
