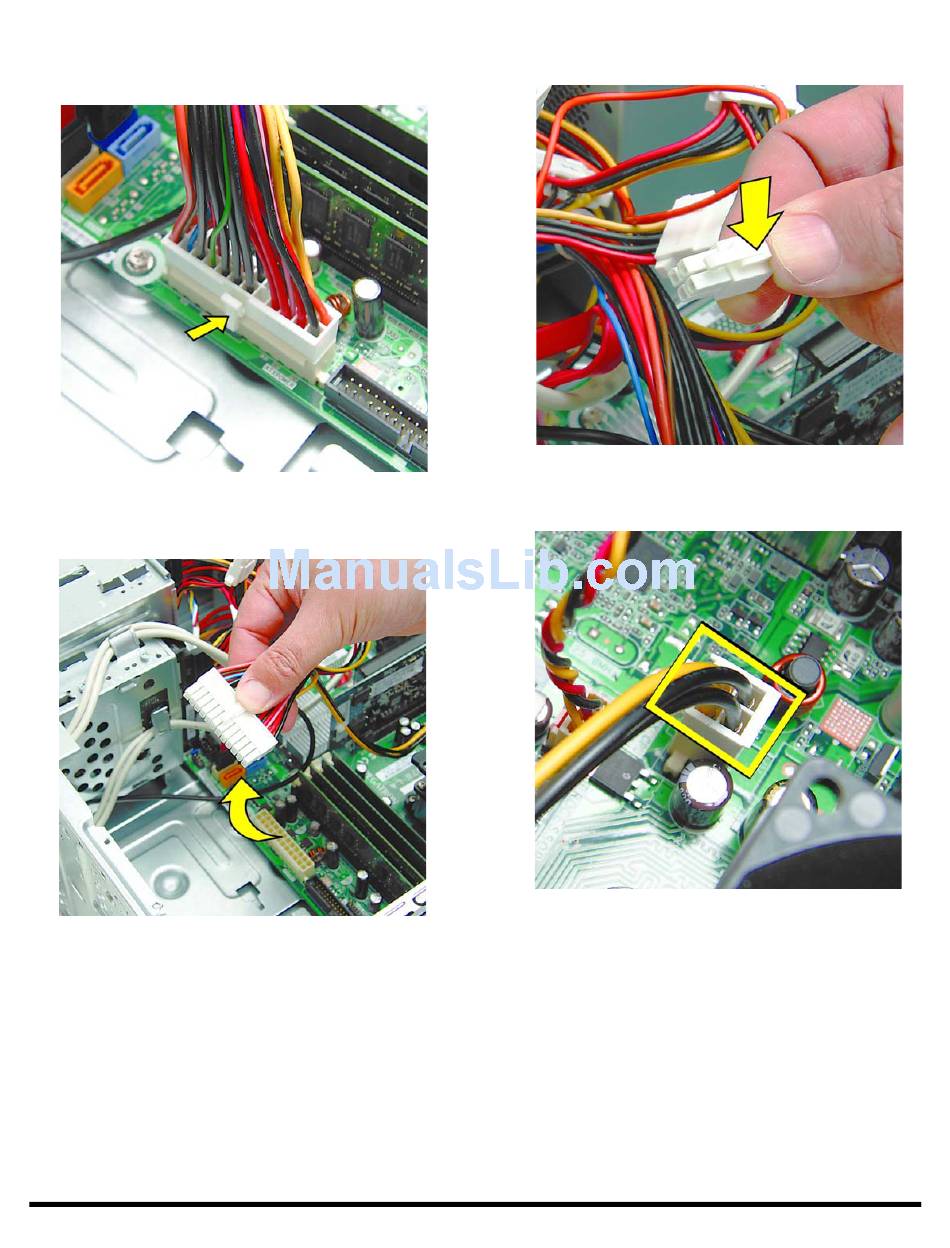

11 The motherboard power connector has a latch that

must be pressed to detach the connector from the

motherboard.

12 Detach the motherboard power connector from the

motherboard.

Removing and Replacing a Power Supply

13 Some connectors may have latches that must be

pressed to remove them.

14 Remove all other power connectors from the

motherboard.
