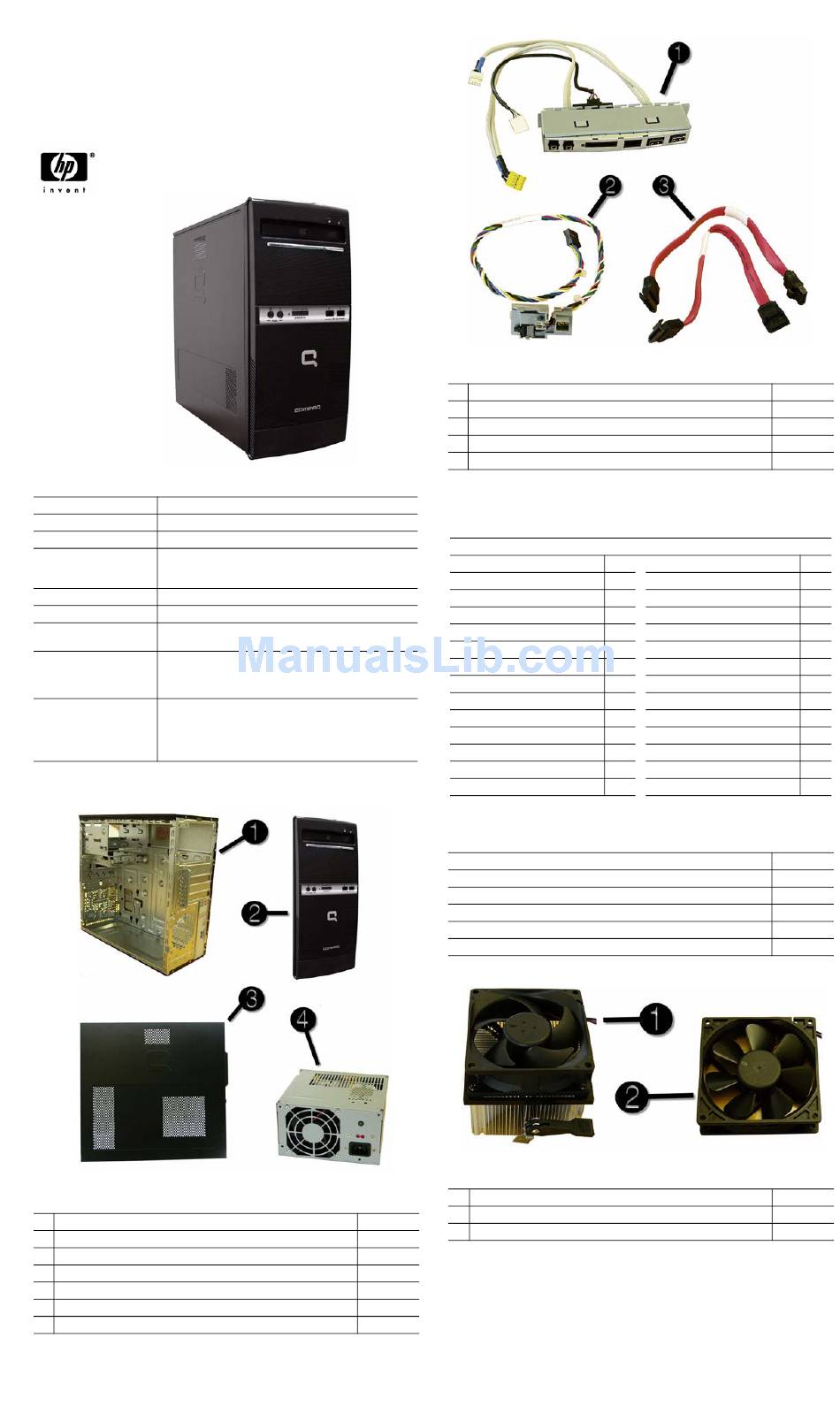

Compaq 500B MT Illustrated Parts & Service Map

Illustrated Parts & Service Map

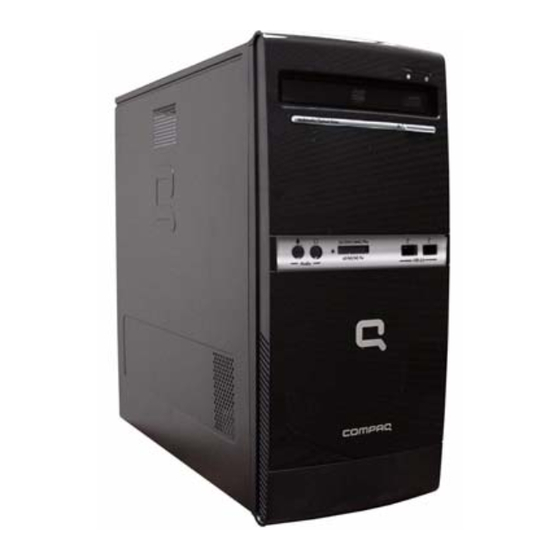

Compaq 500B MT Business PC
©
2009 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Document Number 594184-001.
Key Specifications
Processor Type Intel Celeron, Intel Pentium dual-core
RAM Type DDR3-SDRAM DIMMs, PC2-10600 (1333 MHz)
Maximum RAM Supported 4 GB (2 x 2 GB)
Expansion Slots •
•
•
Graphics Adapter Integrated Intel GMA 3100 graphics
Chipset Intel Q41 Express
Drive Support •
•
I/O Interfaces (8) USB 2.0 ports: (2) front ports, (4) rear ports, (2) internal
ports on motherboard; (1) RJ-45, (1) VGA, (1) front audio in,
(1) front audio out, (1) rear audio in, (1) rear audio out, (1) rear
microphone
Operating Systems •
•
•
•
•

Spare Parts

System Unit
1 Chassis
2 Front bezel with card reader
* Front bezel without card reader
3 Access panel
4 Power supply, 300W, PFC
* Power supply, 300W, non-PFC
* 5.25-inch bezel blank
* Not shown
Compaq 500B, MT
1st Edition September 2009.
1 full-height PCI 2.3 slot
2 full-height PCIe x1 slots
1 full-height PCIe x16
(1) 5.25-inch external optical drive bay
(1) 3.5-inch internal hard disk drive bay
Windows 7
Windows Vista
Windows XP
FreeDOS
Novell SUSE Linux
Cables
1 Front I/O assembly with card reader
* Front I/O assembly without card reader
2 Power switch/LED cable assembly
3 SATA HDD cable, 6.5 inch, with latch
* PATA to SATA adapter
*Not shown
Keyboards (not illustrated)
USB, red
Asia/Pacific English
Belgian
Brazilian Portuguese
Bulgarian
Czech
Danish
Finnish
French
French Arabic
French Canadian
German
Greek
Hebrew
Hungarian
Mass Storage Devices (not illustrated)
16X DVD±RW SuperMulti drive with LightScribe
16X DVD-ROM drive
500 GB hard drive
320 GB hard drive
250 GB hard drive
160 GB hard drive
Miscellaneous Parts
1 Heatsink with alcohol pad and factory-applied thermal grease
2 Chassis fan
Not spared
* Mouse, optical
586725-001
*Not shown
586726-001
LP = Low profile
570581-001
463317-001
463318-001
586749-001
594184-001
537923-xxx
-371 Italian
-181 LA Spanish
-201 Norwegian
-261 Portuguese
-221 Romanian
-081 Russian
-351 Slovakian
-051 Spanish
-DE1 Swedish
-121 Swiss
-041 Swiss
-151 Turkish
-BB1 U.K.
-211 South Africa
586728-001
586729-001
586724-001
448670-001
449283-001
-061
-161
-091
-131
-271
-251
-231
-071
-101
-111
-BG1
-141
-031
-AR1
581059-001
581058-001
586720-001
586969-001
586719-001
586718-001
587452-001
449207-001
537750-001
