Second Edition • Third Printing
Observe and Obey:
 Only qualified riggers should rig and lift the
machine.
 Be sure the crane capacity, loading surfaces
and straps or lines are sufficient to withstand
the machine weight. See the serial label for
the machine weight.

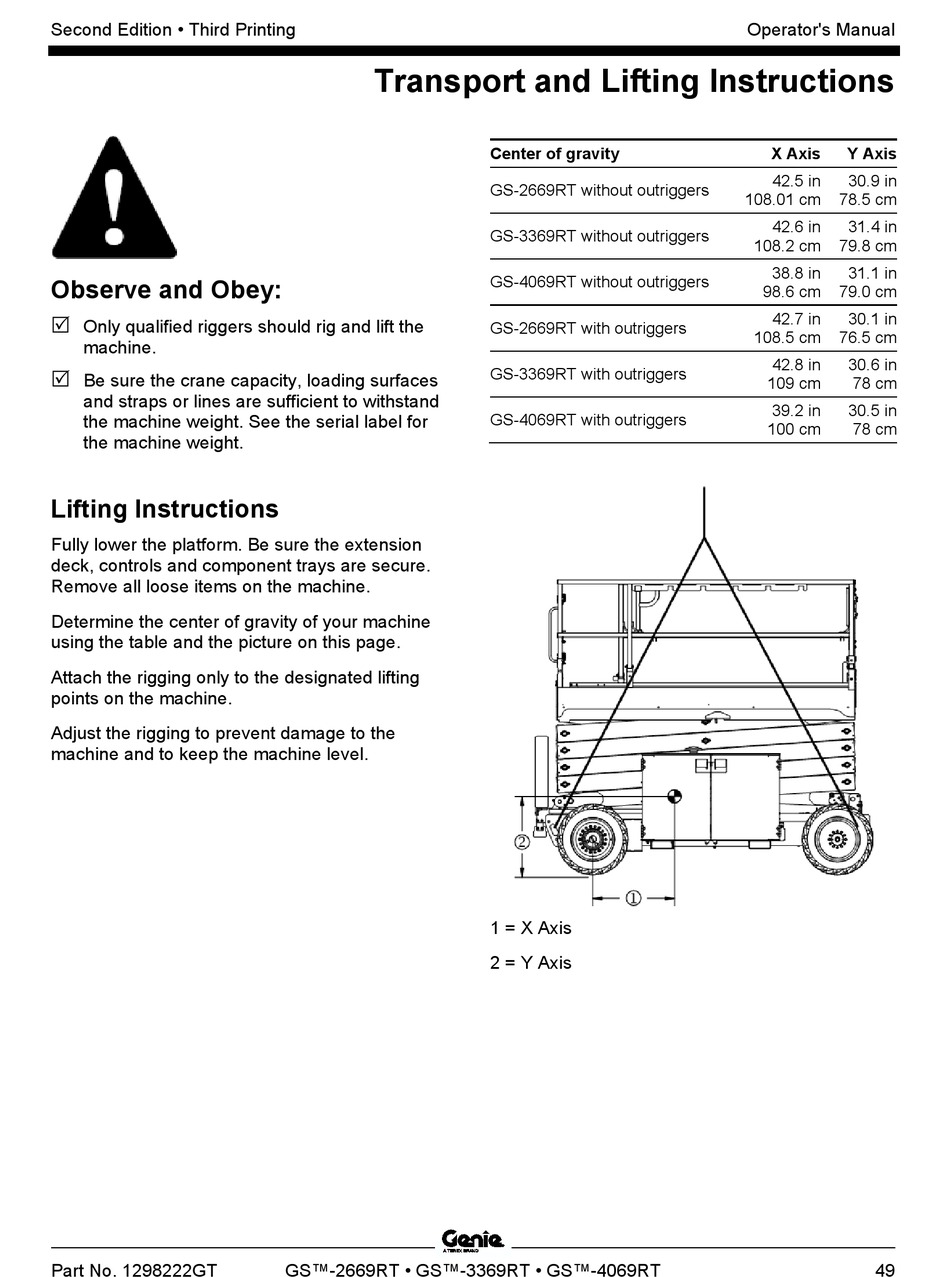

Lifting Instructions
Fully lower the platform. Be sure the extension
deck, controls and component trays are secure.
Remove all loose items on the machine.
Determine the center of gravity of your machine
using the table and the picture on this page.
Attach the rigging only to the designated lifting
points on the machine.
Adjust the rigging to prevent damage to the
machine and to keep the machine level.
Part No. 1298222GT
Transport and Lifting Instructions
GS™-2669RT • GS™-3369RT • GS™-4069RT
Center of gravity
GS-2669RT without outriggers
GS-3369RT without outriggers
GS-4069RT without outriggers
GS-2669RT with outriggers
GS-3369RT with outriggers
GS-4069RT with outriggers
1 = X Axis
2 = Y Axis
Operator's Manual
X Axis Y Axis
42.5 in 30.9 in
108.01 cm 78.5 cm
42.6 in 31.4 in
108.2 cm 79.8 cm
38.8 in 31.1 in
98.6 cm 79.0 cm
42.7 in 30.1 in
108.5 cm 76.5 cm
42.8 in 30.6 in
109 cm 78 cm
39.2 in 30.5 in
100 cm 78 cm
49
