Second Edition • Third Printing

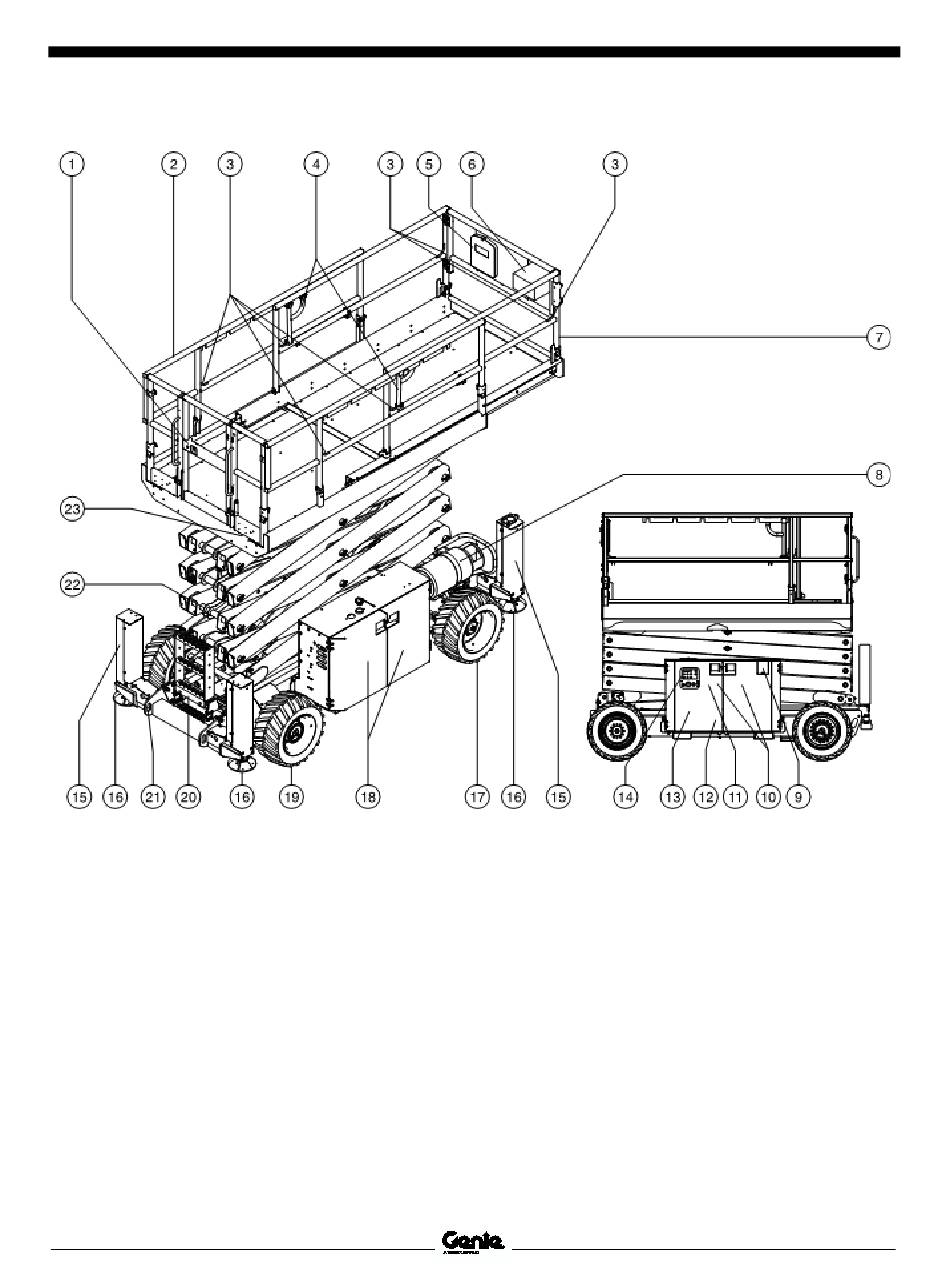

Legend

1
Platform entry gate
2
Platform guard rails
3
Lanyard anchorage points
4
Platform extension lock
handle
5
Manual storage container
6
Platform controls
7
Platform extension
8
LPG tank
9
Fuel tank
Part No. 1298222GT
10 Ground controls side covers
11 Hydraulic tank (behind cover)
12 Tilt alarm (behind cover)
13 Hydraulic oil level indicator
(behind cover)
14 Ground controls with LCD
readout screen
15 Outrigger housing (if
equipped with outriggers)
GS™-2669RT • GS™-3369RT • GS™-4069RT
Operator's Manual
Legend
16 Outrigger footpad (if equipped
with outriggers)
17 Steer tire
18 Engine side covers
19 Non-steer tire
20 Entry ladder
21 Transport tie-down
22 Safety arm
23 GFCI outlet
21
