To Drive
1 Press and hold the function enable switch on
the control handle.
2 Increase speed: Slowly move the control
handle off center.
Decrease speed: Slowly move the control
handle toward center.
Stop: Return the control handle to center or
release the function enable switch.
Use the color-coded direction arrows on the
platform controls and the drive chassis to identify
the direction the machine will travel.
Machine travel speed is restricted when the
platform is raised.
Drive Select Button
Machine on incline symbol: Low range
operation for inclines.
Indicator Light On Red
If the indicator light is on red, push
in and pull out the red Emergency
Stop button to reset the system.
If the light stays red, tag and
remove the machine from service.
Part No. 1298222GT GS™-2669RT • GS™-3369RT • GS™-4069RT
Operating Instructions

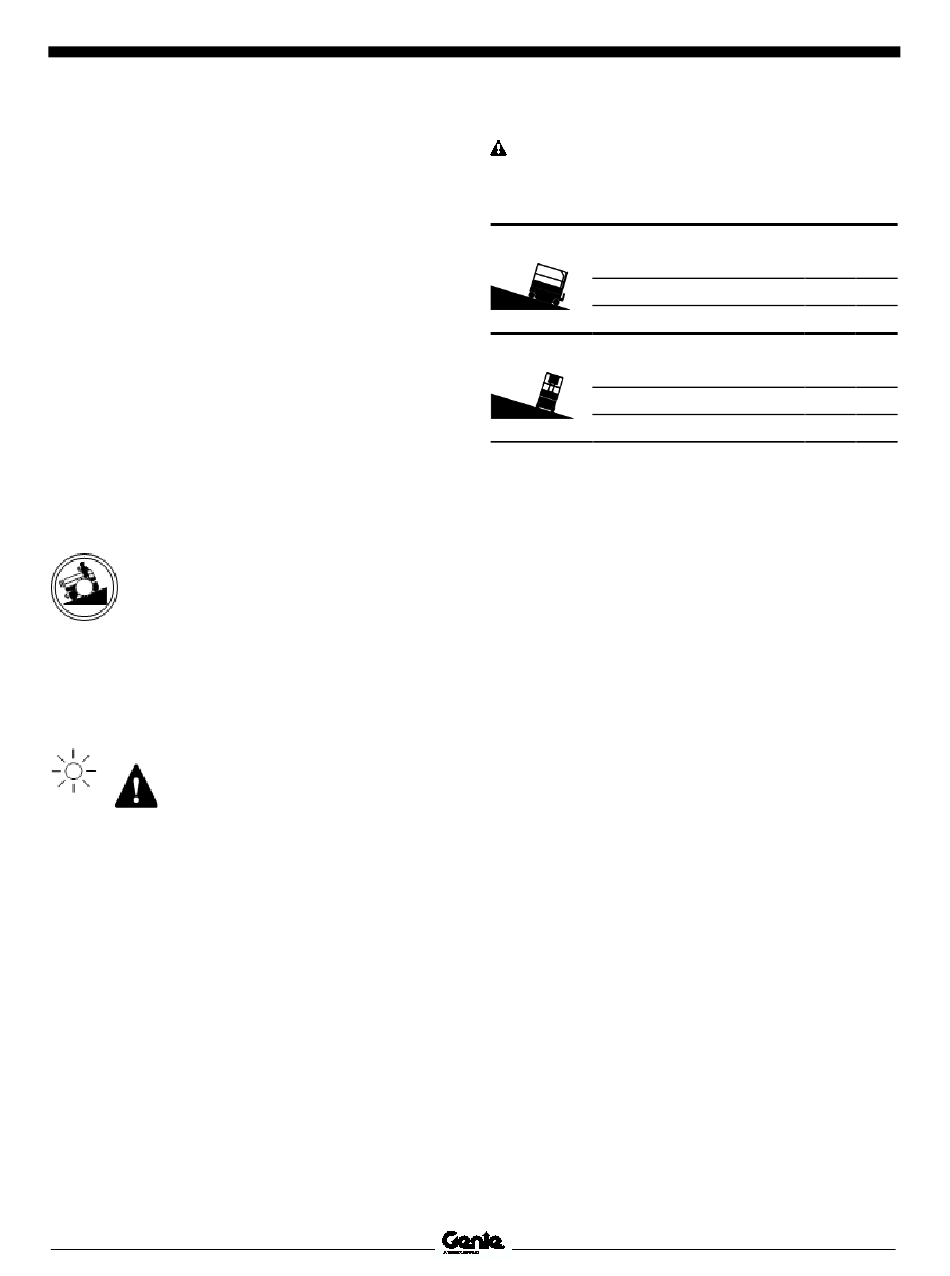

Driving on a slope
Determine the slope and side slope ratings for the
machine and determine the slope grade.
Maximum slope rating, stowed position:
GS-2669RT
GS-3369RT
GS-4069RT
Maximum side slope rating, stowed position:
GS-2669RT
GS-3369RT
GS-4069RT
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating.
To determine the slope grade:
Measure the slope with a digital inclinometer OR
use the following procedure.
You will need:
carpenter's level
•
straight piece of wood, at least 3 feet/1 m long
•
tape measure
•
Operator's Manual
40% 22°
35% 19°
35% 19°
40% 22°
35% 19°
35% 19°
