Installation Instructions / Warranty
QUATTRO FOUR WAY DIVERTER
Starck
10933XX1
Phoenix
17944XX1
Allegroh
36933XX1
Uno
38933XX1
Rough-in Ref. No.: 13932181
Trim sets
Carlton
17933XX1
Phoenix
17945XX1
Terrano
37933XX1
Citterio
39920XX1
39925XX1
Carlton
17935XX1
Steel
35933801
Terrano
37930XX1
Citterio
Mondial/
Metris/
Elegance/
Sportive
15935XX1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Starck 10933 1 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hans Grohe Starck 10933 1 Series

Summary of Contents for Hans Grohe Starck 10933 1 Series

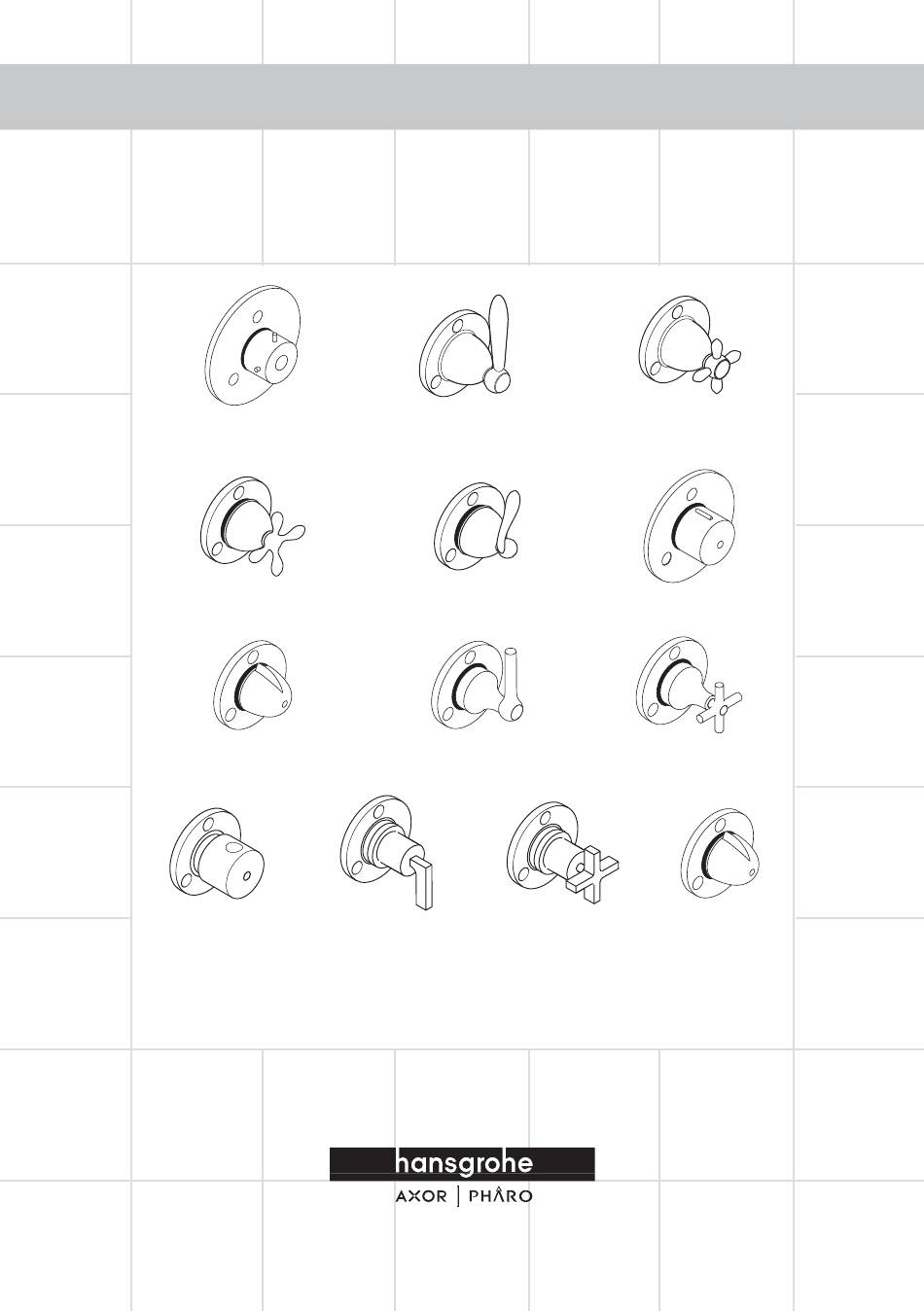

  • Page 1 Installation Instructions / Warranty QUATTRO FOUR WAY DIVERTER Trim sets Starck Carlton Carlton 10933XX1 17933XX1 17935XX1 Phoenix Phoenix Steel 17944XX1 17945XX1 35933801 Allegroh Terrano Terrano 36933XX1 37933XX1 37930XX1 Citterio Citterio Mondial/ Metris/ 38933XX1 39920XX1 39925XX1 Elegance/ Sportive Rough-in Ref. No.: 13932181 15935XX1...
  • Page 2 Sleeve and escutcheon assembly 1. Remove the cover 2. Seal around the rough-in with waterproof bathroom sealant 3. Push the guide ring into the body of the rough-in, only necessary for Starck10933XX1, Phoenix 17944XX1/17945XX1, Terrano 37930XX1/ 37933XX1, Uno 38933XX1 and Citterio 39920XX1 / 39925XX1.
  • Page 3 Handle assembly Starck 10933XX1 Terrano 37930XX1 / 37933XX1 1. Push the handle onto the shaft. 2. Fix the screw. 3. Cover the hole by the plastic cap. Carlton 17933XX1 / 17935XX1 Phoenix 17944XX1 / 17945XX1 1. Push the handle onto the shaft. 2.

  • Page 4: Spare Parts

    Citterio 39920XX1 / 39925XX1 1. Install the handle fixation and lock the screw. 2. Snap on the handle. 3. Fix the hollow set screw with a hex wrench 2 mm. Spare parts escutcheon Starck 94356XX0 escutcheon Starck/Carlton/Phoenix/Steel/Allegroh/Terrano/Citterio/Uno/ Mondial/Metris/Elegance/Sportive 13936XX0 handle Starck 10993XX1 2.1 screw-cover...

  • Page 6: Cleaning Procedures

    Cleaning Recommendation for Hansgrohe Products Modern faucetry and shower products utilize a combination of materials to comply with the needs of the market with regard to design and functionality. To avoid damage, it is necessary to use some caution when cleaning. Damage caused by improper treatment is not covered under the Hansgrohe warranty.

  • Page 7: Limited Lifetime Consumer Warranty

    Limited Lifetime Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. („Hansgrohe“). This warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either the United States or Canada.

  • Page 8: To Obtain Warranty Service

    TO OBTAIN WARRANTY SERVICE Contact your Hansgrohe retailer, or write to Technical Service at: Hansgrohe Inc. 1492 Bluegrass Lakes Parkway Alpharetta GA 30004 Or, call Hansgrohe toll-free at (800) 334-0455. In requesting warranty service, you will need to provide The sales receipt or other evidence of the date and place of purchase. A description of the problem.
