Unpacking Instructions - Fanimation The Zonix FP4620 220 Series Owner's Manual

This Manual is Designed to Make it as Easy as Possible for You
to Assemble, Install, Operate, and Maintain Your Ceiling Fan
Tools Needed for Assembly
• One Phillips head screwdriver
• One stepladder
• One ¼˝ blade screwdriver
▲WARNING
Before assembling your ceiling fan, refer to section on
proper method of wiring your fan (page 4). If you feel you
do not have enough wiring knowledge or experience,
have your fan installed by a licensed electrician.
For your convenience, check-off each step. As each step is completed, place a check mark. This will ensure that all
steps have been completed and will be helpful in fi nding your place should you be interrupted.
▲WARNING
Do not install or use fan if any part is damaged or
missing. This product is designed to use only those
parts supplied with this product and/or any accessories
designated specifically for use with this product by
Fanimation. Substitution of parts or accessories not
designated for use with this product by Fanimation could
result in personal injury or property damage. Contact
your retail store for missing or damaged parts.

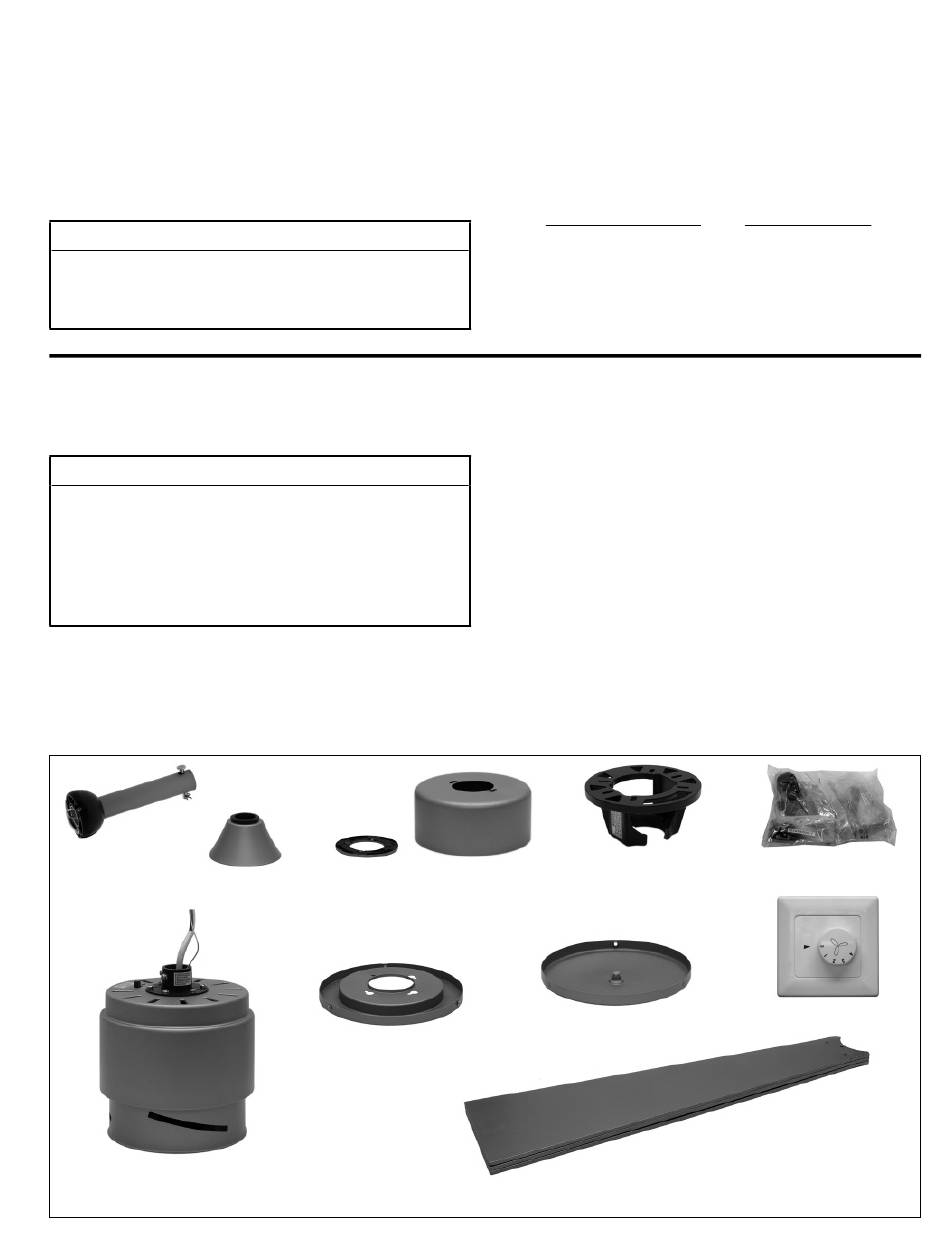

1. Check to see that you have received the following
parts:
NOTE: If you are uncertain of part description, refer to
exploded view illustration. (Figure 1, page 13)
Downrod/
Hanger Ball
Assembly
Motor Coupling Cover
Fan Motor Assembly
• One wire stripper
• Three wire connectors
(supplied)

Unpacking Instructions

Ceiling Canopy
Canopy
Screw Cover
Adapter Plate
Materials
Wiring outlet box and box connectors must be of type
required by local code. The minimum wire would be a 3-
conductor (2-wire with ground) of the following size:
Installed Wire Length
Up to 50 ft.
50 - 100 ft.
NOTE: Place the parts from the loose parts bags in a small
container to keep them from being lost. If any parts are missing,
contact your local retailer.
• Fan Motor Assembly
• Downrod/Hanger Ball
Assembly
• Hanger Bracket
• Ceiling Canopy
• Canopy Screw Cover
• Motor Coupling Cover
• Adapter Plate
• Lower Cover Assembly
• Wood Blades (3)
• CW40-220 Wall Control
Hanger Bracket
Lower Cover Assembly
3
Wire Size A.W.G.
14
12
• Hardware bags:
3
– / -24 x 15 mm (blade to motor hub)
16
washer-head screws & fiber washers
– Phillips screwdriver, 4˝
– Four wire connectors
– Blade Balance Kit
Hardware Bags
CW40-220 Wall Control
Blade Set
