Mounting the Fan Blades and Switch Cup Cover Assembly
INSTALLATION NOTE
Do not connect fan blades until the fan is completely
installed. Installing the fan with blades assembled may
result in damage to the fan blades.
▲WARNING
To reduce the risk of personal injury, do not bend the
blades when installing, balancing or cleaning the fan.
Do not insert foreign objects in between the rotating
blades.

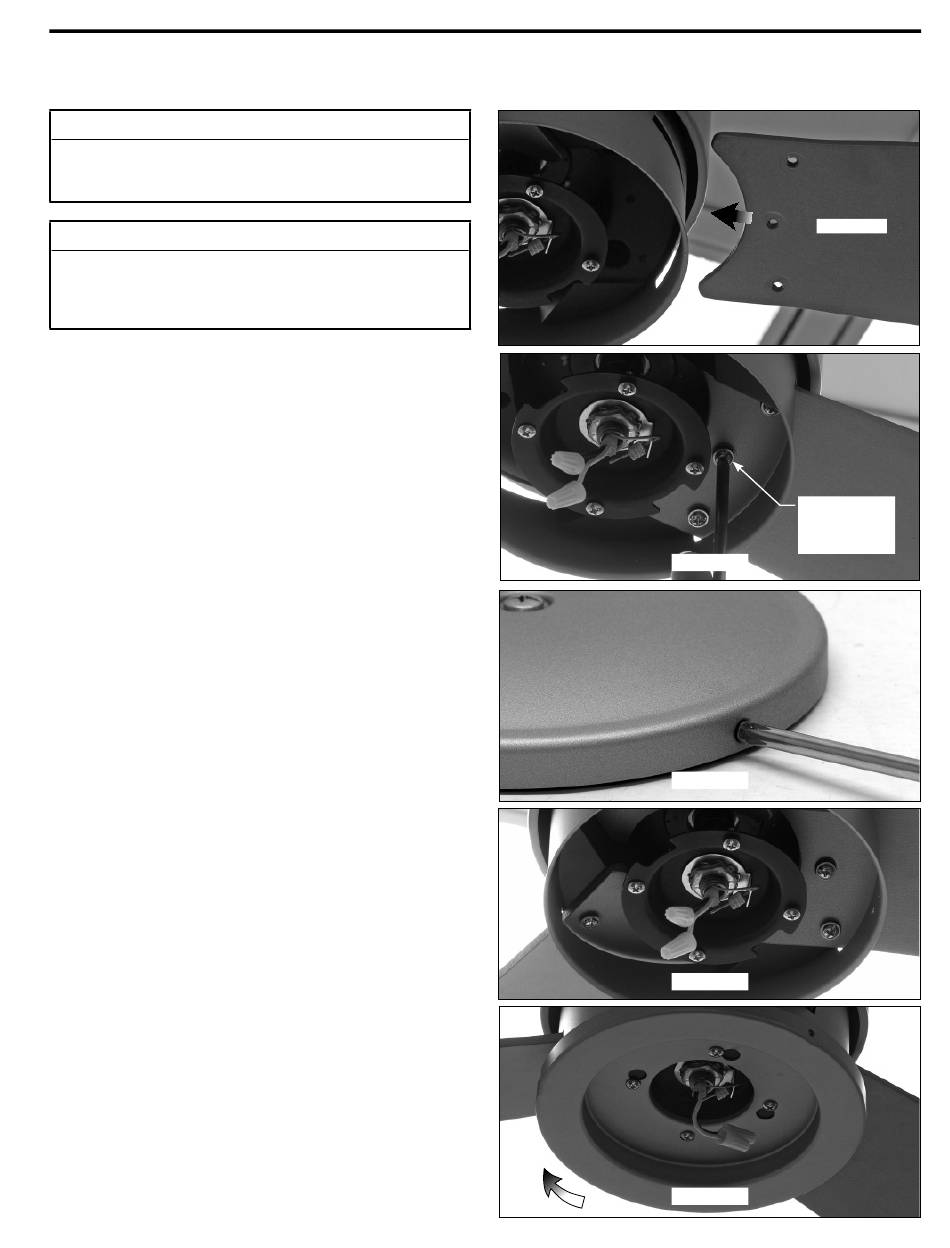

Blade Assembly:
1. Carefully slide the blade through the slot as shown.
(Figure 1)
2. Securely fasten the three blades with washer-head
screws with fiber washers. Do not over-tighten.
(Figure 2)
Switch Cup Cover Assembly:
3. Disassemble Switch Cup Cover from Switch Cup
Support Plate by removing three screws. (Figure 3)
4. Loosen three screws and remove one screw from
support flange. (Figure 4)
5. Attach the Switch Cup Support Plate to the support
flange by rotating plate and properly positioning screws
in key slots. Install fourth screw in remaining hole. Fully
tighten all four screws. (Figure 5)
9
Fan Blade
Figure 1
Washer-Head
Screw with
Fiber Washer
(3 per blade)
Figure 2
Figure 3
Figure 4
Figure 5
