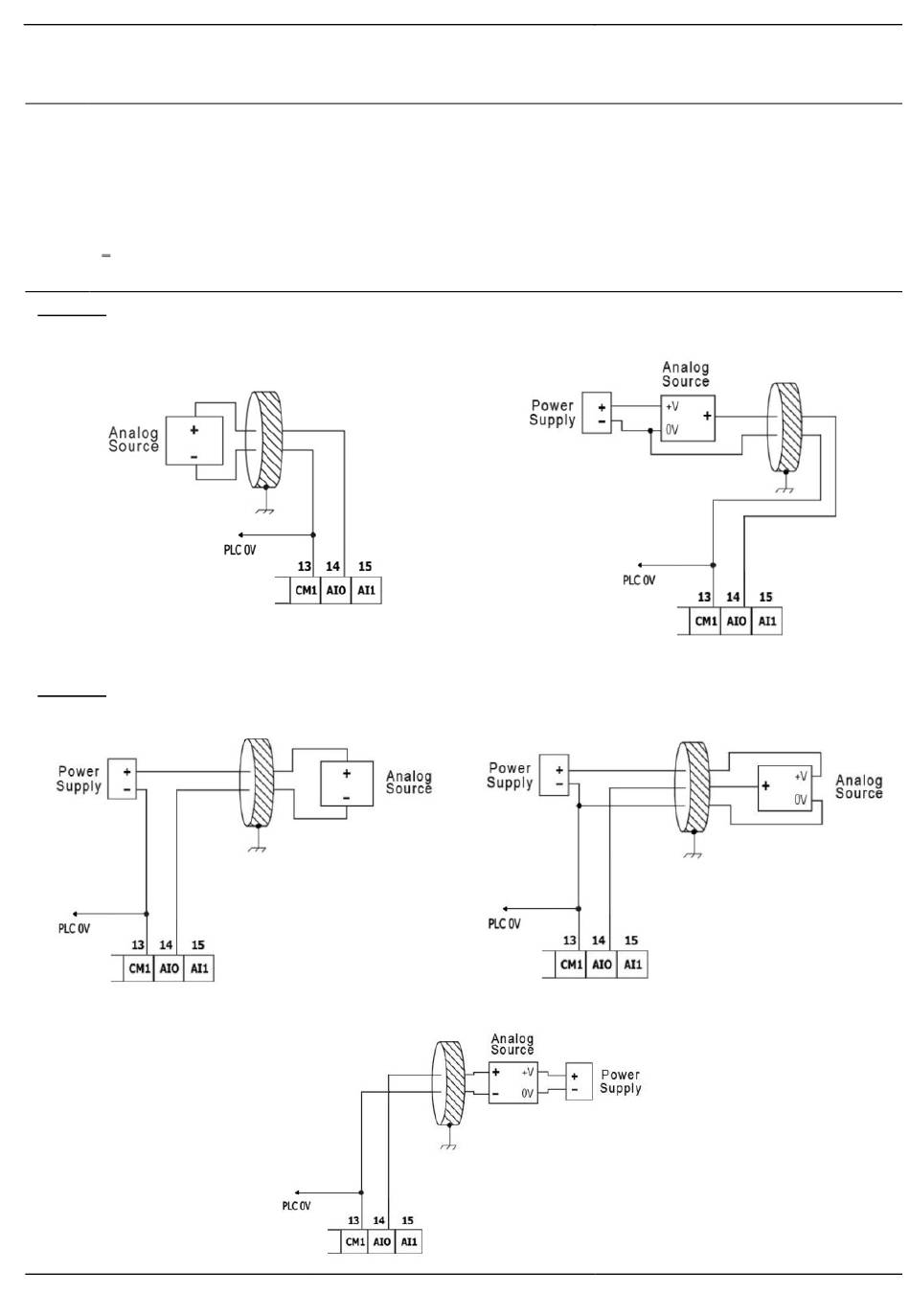

Wiring the Analog Inputs
Both inputs share the common point CM1.
▪ The inputs are not isolated.
N
OTE
▪ Each input offers two modes: voltage or current. You can set each input
independently.
▪ The mode is determined by the hardware configuration within the software
application.
▪ Note that if, for example, you wire the input to current, you must also set it to
current in the software application.
Voltage
Differential
Current
Unitronics
2-wire
4-wire
Single-ended
3-wire
