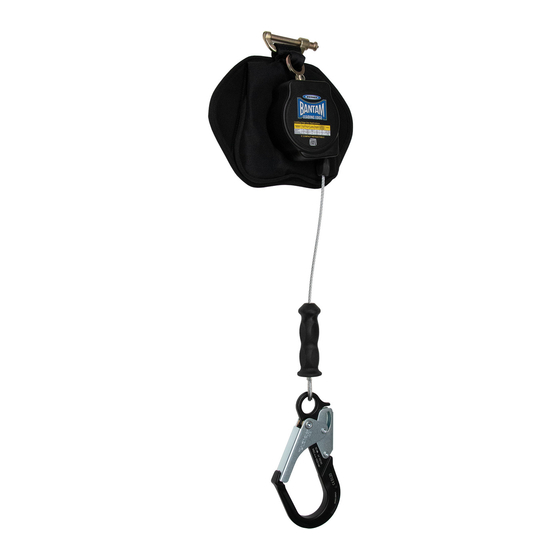

Werner MAX PATROL R410008LE User Instructions

Self retracting lifelines with leading edge capability
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER INSTRUCTIONS
SELF RETRACTING LIFELINES WITH
LEADING EDGE CAPABILITY
Complies with the ANSI Z359.14 standard and
OSHA 29 CFR 1910 and 1926 regulations.
This manual applies to SRL model numbers R410008LE(-R,-SR), R410020LE,
WARNING!
Compliant fall protection equipment must only be used as it was designed. Users MUST read
and follow all user instructions provided with the product. Before using a fall arrest system,
users must be trained in the safe use of the system, as required by OSHA 29 CFR 1910.30 and
1926.503, or local safety regulations. Misuse or failure to heed these warnings and
instructions may result in injury or even death.
WORK SAFE! WORK SMART!
IF YOU HAVE ANY QUESTIONS ABOUT THE PROPER USE OF THE EQUIPMENT, SEE YOUR
SUPERVISOR, USER INSTRUCTIONS, OR CONTACT WERNER CO. FOR MORE INFORMATION.
Werner Co. Fall Protection
93 Werner Rd.
Greenville, PA 16125
R410030LE, R413008LE(-R,-SR) and R410065LE.
724-588-2000
888-523-3371 toll free
888-456-8458 fax

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX PATROL R410008LE and is the answer not in the manual?

Questions and answers

Related Manuals for Werner MAX PATROL R410008LE

Summary of Contents for Werner MAX PATROL R410008LE

  • Page 1 WORK SAFE! WORK SMART! IF YOU HAVE ANY QUESTIONS ABOUT THE PROPER USE OF THE EQUIPMENT, SEE YOUR SUPERVISOR, USER INSTRUCTIONS, OR CONTACT WERNER CO. FOR MORE INFORMATION. Werner Co. Fall Protection 724-588-2000 93 Werner Rd.

  • Page 2: General Safety Information

    90 degrees. 15. Do not work on the far side of an opening, opposite the SRL-LE anchor point. 16. Only Werner Co., or persons or entities authorized in writing by Werner Co., shall make repairs or alterations to the equipment.
  • Page 3 TRAINING: Do not use SRL-LE’s without proper training from a “competent person” as defined by OSHA 29 CFR 1910.140(b) and 1926.32(f). 10. REPAIRS: Only Werner Co., or persons or entities authorized in writing by Werner Co., may make repairs or alterations to the equipment.

  • Page 4: Connection Requirements

    Anchorages used for attachment of personal fall arrest equipment shall be independent of any anchorage being used to support or suspend platforms and capable of supporting at least 5,000 pounds (22.2 kN) per employee attached, or shall be designed, installed, and used as part of a complete personal fall arrest system which maintains a safety factor of at least two;...

  • Page 5: Clearance Requirements

    CLEARANCE REQUIREMENTS Learance equIrement wIth ffset and etback Istance r410008Le(-r,-sr), r410020Le, r410030Le eadIng ppLIcatIons for r413008Le(-r,-sr) etback 2 Foot 4 Foot 6 Foot 8 Foot 10 f 12 Foot 14 Foot 16 Foot 18 Foot 20 Foot+ iStance (0.6m) (1.2m) (1.8m) (2.4m) (3.0m)
  • Page 6 r410008Le(-r,-sr), r410020Le, ffset Learance equIrements for r410030Le r413008Le(-r,-sr) NON LEADING EDGE APPLICATIONS Offset Offset Centerline 5 ft 4 ft 3 ft 2 ft 1 ft 0 ft 1 ft 2 ft 3 ft 4 ft 5 ft 5 ft 5 ft (1.5 m) (1.2 m) (0.9 m)
  • Page 7 r410065Le ffset Learance equIrements for NON LEADING EDGE APPLICATIONS Offset Offset Centerline 5 ft 4 ft 3 ft 2 ft 1 ft 0 ft 1 ft 2 ft 3 ft 4 ft 5 ft 5 ft 5 ft (1.5 m) (1.2 m) (0.9 m) (0.6 m)
  • Page 8 Learance aLcuLatIons Self Retracting Lifeline Maximum Arrest Distance (per ANSI Z359.14 Class A) 2 ft. (0.6 m) 1 ft. (0.31 m) Harness Stretch Total Estimated To Worker’s Back D-Ring 5 ft. (1.5 m) Distance 10 ft . (3.0 m) Estimated Clearance Working Level Required Safety Factor...

  • Page 9: Operation

    PERFORMANCE The Werner Co. SRL-LE was successfully tested for horizontal use and falls over a steel edge without burrs, concrete and b-decking and as a result, these devises may be used in applications where a fall may occur over similar edges.
  • Page 10 Users must have a rescue plan, and the means to implement it, that provides for the prompt rescue of employees in the event of a fall or assures that employees are able to rescue themselves. Check the operation by pulling smoothly on the lifeline, then pulling sharply on the lifeline to engage the locking mechanism.

  • Page 11: Cleaning, Maintenance And Storage

    The hardware can also be wiped down to remove grease or dirt with a clean dry cloth. WARNING! Only Werner Co., or persons or entities authorized in writing by Werner Co., shall make repairs or alterations to the equipment. aIntenance SRL-LE’s requiring maintenance must be tagged “unusable”...
  • Page 12 User repairs and altera ons are NOT permi ed. Avoid physical and environmental hazards such as thermal, machinery, and electrical and chemical sources. For proper use see supervisor, user instruc ons, or contact Werner Co. Leading Edge Use Applica ons...
  • Page 14 Werner Co. Fall Protection 93 Werner Rd. Greenville, PA 16125 724-588-2000 • 888-523-3371 toll free • 888-456-8458 fax PN118234-01 ©2018 Werner Co. Rev A 10/18...
