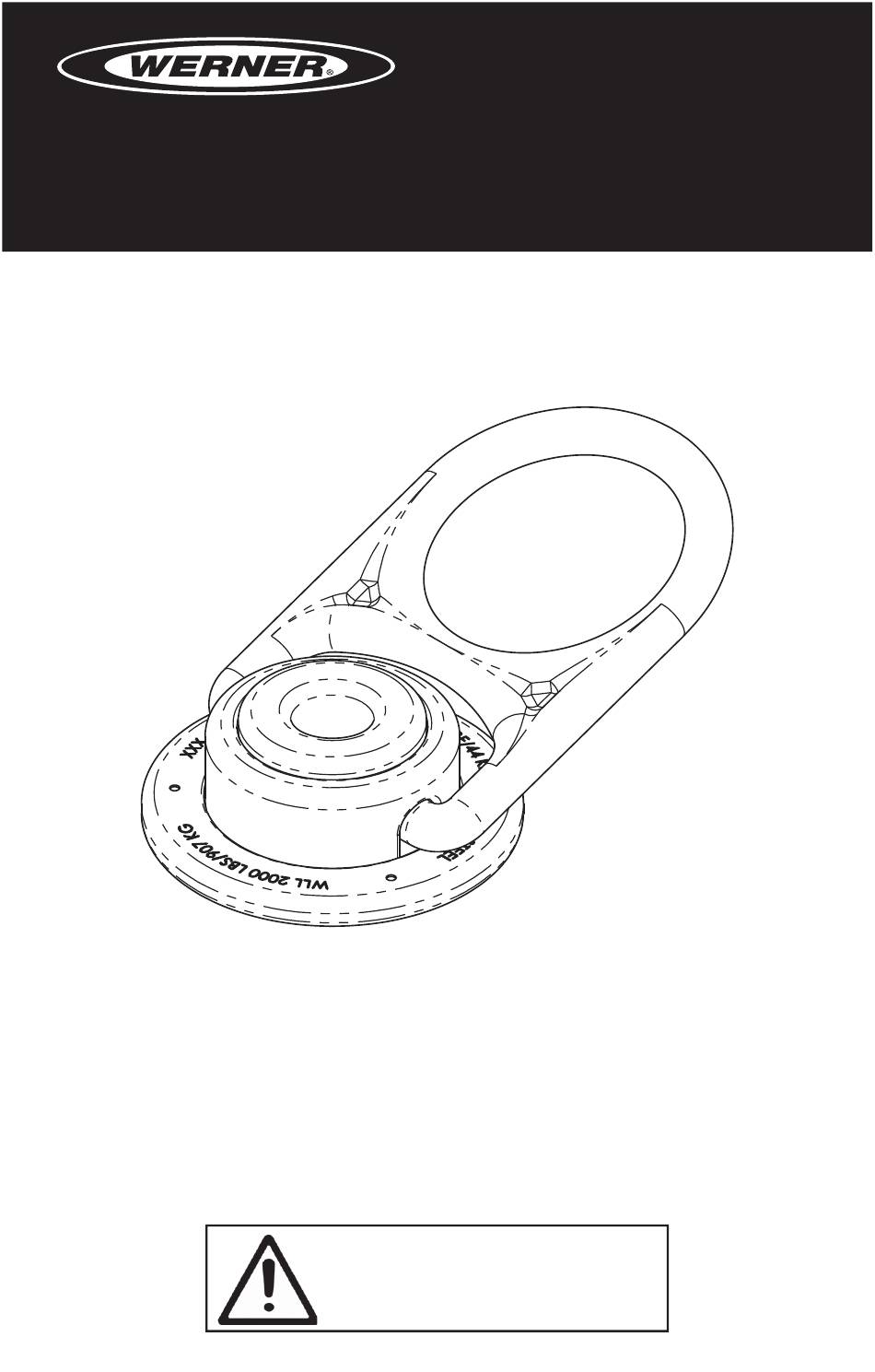

10K ZINC PLATED SWIVEL ANCHOR
Complies with ANSI Z359.18 Type A standard and
OSHA 29 CFR 1910 and 1926 regulations.
OPERATION AND INSTRUCTION MANUAL
Swivel Anchor Models: A510003, A510001, A320003, A510022
Additional Models: A320004, A320005, A510004, A570007, A510021,
Page 1
A510023, A350000
WARNING:
UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY
RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE
FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL USERS OF THIS PRODUCT MUST BE PROPERLY
INSTRUCTED ON HOW TO USE THE DEVICE. AVOID CONTACT
WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL, ELECTRICAL,
ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
Patent # US 8,424,638
FALL PROTECTION
ALL USERS OF THIS EQUIPMENT MUST READ AND
V4.7-E
Advertisement
Table of Contents
Related Manuals for Werner A510003
Summary of Contents for Werner A510003
- Page 1 10K ZINC PLATED SWIVEL ANCHOR Complies with ANSI Z359.18 Type A standard and OSHA 29 CFR 1910 and 1926 regulations. OPERATION AND INSTRUCTION MANUAL Swivel Anchor Models: A510003, A510001, A320003, A510022 Additional Models: A320004, A320005, A510004, A570007, A510021, A510023, A350000 WARNING: ALL USERS OF THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS.
-
Page 2: Use Instructions
PURPOSE The A510001, A510003, A510022, A320004, & A35000 are anchorage connectors designed to function as an interface between the anchorage and a fall arrest, work positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage connector”... - Page 3 LABEL LOCATIONS 180° 2.25 inches ø 8 inches ø (57.15mm) (203.2mm) 5.5 inches (139.7mm) 360° 3 inches 1 inch (76.2mm) (25.4mm) Minimum Breaking Strength (MBS): 10,000-lbf (44kN) Weight: 1.2-lbs (544.3g) Materials: Zinc Plated Steel Regulatory Compliance: Meets or exceeds ANSI Z359.18 Type A, ANSI Z359.7(19) OSHA 29 CFR 1926.502, OSHA 29 CFR 1910.140 LOADING CONDITIONS DIAGRAM LOAD...
- Page 4 STEEL MOUNTING MODELS A320003, A320004, A350000 1. Use a proper drill and bit for steel. 2. Drill a 5/8 inch (16mm) hole no less than .75 inch (6mm) deep 3 inches (76mm) away from any edge. 3. Hole must be straight and perpendicular to surface. 4.
-
Page 5: Concrete Mounting
CONCRETE MOUNTING MODELS A510001, A510004, A510022, A510023, A350000 1. Use a proper drill and bit for concrete (SDS drill bit). 2. Drill a 3/4 inch (19mm) hole no less than 5 inches (114mm) deep 9 inches (229mm) away from any edge. 3. - Page 6 WELD ON MOUNTING MODEL A570007 Grade - 5 or 8 bolt 5/8-11 x 1-3/4 inch Internal Tooth Lock Washer Torque Range: 75 to 90 ft-lbs (100-120Nm) Weld Puck * Weld (AISI 1018) 3/8 inch min (9.5mm) * Welding procedure must be approved by an engineer or other qualified person to be compatible with any and all structural &...
- Page 7 STRAIGHT LOOP INSERT MODEL A510022 See A510021 Straight Loop Insert Manual for anchorage casting instructions. 1. Strip decking to expose the Straight Loop Insert. 2. Ensure that anchorage was properly installed. Orange indicator should be flush with concrete surface, and at least 9 inches (23 cm) from any edge or corner. Concrete should be at least 8 inches (20 cm) thick and cured to a minimum of 3000 psi (20.7 MPa).
- Page 8 *Only use connecting subsystems that limit the maximum arrest force to less that 1,800 lbf (8kN). In the EU these forces must be limited to 1350-lbf (6kN). (ANCHOR POINT) WORK SURFACE *The structure the anchorage is attached to must be able to support 10,000-lbf (44kN) and installed under the supervision...
-
Page 9: Kit Contents
KIT CONTENTS PART NUMBER A510003 (Anchor Swivel 10K) A320004 (Steel Mounting Bolt Assembly) A320003 (Swivel with Steel Bolt Assembly) A350000 Swivel with Steel Bolt Assembly and Concrete Bolt Assembly A510023 (Straight Loop Insert Bolt Assembly) A510022 (Swivel with Straight Loop Insert... -
Page 10: Maintenance, Cleaning And Storage
MAINTENANCE, CLEANING AND STORAGE Cleaning periodically may help prolong the life and proper functioning of the product. The frequency of cleaning should be determined by inspection and by severity of the environment. Clean with compressed air and/or a stiff brush using plain water or a mild soap and water solution. Do not use any corrosive chemicals that could damage the product. - Page 11 NOTES...
- Page 12 WernerCo 93 Werner Road Greenville, PA 16125 1(724) 588-2000 1(888) 523-3371 toll free 1(888) 456-8458 fax Page 12 P/N 105547-01 REV F 5/21...
