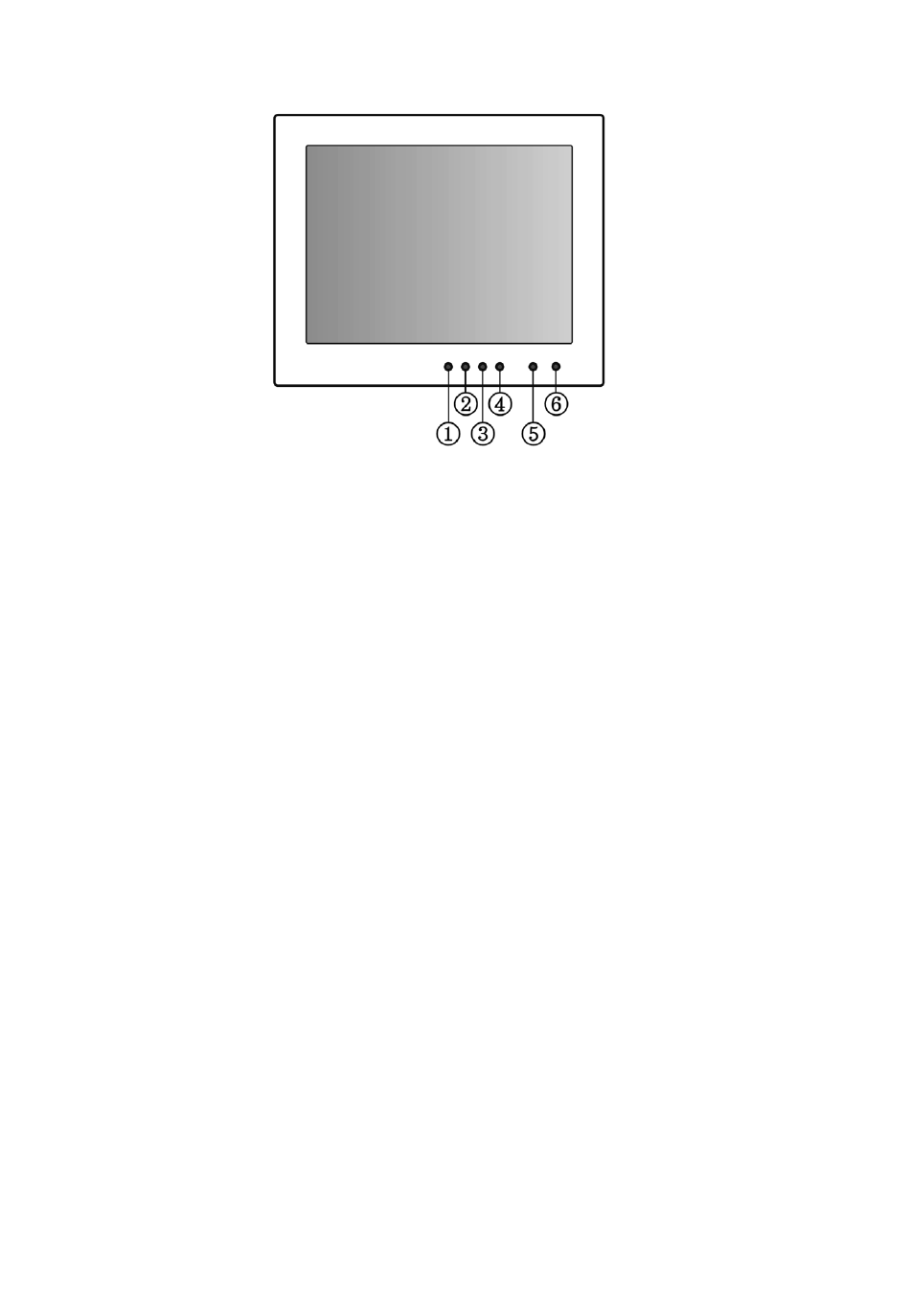

4. Description of Monitor and Controls

1. MODE button
Press the MODE button to be appeared source select OSD box and press the Up / Down button or MODE button
repeatedly, then press the MENU button or wait 3 seconds to select highlighted source.
• If PC Picture size does not match with full horizontal or vertical screen size, press the MODE button
continuously (2-3 seconds) and wait for a little while then you can see the most appropriate screen.
2. MENU button
Button to Setup Screen and Function
Press the MENU button to be appeared menu OSD box and press the MODE button repeatedly to select the main
menu (Picture menu, Setup menu), then press the Up button to enter the sub menu, press the MODE button
repeatedly to highlight icon that user wants, press the Up / Down button to increase, decrease or change the
function.
Push the MENU button once to return to the main menu to select another function or press twice to exit from the
OSD.
3. UP button (Up)
Hot key for Quick Brightness
It is a function of Brightness control.
When you pushed Up button. OSD displays BRIGHTNESS word and number.
OSD disappears in 3 seconds after finishing operation.
. Up button to increase the Brightness
. This key can be pushed continuously or only once.
3. Down button decreases the Brightness
4. DOWN button (Down)
Hot key for Quick Contrast
It is a function of Contrast control.
When you pushed Down button, OSD displays CONTRAST word and number.
OSD disappears in 3 seconds after finishing operation.
. Up button to increase the Contrast
. This key can be pushed continuously or only once.
3. Down button decreases the Contrast
