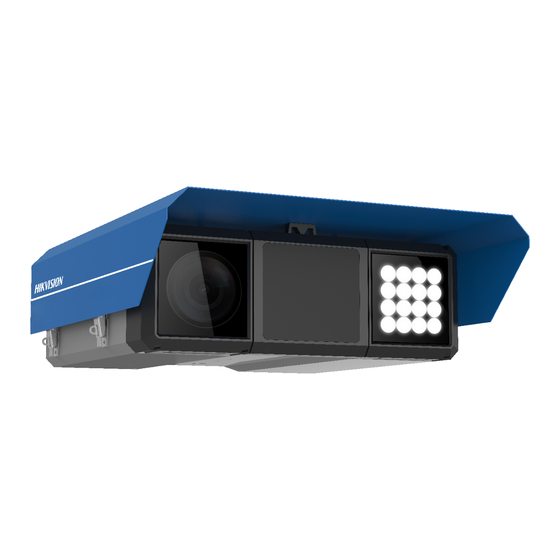

Network Traffic Camera
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iDS-TCE907-BR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION iDS-TCE907-BR

Summary of Contents for HIKVISION iDS-TCE907-BR

  • Page 1 Network Traffic Camera Operation Manual...
  • Page 2 With the philosophy of "Technology for the Good", Hikvision requests that every end user of video technology and video products shall comply with all the applicable laws and regulations, as well as ethical customs, aiming to jointly create a better community.
  • Page 3 Network Traffic Camera Operation Manual control, selecting a suitable network environment (the Internet or Intranet) where video products are connected, establishing and constantly optimizing network security. Video products have made great contributions to the improvement of social security around the ●...
  • Page 4 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 5 Network Traffic Camera Operation Manual DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
  • Page 6 Network Traffic Camera Operation Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or...
  • Page 7 Network Traffic Camera Operation Manual Safety Instruction Regulatory Information This is a class A product and may cause radio interference in which case the user may be required to take adequate measures. Laws and Regulations Use of the product must be in strict compliance with the local laws and regulations. Please shut down the device in prohibited area.
  • Page 8 Network Traffic Camera Operation Manual DO NOT expose the device to extremely hot, cold, or humidity environments. For temperature ● and humidity requirements, see device specification. No naked flame sources, such as lighted candles, should be placed on the equipment. ●...

  • Page 9: Table Of Contents

    Network Traffic Camera Operation Manual Contents Chapter 1 Activation and Login ....................1 1.1 Activation ..........................1 1.1.1 Default Information ...................... 1 1.1.2 Activate via SADP ......................1 1.1.3 Activate via Web Browser ..................... 2 1.2 Login ............................3 Chapter 2 Live View and Local Configuration ................4 2.1 Live View ..........................
  • Page 10 Network Traffic Camera Operation Manual 4.1.2 Set FTP ........................14 4.1.3 Set SDK Listening ......................15 4.1.4 Set Arm Host ....................... 16 4.1.5 Set ISAPI Listening ....................... 17 4.1.6 Set Cloud Storage ......................18 4.2 Set Quota ..........................19 4.3 Set Record Schedule ......................20 Chapter 5 Encoding and Display ....................
  • Page 11 Network Traffic Camera Operation Manual 9.1 Manage User ........................43 9.2 Set IP Address Filtering ......................43 9.3 Enable User Lock ........................44 9.4 Set HTTPS ..........................44 9.4.1 Create and Install Self-signed Certificate ..............44 9.4.2 Install Authorized Certificate ..................45 9.5 Set SSH ..........................
  • Page 12 Network Traffic Camera Operation Manual 10.12 Export Debug File ......................54 10.13 Export Diagnosis Information ..................54 Appendix A. Communication Matrix and Device Command ............55...

  • Page 13: Chapter 1 Activation And Login

    Get the SADP software from the supplied disk or the official website ( http:// ● www.hikvision.com/ ), and install it according to the prompts. The device and the computer that runs the SADP tool should belong to the same network ●...

  • Page 14: Activate Via Web Browser

    Network Traffic Camera Operation Manual Figure 1-1 Activate via SADP Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same network segment as your computer by either modifying the IP address manually or checking Enable DHCP (Dynamic Host Configuration Protocol).

  • Page 15: Login

    Network Traffic Camera Operation Manual Caution STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

  • Page 16: Chapter 2 Live View And Local Configuration

    Network Traffic Camera Operation Manual Chapter 2 Live View and Local Configuration 2.1 Live View 2.1.1 Start/Stop Live View Click to start live view. Click to stop live view. 2.1.2 Select Image Display Mode Click to select an image display mode. 2.1.3 Select Window Division Mode Click to select a window division mode.

  • Page 17: Start/Stop Two-Way Audio

    Network Traffic Camera Operation Manual Steps 1. Click to start live view. 2. Click to start recording. 3. Click to stop recording. 4. Optional: Click Configuration → Local → Record File Settings to view the saving path of record files. 2.1.7 Start/Stop Two-Way Audio The device supports two-way audio with terminals, such as computers.

  • Page 18: Enable Regional Focus

    Network Traffic Camera Operation Manual The area will be zoomed in. 4. Click any position of the image to restore to normal image. 5. Click to disable digital zoom. 2.1.10 Enable Regional Focus Steps Note The function varies with different models. The actual device prevails. 1.

  • Page 19: Ptz Operation

    Network Traffic Camera Operation Manual 2.2 PTZ Operation Click Live View. Click and click to show the PTZ control panel. Note The PTZ supports power-off memory. When the device is suddenly cut off power or restarted ● normally, it can automatically return to the position before the power cut or reboot. The PTZ function varies with different models.

  • Page 20: Local Configuration

    Network Traffic Camera Operation Manual Button Description Hold to increase the iris diameter when in a dark ● environment. Hold to decrease the iris diameter when in a bright ● environment. Lens Initialization It is applicable to devices with motorized lenses. You can use this function when overcoming image blurs caused by overtime zooming or focusing.
  • Page 21 Network Traffic Camera Operation Manual Figure 2-2 Local Configuration Protocol Type Select the network transmission protocol according to the actual needs. Ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected. Provides real-time audio and video streams. HTTP Gets streams from the device by a third party client.
  • Page 22 Network Traffic Camera Operation Manual Select it to get the high-quality image when the network condition is good. Sub-Stream Select it to get the fluent image when the network condition is not good enough. Live View Performance Shortest Delay The video is real-time, but its fluency may be affected. Balanced Balanced mode considers both the real time and fluency of the video.
  • Page 23 Network Traffic Camera Operation Manual Save downloaded pictures to Set the saving path for the downloaded pictures. Save scene picture to Set the saving path of the captured pictures in Live View → Real-Time Capture . Save snapshots when playback to Set the saving path for the manually captured pictures in playback mode.

  • Page 24: Chapter 3 Playback

    Network Traffic Camera Operation Manual Chapter 3 Playback You can search, play back, and download videos that stored on the storage card. Steps 1. Click Playback. 2. Select a channel. 3. Select a date. 4. Click Search. 5. Click to start playback. 6.

  • Page 25: Chapter 4 Record And Capture

    Network Traffic Camera Operation Manual Chapter 4 Record and Capture 4.1 Set Storage Path 4.1.1 Set Storage Card If you want to store the files to the storage card, make sure you insert and format the storage card in advance. Before You Start Insert the storage card to the device.

  • Page 26: Set Ftp

    Network Traffic Camera Operation Manual 4.1.2 Set FTP Set FTP parameters if you want to upload the captured pictures to the FTP server. Before You Start Set the FTP server, and ensure the device can communicate normally with the server. Steps 1.

  • Page 27: Set Sdk Listening

    Network Traffic Camera Operation Manual Note Supported functions vary with different models. The actual device prevails. Not Upload Plate Close-up The close-up pictures of a license plate will not be uploaded. Upload Face Picture Upload face close-up pictures to the FTP server. Upload Target Picture Upload the matted pictures of the target detection area to the FTP server.

  • Page 28: Set Arm Host

    Network Traffic Camera Operation Manual Figure 4-3 Set SDK Listening 2. Set IP Address/Domain and Port if you need to upload the alarm information and pictures. 3. Optional: Enable the picture uploading listening if you need to upload image information. 4.

  • Page 29: Set Isapi Listening

    Network Traffic Camera Operation Manual Figure 4-4 Set Arm Host 2. Select Protocol Type. Note Supported functions vary with different models. The actual device prevails. License Plate Upload Protocol Uploads arming alarm images of the license plate. You can enable Upload Binary Image if you need to upload binary images full of black or white pixel points.

  • Page 30: Set Cloud Storage

    Network Traffic Camera Operation Manual Figure 4-5 Set ISAPI Listening 2. Set ANPR IP/Domain, ANPR Port, and Host URL. 3. Optional: Enable Upload Binary Image if you need to upload images which are full of black or white pixel points. Note Enable Output Binary Image in BMP Format if you want to output images in this format.

  • Page 31: Set Quota

    Network Traffic Camera Operation Manual Figure 4-6 Set Cloud Storage 2. Check Enable. 3. Select Version. V1.0 a. Enter IP Address and Port b. Enter User Name and Password. c. Enter Cloud Storage ID and Violation Cloud Storage ID according to the server storage area No.

  • Page 32: Set Record Schedule

    Network Traffic Camera Operation Manual Figure 4-7 Set Quota 2. Set Capture Quota Ratio and Video Quota Ratio according to the actual needs. Note The percentage sum of the capture and video quota ratio should be 100 %. 3. Click Save. What to do next Format the storage card after the settings.
  • Page 33 Network Traffic Camera Operation Manual Figure 4-8 Set Record Schedule 4. Select Record Type. 5. Drag the cursor on the time bar to set a recording time. Note Up to 8 time periods can be set on a time bar. 6.

  • Page 34: Chapter 5 Encoding And Display

    Network Traffic Camera Operation Manual Chapter 5 Encoding and Display 5.1 Set Video Encoding Parameters Set video encoding parameters to adjust the live view and recording effect. When the network signal is good and the speed is fast, you can set high resolution and bitrate to ●...

  • Page 35: Set Image Parameters

    Network Traffic Camera Operation Manual Scalable Video Coding (SVC) is an extension of the H.264/AVC and H.265 standard. Enable the function and the device will automatically extract frames from the original video when the network bandwidth is insufficient. Bitrate Type Select the bitrate type to constant or variable.
  • Page 36 Network Traffic Camera Operation Manual Figure 5-1 Set Image Parameters 2. Set the camera parameters. Note The supported parameters vary with different models. The actual device prevails. General Parameter Enable Dual-Shutter Set the stream type after enabling it. Saturation It refers to the colorfulness of the image color. Sharpness It refers to the edge contrast of the image.
  • Page 37 Network Traffic Camera Operation Manual light correction coefficient. The higher the sensitivity is, the easier this function can be enabled. Enable Gamma Correction The higher the gamma correction value is, the stronger the correction strength is. Black and White Mode at Night When ICR is in night mode, you can check it to keep the video in black and white mode.

  • Page 38: Set Icr

    Network Traffic Camera Operation Manual 3. Optional: Click Capture Test to check the image. 5.3 Set ICR ICR adopts mechanical IR filter to filter IR in the day to guarantee the image effect, and to remove the IR filter at night to guarantee full-spectrum rays can get through the device. Steps 1.

  • Page 39: Set Privacy Mask

    Network Traffic Camera Operation Manual 2. Select Stream Type. 3. Set ROI region. 1) Check Enable. 2) Select Area Code. 3) Click Draw Area. 4) Drag the mouse on the live view image to draw a fixed area. 5) Select the fixed area that needs to be adjusted and drag the mouse to adjust its position. 4.
  • Page 40 Network Traffic Camera Operation Manual Figure 5-3 Set Privacy Mask 2. Check Enable Privacy Mask. 3. Enable the privacy mask area(s). 1) Check Enable. 2) Select Area Code. 3) Select Type. 4. Draw the privacy mask area. 1) Click Draw Area. 2) In the live view image, drag the mouse to draw the privacy mask area of the selected area code.

  • Page 41: Set Osd

    Network Traffic Camera Operation Manual 5. Optional: Repeat step 3 and 4 to draw more privacy mask areas. Note Up to four privacy mask areas are supported. 6. Click Save. 5.6 Set OSD You can customize OSD information on the live view. Steps 1.
  • Page 42 Network Traffic Camera Operation Manual Note Up to 6 items of custom information can be added. 4. Set display properties (font, color, etc.). 5. Select Alignment. Note If you select Align Left or Align Right, set Min. Horizontal Margin and Min. Vertical Margin. 6.

  • Page 43: Chapter 6 Network Configuration

    Network Traffic Camera Operation Manual Chapter 6 Network Configuration 6.1 Set IP Address IP address must be properly configured before you operate the device over network. IPv4 and IPv6 are both supported. Both versions can be configured simultaneously without conflicting to each other.
  • Page 44 Network Traffic Camera Operation Manual Select it when the two network interfaces are connected to two network cables respectively. When one network interface fails, the other network interface will be switched automatically without influencing the data transmission. Multi-Network Isolation Select it when different LANs are connected. Set the IP addresses of different network segments.

  • Page 45: Connect To Platform

    Network Traffic Camera Operation Manual Enter IPv6 Address, IPv6 Subnet Mask, and IPv6 Gateway. Consult the network administrator for required information. It stands for maximum transmission unit. It is the size of the largest protocol data unit that can be communicated in a single network layer transaction. The valid value range of MTU is 1280 to 1500.

  • Page 46: Connect To Guarding Vision

    Network Traffic Camera Operation Manual Figure 6-2 Connect to ISUP Platform 2. Check Enable. 3. Select Protocol Version. 4. Select Address Type. 5. Enter Sever IP Address, Server Port, and Device ID. Note You need to enter Key if you select Protocol Version as v5.0. 6.

  • Page 47: Set Ddns

    Network Traffic Camera Operation Manual Before You Start Connect the device to the Internet. ● Set the IP address, subnet mask, gateway, and DNS server of the LAN. ● Steps 1. Go to Configuration → Network → Data Connection → Guarding Vision Platform . 2.

  • Page 48: Set Snmp

    Network Traffic Camera Operation Manual Steps 1. Go to Configuration → Network → Network Parameters → DDNS . Figure 6-4 Set DDNS 2. Check Enable DDNS. 3. Enter the server address and other information. Note You can select IPServer, DynDNS, and NO-IP for the DDNS type. 4.

  • Page 49: Set Ieee 802.1X

    Network Traffic Camera Operation Manual Note The SNMP version you select should be the same as that of the SNMP software. ● Use different versions according to the security levels required. SNMP v1 is not secure and ● SNMP v2 requires password for access. SNMP v3 provides encryption and if you use the third version, HTTPS protocol must be enabled.

  • Page 50: Set Port

    Network Traffic Camera Operation Manual 6.6 Set Port The device port can be modified when the device cannot access the network due to port conflicts. Go to Configuration → Network → Network Parameters → Port for port settings. Figure 6-6 Set Port HTTP Port It refers to the port through which the browser accesses the device.
  • Page 51 Network Traffic Camera Operation Manual Note After editing the port, access to the device via new port. ● Reboot the device to take the new settings into effect. ● The supported ports vary with different models. The actual device prevails. ●...

  • Page 52: Chapter 7 Serial Port Configuration

    Network Traffic Camera Operation Manual Chapter 7 Serial Port Configuration 7.1 Set RS-485 Set RS-485 parameters if the device needs to be connected to other peripheral devices controlled by RS-485 serial port. Before You Start The corresponding device has been connected via the RS-485 serial port. Steps Note The number of available RS-485 serial port varies with different models.

  • Page 53: Set Rs-232

    Network Traffic Camera Operation Manual 7.2 Set RS-232 Set RS-232 parameters if you need to debug the device via RS-232 serial port. Before You Start The debugging device has been connected via the RS-232 serial port. Steps 1. Go to Configuration → System → System Settings → Serial Port → RS-232 . Figure 7-2 Set RS-232 2.

  • Page 54: Chapter 8 Exception Alarm

    Network Traffic Camera Operation Manual Chapter 8 Exception Alarm Set exception alarm when the network is disconnected, the IP address is conflicted, etc. Steps Note The supported exception types vary with different models. The actual device prevails. 1. Go to Configuration → Event → Alarm Linkage → Exception Event . 2.

  • Page 55: Chapter 9 Safety Management

    Network Traffic Camera Operation Manual Chapter 9 Safety Management 9.1 Manage User The administrator can add, modify, or delete other accounts, and grant different permissions to different user levels. Steps 1. Go to Configuration → System → User Management → User List . 2.

  • Page 56: Enable User Lock

    Network Traffic Camera Operation Manual 3. Set Filtering Mode. Blocklist Mode The added IP addresses are not allowed to access the device. Allowlist Mode The added IP addresses are allowed to access the device. 4. Click Add, enter the IP address, and click OK. Note The IP address only refers to the IPv4 address.

  • Page 57: Install Authorized Certificate

    Network Traffic Camera Operation Manual 9.4.2 Install Authorized Certificate If the demand for external access security is high, you can create and install authorized certificate via HTTPS protocol to ensure the data transmission security. Steps 1. Go to Configuration → Network → Network Parameters → HTTPS . 2.

  • Page 58: Set Timeout Logout

    Network Traffic Camera Operation Manual 9.7 Set Timeout Logout You can improve network access security by setting timeout logout. Steps 1. Go to Configuration → System → Security → Security Service → Timeout Logout . 2. Enable timeout logout for static page. 3.

  • Page 59: Chapter 10 Maintenance

    Network Traffic Camera Operation Manual Chapter 10 Maintenance 10.1 View Device Information Basic Information and Algorithms Library Version Go to Configuration → System → System Settings → Basic Information to view the basic information and algorithms library version of the device. You can edit Device Name and Device No.

  • Page 60: Search Log

    Network Traffic Camera Operation Manual Steps Note The function varies with different models. The actual device prevails. 1. Go to Configuration → System → Maintenance → Debug → Log . 2. Check the module(s) according to your needs. 3. Click Save. 10.2.3 Search Log Log helps to locate and troubleshoot problems.

  • Page 61: Reboot

    Network Traffic Camera Operation Manual 3. Click Upgrade. 4. Click OK in the popup window. Note The upgrade process will take 1 to 10 minutes. Do not cut off the power supply. Result The device will reboot automatically after upgrade. 10.5 Reboot When the device needs to be rebooted, reboot it via the software instead of cutting off the power directly.

  • Page 62: Set Dst

    Network Traffic Camera Operation Manual Steps 1. Go to Configuration → System → System Settings → Time Settings . 2. Select Time Zone. 3. Select Sync Mode. NTP Synchronization Select it to synchronize the device time with that of the NTP server. Set Server IP, NTP Port, and Interval.

  • Page 63: Debug

    Network Traffic Camera Operation Manual 10.9 Debug Note The debug configurations below are only provided to debug the device by the professionals. 10.9.1 Debug Device You can enable the functions to debug the device. Steps 1. Go to Configuration → Capture → Advanced → System Service . 2.

  • Page 64: Vehicle Capture And Recognition Service

    Network Traffic Camera Operation Manual 10.9.2 Vehicle Capture and Recognition Service Set the vehicle capture and recognition service to debug the device. Steps Note The function varies with different models. The actual device prevails. 1. Go to Configuration → Capture → Advanced → Vehicle Capture and Recognition Service . 2.

  • Page 65: Set Image Format

    Network Traffic Camera Operation Manual Enable SIRA Protocol For the device supporting Middle East SIRA protocol, check it to enable the protocol. Then the license plates will be overlaid on the captured pictures according to the license plate types of the Middle East license plate recognition library. 3.
  • Page 66 Network Traffic Camera Operation Manual 1. Go to Configuration → System → Maintenance → Upgrade & Maintenance → Advanced Settings → Data Import . 2. Select Importing Method. Note If you select Import Part, check the parameters to be imported. 3.
  • Page 67 Network Traffic Camera Operation Manual Appendix A. Communication Matrix and Device Command Scan the QR code below to get the communication matrix of the device. Scan the QR code below to get the device command.
  • Page 68 UD28262B...
