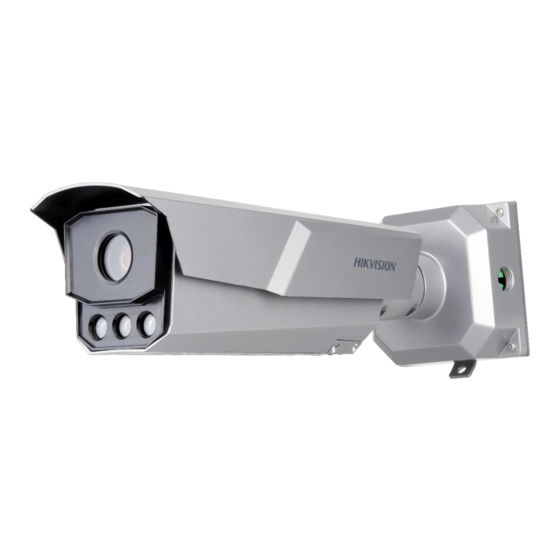

Network traffic camera
Hide thumbs Also See for iDS-TCM403-B/0832:
Table of Contents

Advertisement

Quick Links

Download this manual
Network Traffic Camera
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iDS-TCM403-B/0832 and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION iDS-TCM403-B/0832

Summary of Contents for HIKVISION iDS-TCM403-B/0832

  • Page 1 Network Traffic Camera Operation Manual...
  • Page 2 With the philosophy of "Technology for the Good", Hikvision requests that every end user of video technology and video products shall comply with all the applicable laws and regulations, as well as ethical customs, aiming to jointly create a better community.
  • Page 3 Network Traffic Camera Operation Manual control, selecting a suitable network environment (the Internet or Intranet) where video products are connected, establishing and constantly optimizing network security. Video products have made great contributions to the improvement of social security around the ●...
  • Page 4 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 5 Network Traffic Camera Operation Manual DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
  • Page 6 Network Traffic Camera Operation Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 7 Network Traffic Camera Operation Manual Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
  • Page 8 Network Traffic Camera Operation Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or...
  • Page 9 Network Traffic Camera Operation Manual Safety Instruction Regulatory Information This is a class A product and may cause radio interference in which case the user may be required to take adequate measures. Laws and Regulations Use of the product must be in strict compliance with the local laws and regulations. Please shut down the device in prohibited area.
  • Page 10 Network Traffic Camera Operation Manual DO NOT expose the device to extremely hot, cold, or humidity environments. For temperature ● and humidity requirements, see device specification. No naked flame sources, such as lighted candles, should be placed on the equipment. ●...

  • Page 11: Table Of Contents

    Network Traffic Camera Operation Manual Contents Chapter 1 Activation and Login ....................1 1.1 Activation ..........................1 1.1.1 Default Information ...................... 1 1.1.2 Activate via SADP ......................1 1.1.3 Activate via Web Browser ..................... 2 1.2 Login ............................3 Chapter 2 Live View and Local Configuration ................4 2.1 Live View ..........................
  • Page 12 Network Traffic Camera Operation Manual 4.1.2 Set FTP ........................13 4.1.3 Set SDK Listening ......................15 4.1.4 Set Arm Host ....................... 16 4.1.5 Set ISAPI Listening ....................... 17 4.1.6 Set Cloud Storage ......................18 4.2 Set Quota ..........................19 4.3 Set Record Schedule ......................19 Chapter 5 Encoding and Display ....................
  • Page 13 Network Traffic Camera Operation Manual 9.3 Enable User Lock ........................42 9.4 Set HTTPS ..........................42 9.4.1 Create and Install Self-signed Certificate ..............42 9.4.2 Install Authorized Certificate ..................43 9.5 Set SSH ..........................43 9.6 Set RTSP Authentication ...................... 43 9.7 Set Timeout Logout ......................
  • Page 14 Network Traffic Camera Operation Manual Appendix A. Communication Matrix and Device Command ............52 xiii...

  • Page 15: Chapter 1 Activation And Login

    Get the SADP software from the supplied disk or the official website ( http:// ● www.hikvision.com/ ), and install it according to the prompts. The device and the computer that runs the SADP tool should belong to the same network ●...

  • Page 16: Activate Via Web Browser

    Network Traffic Camera Operation Manual Figure 1-1 Activate via SADP Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same network segment as your computer by either modifying the IP address manually or checking Enable DHCP (Dynamic Host Configuration Protocol).

  • Page 17: Login

    Network Traffic Camera Operation Manual Caution STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

  • Page 18: Chapter 2 Live View And Local Configuration

    Network Traffic Camera Operation Manual Chapter 2 Live View and Local Configuration 2.1 Live View 2.1.1 Start/Stop Live View Click to start live view. Click to stop live view. 2.1.2 Select Image Display Mode Click to select an image display mode. 2.1.3 Select Window Division Mode Click to select a window division mode.

  • Page 19: Start/Stop Two-Way Audio

    Network Traffic Camera Operation Manual Steps 1. Click to start live view. 2. Click to start recording. 3. Click to stop recording. 4. Optional: Click Configuration → Local to view the saving path of record files. 2.1.7 Start/Stop Two-Way Audio The device supports two-way audio with terminals, such as computers.

  • Page 20: Enable Regional Focus

    Network Traffic Camera Operation Manual 2.1.10 Enable Regional Focus Steps 1. Click 2. Drag the cursor from the upper left corner to the lower right corner to select the area that needs to be focused. Result The selected area is focused. 2.1.11 Enable Regional Exposure Enable regional exposure to expose partial area of the live view image.
  • Page 21 Network Traffic Camera Operation Manual Note The PTZ supports power-off memory. When the device is suddenly cut off power or restarted ● normally, it can automatically return to the position before the power cut or reboot. The PTZ function varies with different models. The actual device prevails. ●...

  • Page 22: Local Configuration

    Network Traffic Camera Operation Manual Button Description Lens Initialization It is applicable to devices with motorized lenses. You can use this function when overcoming image blurs caused by overtime zooming or focusing. Auxiliary Focus It is applicable to devices with motorized lenses. Use this function to focus the lens automatically and make images become clear.
  • Page 23 Network Traffic Camera Operation Manual Figure 2-2 Local Configuration Protocol Type Select the network transmission protocol according to the actual needs. Ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected. Provides real-time audio and video streams. HTTP Gets streams from the device by a third party client.
  • Page 24 Network Traffic Camera Operation Manual Select it to get the high-quality image when the network condition is good. Sub-Stream Select it to get the fluent image when the network condition is not good enough. Live View Performance Shortest Delay The video is real-time, but its fluency may be affected. Balanced Balanced mode considers both the real time and fluency of the video.
  • Page 25 Network Traffic Camera Operation Manual Save downloaded pictures to Set the saving path for the downloaded pictures. Save scene picture to Set the saving path of the captured pictures in Live View → Real-Time Capture . Save snapshots when playback to Set the saving path for the manually captured pictures in playback mode.

  • Page 26: Chapter 3 Playback

    Network Traffic Camera Operation Manual Chapter 3 Playback You can search, play back, and download videos that stored on the storage card. Steps 1. Click Playback. 2. Select a channel. 3. Select a date. 4. Click Search. 5. Click to start playback. 6.

  • Page 27: Chapter 4 Record And Capture

    Network Traffic Camera Operation Manual Chapter 4 Record and Capture 4.1 Set Storage Path 4.1.1 Set Storage Card If you want to store the files to the storage card, make sure you insert and format the storage card in advance. Before You Start Insert the storage card to the device.
  • Page 28 Network Traffic Camera Operation Manual Steps 1. Go to Configuration → Network → Data Connection → FTP . Figure 4-2 Set FTP 2. Check Enable FTP. 3. Select Number of Enabled FTP. Note You can only enable one FTP if the device does not support the violation capture, or you should set different uploaded data for each FTP respectively.

  • Page 29: Set Sdk Listening

    Network Traffic Camera Operation Manual Upload the matted pictures of the target detection area to the FTP server. Upload Additional Information to FTP Add related information when uploading data to the FTP server. 6. Select Path/Picture Name Encoding Mode. GB2312 Chinese characters encoding.

  • Page 30: Set Arm Host

    Network Traffic Camera Operation Manual Uploads arming alarm images of the license plate. You can enable Upload Binary Image if you need to upload images which are full of black or white pixel points. Enable Output Binary Image in BMP Format if you want to output images in this format. Mixed Target Upload Protocol Uploads images of multiple targets such as humans and vehicles.

  • Page 31: Set Isapi Listening

    Network Traffic Camera Operation Manual Mixed Target Upload Protocol Uploads images of multiple targets such as humans and vehicles. You can enable the body property to recognize clothes, bags, and other properties. 3. Optional: If you want to save the alarm information and pictures to the cloud storage, click set Cloud Storage.

  • Page 32: Set Cloud Storage

    Network Traffic Camera Operation Manual 4.1.6 Set Cloud Storage Cloud storage is a kind of network storage. It can be used as the extended storage to save the captured pictures. Before You Start Arrange the cloud storage server. ● You have enabled level 1 arming in Live View → Real-Time Capture . ●...

  • Page 33: Set Quota

    Network Traffic Camera Operation Manual 4.2 Set Quota Set the video and picture ratio in the storage. Before You Start Install the storage card. Steps 1. Go to Configuration → Storage → Storage Management → HDD Quota . Figure 4-7 Set Quota 2.
  • Page 34 Network Traffic Camera Operation Manual Figure 4-8 Set Record Schedule 4. Select Record Type. 5. Drag the cursor on the time bar to set a recording time. Note Up to 8 time periods can be set on a time bar. 6.

  • Page 35: Chapter 5 Encoding And Display

    Network Traffic Camera Operation Manual Chapter 5 Encoding and Display 5.1 Set Video Encoding Parameters Set video encoding parameters to adjust the live view and recording effect. When the network signal is good and the speed is fast, you can set high resolution and bitrate to ●...

  • Page 36: Set Image Parameters

    Network Traffic Camera Operation Manual Scalable Video Coding (SVC) is an extension of the H.264/AVC and H.265 standard. Enable the function and the device will automatically extract frames from the original video when the network bandwidth is insufficient. Bitrate Type Select the bitrate type to constant or variable.
  • Page 37 Network Traffic Camera Operation Manual Figure 5-1 Set Image Parameters 2. Set the camera parameters. Note The supported parameters vary with different models. The actual device prevails. General Parameter Enable Dual-Shutter Set the stream type after enabling it. Saturation It refers to the colorfulness of the image color. Sharpness It refers to the edge contrast of the image.
  • Page 38 Network Traffic Camera Operation Manual The higher the gamma correction value is, the stronger the correction strength is. Black and White Mode at Night When ICR is in night mode, you can check it to keep the video in black and white mode. Enable Light Compensation Correction The higher the value is, the stronger the light compensation is.

  • Page 39: Set Icr

    Network Traffic Camera Operation Manual 5.3 Set ICR ICR adopts mechanical IR filter to filter IR in the day to guarantee the image effect, and to remove the IR filter at night to guarantee full-spectrum rays can get through the device. Steps 1.

  • Page 40: Set Privacy Mask

    Network Traffic Camera Operation Manual 1) Check Enable. 2) Select Area Code. 3) Click Rule. 4) Drag the mouse on the live view image to draw a fixed area. 5) Select the fixed area that needs to be adjusted and drag the mouse to adjust its position. 4.
  • Page 41 Network Traffic Camera Operation Manual Figure 5-3 Set Privacy Mask 2. Check Enable Privacy Mask. 3. Enable the privacy mask area(s). 1) Check Enable. 2) Select Area Code. 3) Select Type. 4. Draw the privacy mask area. 1) Click Draw Area. 2) In the live view image, drag the mouse to draw the privacy mask area of the selected area code.

  • Page 42: Set Osd

    Network Traffic Camera Operation Manual 5. Optional: Repeat step 3 and 4 to draw more privacy mask areas. Note Up to four privacy mask areas are supported. 6. Click Save. 5.6 Set OSD You can customize OSD information on the live view. Steps 1.
  • Page 43 Network Traffic Camera Operation Manual Note Up to 6 items of custom information can be added. 4. Set display properties (font, color, etc.). 5. Select Alignment. Note If you select Align Left or Align Right, set Min. Horizontal Margin and Min. Vertical Margin. 6.

  • Page 44: Chapter 6 Network Configuration

    Network Traffic Camera Operation Manual Chapter 6 Network Configuration 6.1 Set IP Address IP address must be properly configured before you operate the device over network. IPv4 and IPv6 are both supported. Both versions can be configured simultaneously without conflicting to each other.
  • Page 45 Network Traffic Camera Operation Manual Select it when the two network interfaces are connected to two network cables respectively. When one network interface fails, the other network interface will be switched automatically without influencing the data transmission. Multi-Network Isolation Select it when different LANs are connected. Set the IP addresses of different network segments.

  • Page 46: Connect To Isup Platform

    Network Traffic Camera Operation Manual Enter IPv6 Address, IPv6 Subnet Mask, and IPv6 Gateway. Consult the network administrator for required information. It stands for maximum transmission unit. It is the size of the largest protocol data unit that can be communicated in a single network layer transaction. The valid value range of MTU is 1280 to 1500.

  • Page 47: Set Ddns

    Network Traffic Camera Operation Manual Figure 6-2 Connect to ISUP Platform 2. Check Enable. 3. Select Protocol Version. 4. Select Address Type. 5. Enter Sever IP Address, Server Port, and Device ID. Note You need to enter Key if you select Protocol Version as v5.0. 6.

  • Page 48: Set Snmp

    Network Traffic Camera Operation Manual Before You Start Register the domain name on the DDNS server. ● Set the LAN IP address, subnet mask, gateway, and DNS server parameters. Refer to "Set IP ● Address" for details. Complete port mapping. The default ports are 80, 8000, and 554. ●...

  • Page 49: Set Ieee 802.1X

    Network Traffic Camera Operation Manual Steps 1. Go to Configuration → Network → Network Parameters → SNMP . 2. Check Enable SNMPv1/Enable SNMP v2c/Enable SNMPv3. Note The SNMP version you select should be the same as that of the SNMP software. ●...

  • Page 50: Set Port

    Network Traffic Camera Operation Manual 6. Click Save. 6.6 Set Port The device port can be modified when the device cannot access the network due to port conflicts. Go to Configuration → Network → Network Parameters → Port for port settings. Figure 6-5 Set Port HTTP Port It refers to the port through which the browser accesses the device.
  • Page 51 Network Traffic Camera Operation Manual Note After editing the port, access to the device via new port. ● Reboot the device to take the new settings into effect. ● The supported ports vary with different models. The actual device prevails. ●...

  • Page 52: Chapter 7 Serial Port Configuration

    Network Traffic Camera Operation Manual Chapter 7 Serial Port Configuration 7.1 Set RS-485 Set RS-485 parameters if the device needs to be connected to other peripheral devices controlled by RS-485 serial port. Before You Start The corresponding device has been connected via the RS-485 serial port. Steps Note The number of available RS-485 serial port varies with different models.
  • Page 53 Network Traffic Camera Operation Manual Steps 1. Go to Configuration → System → System Settings → Serial Port → RS-232 . 2. Click Advanced Settings. Figure 7-2 Set RS-232 3. Set Baud Rate, Data Bit, Stop Bit, etc. Note The parameters should be same with those of the connected device. 4.

  • Page 54: Chapter 8 Exception Alarm

    Network Traffic Camera Operation Manual Chapter 8 Exception Alarm Set exception alarm when the network is disconnected, the IP address is conflicted, etc. Steps Note The supported exception types vary with different models. The actual device prevails. 1. Go to Configuration → Event → Alarm Linkage → Exception Event . 2.

  • Page 55: Chapter 9 Safety Management

    Network Traffic Camera Operation Manual Chapter 9 Safety Management 9.1 Manage User The administrator can add, modify, or delete other accounts, and grant different permissions to different user levels. Steps 1. Go to Configuration → System → User Management → User List . 2.

  • Page 56: Enable User Lock

    Network Traffic Camera Operation Manual 3. Set Filtering Mode. Blocklist Mode The added IP addresses are not allowed to access the device. Allowlist Mode The added IP addresses are allowed to access the device. 4. Click Add, enter the IP address, and click OK. Note The IP address only refers to the IPv4 address.

  • Page 57: Install Authorized Certificate

    Network Traffic Camera Operation Manual 9.4.2 Install Authorized Certificate If the demand for external access security is high, you can create and install authorized certificate via HTTPS protocol to ensure the data transmission security. Steps 1. Go to Configuration → Network → Network Parameters → HTTPS . 2.

  • Page 58: Set Timeout Logout

    Network Traffic Camera Operation Manual 9.7 Set Timeout Logout You can improve network access security by setting timeout logout. Steps 1. Go to Configuration → System → Security → Security Service → Timeout Logout . 2. Check Enable Timeout Logout for Static Page. 3.

  • Page 59: Chapter 10 Maintenance

    Network Traffic Camera Operation Manual Chapter 10 Maintenance 10.1 View Device Information Basic Information and Algorithms Library Version Go to Configuration → System → System Settings → Basic Information to view the basic information and algorithms library version of the device. You can edit Device Name and Device No.

  • Page 60: Search Security Audit Log

    Network Traffic Camera Operation Manual 3. Click Search. The matched log files will be displayed on the log list. 4. Optional: Click Export to save the log files to your computer. 10.2.3 Search Security Audit Log You can search and analyze the security log files of the device so as to find out the illegal intrusion and troubleshoot the security events.

  • Page 61: Reboot

    Network Traffic Camera Operation Manual 3. Click Upgrade. 4. Click OK in the popup window. Note The upgrade process will take 1 to 10 minutes. Do not cut off the power supply. Result The device will reboot automatically after upgrade. 10.5 Reboot When the device needs to be rebooted, reboot it via the software instead of cutting off the power directly.

  • Page 62: Set Dst

    Network Traffic Camera Operation Manual Steps 1. Go to Configuration → System → System Settings → Time Settings . 2. Select Time Zone. 3. Select Sync Mode. NTP Synchronization Select it to synchronize the device time with that of the NTP server. Set Server IP, NTP Port, and Interval.

  • Page 63: Debug

    Network Traffic Camera Operation Manual 10.9 Debug Note The debug configurations below are only provided to debug the device by the professionals. 10.9.1 Enable Information Overlay You can overlay the algorithm POS information and positioning frames on the captured pictures or playback images.

  • Page 64: Set Image Format

    Network Traffic Camera Operation Manual It is used to debug the device with the same vehicle. When the same vehicle is triggered many times during a short period in the scene, the violation pictures of the vehicle will not be captured.

  • Page 65: Export Debug File

    Network Traffic Camera Operation Manual Before You Start Save the configuration file to the computer. Steps Caution Importing configuration file is only available to the devices of the same model and same version. 1. Go to Configuration → System → Maintenance → Upgrade & Maintenance → Advanced Settings →...
  • Page 66 Network Traffic Camera Operation Manual Appendix A. Communication Matrix and Device Command Scan the QR code below to get the communication matrix of the device. Scan the QR code below to get the device command.
  • Page 67 UD26001B...
