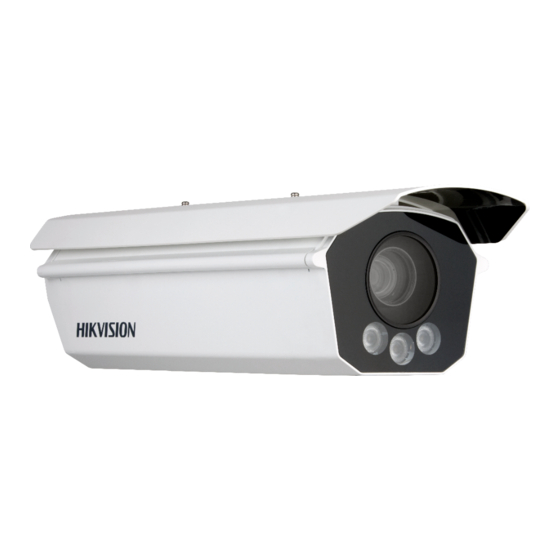

Network Traffic Camera • User Manual
Network Traffic Camera
(for Checkpoint and Intersection Violation System)
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iDS-TCV500-BI and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION iDS-TCV500-BI

Summary of Contents for HIKVISION iDS-TCV500-BI

  • Page 1 Network Traffic Camera • User Manual Network Traffic Camera (for Checkpoint and Intersection Violation System) User Manual...
  • Page 2 The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https://www.hikvision.com/en/).
  • Page 3 Network Traffic Camera • User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 Network Traffic Camera • User Manual Symbol Description Provides additional information to emphasize or supplement important points of the main text. Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results. Indicates a hazard with a high level of risk, which if not avoided, will result in death or serious injury.
  • Page 5 Network Traffic Camera • User Manual  To avoid heat accumulation, good ventilation is required for a proper operating environment.  Store the device in dry, well-ventilated, corrosive-gas-free, no direct sunlight, and no heating source environment.  Avoid fire, water, and explosive environment when using the device. ...

  • Page 6: Table Of Contents

    Network Traffic Camera • User Manual TABLE OF CONTENTS Chapter 1 Network Connection ...................... 7 Wiring over the LAN ......................7 Activate the Device ......................8 Activation via Web Browser ..................8 Activation via SADP Software ..................9 Chapter 2 Login..........................11 Chapter 3 Live View ........................
  • Page 7 Network Traffic Camera • User Manual Chapter 9 Capture Parameters Configuration ................47 Set License Plate Parameters ..................... 47 Set Flash Light Parameters ....................47 Set Traffic Light Synchronization ..................50 Set Image Composition ...................... 50 Set Vehicle Feature ......................53 Chapter 10 Image Parameters Configuration ................

  • Page 8: Chapter 1 Network Connection

    Network Traffic Camera • User Manual Chapter 1 Network Connection  You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.

  • Page 9: Activate The Device

    Network Traffic Camera • User Manual Switch Network Traffic Camera Computer Connecting via a Switch or a Router Activate the Device You are required to activate the device first by setting a strong password for it before you can use the device.

  • Page 10: Activation Via Sadp Software

    Network Traffic Camera • User Manual Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 11 Network Traffic Camera • User Manual STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

  • Page 12: Chapter 2 Login

    Network Traffic Camera • User Manual Chapter 2 Login Open the web browser. In the browser address bar, enter the IP address of the device, and press the Enter key to enter the login interface. Enter User Name and Password. Click Login.

  • Page 13: Chapter 3 Live View

    Network Traffic Camera • User Manual Chapter 3 Live View Live View Page Purpose: The live view page allows you to view the real-time video and capture images. Log in the device to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.

  • Page 14: Start Live View

    Network Traffic Camera • User Manual Descriptions of Live View Icons Icon Description Start/Stop live view. The window size is 4:3. The window size is 16:9. The original widow size. Self-adaptive window size. Live view with the main stream. If the network is in good condition, select main stream.

  • Page 15: Scene Shot Area

    Network Traffic Camera • User Manual Real-Time Status and Traffic Flow Statistics Scene Shot Area  Arm the device. − Level 1 Arming: The device is allowed to connect to only one data storage device for image, video and information uploading. It is recommended that when you develop products, that is, if you use SDK, level 1 arming is the only option.
  • Page 16 Network Traffic Camera • User Manual Picture List Description of Picture List Parameters Item Description Picture No. The time of capturing the picture with millisecond precision. For example, 20150915111054738 means Capture Time the picture is captured at 11:10:54:738, on September , in 2015.

  • Page 17: Traffic Light Status

    Network Traffic Camera • User Manual Traffic Light Status Traffic Light Status displays the current traffic light status. Traffic Light Status The Traffic light status can only be applied in Video Analysis E-police mode. Traffic Statistics Purpose: The traffic statistics allows you to view the real-time traffic flow, average lane occupancy, and then analyze the real-time traffic status.

  • Page 18: Chapter 4 Picture Search

    Network Traffic Camera • User Manual Chapter 4 Picture Search Purpose: The captured picture of all types, including normal, overspeed, wrong-way driving, etc., can be searched from this page. You can also export the pictures to the PC local directory. Before you start: Please insert a TF card with up to 128 GB storage in the device for picture storage.

  • Page 19: Chapter 5 Local Configuration

    Network Traffic Camera • User Manual Chapter 5 Local Configuration Purpose: The local configuration refers to the parameters of the live view, record files and captured pictures. Go to Configuration > Local. Set the following settings:  Live View Parameters: Set the protocol type and live view performance. −...
  • Page 20 Network Traffic Camera • User Manual selected. − Save record files to: Set the saving path for the manually recorded video files.  Picture and Clip Settings: Set the saving paths of the captured pictures and clipped video files. Valid for the pictures you capture with the web browser. −...

  • Page 21: Chapter 6 System Configuration

    Network Traffic Camera • User Manual Chapter 6 System Configuration Purpose: You can set the parameters on this page, including device information, serial ports, network parameters, time configuration, service, etc. View Device Information Go to Configuration > Device Configuration > System Configuration > Device Information. ...

  • Page 22: Set Serial Ports

    Network Traffic Camera • User Manual Device Information Set Serial Ports Purpose: Set the RS-485 parameters and RS-232 parameters in this page.  The RS-485 ports are used to input signals related to traffic control, such as RS-485 radar and vehicle detector.

  • Page 23: Set Network Parameters

    Network Traffic Camera • User Manual will be controlled remotely by the computer through the network. Go to Configuration > Device Configuration > System Configuration > Serial Ports. Serial Ports Settings Set the RS-485 and RS-232 parameters. Click Save to save the settings. Set Network Parameters Purpose: Network parameters settings must be properly set before you operate the device over network.

  • Page 24: Set Port

    Network Traffic Camera • User Manual  MTU: Maximum Transmission Unit, which refers to the size of the largest data packet transmitted in the TCP / UDP protocol network transmission.  Multicast Address: The address of the multicast server is an IPv4 address (class D address), which can be viewed by joining a multicast group.

  • Page 25: Set Ddns

    Network Traffic Camera • User Manual Set the following parameters.  HTTP Port: The default port number is 80, and it can be changed to any port No. ranges from 1 to 65536 which is not occupied, except 21 (FTP port) and 23 (Telnet port). ...

  • Page 26: Set Ehome

    Network Traffic Camera • User Manual When setting the Server Address, you need to cooperate with IPServer software and IVMS client software. For how to use it, refer to relevant IPServer and IVMS client software documentation. Click Save. Set EHome Purpose: The device can remotely access the platform through the EHome protocol, and control the device through the platform to realize operations such as picture uploading.

  • Page 27: Set Https

    Network Traffic Camera • User Manual Set HTTPS Purpose: HTTPS provides authentication of the web site and associated web server that one is communicating with, which protects against Man-in-the-middle attacks. Perform the following steps to set the port number of https. Example If you set the port number as 443 and the IP address is 192.168.1.64, you may access the device by inputting https://192.168.1.64:443 via the web browser.

  • Page 28: Set Time

    Network Traffic Camera • User Manual 3) Enter the parameters. 4) Click OK to save the settings.  OPTION 2: Signed certificate is available. Start the installation directly. 1) Click Signed certificate is available. Start the installation directly. 2) Click View to find the saving path of the certificate. 3) Click Install to install the certificate.

  • Page 29: Configuring Dst (Daylight Saving Time)

    Network Traffic Camera • User Manual (Optional) you can also check Synchronize with PC. The device time is synchronized with the time of your computer. Click Save to save the settings.  NTP Synchronization Select Synchronization Mode as NTP Synchronization. NTP Synchronization Set the following settings: ...

  • Page 30: Enable User Lock

    Network Traffic Camera • User Manual DST Settings Enable User Lock Go to Configuration > Device Configuration > System Configuration> Service. Service Configuration Check Enable User Lock to enable user lock. If you enter wrong password for 7 times, the account will be locked for half hour.

  • Page 31: Chapter 7 Encoding And Storage Configuration

    Network Traffic Camera • User Manual Chapter 7 Encoding and Storage Configuration Purpose: You can set the encoding and storage related parameters from this page, including video encoding, image encoding, ROI, record schedule, redundant storage, FTP, and cloud storage. Set Video Encoding For certain device models, you can set parameters for available video streams, for example, the main stream, the sub-stream, etc.
  • Page 32 Network Traffic Camera • User Manual The main stream is usually for recording and live view with good bandwidth, and sub-stream is usually used for live view when the bandwidth is limited. You can customize the following parameters for the selected stream type. ...

  • Page 33: Set Image Encoding

    Network Traffic Camera • User Manual The video parameters vary according to different device models. Refer to the actual display page for device functions. Set Image Encoding Go to Configuration >Device Configuration > Encoding and Storage > Image Encoding. Image Encoding Select Capture Resolution.
  • Page 34 Network Traffic Camera • User Manual Region of Interest Settings Go to Configuration > Device Configuration > Encoding and Storage > ROI. Select the Stream Type for ROI. Check the checkbox of Enable under Fixed Area. Set Fixed Area for ROI. 1) Select the Area Code from the drop-down list.

  • Page 35: Set Record Schedule

    Network Traffic Camera • User Manual Set Record Schedule Purpose: You can follow the instructions to set the scheduled recording. By default, the record files of scheduled recording are stored in the TF card. Steps: Go to Configuration > Device Configuration > Encoding and Storage > Record Schedule. Record Schedule Configuration Select Record Stream.

  • Page 36: Set Storage Management

    Network Traffic Camera • User Manual Edit Record Schedule Select the day to set the record schedule. Set all-day record or segment record.  If you want to set the all-day recording, check the All Day checkbox.  If you want to record in different time sections, check the Customize checkbox. set the Start Time and End Time.

  • Page 37: Set Ftp

    Network Traffic Camera • User Manual Redundant Storage Configuration View the HDD information such as Capacity, Free Space, Status, etc. (Optional) Check the HDD and click Format to format it. (Optional) Check Auto-Initialize Redundant Storage. Then the TF card in the redundant storage can be formatted automatically.
  • Page 38 Network Traffic Camera • User Manual FTP Configurations Enable Upload Additional Information to FTP to enable the uploading function. Select the FTP uploading mode.  Disable: No data will be uploaded to FTP.  Enable One: Data can be uploaded to one FTP server. 1) Select Enable One.
  • Page 39 Network Traffic Camera • User Manual Upload to Two FTP Servers 2) Select the data type for uploading to FTP 1. 3) Select the data type for uploading to FTP 2. For the data type, Chekpoint Data and Violation Data are selectable. If you select Chekpoint Data for FTP 1, FTP 2 will receive the Violation Data by default.

  • Page 40: Set Cloud Storage

    Network Traffic Camera • User Manual Name Rule Configuration Set the OSD Information to set file name according to actual need. OSD Information Click Save to save the settings. Set Cloud Storage Purpose: When device storage is constrained by storage space, you can enable Cloud Storage to store captured pictures of vehicles and license plates to the cloud.

  • Page 41: Set Upload Protocol

    Network Traffic Camera • User Manual Cloud Storage Check Enable to enable cloud storage. Set the corresponding parameters.  Access Server IP Address and Port No.: Enter the IP address and port No. of the cloud storage server.  User Name and Password: The user name and password for logging in to the cloud storage server.
  • Page 42 Network Traffic Camera • User Manual  Enable Body Property: After checking Mixed Target Upload Protocol, you can enable body property. Click Save. Upload protocol function may vary with different models. Please refer to actual device.

  • Page 43: Chapter 8 Text Overlay Configuration

    Network Traffic Camera • User Manual Chapter 8 Text Overlay Configuration Purpose: Set the OSD on the captured pictures and videos. Set Capture Picture Overlay Purpose: You can set the overlay information of the captured picture. Steps: Go to Configuration > Device Configuration > Text Overlay > Capture Picture Overlay. Single Picture Overlay Check Capture Picture Overlay.
  • Page 44 Network Traffic Camera • User Manual Overlay on Picture  Overlay Above the Picture: Display the information on the top. Overlay Above the Picture  Overlay Below the Picture: Display the information on the bottom.
  • Page 45 Network Traffic Camera • User Manual Overlay Below the Picture (Optional) Check Overlay Number Zeroing, to zero out the overlaid information. (Optional) Check Overlay Plate Close-up on the captured picture. Set the overlay information. Set Display Information 1) Check the overlay information or check Select All to display all the overlay information.

  • Page 46: Set Osd Settings

    Network Traffic Camera • User Manual  Space: It stands for the length of blank space between the last character of the first item and the first character of the next item.  Line Break Characters: When you add Line Break Characters to an item, the item is displayed as a new paragraph, and the number stands for the scale of space above the paragraph.

  • Page 47: Set Composite Picture Overlay

    Network Traffic Camera • User Manual  Display Week: Check it to display week information on the picture.  Display Item: You can check display item(s) and enter information as need, to overlay them on the picture. Click Save to save the settings. Set Composite Picture Overlay Purpose: A group of composed pictures can better offer evidence for the illegal driving.

  • Page 48: Chapter 9 Capture Parameters Configuration

    Network Traffic Camera • User Manual Chapter 9 Capture Parameters Configuration Purpose: You can set capture parameters before capturing, and edit capture parameters when the default capture parameters cannot meet actual needs. Set License Plate Parameters Go to Configuration > Device Configuration > Capture Parameters > License Parameters. License Parameters Configuration Select License Plate Recognition as Front Plate or Back Plate.
  • Page 49 Network Traffic Camera • User Manual Flash Light Parameters Configuration Select IO Output Mode. Strobe Light Mode and Polarize Mode are selectable.  Strobe Light Mode 1) Select Effective Status. Pulse, High, and Low are selectable. − High Level/Low Level: The effective status should stay different with the default status for I/O to take effect.
  • Page 50 Network Traffic Camera • User Manual 6) Select Light Compensation Mode. Check the checkbox of each item to enable the light compensation of Checkpoint or Violation Action. − Checkpoint: The light compensation works on every single vehicle. − Violation Action: The light compensation works when there are violation driving actions. −...

  • Page 51: Set Traffic Light Synchronization

    Network Traffic Camera • User Manual Set Traffic Light Synchronization Go to Configuration> Device Configuration > Capture Parameters > Traffic Light Synchronization. Set Traffic Light Synchronization Check Enable Traffic Light Synchronization, to adjust the device phase position in sync. with that of flash light. Enter Phase Position to adjust flash light brightness.
  • Page 52 Network Traffic Camera • User Manual Image Composition Please refer to the figure below to see the difference between 303 and 304, or 305 and 306, or 309 and 310, or 311 and 312. And we will take 303 and 304 as an example. Type 303 image composition is with four times resolution, and type 304 image compositions is with original resolution.
  • Page 53 Network Traffic Camera • User Manual Type 303 Image Composition Type 304 Image Composition...

  • Page 54: Set Vehicle Feature

    Network Traffic Camera • User Manual Set picture Close-up Zooming Ratio. You can select Close-up Zooming Ratio from 1 to 8. The higher the value is, the larger the close-up is. Select Close-up Picture No. from the drop-down list. It refers to the picture where the close-up comes from.

  • Page 55: Chapter 10 Image Parameters Configuration

    Network Traffic Camera • User Manual Chapter 10 Image Parameters Configuration Purpose: Set double shutter parameters, general parameters, video parameters, and ICR on this page. Set Dual-Shutter Parameters Go to Configuration > Device Configuration > Image Parameters > Double Shutter Parameter.

  • Page 56: Set General Parameters

    Network Traffic Camera • User Manual Set General Parameters Purpose: General parameters refer to the image parameters applying to both video image and capture image, such as saturation, sensitivity, lens type, sharpness, white balance, gamma correction, and brightness enhancement. Go to Configuration > Device Configuration > Image Parameters > General Parameter. General Parameters Configuration Set the image Saturation, Sharpness and White balance mode.

  • Page 57: Set Video Image

    Network Traffic Camera • User Manual (Optional) Check Enable Black and White Mode at Night. When ICR is in night mode, you can check Enable Black and White Mode at Night to keep the video in black and white mode. (Optional) Click Capture Test to test the effects after completing the adjustment.

  • Page 58: Set Record

    Network Traffic Camera • User Manual 1) If you select Normal Mode, adjust 3D DNR Level from 0 to 100. 2) If you select Expert Mode, adjust Spatial Intensity and Time Intensity from 0 to 100. (Optional) Check 2D DNR, and adjust 2D DNR Level from 0 to 100. (Optional) Click Capture Test to test the effects.

  • Page 59: Set Light Calibration

    Network Traffic Camera • User Manual ICR configuration is not supported by all device models of this series. Go to Configuration > Device Configuration > Image Parameters > ICR. Select ICR Mode. Do not Switch, Auto-switch, Manual Switch, and Scheduled Switch are selectable.
  • Page 60 Network Traffic Camera • User Manual Light Calibration can only apply in Video Analysis E-police mode. Go to Configuration > Device Configuration > Image Parameters > Light Calibration. Select Traffic Light Enhancement. Close, Traffic Light Enhancement, and Smart Traffic Enhancement are selectable. Light Calibration Set corresponding light calibration parameters.

  • Page 61: Chapter 11 Application Mode Configuration

    Network Traffic Camera • User Manual Chapter 11 Application Mode Configuration Purpose: This chapter introduces the parameters configuration under different trigger mode. The supported trigger modes vary according to the device models. Supported application mode may vary with different models. Please refer to actual device. Mixed-traffic Lane Mixed-traffic lane captures the vehicles via video detection.
  • Page 62 Network Traffic Camera • User Manual  Motor vehicle, Non-motor vehicle, and Pedestrian: It captures motor vehicle, and non-motor vehicle, and pedestrian.  Motor Vehicle: Only motor vehicle will be captured. 5) Select Capture Mode. The capture mode is associated with the connected type of flash light.
  • Page 63 Network Traffic Camera • User Manual 5) Select Lane Type. Normal Lane, Bus Lane, Truck Forbidden Lane, and Highway Emergency Lane are selectable. 6) Select Lane Property. High Way, City Express Way, and Other are selectable. 7) Select Direction. From Top to Bottom and From Bottom to Top are selectable. If you set the direction as From Top to Bottom, then the vehicle will be judged as wrong-way driving if it drives from Bottom to Top.

  • Page 64: Video Analysis E-Police

    Network Traffic Camera • User Manual − Check Enable Detection Area to enable the vehicle capture triggered by video analysis. It is recommended to draw the video detection area according to the actual environment to avoid the false trigger. 6) Click OK to save the drawing and exit the drawing interface. 7) (Optional) Check Display All Areas to display all the LPR areas.
  • Page 65 Network Traffic Camera • User Manual Video Analysis Capture Configuration Select Capture Interval as Time or Distance.  If you select Time, enter Intervals Time.  If you select Distance, enter Intervals Distance. Check Checkpoint, and select the picture number from the drop-down list. 1) If you select Vehicle Driving Direction as Forward, you can check Checkpoint capture, and set captured picture amount of checkpoint.
  • Page 66 Network Traffic Camera • User Manual the vehicle running the red light to the second captured picture. It is recommended to remain the default value.  If you check Vehicle on Non-Motor Vehicle Lane, set the time threshold for capture. ...
  • Page 67 Network Traffic Camera • User Manual Draw LPR Area 2) Check Lane Line, Lane Right Borderline, Stop Line, Borderline of Turning Left/Right, or Trigger Line of Going Straight, and the lines will be generated on the live view image. 3) Select the lane type from the drop-down list of Lane Line and Lane Right Borderline. 4) Drag the lines on the image to adjust the position according to the actual condition.
  • Page 68 Network Traffic Camera • User Manual you select Recording Start Time as 2, record will start after the second picture are captured. Advanced Settings (Optional) Copy the configuration of current lane to other lanes. Select Traffic Light Signal Input according to the actual conditions. RS-485, External Input, Video Analysis Interface and Network Mode are selectable.
  • Page 69 Network Traffic Camera • User Manual Figure 1-1 Video Analysis Interface Configuration 1) Click Configuration to enter the page below. Video Analysis 2) Select Region. 3) Set the parameters according to the actual conditions. − Signal Lamp Guidance: It refers to the driving direction represented by the signal lights in the detection area.
  • Page 70 Network Traffic Camera • User Manual Network Mode Configuration 1) Select Linked Red Light Channel according to the actual connection of detector. 2) Select Yellow Light Related Channel No. according to the actual connection of detector.

  • Page 71: External Input

    Network Traffic Camera • User Manual External Input If the device gets triggered by the external induction coils, you can select the trigger mode as External Input. Once a vehicle passes by, a signal will be sent to the device. Go to Configuration >...
  • Page 72 Network Traffic Camera • User Manual 3) Click on the live view window to point out a corner of the LRP area, and right click the mouse to finish drawing. Draw LPR Area  Polygon with 3 to 20 sides is supported. ...

  • Page 73: Checkpoint Vehicle Detector

    Network Traffic Camera • User Manual Usually one lane links to one flash light. If you link more than 1 flash light, you need to select Flashlight Mode. You can select simultaneous flash and sequential flash as requested. (Optional) Copy the configuration of current external input to other external inputs by checking the corresponding checkboxes among T1 to T4.
  • Page 74 Network Traffic Camera • User Manual Checkpoint Vehicle Detector (Optional) Select Backup Mode and Tolerance Time. You can select Mixed-traffic Lane, and when the vehicle detector exception time exceeds the set Tolerance Time, the mode...
  • Page 75 Network Traffic Camera • User Manual will change to mixed-traffic lane automatically. When the device can receive the signal from the vehicle detector normally, the mode will change to vehicle detector mode again. (Optional) Check Violation Detection Configuration types, and when there is seat belt unbuckled or phone call detection, capture will be triggered.

  • Page 76: Rs-485 Radar

    Network Traffic Camera • User Manual 5) Select Capture Interval type between time and distance, and set the interval time or interval distance. 6) Set Speed Limit Sign according to actual speed value on speed restriction board, and it will be overlaid on captured picture. 7) Set Speed Limit for Truck.
  • Page 77 Network Traffic Camera • User Manual RS-485 Radar (Optional) Check Violation Detection Configuration types, and when there is seat belt unbuckled or phone call detection, capture will be triggered. Select Total Lanes from the drop-down list.
  • Page 78 Network Traffic Camera • User Manual Up to 3 lanes can be supported. Supported total lanes may vary from different models. Click the lane tab to select the lane to set. Draw license plate recognition (LPR) area. 1) Click Draw LRP Area to enter the area configuration interface. 2) Click Draw LPR Area (Lane x) to start drawing.
  • Page 79 Network Traffic Camera • User Manual  Trigger Delay Time: The time between two vehicles being captured.  Trigger Delay Distance: The distance between two vehicles being captured. Set the capture parameters. 1) Select Capture Pictures. Up to 5 can be selected. 0 refers to capture no vehicle. 2) (Optional) If the lane is emergency lane, check Occupy Emergency Lane Capture, and when there is vehicle passing on the lane, capture will be triggered.
  • Page 80 Network Traffic Camera • User Manual  Linkage 485 No.: Select the communication interface of radar.  Sensitivity: Enter the sensitivity.  Angle: Enter the angle of the radar and the horizontal direction according to the actual application.  Linearity Correction: You may need to adjust the radar output result according to the actual speed.

  • Page 81: Chapter 12 Exception

    Network Traffic Camera • User Manual Chapter 12 Exception Purpose: The exception type can be HDD error, network disconnected, IP address conflicted, and vehicle detector exception. Go to Configuration > Device Configuration> Exception. Select the exception type and the corresponding trigger methods. Exception Settings ...

  • Page 82: Chapter 13 Maintenance

    Network Traffic Camera • User Manual Chapter 13 Maintenance Device Status Go to Configuration > Device Status. Device Status View Device IP Address and Device Status.  Device IP Address: Display the current IP address of the camera.  Device Status: Detailed descriptions are shown in the following table. Description of Device Status Item Description...

  • Page 83: Add A User

    Network Traffic Camera • User Manual User Management Add a User The admin user has all permissions by default and can create/modify/delete other accounts. The admin user cannot be deleted and you can only change the admin password. Click Add to add a user. Select User Type.

  • Page 84: Modify A User

    Network Traffic Camera • User Manual Add a User Modify a User Select a user from the list and click Edit. Modify the editable parameters. Modify Admin...

  • Page 85: Delete A User

    Network Traffic Camera • User Manual Modify Operator/User Click OK to save the settings. Delete a User Select the user you want to delete and click Delete. Click OK on the pop-up message box to delete the user. Log Search Purpose: The operation, alarm, exception and information of the camera can be stored in log files.

  • Page 86: Restore Default Settings

    Network Traffic Camera • User Manual Log Searching Set the log search conditions to specify the search, including Major Type, Minor Type, Start Time, and End Time. Click Search to search log files. The matched log files will be displayed in the list. To export the log files, click Save Log to save the log files in your PC.

  • Page 87: Export Debug File

    Network Traffic Camera • User Manual Use the Hard Reset function with caution. Export Debug File Go to Configuration > Device Configuration> Maintenance > Debug File Export. Export Debug File Click Debug File Export and set the saving path to save the debug file in local storage. Import the Configuration File Purpose: Configuration file is used for the batch configuration of the camera, which can simplify the...

  • Page 88: Reboot The Camera

    Network Traffic Camera • User Manual Remote Upgrade Click Browse to select the local upgrade file. Click Upgrade to start remote upgrade. (Optional) Click Configuration > System Configuration > Device Information, if upgrading succeed, Smart Module Status will display normal. The upgrading process will take 1 to 10 minutes.
  • Page 89 UD18300B...

This manual is also suitable for:

Ids-tce900-bIds-tcv900-biIds-tcv900-be
