DISCONNECT THE SAW FROM
THE MAINS SUPPLY!

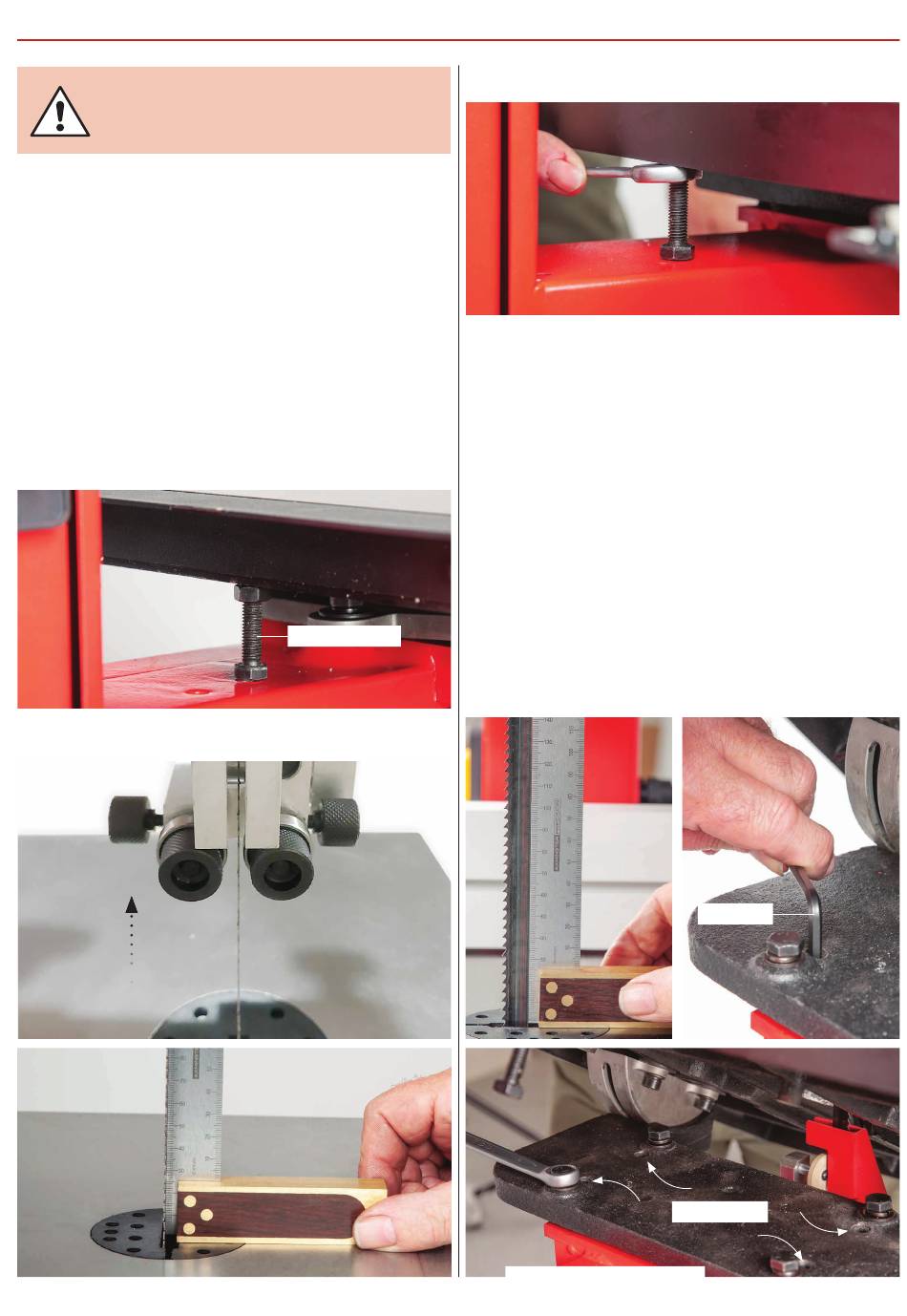

Checking the Table is Square
1) Loosen the clamping handle beneath the table, lower the
table until it rests against its stop. This is a bolt with a lock nut
screwed into the underside of the table, see fig 50. The head
of the bolt acts as a stop when it strikes the machine frame.
Tighten the clamping handles.
2) Loosen the blade guide clamp and raise the upper blade
guide assembly as high as possible, see fig 51. Place a
90˚square on the table and move it up against the blade
(behind the teeth), see fig 52.
Fig 50
Fig 51-52
Table stop bolt
21
SETTING UP THE SAW
3) Check that the blade is perpendicular to the table. If it is not,
try resetting the table by loosening the lift & shift handles and
adjusting the table stop nut until perpendicularity is achieved,
see fig 53.
4) Move the square up against the back of the blade and check
it's square against the table, see fig 54. If adjustment is required
loosen the locking handles, pivot the table and lock in place.
Loosen the bolts holding the tilt quadrant, using a Hex key
adjust the four grub screws in the quadrant, see fig 55-56. For
model AW1950B, adjust the grub screws beneath the mounting
plate, see fig 57. Make small adjustments, lower the table and
postion the square as before. Continue until the blade is square
to the table. Tighten the tables bolts to secure in place. Note:
check the blade is still square against the table as shown in
fig 54 and make adjustments to the table stop if required.
Model AW2305B, AW2606B
Fig 53
Fig 54-55-56
Hex key
Grub screws
Continues over...
