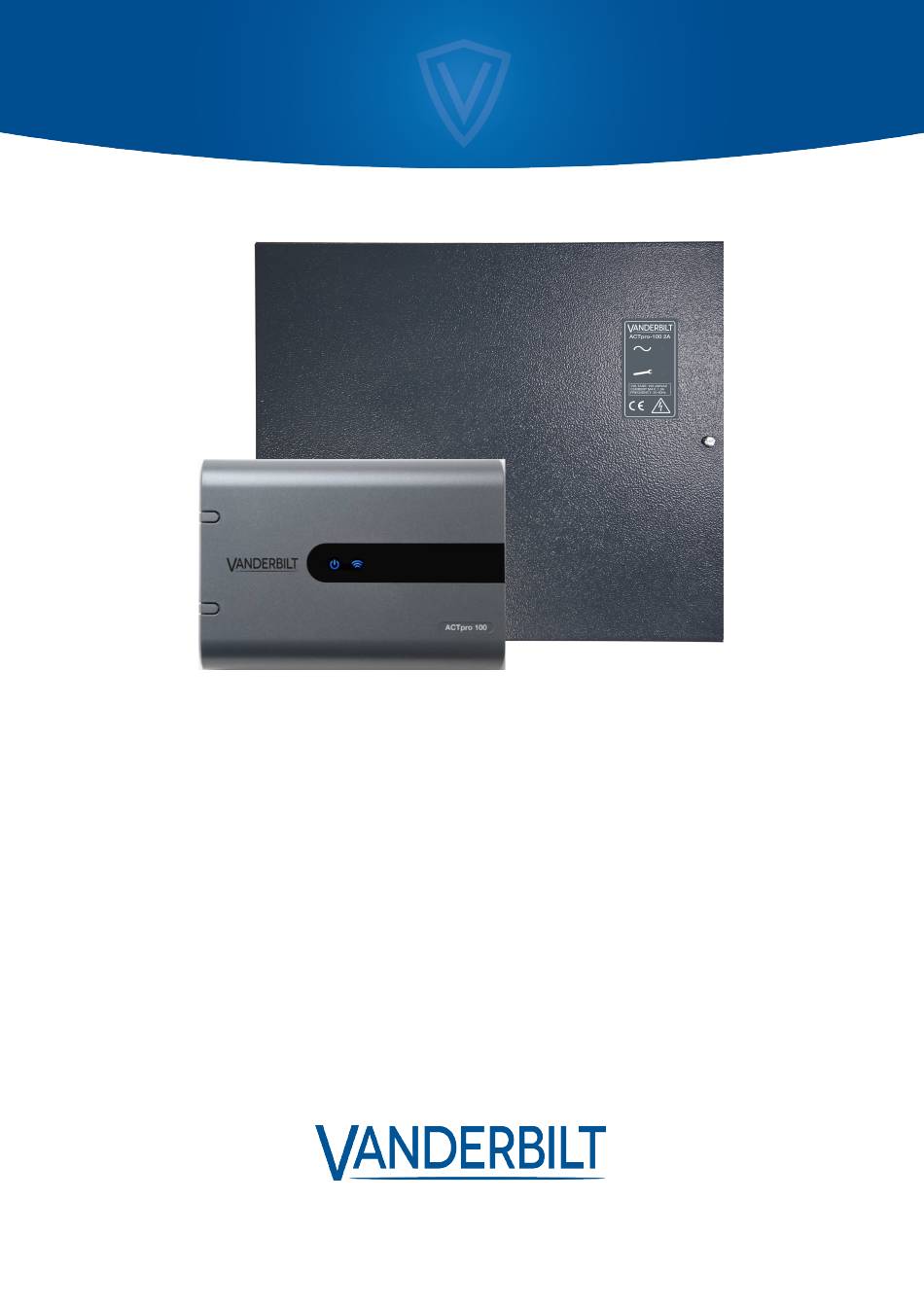

- Page 1 ACTpro-100 / ACTpro-1002A Installation and Operating Instructions Document ID: A-100542-b Edition date: 15.03.2019...
- Page 2 ACTpro-100 Hereby, Vanderbilt International (IRL) Ltd declares that this equipment type is in compliance with the following EU Directives for CE marking: • Directive 2014/30/EU (Electromagnetic Compatibility Directive) •...
-
Page 3: Table Of Contents
1.1.2 Relay load 1.2 Ordering details 1.3 Monitoring 2 Installation 2.1 Wiring 2.1.1 DIP switch addressing 2.1.2 Wiring for Vanderbilt EM1030e Clock & Data or Wiegand Reader 2.1.3 Wiring exit readers 2.2 ACTpro-100 2.2.1 Mounting 2.2.2 Power supply 2.3 ACTpro-1002A 2.3.1 Mounting... -
Page 4: Overview
This guide describes the installation of the ACTpro-100 door stations, which are compatible with all ACTpro controllers. The ACTpro-100 is a single door station. The ACTpro-1002A is a single door station with a 12V DC 2A PSU. 1.1 Technical specification ACTpro-100... -
Page 5: Relay Load
ACTpro-100 / ACTpro-1002A – Installation and Operating Instructions Overview Output: Voltage 13.4–14.2V DC (13.8V DC Nominal) on mains power Output: Max load current 2.0A Output: Ripple 150mA pk–pk max Output: Load output fuse F2.0A Output: Overload Electronic shutdown until overload or short circuit removed (Under mains power only) 1.1.2 Relay load... -
Page 6: Installation
ALL switches in the OFF position. The unit will beep after 3 seconds. The unit is now defaulted. Set the DIP switches to the appropriate address. If using the ACTpro-1002A, Vanderbilt recommend that an external mains disconnect device is fitted before installation, and you should ensure that the mains supply to the controller is disconnected during installation. -
Page 7: Dip Switch Addressing
ACTpro-100 / ACTpro-1002A – Installation and Operating Instructions Installation Notes: This illustration shows wiring for a normally energised lock. If a normally deenergised lock is required, use the N/O relay contacts. RS485 Network cable is single shielded twisted pair, Belden 9501 or equivalent. Total Length max 1.4km. -
Page 8: Wiring For Vanderbilt Em1030E Clock & Data Or Wiegand Reader
ACTpro-100 / ACTpro-1002A – Installation and Operating Instructions Installation The following table shows how to set the door station DIP switch for each address (01–32). 2.1.2 Wiring for Vanderbilt EM1030e Clock & Data or Wiegand Reader Wire Colour Terminal White... -
Page 9: Wiring Exit Readers
ACTpro-100 / ACTpro-1002A – Installation and Operating Instructions Installation Wire Colour Terminal Orange (Buzzer Control) 2.1.3 Wiring exit readers For Clock & Data readers, wire exit reader in parallel but leave the sense line unconnected. For Wiegand readers, wire the DATA 0 of the exit reader to SENSE on the ACTpro-100. -
Page 10: Mounting
[3A], 300/500V AC) and fasten using cable ties. Note: After you install the ACTpro-1002A, Vanderbilt recommend that you place the provided ferrite bead (a noise-suppression device) around the power supply cable to attain a desired level of electromagnetic compatibility (EMC). The ferrite bead is provided along with a screw kit in a clear ziplock bag inside the unit enclosure. -
Page 11: Standby Battery
2.3.4 Standby Battery Note: Ensure batteries being fitted to this unit are in good condition 1. Connect battery leads to battery, ensuring correct polarity of battery connections. Vanderbilt recommend using a 7Ah battery. 2. Apply mains power and check that the green Mains LED is on. - Page 12 © Vanderbilt 2019 Data and design subject to change without notice. Supply subject to availability. Document ID: A-100542-b Edition date: 15.03.2019 Issued by Vanderbilt International Ltd. Clonshaugh Business and Technology Park vanderbiltindustries.com Clonshaugh, Dublin D17 KV 84, Ireland @VanderbiltInd Vanderbilt Industries...
