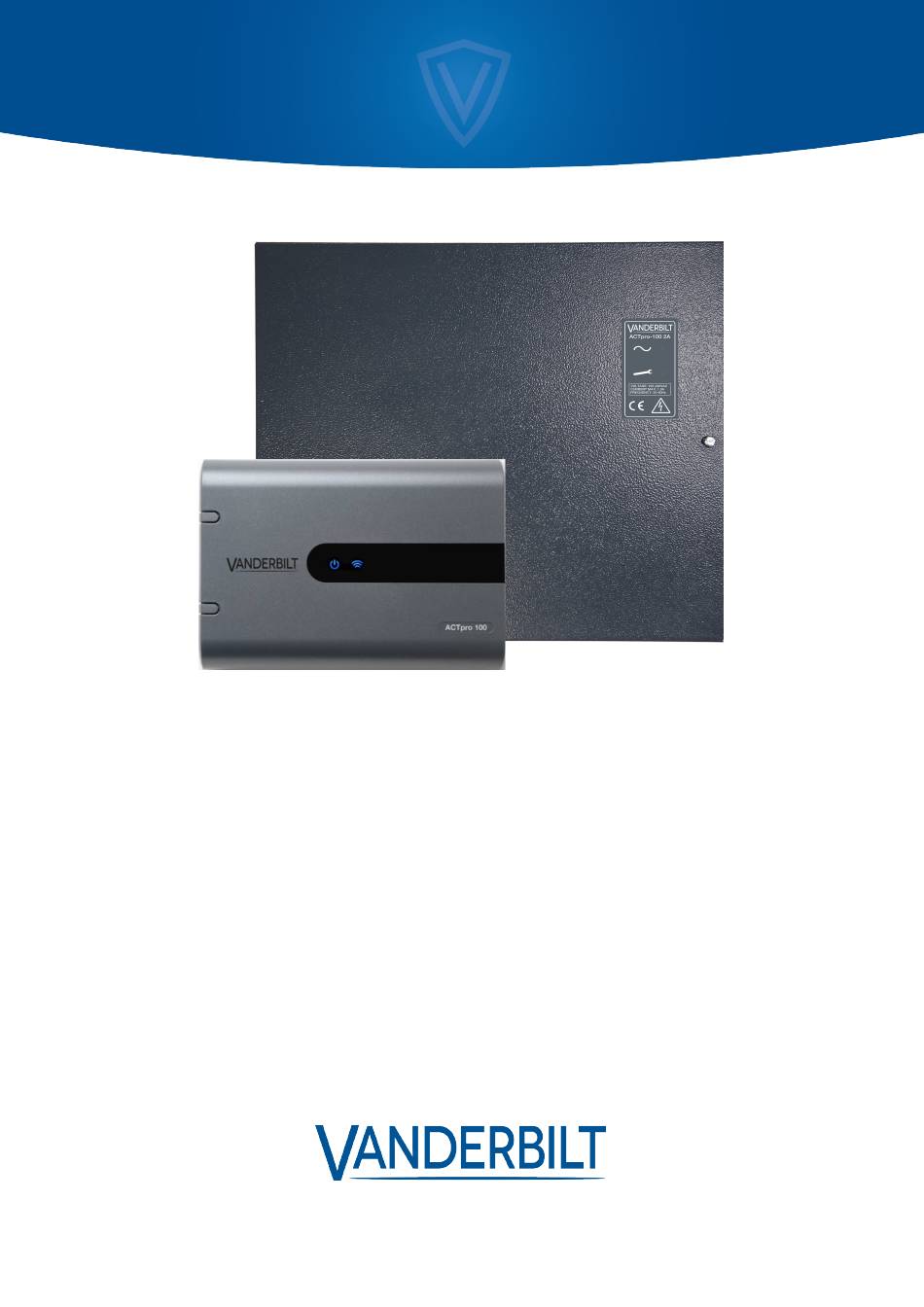

- Page 1 ACTpro-100 / ACTpro-1002A Installation and Operating Instructions Document ID: A-100542 Edition date: 05.11.2018...
- Page 2 ACTpro-100 Hereby, Vanderbilt International (IRL) Ltd declares that this equipment type is in compliance with the following EU Directives for CE marking: • Directive 2014/30/EU (Electromagnetic Compatibility Directive) •...
-
Page 3: Table Of Contents
1.1.1 ACTpro-1002A electrical specification 1.2 Ordering details 1.3 Monitoring 2 Installation 2.1 Wiring 2.1.1 DIP switch addressing 2.1.2 Wiring for Vanderbilt EM1030e Clock & Data or Wiegand Reader 2.1.3 Wiring exit readers 2.2 ACTpro-100 2.2.1 Mounting 2.2.2 Power supply 2.3 ACTpro-1002A 2.3.1 Mounting... -
Page 4: Overview
1 Overview This guide describes the installation of the ACTpro-100 door stations, which are compatible with all ACTpro controllers. The ACTpro-100 is a single door station. The ACTpro-1002A is a single door station with a 12V DC 2A PSU. 1.1 Technical specification... -
Page 5: Ordering Details
ACTpro-100 / ACTpro-1002A – Installation and Operating Instructions Overview Output: Voltage 13.4–14.2V DC (13.8V DC Nominal) on mains power Output: Max load current 2.0A Output: Ripple 150mA pk–pk max Output: Load output fuse F2.0A Output: Overload Electronic shutdown until overload or short circuit removed (Under mains power only) 1.2 Ordering details... -
Page 6: Installation
The ACTpro-100 door stations are for indoor installation only and must be installed as permanently connected equipment. Reset the ACTpro-100 door station to its factory default condition before installation. To do this, power the unit up with ALL switches in the OFF position. The unit will beep after 3 seconds. The unit is now defaulted. -
Page 7: Dip Switch Addressing
If the Mains Present, Door Contact or BreakGlass inputs are not used, they should be linked to 0V, or the feature should be disabled in ACT Enterprise software. The Blue Comms OK LED is on while ACTpro-100 is communicating with the controller. Red Fault LED illuminates on:... -
Page 8: Wiring For Vanderbilt Em1030E Clock & Data Or Wiegand Reader
ACTpro-100 / ACTpro-1002A – Installation and Operating Instructions Installation The following table shows how to set the door station DIP switch for each address (01–32). 2.1.2 Wiring for Vanderbilt EM1030e Clock & Data or Wiegand Reader Wire Colour Terminal White... -
Page 9: Wiring Exit Readers
The unit should be installed in a ventilated area that allows for accessibility after installation. 2.2.2 Power supply The ACTpro-100 requires an external 12V DC power supply. The supply should be connected to the +12V DC and 0V/GND connections. 2.3 ACTpro-1002A This unit is only suitable for installation as permanently connected equipment. -
Page 10: Mounting
[3A], 300/500V AC) and fasten using cable ties. Note: After you install the ACTpro-1002A, Vanderbilt recommend that you place the provided ferrite bead (a noise-suppression device) around the power supply cable to attain a desired level of electromagnetic compatibility (EMC). The ferrite bead is provided along with a screw kit in a clear ziplock bag inside the unit enclosure. -
Page 11: Standby Battery
2.3.4 Standby Battery Note: Ensure batteries being fitted to this unit are in good condition 1. Connect battery leads to battery, ensuring correct polarity of battery connections. Vanderbilt recommend using a 7Ah battery. 2. Apply mains power and check that the green Mains LED is on. - Page 12 © Vanderbilt 2018 Data and design subject to change without notice. Supply subject to availability. Document ID: A-100542 Edition date: 05.11.2018 Issued by Vanderbilt International Ltd. Clonshaugh Business and Technology Park vanderbiltindustries.com Clonshaugh, Dublin D17 KV 84, Ireland @VanderbiltInd Vanderbilt Industries...
