ECO560
Sounder & Flash separate
controlled via 0V
DIP 2 & DIP 3 Settings
ON - +12V not active / 0V or not connected activated
OFF - 0V not active / +12V or not connected activated
DIP 5 & DIP 6 Settings
DIP 5/6 - ON/OFF Flash controlled by Terminal 3 (Sounder/Flash together)
DIP 5/6 - OFF/OFF Flash controlled by Terminal 4 (Sounder/Flash separated)

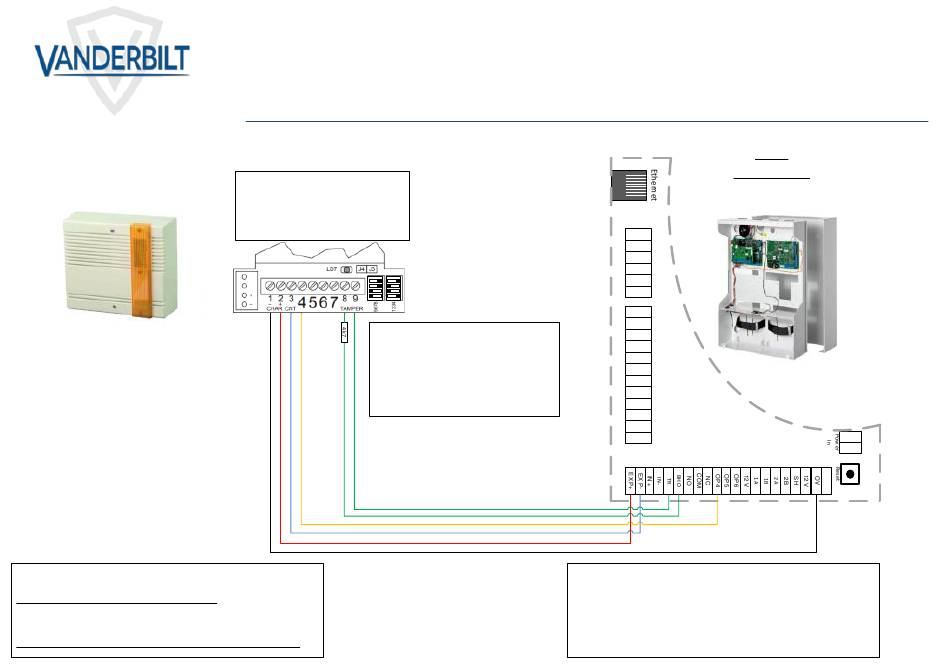

ECO560-wiring-to-SPC
External Sounder with Flash
Application note
TCC-2020-014_ECO560-wiring-to-SPC_330_02_EN
1 Supplying Negative 0V GND
2 Supplying positive from +12V to +13.8V
3 Sounder control
4 Flash control
8 Tamper
9 Tamper
8
4
7
3
6
2
5
1
DIP 1 - ON - Alarm timing
DIP 2 - OFF - Polarity of alarm input
DIP 3 - OFF - Polarity of flash input
DIP 4 - ON - Control panel ON/OFF indication
DIP 5 - OFF - Sounder and Flash activation mode
DIP 6 - OFF - Sounder and Flash activation mode
DIP 7 - ON - Max number of alarms per day
DIP 8 - ON - Ton selection
Mainboard
TX
RX
GND
T2
C
T1
I1
COM
I2
I3
COM
I4
I5
COM
I6
I7
COM
I8
Output
SPC Settings
Output 1 – External Bell (Attribute Invert )
Output 4 – Ext. Bell Strobe (Attribute Invert )
-Sounder Tamper will be shown in the SPC as Bell Tamper(BHO/TR)
SPC
12V
Output
X-Bus
