Operation Manual / 4 Product description / A130-M.. - A145-M..
8 Dismantling and fitting
8.11

Axial clearance A and radial clearance B

Clearances outside the tolerance
Serious damage to engines or property can be caused by clearances
outside the tolerance and excessively worn parts.
CAUTION
Have the components assessed and, if necessary, replaced by an ABB

Turbocharging Service Station.
Measure and record clearances A and B after the removal and before the installation of the

cartridge group.
Attach the dial indicator and align it for the respective clearance as per the illustration.


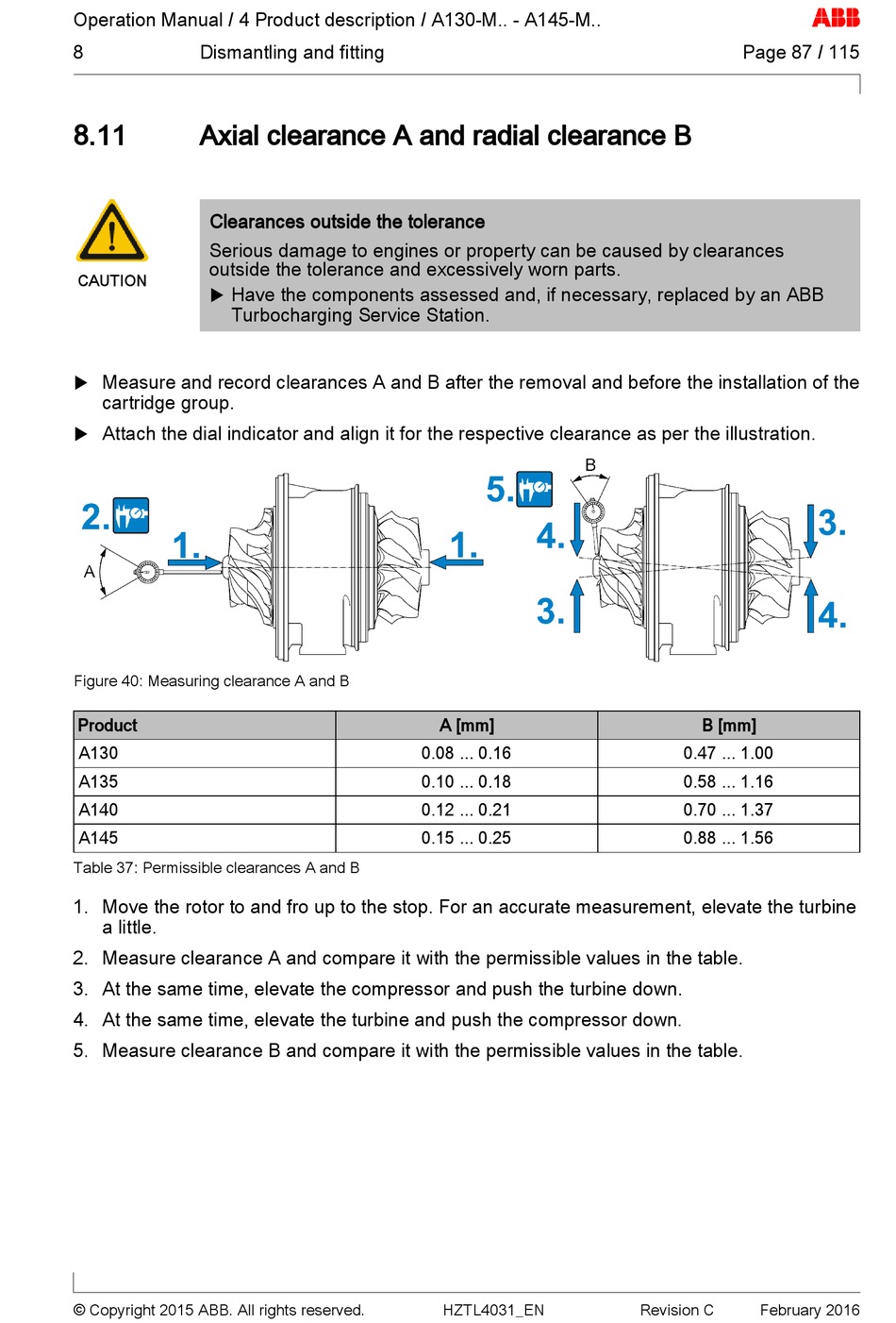

Figure 40: Measuring clearance A and B
Product
A130
A135
A140
A145
Table 37: Permissible clearances A and B
1. Move the rotor to and fro up to the stop. For an accurate measurement, elevate the turbine
a little.
2. Measure clearance A and compare it with the permissible values in the table.
3. At the same time, elevate the compressor and push the turbine down.
4. At the same time, elevate the turbine and push the compressor down.
5. Measure clearance B and compare it with the permissible values in the table.
© Copyright 2015 ABB. All rights reserved.
A [mm]
0.08 ... 0.16
0.10 ... 0.18
0.12 ... 0.21
0.15 ... 0.25
HZTL4031_EN
Page 87 / 115
B [mm]
0.47 ... 1.00
0.58 ... 1.16
0.70 ... 1.37
0.88 ... 1.56
