Summary of Contents for Congatec COM Express conga-TC570r

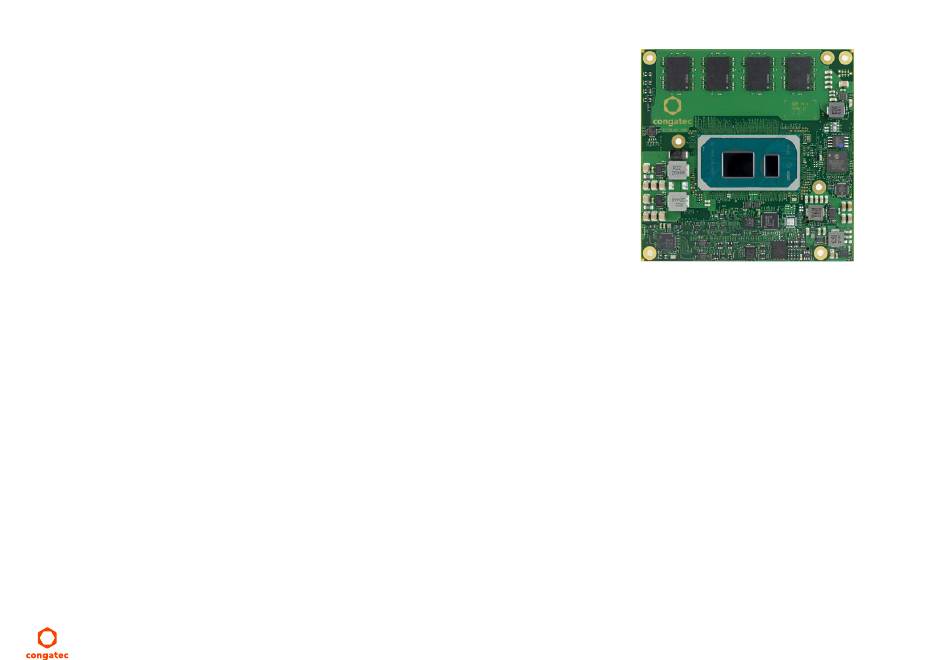

- Page 1 COM Express™ conga-TC570r 11th Generation Intel Core™ i7, i5, i3 and Celeron Single Chip UP3 Processors (Soldered-Down Memory) ® ® User’s Guide Revision 0.1 (Preliminary)
- Page 2 Revision History Revision Date (yyyy-mm-dd) Author Changes 2022-03-15 • Preliminary release Copyright © 2022 congatec GmbH TCTOm01 2/70...
- Page 3 DECLINE ALL LIABILITY for damages, direct or indirect, that result from the use of this software. OEM/ CGUTL BIOS BIOS/UEFI modified by customer via the congatec System Utility (CGUTL) is subject to the same license as the BIOS/UEFI it is based on. You can find the specific details at https://www.congatec.com/en/licenses/.
- Page 4 The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. congatec GmbH provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing.
- Page 5 Copyright © 2022 congatec GmbH. All rights reserved. All text, pictures and graphics are protected by copyrights. No copying is permitted without written permission from congatec GmbH. congatec GmbH has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”.
- Page 6 (c) arising from course of performance, course of dealing, or usage of trade. congatec GmbH shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause.
- Page 7 GmbH technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you first visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you.
-
Page 8: Table Of Contents
Power Management ..............33 Supported Operating Systems ..........14 Mechanical Dimensions ............14 Additional Features ..............34 Supply Voltage Standard Power ..........15 congatec Board Controller (cBC) ..........34 2.4.1 Electrical Characteristics ............15 6.1.1 Board Information ..............34 2.4.2 Rise Time ................. - Page 9 BIOS Setup Description ............69 10.1 Navigating the BIOS Setup Menu ........... 69 10.2 BIOS Versions................69 10.3 Updating the BIOS ..............70 10.3.1 Update from External Flash ............. 70 10.4 Supported Flash Devices ............70 Copyright © 2022 congatec GmbH TCTOm01 9/70...
- Page 10 Table 33 Rapid Shutdown Signal Descriptions ........62 Table 34 Thermal Protection Signal Descriptions ........62 Table 35 SMBus Signal Description ............62 Table 36 General Purpose Serial Interface Signal Descriptions ....63 Copyright © 2022 congatec GmbH TCTOm01 10/70...
-
Page 11: Introduction
Simply unplug one module and replace it with another; no redesign is necessary. Copyright © 2022 congatec GmbH TCTOm01... -
Page 12: Options Information
InBand ECC (IBECC) InBand ECC (IBECC) Processor TDP (cTDP down) 15 (12) W 15 (12) W 15 (12) W Compatible Carrier Board conga-TEVAL/COMe 3.0 Evaluation Carrier Board for COM Express Type 6 modules Copyright © 2022 congatec GmbH TCTOm01 12/70... -
Page 13: Specifications
GPIOs BIOS AMI Aptio V UEFI 2.x firmware ® 32 MB serial SPI flash with congatec Embedded BIOS features Power ACPI 5.0a compliant with battery support. S5e mode (see section 6.1.7 “Enhanced Soft-Off State”) Management Deep Sx and Suspend t o RAM (S3) -
Page 14: Supported Operating Systems
• Length of 95 mm • Width of 95 mm Heatspreader The overall height (module, heatspreader and stack) is shown below: Module PCB 4.00 13.00 7.00 18.00 5.00 2.00±10% All dimensions in millimeter 4.50 Carrier Board PCB Copyright © 2022 congatec GmbH TCTOm01 14/70... -
Page 15: Supply Voltage Standard Power
Power Consumption The power consumption values were measured with the following setup: • Input voltage +12 V • conga-TC570r COM • Modified congatec carrier board • conga-TC570r cooling solution • Microsoft Windows 10 (64 bit) Note The CPU was stressed to its maximum workload with the Intel ®... -
Page 16: Table 6 Measurement Description
® Core™ i7-1185GRE 4 1.8 / 4.4 050331 16 GB Windows 10 Intel Core™ i5-1145GRE 4 1.5 / 4.1 ® 050332 8 GB Windows 10 Intel ® Core™ i3-1115GRE 2 2.2 / 3.9 Copyright © 2022 congatec GmbH TCTOm01 16/70... -
Page 17: Supply Voltage Battery Power
Storage: 5% to 95% Caution The above operating temperatures must be strictly adhered to at all times. When using a congatec heatspreader, the maximum operating temperature refers to any measurable spot on the heatspreader’s surface. Humidity specifications are for non-condensing conditions. -
Page 18: Block Diagram
SM Bus SM Bus PECI MGMNT eSPI eSPI to LPC GPIOs congatec Board GPIO I2C Bus Controller LID# / SLEEP# / FAN LID/SLEEP/FAN Generation SER0/1 UART UART Optional - Not available by default Copyright © 2022 congatec GmbH TCTOm01 18/70... -
Page 19: Cooling Solutions
1. We recommend a maximum torque of 0.4 Nm for carrier board mounting screws and 0.5 Nm for module mounting screws. 2. The gap pad material used on congatec heatspreaders may contain silicon oil that can seep out over time depending on the environmental conditions it is subjected to. -
Page 20: Csa Dimensions
CSA Dimensions 37.25 M2.5 x 11 mm threaded standoff for threaded version ø2.7 x 11 mm non-threaded standoff for borehole version Copyright © 2022 congatec GmbH TCTOm01 20/70... -
Page 21: Csp Dimensions
CSP Dimensions 37.25 57.6 M2.5 x 11 mm threaded standoff for threaded version ø2.7 x 11 mm non-threaded standoff for borehole version Copyright © 2022 congatec GmbH TCTOm01 21/70... -
Page 22: Hsp Dimensions
HSP Dimensions 37.25 57.6 M2.5 x 11 mm threaded standoff for threaded version ø2.7 x 11 mm non-threaded standoff for borehole version Copyright © 2022 congatec GmbH TCTOm01 22/70... -
Page 23: Heatspreader Thermal Imagery
Heatspreader Thermal Imagery The conga-TC570r heatspreader solution features heatstack, heat pipe and aluminium alloy plate. The aluminium alloy plate distributes the heat evenly on the heatspreader as shown in the thermal imagery below. Copyright © 2022 congatec GmbH TCTOm01 23/70... -
Page 24: Connector Rows
The conga-TC570r supports one PCIe x4 Gen 4 (PEG) port on the C–D connector. The port supports both graphics and storage devices and can be operated as x1 or x4 link. Note The PEG lanes can not be linked together with the PCI Express lanes in section 5.1.1 “PCI Express™”. Copyright © 2022 congatec GmbH TCTOm01 24/70... -
Page 25: Display Interfaces
• up to 4096x2304 resolutions at 60 Hz • Audio formats such as AC-3 Dolby Digital, Dolby Digital Plus, DTS-HD, LPCM, 192 KHz/24 bit, 8 channel, Dolby TrueHD, DTS-HD Master Audio (Lossless Blu-Ray Disc Audio Format) Copyright © 2022 congatec GmbH TCTOm01 25/70... -
Page 26: Lvds/Edp
Tiger Lake IoT UP3 SoC does not natively support VGA interface. However, the conga-TC570r commercial variants support this ® interface by integrating a DisplayPort to VGA adapter chip. Note For VGA support on industrial variants, you need a customized conga-TC570r variant. Copyright © 2022 congatec GmbH TCTOm01 26/70... -
Page 27: Sata
2. The USB ports are configured in the BIOS setup menu to operate by default in Gen 1 mode. Before you change the default setting to Gen 2, ensure the carrier board supports Gen 2 operation. For Gen 2 design considerations, contact congatec technical support center. -
Page 28: Gigabit Ethernet
The GBE0_LINK# signal is a logic AND of the GBE0_LINK100# and GBE0_LINK1000# signals on the conga-TC570r module. Only conga-TC570r industrial variants support Intel ® TSN and TCC. Not supported in Windows Operating Systems Copyright © 2022 congatec GmbH TCTOm01 28/70... -
Page 29: High Definition Audio
“LPC Bus”. 5.1.9 I²C Bus The I²C bus is implemented through the congatec board controller and accessed through the congatec CGOS driver and API. The controller provides a fast-mode multi-master I²C bus that has the maximum I²C bandwidth. 5.1.10 GPIOs The conga-TC570r offers General Purpose Input/Output signals on the A–B connector. -
Page 30: Power Control
A sample screenshot is shown below: Note The module is kept in reset as long as the PWR_OK is driven by carrier board hardware. Copyright © 2022 congatec GmbH TCTOm01 30/70... - Page 31 0.8 V when the 12 V is applied to the module. Actively driving PWR_OK high is compliant to the COM Express specification but this can cause back driving. Therefore, congatec recommends driving the PWR_OK low to keep the module in reset and tri-state PWR_OK when the carrier board hardware is ready to boot.
- Page 32 This will help to determine if the rise is indeed monotonic and does not have any dips. For more information, see the “Power Supply Design Guide for Desktop Platform Form Factors” document at www.intel.com. Copyright © 2022 congatec GmbH TCTOm01...
-
Page 33: Power Management
S3 state, then the resume path will place system back into S3. S5e Power State The conga-TC570r features a congatec proprietary Enhanced Soft-Off power state. See section 6.1.7 “Enhanced Soft-Off State” for more information. Copyright © 2022 congatec GmbH... -
Page 34: Additional Features
Board Controller (cBC) The conga-TC570r is equipped with Microchip microcontroller. This onboard microcontroller plays an important role for most of the congatec embedded/industrial PC features. It fully isolates some of the embedded features such as system monitoring or the I²C bus from the x86 core architecture, which results in higher embedded feature performance and more reliability, even when the x86 processor is in a low power mode. -
Page 35: Power Loss Control
Enhanced Soft-Off State The conga-TC570r supports an enhanced Soft-Off state (S5e)—a congatec proprietary low-power Soft-Off state. In this state, the CPU module switches off almost all the onboard logic in order to reduce the power consumption to absolute minimum (between 0.05 mA and 0.09 mA). -
Page 36: Oem Default Settings
OEM POST Logo This feature allows system designers to replace the congatec POST logo displayed in the upper left corner of the screen during BIOS POST with their own BIOS POST logo. Use the congatec system utility CGUTIL 1.5.4 or later to replace/add the OEM POST logo. -
Page 37: Api Support (Cgos)
The architecture of the CGOS API driver provides the ability to write application software that runs unmodified on all congatec CPU modules. All the hardware related code is contained within the congatec embedded BIOS on the module. See section 1.1 of the CGOS API software developers guide, available on the congatec website. -
Page 38: Conga Tech Notes
3. To ensure that the TCC is active for only short periods of time, thus reducing the impact on processor performance to a minimum, it is necessary to have a properly designed thermal solution. The Intel Core™ i7/i5/i3, Celeron and Pentium processor’s respective datasheet ® ® ® can provide you with more information about this subject. Copyright © 2022 congatec GmbH TCTOm01 38/70... -
Page 39: Processor Performance Control
When the processor is operating below these limits and the user’s workload demands additional performance, the processor frequency dynamically increases by 100 MHz on short and regular intervals until the upper limit is met or the maximum possible upside for the number of active cores is reached. Copyright © 2022 congatec GmbH TCTOm01 39/70... -
Page 40: Intel ® Virtualization Technology
See section 7.1 “Adaptive Thermal Monitor and Catastrophic Thermal Protection” for more information. The congatec board controller supports active cooling solution. The board controller controls the fan’s speed based on the temperature readings of the CPU. This feature does not require ACPI OS support. The only software-controlled thermal trip point on conga-TC570r is the Critical Trip Point. -
Page 41: Acpi Suspend Modes And Resume Events
In Device Manager look for the keyboard/mouse devices. Go to the Power Management tab and check ‘Allow this device to bring the computer out of standby’. RTC Alarm Activate and configure Resume On RTC Alarm in the Power setup menu. Only available in S5. Watchdog Power Button Event Wakes unconditionally from S3-S5. Copyright © 2022 congatec GmbH TCTOm01 41/70... -
Page 42: Signal Descriptions And Pinout Tables
The table below describes the terminology used in this section. The PU/PD column indicates if a pull-up or pull-down resistor has been used. If the field entry area in this column for the signal is empty, then no pull-up or pull-down resistor has been implemented by congatec. -
Page 43: Connector Signal Descriptions
SATA2_TX- SATA3_TX- LVDS_A3+ LVDS_B3- SUS_S5# PWR_OK LVDS_A3- eDP_BKLT_EN/LVDS_BKLT_EN SATA2_RX+ SATA3_RX+ GND (FIXED) GND (FIXED) SATA2_RX- SATA3_RX- eDP_TX3+/LVDS_A_CK+ LVDS_B_CK+ BATLOW# eDP_TX3-/LVDS_A_CK- LVDS_B_CK- (S)ATA_ACT# HDA_SDIN2 eDP_AUX+/LVDS_I2C_CK eDP/LVDS_BKLT_CTRL HDA_SYNC HDA_SDIN1 eDP_AUX-/LVDS_I2C_DAT VCC_5V_SBY HDA_RST# HDA_SDIN0 GPI3 VCC_5V_SBY Copyright © 2022 congatec GmbH TCTOm01 43/70... - Page 44 PCIE_TX5+ PCIE_RX5+ A107 VCC_12V B107 VCC_12V PCIE_TX5- PCIE_RX5- A108 VCC_12V B108 VCC_12V GPI0 GPO1 A109 VCC_12V B109 VCC_12V PCIE_TX4+ PCIE_RX4+ A110 GND (FIXED) B110 GND (FIXED) Note Not connected Not supported Bootstrap signals Copyright © 2022 congatec GmbH TCTOm01 44/70...
-
Page 45: Table 14 Connector C-D Pinout
PEG_TX8- DDI1_PAIR4+ RSVD GND (FIXED) GND (FIXED) DDI1_PAIR4- DDI1_PAIR0+ PEG_RX9+ PEG_TX9+ RSVD DDI1_PAIR0- PEG_RX9- PEG_TX9- RSVD RSVD RSVD RSVD DDI1_PAIR5+ DDI1_PAIR1+ DDI1_PAIR5- DDI1_PAIR1- PEG_RX10+ PEG_TX10+ GND (FIXED) GND (FIXED) PEG_RX10- PEG_TX10- DDI2_CTRLCLK_AUX+ DDI1_PAIR2+ Copyright © 2022 congatec GmbH TCTOm01 45/70... - Page 46 PEG_RX0+ PEG_TX0+ C107 VCC_12V D107 VCC_12V PEG_RX0- PEG_TX0- C108 VCC_12V D108 VCC_12V TYPE0# PEG_LANE_RV# C109 VCC_12V D109 VCC_12V PEG_RX1+ PEG_TX1+ C110 GND (FIXED) D110 GND (FIXED) Note Not connected Not supported Bootstrap signals Copyright © 2022 congatec GmbH TCTOm01 46/70...
-
Page 47: Table 15 Pci Express Signal Descriptions (General Purpose)
A PCI Express Gen2/3 compliant clock buffer chip must be PCIE_CLK_REF- and PCI Express Graphics Lanes used on the carrier board if the design involves more than one PCI Express device. Note The default BIOS setting for the shared ports is PCIe. Copyright © 2022 congatec GmbH TCTOm01 47/70... -
Page 48: Table 16 Pci Express Signal Descriptions (X16 Graphics)
Note: Can also be used as PCI Express differential pairs 24 PEG_RX8- PEG_TX8+ O PCIE PEG_TX8- PEG_RX9+ PCI Express Graphics differential pairs 9 I PCIE Note: Can also be used as PCI Express differential pairs 25 PEG_RX9- PEG_TX9+ O PCIE PEG_TX9- Copyright © 2022 congatec GmbH TCTOm01 48/70... - Page 49 O PCIE PEG_TX15- D102 PEG_LANE_RV# D54 PCI Express Graphics lane reversal input strap. Pull low on the carrier board to Not supported reverse lane order. Note The conga-TC570r supports only PEG ports 0-3. Copyright © 2022 congatec GmbH TCTOm01 49/70...
-
Page 50: Table 17 Ddi Signal Description
Bootstrap signal (see note below). DP AUX- function if DDI2_DDC_AUX_SEL is no connect I/O PCIE 3.3 V DDI enable strap is already HDMI/DVI I2C CTRLDATA if DDI2_DDC_AUX_SEL is pulled high I/O OD 3.3 V populated. Copyright © 2022 congatec GmbH TCTOm01 50/70... -
Page 51: Table 18 Tmds Signal Descriptions
TMDS differential pair O PCIE TMDS1_DATA0- Multiplexed with DDI1_PAIR2+ and DDI1_PAIR2- TMDS1_DATA1+ TMDS differential pair O PCIE TMDS1_DATA1- Multiplexed with DDI1_PAIR1+ and DDI1_PAIR1- TMDS1_DATA2+ TMDS differential pair O PCIE TMDS1_DATA2- Multiplexed with DDI1_PAIR0+ and DDI1_PAIR0- Copyright © 2022 congatec GmbH TCTOm01 51/70... - Page 52 Enable strap is already populated. Note These signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.2 “Bootstrap Signals”. Copyright © 2022 congatec GmbH TCTOm01 52/70...
-
Page 53: Table 19 Displayport (Dp) Signal Descriptions
EDID access 3.3 V DP enable strap is already populated. DP3_LANE3+ Uni-directional main link for the transport of isochronous streams and O PCIE DP3_LANE3- secondary data Multiplexed with DDI3_PAIR3+ and DDI3_PAIR3- Copyright © 2022 congatec GmbH TCTOm01 53/70... -
Page 54: Table 20 Embedded Displayport Signal Descriptions
AUX+ AC coupled off module eDP_AUX- eDP AUX- AC coupled off module eDP_HPD Detection of hot plug / unplug and notification of the link layer I 3.3 V PD 1 MΩ Copyright © 2022 congatec GmbH TCTOm01 54/70... -
Page 55: Table 21 Crt Signal Descriptions
I/O 3.3 V PU 2k2 3.3 V PU for LVDS support (default) LVDS_I2C_DAT DDC lines used for flat panel detection and control I/O 3.3 V PU 2k2 3.3 V PU for LVDS support (default) Copyright © 2022 congatec GmbH TCTOm01 55/70... -
Page 56: Table 23 Serial Ata Signal Descriptions
USB Port 5, data - or D- USB6+ USB Port 6, data + or D+ USB6- USB Port 6, data - or D- USB7+ USB Port 7, data + or D+ USB7- USB Port 7, data - or D- Copyright © 2022 congatec GmbH TCTOm01 56/70... -
Page 57: Table 25 Usb 3.0 Signal Descriptions
Additional receive signal differential pairs for the Superspeed USB data path Shared with PCIe lane 7 and configurable via the BIOS setup menu USB_SSRX3- USB_SSTX3+ Additional transmit signal differential pairs for the Superspeed USB data path O USB_SSTX3- Copyright © 2022 congatec GmbH TCTOm01 57/70... -
Page 58: Table 26 Gigabit Ethernet Signal Descriptions
The GBE0_LINK# output is not active during a 10 Mb connection. It is only active during a 100 Mb or 1 Gb connection. This is a limitation of Ethernet Phy since it only has 3 LED outputs—ACT#, LINK100# and LINK1000#. The GBE0_LINK# signal is a logic AND of the GBE0_LINK100# and GBE0_LINK1000# signals on the conga-TC570r module. Copyright © 2022 congatec GmbH TCTOm01 58/70... -
Page 59: Table 27 High Definition Audio Link Signals Descriptions
GND on the carrier, eSPI mode is selected. This signal is pulled to a logic high on the module through a resistor. The carrier should only float this line or pull it low. Note The conga-TC570r does not support ESPI mode. Copyright © 2022 congatec GmbH TCTOm01 59/70... -
Page 60: Table 29 Spi Bios Flash Interface Signal Descriptions
This signal has special functionality during the reset process. It may bootstrap some basic important functions of the module. For more information refer to section 8.2 “Bootstrap Signals”. Pins are protected on the module by a series schotty diode. Therefore, pull-down resistor is required on the carrier board for proper logic level. Copyright © 2022 congatec GmbH TCTOm01 60/70... -
Page 61: Table 31 General Purpose I/O Signal Descriptions
Indicates system is in Suspend to RAM state. Active-low output. An inverted copy of SUS_S3# on O 3.3 VSB the carrier board (also known as “PS_ON”) may be used to enable the non-standby power on a typical ATX power supply. Copyright © 2022 congatec GmbH TCTOm01 61/70... -
Page 62: Table 33 Rapid Shutdown Signal Descriptions
PU/PD Comment SMB_CK System Management Bus bidirectional clock line I/O 3.3 VSB PU 100 kΩ 3.3 VSB SMB_DAT# System Management Bus bidirectional data line I/O OD 3.3 VSB PU 100 kΩ 3.3 VSB Copyright © 2022 congatec GmbH TCTOm01 62/70... -
Page 63: Table 37 Module Type Definition Signal Description
(e.g deactivates the ATX_ON signal for an ATX power supply) if an incompatible module pin-out type is detected. The carrier board logic may also implement a fault indicator such as an LED. Copyright © 2022 congatec GmbH TCTOm01 63/70... -
Page 64: Table 38 Power And Gnd Signal Descriptions
C76, C80, C84, C87, C90, C93, C96, C100, C103, C110, D1, D2, D5, D8, D11, D14, D21, D31, D41, D51, D60, D67, D70, D73, D76, D80, D84, D87, D90, D93, D96, D100, D103, D110 Copyright © 2022 congatec GmbH TCTOm01 64/70... -
Page 65: Bootstrap Signals
2. No external DC loads or external pull-up or pull-down resistors should change the configuration of the signals listed in the above table. External resistors may override the internal strap states and cause the COM Express™ module to malfunction and/or cause irreparable damage to the module. Copyright © 2022 congatec GmbH TCTOm01 65/70... -
Page 66: System Resources
On the conga-TC570r the PCI Express Bus acts as the subtractive decoding agent. All I/O cycles that are not positively decoded are forwarded to the PCI Bus not the ESPI or LPC Bus. Only specified I/O ranges are forwarded to the ESPI/LPC Bus. In the congatec Embedded BIOS the following I/O address ranges are sent to the ESPI/LPC Bus: 2Eh –... -
Page 67: Pci Configuration Space Map
PCIe Device inserted in PCI Express Port 7 03h (Note3) PCIe Device inserted in PCI Express Port 0 04h (Note3) PCIe Device inserted in PCI Express Port 1 05h (Note3) PCIe Device inserted in PCI Express Port 2 Copyright © 2022 congatec GmbH TCTOm01 67/70... -
Page 68: Sm Bus
Note Internal PCI devices not connected to the conga-TC570r are not listed. Onboard resources are not connected to the I²C bus. Address 16h is reserved for congatec Battery Management solutions. SM Bus System Management (SM) bus signals are connected to the Intel chipset. -
Page 69: Bios Setup Description
Navigating the BIOS Setup Menu The BIOS setup menu shows the features and options supported in the congatec BIOS. To access and navigate the BIOS setup menu, press the <DEL> or <F2> key during POST. The right frame displays the key legend. Above the key legend is an area reserved for text messages. These text messages explain the options and the possible impacts when changing the selected option in the left frame. -
Page 70: Updating The Bios
BIOS updates are recommeded to correct platform issues or enhance the feature set of the module. The conga-TC570r features a congatec/AMI AptioEFI firmware on an onboard flash ROM chip. You can update the firmware with the congatec System Utility. The utility has five versions—...
