Summary of Contents for Congatec Com Express conga-TC570

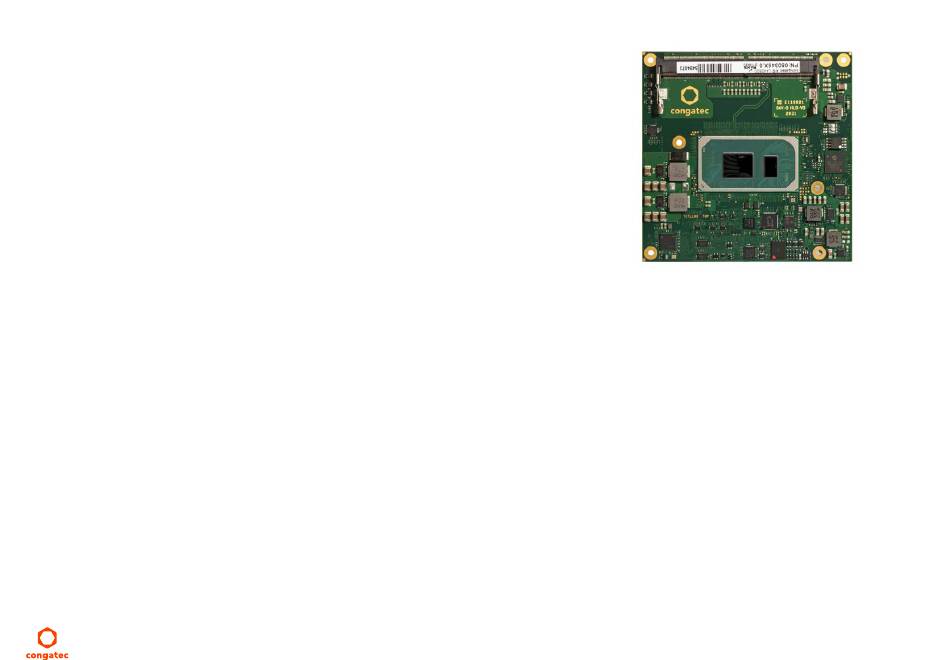

- Page 1 COM Express™ conga-TC570 11th Generation Intel Core™ i7, i5, i3 and Celeron Single Chip IOT UP3 Processors ® ® User’s Guide Revision 0.2 (Preliminary)
- Page 2 Revision History Revision Date (yyyy-mm-dd) Author Changes 2021-05-10 • Preliminary release • 2021-07-31 Added Software License Information • Removed duplicated sentence about non monotonic voltage in section 5.1.12 “Power Control” Copyright © 2021 congatec GmbH TCTLm02 2/67...
- Page 3 DECLINE ALL LIABILITY for damages, direct or indirect, that result from the use of this software. OEM/ CGUTL BIOS BIOS/UEFI modified by customer via the congatec System Utility (CGUTL) is subject to the same license as the BIOS/UEFI it is based on. You can find the specific details at https://www.congatec.com/en/licenses/.
- Page 4 Copyright © 2021, congatec GmbH. All rights reserved. All text, pictures and graphics are protected by copyrights. No copying is permitted without written permission from congatec GmbH. congatec GmbH has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”.
- Page 5 Trademarks Product names, logos, brands, and other trademarks featured or referred to within this user’s guide, or the congatec website, are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH, our products, or our website.
- Page 6 (c) arising from course of performance, course of dealing, or usage of trade. congatec GmbH shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause.
- Page 7 GmbH technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you first visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you.
-
Page 8: Table Of Contents
Power Management ..............32 Feature List ................13 Supported Operating Systems ..........14 Additional Features ..............33 Mechanical Dimensions ............14 congatec Board Controller (cBC) ..........33 Supply Voltage Standard Power ..........15 6.1.1 Board Information ..............33 2.4.1 Electrical Characteristics ............15 6.1.2... - Page 9 BIOS Setup Description ............66 10.1 Navigating the BIOS Setup Menu ........... 66 10.2 BIOS Versions................66 10.3 Updating the BIOS ..............67 10.3.1 Update from External Flash ............. 67 10.4 Supported Flash Devices ............67 Copyright © 2021 congatec GmbH TCTLm02 9/67...
- Page 10 Table 33 Rapid Shutdown Signal Descriptions ........61 Table 34 Thermal Protection Signal Descriptions ........61 Table 35 SMBus Signal Description ............61 Table 36 General Purpose Serial Interface Signal Descriptions ....62 Copyright © 2021 congatec GmbH TCTLm02 10/67...
-
Page 11: Introduction
Simply unplug one module and replace it with another; no redesign is necessary. Copyright © 2021 congatec GmbH TCTLm02... -
Page 12: Options Information
3200 MTps dual channel 3200 MTps dual channel InBand ECC (IBECC) InBand ECC (IBECC) InBand ECC (IBECC) (ECC or Non-ECC) Processor TDP (cTDP down) 15 (12) W 15 (12) W 15 (12) W Copyright © 2021 congatec GmbH TCTLm02 12/67... -
Page 13: Specifications
GPIOs BIOS AMI Aptio V UEFI 2.x firmware ® 32 MB serial SPI flash with congatec Embedded BIOS features Power ACPI 4.0a compliant with battery support. S5e mode (see section 6.1.7 “Enhanced Soft-Off State”) Management Deep Sx and Suspend to RAM (S3) -
Page 14: Supported Operating Systems
• Length of 95 mm • Width of 95 mm The overall height (module, heatspreader and stack) is shown below: Heatspreader Module PCB 4.00 13.00 7.00 18.00 5.00 2.00±10% All dimensions in millimeter 4.50 Carrier Board PCB Copyright © 2021 congatec GmbH TCTLm02 14/67... -
Page 15: Supply Voltage Standard Power
Power Consumption The power consumption values were measured with the following setup: • Input voltage +12 V • conga-TC570 COM • Modified congatec carrier board • conga-TC570 cooling solution • Microsoft Windows 10 (64 bit) Note The CPU was stressed to its maximum workload with the Intel ®... -
Page 16: Table 6 Measurement Description
1.8 / 4.4 050311 2 x 4 GB Windows 10 Intel Core™ i5-1145GRE 4 1.5 / 4.1 ® 050312 2 x 4 GB Windows 10 Intel ® Core™ i3-1115GRE 2 2.2 / 3.9 Copyright © 2021 congatec GmbH TCTLm02 16/67... -
Page 17: Supply Voltage Battery Power
Storage: 5% to 95% Caution The above operating temperatures must be strictly adhered to at all times. When using a congatec heatspreader, the maximum operating temperature refers to any measurable spot on the heatspreader’s surface. Humidity specifications are for non-condensing conditions. -
Page 18: Block Diagram
SPI Flash 0 SPI0 PECI MGMNT eSPI eSPI to LPC GPIOs congatec Board GPIO I2C Bus Controller LID# / SLEEP# / FAN LID/SLEEP/FAN Generation SER0/1 UART UART Optional - Not available by default Copyright © 2021 congatec GmbH TCTLm02 18/67... -
Page 19: Cooling Solutions
1. We recommend a maximum torque of 0.4 Nm for carrier board mounting screws and 0.5 Nm for module mounting screws. 2. The gap pad material used on congatec heatspreaders may contain silicon oil that can seep out over time depending on the environmental conditions it is subjected to. -
Page 20: Csa Dimensions
CSA Dimensions 37.25 M2.5 x 11 mm threaded standoff for threaded version ø2.7 x 11 mm non-threaded standoff for borehole version Copyright © 2021 congatec GmbH TCTLm02 20/67... -
Page 21: Csp Dimensions
CSP Dimensions 37.25 57.6 M2.5 x 11 mm threaded standoff for threaded version ø2.7 x 11 mm non-threaded standoff for borehole version Copyright © 2021 congatec GmbH TCTLm02 21/67... -
Page 22: Hsp Dimensions
HSP Dimensions 37.25 57.6 M2.5 x 11 mm threaded standoff for threaded version ø2.7 x 11 mm non-threaded standoff for borehole version Copyright © 2021 congatec GmbH TCTLm02 22/67... -
Page 23: Heatspreader Thermal Imagery
4.3.2.1 Heatspreader Thermal Imagery Copyright © 2021 congatec GmbH TCTLm02 23/67... -
Page 24: Connector Rows
The conga-TC570 supports one PCIe x4 Gen 4 (PEG) port on the C–D connector. The port supports both graphics and storage devices and can be operated as x1 or x4 link. Note The PEG lanes can not be linked together with the PCI Express lanes in section 5.1.1 “PCI Express™”. Copyright © 2021 congatec GmbH TCTLm02 24/67... -
Page 25: Display Interfaces
• up to 4096x2304 resolutions at 60 Hz • Audio formats such as AC-3 Dolby Digital, Dolby Digital Plus, DTS-HD, LPCM, 192 KHz/24 bit, 8 channel, Dolby TrueHD, DTS-HD Master Audio (Lossless Blu-Ray Disc Audio Format) Copyright © 2021 congatec GmbH TCTLm02 25/67... -
Page 26: Lvds/Edp
Tiger Lake IoT UP3 SoC does not natively support VGA interface. However, the conga-TC570 commercial variants support this ® interface by integrating a DisplayPort to VGA adapter chip. Note For VGA support on industrial variants, you need a customized conga-TC570 variant. Copyright © 2021 congatec GmbH TCTLm02 26/67... -
Page 27: Sata
2. The USB ports are configured in the BIOS setup menu to operate by default in Gen 1 mode. Before you change the default setting to Gen 2, ensure the carrier board is designed for Gen 2 operation. For Gen 2 design considerations, contact congatec technical support center. -
Page 28: Gigabit Ethernet
The conga-TC570 offers the LPC bus through an eSPI to LPC bridge. For information about the decoded LPC addresses, see section 9.1.1 “LPC Bus”. 5.1.9 I²C Bus The I²C bus is implemented through the congatec board controller and accessed through the congatec CGOS driver and API. The controller provides a fast-mode multi-master I²C bus that has the maximum I²C bandwidth. 5.1.10 GPIOs The conga-TC570 offers General Purpose Input/Output signals on the A–B connector. -
Page 29: General Purpose Serial Interface
5.1.11 General Purpose Serial Interface The conga-TC570 offers two standard 16C550 UARTs on the A–B connector via the congatec Board Controller. The interfaces support up to 115200 baud rate. Note The UART interfaces do not support hardware handshake and flow control. - Page 30 0.8 V when the 12 V is applied to the module. Actively driving PWR_OK high is compliant to the COM Express specification but this can cause back driving. Therefore, congatec recommends driving the PWR_OK low to keep the module in reset and tri-state PWR_OK when the carrier board hardware is ready to boot.
- Page 31 This will help to determine if the rise is indeed monotonic and does not have any dips. For more information, see the “Power Supply Design Guide for Desktop Platform Form Factors” document at www.intel.com. Copyright © 2021 congatec GmbH TCTLm02...
-
Page 32: Power Management
S3 state, then the resume path will place system back into S3. S5e Power State The conga-TC570 features a congatec proprietary Enhanced Soft-Off power state. See section 6.1.7 “Enhanced Soft-Off State” for more information. Copyright © 2021 congatec GmbH... -
Page 33: Additional Features
Board Controller (cBC) The conga-TC570 is equipped with Microchip microcontroller. This onboard microcontroller plays an important role for most of the congatec embedded/industrial PC features. It fully isolates some of the embedded features such as system monitoring or the I²C bus from the x86 core architecture, which results in higher embedded feature performance and more reliability, even when the x86 processor is in a low power mode. -
Page 34: Power Loss Control
OEM BIOS Customization The conga-TC570 is equipped with congatec Embedded BIOS, which is based on American Megatrends Inc. Aptio UEFI firmware. The congatec Embedded BIOS allows system designers to modify the BIOS. For more information about customizing the congatec Embedded BIOS, refer to the congatec System Utility user’s guide CGUTLm1x.pdf on the congatec website at www.congatec.com or contact technical support. -
Page 35: Oem Default Settings
OEM POST Logo This feature allows system designers to replace the congatec POST logo displayed in the upper left corner of the screen during BIOS POST with their own BIOS POST logo. Use the congatec system utility CGUTIL 1.5.4 or later to replace/add the OEM POST logo. -
Page 36: Congatec Battery Management Interface
The architecture of the CGOS API driver provides the ability to write application software that runs unmodified on all congatec CPU modules. All the hardware related code is contained within the congatec embedded BIOS on the module. See section 1.1 of the CGOS API software developers guide, available on the congatec website. -
Page 37: Conga Tech Notes
3. To ensure that the TCC is active for only short periods of time, thus reducing the impact on processor performance to a minimum, it is necessary to have a properly designed thermal solution. The Intel ® Core™ i7/i5/i3, Celeron ® and Pentium ® processor’s respective datasheet can provide you with more information about this subject. Copyright © 2021 congatec GmbH TCTLm02 37/67... -
Page 38: Processor Performance Control
100 MHz on short and regular intervals until the upper limit is met or the maximum possible upside for the number of active cores is reached. For more information about Intel Turbo Boost Technology, visit the Intel website. ® ® Copyright © 2021 congatec GmbH TCTLm02 38/67... -
Page 39: Intel ® Virtualization Technology
See section 7.1 “Adaptive Thermal Monitor and Catastrophic Thermal Protection” for more information. The congatec board controller supports active cooling solution. The board controller controls the fan’s speed based on the temperature readings of the CPU. This feature does not require ACPI OS support. The only software-controlled thermal trip point on conga-TC570 is the Critical Trip Point. -
Page 40: Acpi Suspend Modes And Resume Events
In Device Manager look for the keyboard/mouse devices. Go to the Power Management tab and check ‘Allow this device to bring the computer out of standby’. RTC Alarm Activate and configure Resume On RTC Alarm in the Power setup menu. Only available in S5. Watchdog Power Button Event Wakes unconditionally from S3-S5. Copyright © 2021 congatec GmbH TCTLm02 40/67... -
Page 41: Signal Descriptions And Pinout Tables
The table below describes the terminology used in this section. The PU/PD column indicates if a pull-up or pull-down resistor has been used. If the field entry area in this column for the signal is empty, then no pull-up or pull-down resistor has been implemented by congatec. The “#”... -
Page 42: Connector Signal Descriptions
SATA2_TX+ SATA3_TX+ eDP_VDD_EN/LVDS_VDD_EN LVDS_B3+ SATA2_TX- SATA3_TX- LVDS_A3+ LVDS_B3- SUS_S5# PWR_OK LVDS_A3- eDP_BKLT_EN/LVDS_BKLT_EN SATA2_RX+ SATA3_RX+ GND (FIXED) GND (FIXED) SATA2_RX- SATA3_RX- eDP_TX3+/LVDS_A_CK+ LVDS_B_CK+ BATLOW# eDP_TX3-/LVDS_A_CK- LVDS_B_CK- (S)ATA_ACT# HDA_SDIN2 eDP_AUX+/LVDS_I2C_CK eDP/LVDS_BKLT_CTRL HDA_SYNC HDA_SDIN1 eDP_AUX-/LVDS_I2C_DAT VCC_5V_SBY Copyright © 2021 congatec GmbH TCTLm02 42/67... - Page 43 PCIE_TX5+ PCIE_RX5+ A107 VCC_12V B107 VCC_12V PCIE_TX5- PCIE_RX5- A108 VCC_12V B108 VCC_12V GPI0 GPO1 A109 VCC_12V B109 VCC_12V PCIE_TX4+ PCIE_RX4+ A110 GND (FIXED) B110 GND (FIXED) Note Not connected Not supported Bootstrap signals Copyright © 2021 congatec GmbH TCTLm02 43/67...
-
Page 44: Table 14 Connector C-D Pinout
PEG_TX8- DDI1_PAIR4+ RSVD GND (FIXED) GND (FIXED) DDI1_PAIR4- DDI1_PAIR0+ PEG_RX9+ PEG_TX9+ RSVD DDI1_PAIR0- PEG_RX9- PEG_TX9- RSVD RSVD RSVD RSVD DDI1_PAIR5+ DDI1_PAIR1+ DDI1_PAIR5- DDI1_PAIR1- PEG_RX10+ PEG_TX10+ GND (FIXED) GND (FIXED) PEG_RX10- PEG_TX10- DDI2_CTRLCLK_AUX+ DDI1_PAIR2+ Copyright © 2021 congatec GmbH TCTLm02 44/67... - Page 45 PEG_RX0+ PEG_TX0+ C107 VCC_12V D107 VCC_12V PEG_RX0- PEG_TX0- C108 VCC_12V D108 VCC_12V TYPE0# PEG_LANE_RV# C109 VCC_12V D109 VCC_12V PEG_RX1+ PEG_TX1+ C110 GND (FIXED) D110 GND (FIXED) Note Not connected Not supported Bootstrap signals Copyright © 2021 congatec GmbH TCTLm02 45/67...
-
Page 46: Table 15 Pci Express Signal Descriptions (General Purpose)
A PCI Express Gen2/3 compliant clock buffer chip must be PCIE_CLK_REF- and PCI Express Graphics Lanes used on the carrier board if the design involves more than one PCI Express device. Note The default BIOS setting for the shared ports is PCIe. Copyright © 2021 congatec GmbH TCTLm02 46/67... -
Page 47: Table 16 Pci Express Signal Descriptions (X16 Graphics)
Note: Can also be used as PCI Express differential pairs 24 PEG_TX8+ O PCIE PEG_TX8- PEG_RX9+ PCI Express Graphics differential pairs 9 I PCIE Note: Can also be used as PCI Express differential pairs 25 PEG_RX9- PEG_TX9+ O PCIE PEG_TX9- Copyright © 2021 congatec GmbH TCTLm02 47/67... - Page 48 O PCIE PEG_TX15- D102 PEG_LANE_RV# D54 PCI Express Graphics lane reversal input strap. Pull low on the carrier board to Not supported reverse lane order. Note The conga-TC570 supports only PEG ports 0-3. Copyright © 2021 congatec GmbH TCTLm02 48/67...
-
Page 49: Table 17 Ddi Signal Description
Bootstrap signal (see note below). DP AUX- function if DDI2_DDC_AUX_SEL is no connect. I/O PCIE 3.3 V DDI enable strap already populated. HDMI/DVI I2C CTRLDATA if DDI2_DDC_AUX_SEL is pulled high. I/O OD 3.3 V Copyright © 2021 congatec GmbH TCTLm02 49/67... -
Page 50: Table 18 Tmds Signal Descriptions
TMDS differential pair. O PCIE TMDS1_DATA0- Multiplexed with DDI1_PAIR2+ and DDI1_PAIR2-. TMDS1_DATA1+ TMDS differential pair. O PCIE TMDS1_DATA1- Multiplexed with DDI1_PAIR1+ and DDI1_PAIR1-. TMDS1_DATA2+ TMDS differential pair. O PCIE TMDS1_DATA2- Multiplexed with DDI1_PAIR0+ and DDI1_PAIR0-. Copyright © 2021 congatec GmbH TCTLm02 50/67... - Page 51 Enable strap already populated Note These signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.2 “Bootstrap Signals”. Copyright © 2021 congatec GmbH TCTLm02 51/67...
-
Page 52: Table 19 Displayport (Dp) Signal Descriptions
EDID access. 3.3 V DP enable strap is already populated. DP3_LANE3+ Uni-directional main link for the transport of isochronous streams and O PCIE DP3_LANE3- secondary data. Multiplexed with DDI3_PAIR3+ and DDI3_PAIR3- Copyright © 2021 congatec GmbH TCTLm02 52/67... -
Page 53: Table 20 Embedded Displayport Signal Descriptions
AUX+ AC coupled off module eDP_AUX- eDP AUX- AC coupled off module eDP_HPD Detection of hot plug / unplug and notification of the link layer I 3.3 V PD 1 MΩ Copyright © 2021 congatec GmbH TCTLm02 53/67... -
Page 54: Table 21 Crt Signal Descriptions
I/O 3.3 V PU 2k2 3.3 V PU for LVDS support (default) LVDS_I2C_DAT DDC lines used for flat panel detection and control I/O 3.3 V PU 2k2 3.3 V PU for LVDS support (default) Copyright © 2021 congatec GmbH TCTLm02 54/67... -
Page 55: Table 23 Serial Ata Signal Descriptions
USB Port 5, data - or D- USB6+ USB Port 6, data + or D+ USB6- USB Port 6, data - or D- USB7+ USB Port 7, data + or D+ USB7- USB Port 7, data - or D- Copyright © 2021 congatec GmbH TCTLm02 55/67... -
Page 56: Table 25 Usb 3.0 Signal Descriptions
Additional receive signal differential pairs for the Superspeed USB data path Shared with PCIe lane 7 and configurable via the BIOS setup menu USB_SSRX3- USB_SSTX3+ Additional transmit signal differential pairs for the Superspeed USB data path O USB_SSTX3- Copyright © 2021 congatec GmbH TCTLm02 56/67... -
Page 57: Table 26 Gigabit Ethernet Signal Descriptions
The GBE0_LINK# output is not active during a 10 Mb connection. It is only active during a 100 Mb or 1 Gb connection. This is a limitation of Ethernet Phy since it only has 3 LED outputs—ACT#, LINK100# and LINK1000#. The GBE0_LINK# signal is a logic AND of the GBE0_LINK100# and GBE0_LINK1000# signals on the conga-TC570 module. Copyright © 2021 congatec GmbH TCTLm02 57/67... -
Page 58: Table 27 High Definition Audio Link Signals Descriptions
GND on the carrier, eSPI mode is selected. This signal is pulled to a logic high on the module through a resistor. The carrier should only float this line or pull it low. Note The conga-TC570 does not support ESPI mode. Copyright © 2021 congatec GmbH TCTLm02 58/67... -
Page 59: Table 29 Spi Bios Flash Interface Signal Descriptions
This signal has special functionality during the reset process. It may bootstrap some basic important functions of the module. For more information refer to section 8.2 “Bootstrap Signals”. Pins are protected on the module by a series schotty diode. Therefore, pull-down resistor is required on the carrier board for proper logic level. Copyright © 2021 congatec GmbH TCTLm02 59/67... -
Page 60: Table 31 General Purpose I/O Signal Descriptions
Indicates system is in Suspend to RAM state. Active-low output. An inverted copy of SUS_S3# on O 3.3 VSB the carrier board (also known as “PS_ON”) may be used to enable the non-standby power on a typical ATX power supply. Copyright © 2021 congatec GmbH TCTLm02 60/67... -
Page 61: Table 33 Rapid Shutdown Signal Descriptions
PU/PD Comment SMB_CK System Management Bus bidirectional clock line. I/O 3.3 VSB PU 100 kΩ 3.3 VSB SMB_DAT# System Management Bus bidirectional data line. I/O OD 3.3 VSB PU 100 kΩ 3.3 VSB Copyright © 2021 congatec GmbH TCTLm02 61/67... -
Page 62: Table 37 Module Type Definition Signal Description
(e.g deactivates the ATX_ON signal for an ATX power supply) if an incompatible module pin-out type is detected. The carrier board logic may also implement a fault indicator such as an LED. Copyright © 2021 congatec GmbH TCTLm02 62/67... -
Page 63: Table 38 Power And Gnd Signal Descriptions
C76, C80, C84, C87, C90, C93, C96, C100, C103, C110, D1, D2, D5, D8, D11, D14, D21, D31, D41, D51, D60, D67, D70, D73, D76, D80, D84, D87, D90, D93, D96, D100, D103, D110 Copyright © 2021 congatec GmbH TCTLm02 63/67... -
Page 64: Bootstrap Signals
2. No external DC loads or external pull-up or pull-down resistors should change the configuration of the signals listed in the above table. External resistors may override the internal strap states and cause the COM Express™ module to malfunction and/or cause irreparable damage to the module. Copyright © 2021 congatec GmbH TCTLm02 64/67... -
Page 65: System Resources
System Resources I/O Address Assignment 9.1.1 LPC Bus PCI Configuration Space Map Copyright © 2021 congatec GmbH TCTLm02 65/67... -
Page 66: Bios Setup Description
Navigating the BIOS Setup Menu The BIOS setup menu shows the features and options supported in the congatec BIOS. To access and navigate the BIOS setup menu, press the <DEL> or <F2> key during POST. The right frame displays the key legend. Above the key legend is an area reserved for text messages. These text messages explain the options and the possible impacts when changing the selected option in the left frame. -
Page 67: Updating The Bios
BIOS updates are recommeded to correct platform issues or enhance the feature set of the module. The conga-TC570 features a congatec/AMI AptioEFI firmware on an onboard flash ROM chip. You can update the firmware with the congatec System Utility. The utility has five versions—...
