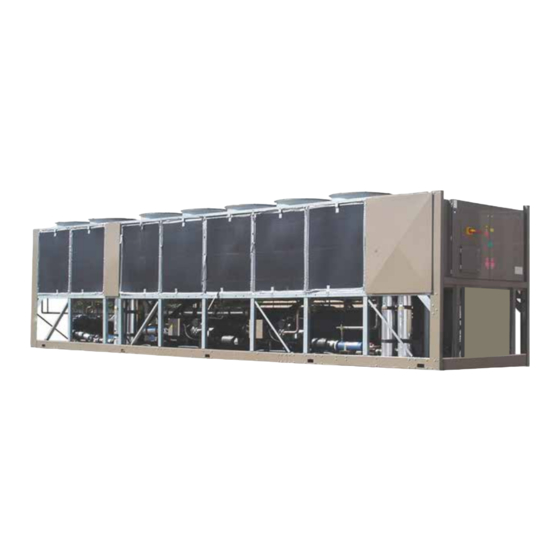

AIR-COOLED SCREW
LIQUID CHILLERS
INSTALLATION, OPERATION, MAINTENANCE
Supersedes 201.21-NM4 (315)
Form 201.21-NM4 (616)
035-20995-000
MODELS YCAV1039-1909, 50 HZ
STYLE A
(960-1815KW)
E/V HIGH EFFICIENCY AND S/P STANDARD EFFICIENCY
AIR-COOLED SCREW LIQUID CHILLERS
50075B
R-134a
Issue Date:
June 30, 2016

Advertisement

Table of Contents
loading

Related Manuals for Johnson Controls York YCAV1039-1909

Summary of Contents for Johnson Controls York YCAV1039-1909

  • Page 1 AIR-COOLED SCREW LIQUID CHILLERS INSTALLATION, OPERATION, MAINTENANCE Supersedes 201.21-NM4 (315) Form 201.21-NM4 (616) 035-20995-000 MODELS YCAV1039-1909, 50 HZ STYLE A (960-1815KW) E/V HIGH EFFICIENCY AND S/P STANDARD EFFICIENCY AIR-COOLED SCREW LIQUID CHILLERS 50075B R-134a Issue Date: June 30, 2016...
  • Page 2 All wiring must be in accor- dance with Johnson Controls’ published specifications and must be performed only by a qualified electrician. Johnson Controls will NOT be responsible for damage/problems resulting from improper connections to the controls or application of improper control signals.
  • Page 3 FORM 201.21-NM4 (616) CHANGEABILITY OF THIS DOCUMENT In complying with Johnson Controls’ policy for con- regarding the applicability of these documents, rig- tinuous product improvement, the information con- ging, lifting, and operating/service personnel should tained in this document is subject to change without verify whether the equipment has been modified and notice.

  • Page 4: Table Of Contents

    Remote Run/Stop ..........35 SERVICE VALVE OPTION ........20 Remote Print ............35 UNIT ENCLOSURES ..........20 Optional Remote Setpoint Offset Temp....35 FANS .................20 Optional Remote Setpoint Offset Current ....35 SOUND REDUCTION OPTIONS ......20 Optional Remote Setpoint Offset Sound Limit ..35 JOHNSON CONTROLS...
  • Page 5 WIRING DIAGRAMS - 3 COMPRESSOR.....56 CHILLER CONFIGURATION JUMPERS ....164 WIRING DIAGRAMS - 4 COMPRESSOR.....68 Number of Compr. Configuration Jumpers ..164 DIMENSIONS ............84 VSD LOGIC TO CHILLER MICROPROCESSOR BOARD RS-485 COMMUNICATION TECHNICAL DATA (CLEARANCES) ....116 CONFIGURATION JUMPERS ......164 MAX VSD FREQUENCY ........165 JOHNSON CONTROLS...
  • Page 6 UNIT WARNINGS ..........208 EVACUATING A SYSTEM ........294 UNIT SAFETIES ............212 WARRANTY POLICY ...........295 SYSTEM SAFETIES..........214 New Equipment ..........295 STATUS KEY ............220 Reconditioned or Replacement Materials...295 UNIT DATA KEY ...........224 All Warranties are VIOD if .........295 SYSTEM DATA KEY ..........226 JOHNSON CONTROLS...
  • Page 7 Table 13 - Low Differential Oil Pressure Cutout ...216 Table 33 - Motor Temperature Sensor Resistance ..299 Table 14 - Start Inhibit Sensor Thresholds ....218 Table 34 - Compressor Motor Overload Settings & Table 15 - Sensor Min./Max. Outputs .....228 Max. VSD Frequency ......300 JOHNSON CONTROLS...
  • Page 8 Fig 42 - Standard IPLV Fan Control .......186 Microgateway, and Optional Fig 43 - High IPLV Fan Control ......187 Circuit Breaker ..........131 Fig 44 - Print Cable Chiller to Serial Printer ..301 Fig 18 - Chiller Control Board, Relay Boards, and Microgateway ..........132 JOHNSON CONTROLS...

  • Page 9: Section 1 - General Chiller Information & Safety

    All warranty claims must specify the unit model, serial number, order number and run hours/starts. Model and serial number information is printed on the unit identi- YORK YCAV1039-1909 chillers are manufactured to the highest design and construction standards to ensure fication plate.

  • Page 10: Responsibility For Safety

    A NOTE is used to highlight additional information, potential hazards and precautions necessary for safe which may be helpful to you but where there are no operation and maintenance of equipment containing special safety implications. high temperatures, pressures and voltages. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 11: Pressure Systems

    In case of emergency, the control panel is fitted with a Unit Switch to stop the unit in an emergency. When operated, it removes the low voltage 120 VAC electri- cal supply from the inverter system, thus shutting down the unit. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 12: Section 2 - Product Description

    All exposed power wiring is routed through liquid-tight, ing parts and are rated for a 405 PSIG design working non-metallic conduit. pressure. Oil cooling is accomplished by routing oil from the oil separator through several rows of tubes in the air cooled condenser. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 13: Compressor

    The 4 pole motor operates at speeds up to 6000 RPM to direct drive the male rotor, which in turn drives the female rotor on a light film of oil. LD10482 JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 14: Evaporator

    Water vent and drain connections are included. The cooler is equipped with a thermostatically con- trolled heater for protection to -20°F (-29°C) ambient and insulated with 3/4” (19 mm) flexible closed-cell insulation. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 15: Condensor

    250 PSIG relief valve is located on the suction economizer solenoid is OFF, the liquid level will vary line of the compressor near the evaporator. greatly as the Drain and Feed Valves directly affect the level as they open and close. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 16: Oil Cooling

    Unit operating software is stored in non-volatile electrical cabinet. memory. Field programmed setpoints are retained in lithium battery backed real time clock (RTC) memory for 10 years. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 17: Display

    Separate system switches for con- unload timers, and chilled water pump. trolling each system are provided as part of the chiller control panel keypad. • “Out of range” message. • Up to 10 fault shutdown histories. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 18: Variable Speed Drive (Vsd)

    VSD Logic board. The inverter section is actually composed of two LD10480 FIG. 2 - PWM VOLTAGE WAVEFORM to four identical inverter output phase assemblies. These assemblies are in turn composed of 3 pairs of Insulated JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 19: Accessories & Options

    VSD logic board. It provides except: strong alkalis, oxidizers, and wet bromine, the means to sense the positive, midpoint and negative chlorine, and fluorine in concentrations greater than connection points of the VSD’s DC link without apply- 100 PPM. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 20: Dx Cooler Options

    Compressor Blankets – Acoustic compressor sound Flow Switch Accessory – Johnson Controls model blankets are optional to reduce compressor noise. F61MG-1C Vapor-proof SPDT, NEMA 4X switch, 150 PSIG (10 bar) DWP, -20°F to 250°F (-29°C to 121°C),...

  • Page 21: Unit Nomenclature

    A = R134 V = VARIABLE SPEED DRIVE UNIT DESIGNATOR E- High Efficiency / High Ambient MODEL NUMBER S- Standard Efficiency P- Standard Efficiency / Optimized IPLV V- High Efficiency / High Ambient / Optimized IPLV JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 22: Product Identification Number

    MP Supply TB MP Circuit Breaker w/Lockable Handle MP Supply TB w/Indiv. Sys Disc. Switches POWER - Con't Power Fld (PIN 16, 17) MP Circuit Breaker w/Lockable Handle & Indiv. Sys. Disconnect Switches Special Power Option JOHNSON CONTROLS JOHNSON CONTROLS...
  • Page 23 Water Temp (PIN 29, 30) Thermal Storage Special LWT requirements No Chicago Code Kit required Chicago Code Kit required CHICAGO Chicago Code Kit (PIN 31) Service Isolation Valve Both Isolation Valve and Chicago Code Special Chicago Code Kit required JOHNSON CONTROLS JOHNSON CONTROLS...
  • Page 24 Wire (Full Unit) Encl Panels (factory) Wire (Full Unit) Encl Panels (field) Wire/Louvered Encl Panels (factory) PANEL Enclosure Panels (PIN 48) Wire/Louvered Encl Panels (field) Louvered (cond only) Encl Panels (factory) Louvered (cond only) Encl Panels (field) JOHNSON CONTROLS JOHNSON CONTROLS...
  • Page 25 PIN58 PIN 58 Special quote No option required PIN59 PIN 59 Special quote No option required PIN60 PIN 60 Special quote Plant of Mfg (PIN 61) Plant of Manufacture - Monterrey Monterrey Mfg Location San Antonio JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 26: Section 3 -Rigging, Handling And Storage

    • Do not store where exposed to high ambient air Major damage must be reported immediately to your temperatures that may exceed relief valve set- local Johnson Controls representative. tings. Refer to Long-Term Storage Requirement - Field Preparation (Form 50.20-NM7).

  • Page 27: Moving The Chiller

    Use only the lifting holes provided. complete the removal from the container then lift up and away. Lifting Instructions are placed on a label on the chiller and on the shipping bag. LD19197a JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 28: Unit Rigging

    Any options selected may add weight to the unit and affect the center of gravity. Locate the center of gravity through trial lifts to account for possible variations in unit configuration. Contact your nearest Johnson Controls Sales Office for weight data. LD11476 MODEL...

  • Page 29: Location Requirements

    The channels should be spaced with the same centers as the unit side and front base rails. This will allow vibration isolators to be fitted if required. Isolators are recom- mended for rooftop locations. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 30: Location Clearances

    Using the Isolator tables shipped with the unit in the information pack, refer to the Dimension Section (Pages 84-115), Weight Distribution and Isolator Mounting Position Section (Pages 117-121) and Isolator types (Pages 122-126). Identify each mount and its correct location on the unit. JOHNSON CONTROLS JOHNSON CONTROLS...
  • Page 31 If there is a potential must be used if the unit is mounted on anti-vibration for power loss, Johnson Controls recommends that the mounts, as some movement of the unit can be expected evaporator is drained or that water in the chilled water in normal operation.

  • Page 32: Water Treatment

    -Isolating Valve - Normally Open -Isolating Valve - Normally Closed -Flow Regulating Valve -Flow Measurement Device -Strainer -Pressure Tapping -Flow Switch LD10507 -Flanged Connection WELD FLANGE VICTAULIC ADAPTER -Pipework FIG. 3 - PIPEWORK ARRANGEMENT LD10495 FIG. 5 - FLANGE ATTACHMENT JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 33: Refrigerant Relief Valve Piping

    If these precautions are not followed it could lead to a risk of electrocution. In addition, electrical noise could cause malfunctions or damage the unit and its controls. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 34: Power Wiring

    R/C suppressor. The above precautions must be taken to avoid electrical noise, which could cause a malfunction or damage to the unit and its controls. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 35: Volts Free Contacts

    System 1/3 remote dry contacts are connected between Terminals 2 and 15 of 1TB and System 2/4 dry contacts are connected between Terminals 2 and 16 of 1TB (see FIG. 22, Page JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 36: Section 5 - Commissioning

    (wire, metal chips, etc.) and clean out if required. excessive thermal stress at the charging point. Once the vacuum is broken, charge into the condenser coils with the full operating charge as given in the Technical Data Section. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 37: Power Connections

    Ensure the leaving liquid temperature sensor is coated with heat conductive compound (Part No. 013-00890- the System Start-up Checklist (Page 000) and is inserted to the bottom of the water outlet 148) is completed. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 38: Interlocks

    35% Once the unit has been started, all operations are fully with a clear sight glass. automatic. After an initial period at minimum capacity, the control system will adjust the unit load depending JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 39: Condensor & Fan Rotation

    ‘ON’ position and restart the unit. Assure all checks are completed in the EQUIPMENT START-UP CHECK SHEET (Pages 148 -153). The chiller is then ready to be placed into operation. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 40: Section 6 - Technical Data

    (SI) Pressure Drop Through 3 and 4 Circuit YCAV Evaporators 1000 10.0 100.0 Water Flow Rate (l/s) COOLER YCAV MODELS 1039EA/VA 1039SA/PA 0969EA/VA 1429SA/PA 1309EA/VA 1309SA/PA 1169EA/VA 1139SA/PA 1649SA/PA 1549SA/PA 1429EA/VA 1909SA/PA 1829SA/PA 1739SA/PA 1739EA/VA 1549EA/VA JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 41: Glycol Correction Factors

    1.05 rate allowed. A= Correction Factor PROPYLENE GLYCOL B= Mean Temperature through Cooler C= Concentration W/W Excessive flow, above the max. GPM, will damage the evaporator. LD10500 JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 42: Water Temp. And Flows

    -17.7 51.7 NOTES: 1. For leaving brine temperature below 40°F (4.4°C), contact your nearest YORK office for application requirements. 2. For leaving water temperature higher than 60°F (15.6°C), contact the nearest YORK office for application guidelines. JOHNSON CONTROLS JOHNSON CONTROLS...
  • Page 43 FORM 201.21-NM4 (616) This page intentionally left blank. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 44: Physical Data

    893.3 1006.8 1006.8 1203.6 1203.6 1203.6 Maximum Water Side Pressure, Bar Maximum Refrigerant Side Pressure, Bar Minimum Chilled Water Flow Rate, l/sec. Maximum Chilled Water Flow Rate, l/sec. Water Connections, mm Optional 21 Bar Waterside available JOHNSON CONTROLS JOHNSON CONTROLS...
  • Page 45 764.6 893.3 893.3 1006.8 1203.6 1203.6 Maximum Water Side Pressure, Bar Maximum Refrigerant Side Pressure, Bar Minimum Chilled Water Flow Rate, l/sec. Maximum Chilled Water Flow Rate, l/sec. Water Connections, mm Optional 21 Bar Waterside available JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 46: Operating Limitations And

    TECHNICAL DATA FORM 201.21-NM4 (616) OPERATING LIMITATIONS AND SOUND DATA Contact Product Application Marketing for Sound Power Data. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 47: Electrical Data - Compr. Wiring

    STANDARD UNIT CONTROLS CONTROL TRANSFORMER EVAPORATOR HEATER CONTACTORS LINE REACTOR TERMINAL BLOCK See Note 3 INDIVIDUAL SYSTEM COMPESSOR SWITCHES (OPTION) FIELD PROVIDED UNIT POWER SUPPLY LD11442 FIG. 7 - SINGLE-POINT POWER SUPPLY CONNECTION WITH TERMINAL BLOCK JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 48: Fig 8 - Single Point Power Supply Connection

    BLOCK 1 INDIVIDUAL SYSTEM INDIVIDUAL SYSTEM COMPESSOR SWITCHES COMPESSOR SWITCHES (OPTION) See Note 3 (OPTION) TERMINAL BLOCK FIELD PROVIDED UNIT POWER SUPPLY LD11444 COMP COMP COMP COMP FIG. 9 - SINGLE-POINT POWER SUPPLY CONNECTION WITH TERMINAL BLOCK JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 49: Fig 10 - Multi-Point Power Supply Connection

    INDIVIDUAL SYSTEM COMPESSOR SWITCHES COMPESSOR SWITCHES See Note 3 (OPTION) (OPTION) FIELD PROVIDED FIELD PROVIDED UNIT POWER UNIT POWER SUPPLY SUPPLY LD11446 COMP COMP COMP COMP FIG. 11 - MULTI-POINT POWER SUPPLY CONNECTION WITH TERMINAL BLOCKS JOHNSON CONTROLS JOHNSON CONTROLS...
  • Page 50 RLA (6) Qty. KVA (8) KVA (8) (11) (Ea) (Ea) (Ea) (Ea) Block (Std) (Opt) 1549 30KA 65KA 1649 30KA 65KA 1739 30KA 65KA 1829 30KA 65KA 1909 30KA 65KA See page 54 for Electrical Data footnotes. JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 51: W/Terminal Block (4 Compr)

    1600 1600 #1/0-750 KCM #1/0-750 KCM 1000 2000 1600 #1/0-750 KCM #1/0-750 KCM 1200 2000 1600 #1/0-750 KCM #1/0-750 KCM 1018 1200 2000 2000 #1/0-750 KCM #1/0-750 KCM 1057 1200 2000 2000 #1/0-750 KCM #1/0-750 KCM JOHNSON CONTROLS JOHNSON CONTROLS...
  • Page 52 RLA (6) Qty. RLA (6) Qty. RLA (6) Qty. KVA (8) KVA (8) (11) (EA) (EA) (EA) (EA) Block (STD) (OPT) 1429 30KA 65KA 1549 30KA 65KA 1739 30KA 65KA See page 54 for Electrical Data footnotes. JOHNSON CONTROLS JOHNSON CONTROLS...
  • Page 53 Lug Wire Range Lugs/Phase (1) Lug Wire Range (MCA) (4) er Rating (5) Rating (2) Size (3) 1000 1600 1200 #1/0-750 KCM #1/0-750 KCM 1000 1600 1600 #1/0-750 KCM #1/0-750 KCM 1000 2000 1600 #1/0-750 KCM #1/0-750 KCM JOHNSON CONTROLS JOHNSON CONTROLS...

  • Page 54: Electrical Notes

    2. –– –– –– –– –– –– Dashed Line = Field Provided Wiring. 3. The above recommendations are based on the National Electric Code and using copper conductors only. Field wiring must also comply with local codes. Group Rated breaker must be HACR type for cUL machines. JOHNSON CONTROLS JOHNSON CONTROLS...
  • Page 55 FORM 201.21-NM4 (616) This page intentionally left blank. JOHNSON CONTROLS JOHNSON CONTROLS...
