USER'S GUIDE

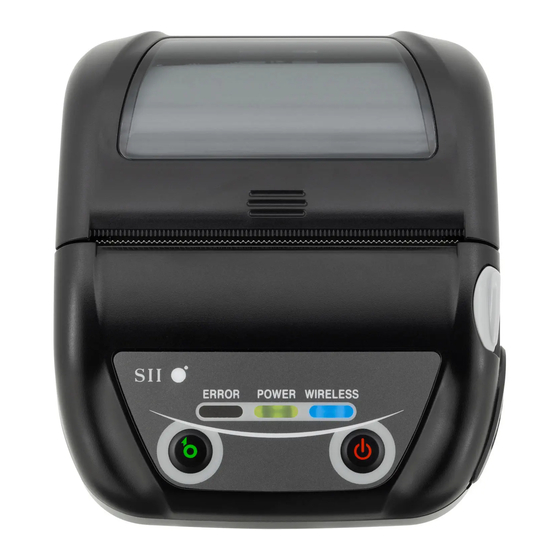

Thermal Printer
MP-B30 SERIES
Read this USER'S GUIDE carefully before using the printer.
Keep this USER'S GUIDE in a place where it can be accessed
quickly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SII MP-B30 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seiko SII MP-B30 Series

Summary of Contents for Seiko SII MP-B30 Series

  • Page 1 USER'S GUIDE Thermal Printer MP-B30 SERIES Read this USER'S GUIDE carefully before using the printer. Keep this USER'S GUIDE in a place where it can be accessed quickly.
  • Page 2 (including consequential) caused by reliance on the materials presented, including but not limited to typographical, arithmetic, and listing errors. is a trademark of Seiko Instruments Inc. Apple®, iPhone®, iPad®, iPod® are trademarks of Apple Inc. Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
  • Page 3 Product: AC adapter PW-F1215-W1 Directive: Title 2014/30/EU EC Electromagnetic Compatibility Directive 2014/35/EU EC Low Voltage Directive 2011/65/EU (Commission Delegated Directive (EU) 2015/863) Restriction of the use of certain hazardous substances (RoHS) Directive Standards EN 55032 Class B EN 61000-3-2 EN 61000-3-3 EN 55024 EN 60950-1 EN 50581...
  • Page 4 Federal Communications Commission (FCC) compliance statement NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 5: Table Of Contents

    1. INTRODUCTION This manual describes how to handle MP-B30 series thermal printer (hereinafter referred to as printer), battery pack, AC adapter, AC cable, cradle, car charger, and battery charger. Read through "2 SAFETY PRECAUTIONS" and "3 OPERATING PRECAUTIONS" carefully before using the products, and handle them safely and properly.

  • Page 6: Safety Precautions

    2. SAFETY PRECAUTIONS In this SAFETY PRECAUTIONS, the following symbols are used to ensure safe and proper use of products and prevent from damaging devices. WARNING Failure to follow the instructions marked with this symbol could result in severe personal injury or death. CAUTION Failure to follow the instructions marked with this symbol could result in minor personal injury or property damage.
  • Page 7 OPERATING PRECAUTIONS The "products" shall collectively mean the printer, the battery pack, the AC adapter, the AC cable, the cradle, the car charger, and the battery charger. WARNING Never attempt the following. Failure to follow the instructions leads to fire, electric shock, or accident. DO NOT disassemble or reconstruct the products.
  • Page 8 DO NOT expose the battery pack in a fire or heat it. DO NOT leave the battery pack under high temperature conditions such as in scorching heat, inside a car, or near a fire. Otherwise, it may cause leakage, overheating, rupture, or fire. DO NOT apply strong impact to the battery pack with a hammer or nail, and DO NOT crush it.
  • Page 9 Procedures to take when in trouble Follow the instructions in the following cases. Failure to follow the instructions may lead fire, electric shock, or accident. Turn off the printer, and unplug the AC plug from the outlet in any of the following cases. (In the case of using the car charger, unplug the cigar plug from the car accessory socket.) And then, remove the battery pack.
  • Page 10 DO NOT cover the products with a cloth when in use. NEVER touch the thermal head immediately after printing because it may get hot. Be sure to allow it to cool down before clearing a paper jam or cleaning the head. The printer has 2 paper cutters on the paper outlet: one is on the printer side, and the other is on the paper cover side.

  • Page 11: Operating Precautions

    3. OPERATING PRECAUTIONS Be careful of the following precautions and use the products properly in order to deliver and maintain the full performance of the products.  Using Products Precautions for use environment Be careful not to drop or bump the products on a hard surface. ◆...
  • Page 12 Continuous printing with high print rate might cause temporarily stop printing by temperature ◆ detection of the printer. Printing resumes when the printer's temperature cools down. When this error occurs and "Data Discard Selection When Error Occurs" in the Function Settings is "Enable", the print data transmitted during the error is discarded.
  • Page 13 Precautions for Wireless communication When using the Bluetooth interface, the communication may become unstable due to the influence ◆ from external radio waves. This is based on Bluetooth specification which is a wireless communication standard. The Bluetooth model operates in the 2.4 GHz frequency range. The Wireless LAN model using ◆...
  • Page 14  Precautions on Discarding When discarding used products, discard them according to the disposal regulations and rules of each district.  Notation The following 2 types of notation are used throughout this manual to denote operating precautions and items to remember besides the symbols shown in "2 SAFETY PRECAUTIONS": NOTE ◆...

  • Page 15: Preparation

    4. PREPARATION Make sure that the printer and its accessories are contained. Keep the package and packing materials for future transportation or long-term storage. Printer Battery Pack AC Adapter USB Cable Belt Clip Sample Thermal Paper Quick Start Guide Safety Precautions...
  • Page 16 The available accessories are shown below. See "20 SPECIFICATIONS" and "21 ACCESSORIES AND CONSUMABLE PARTS", and be sure to purchase our specified products listed on these references. Battery Pack* Battery Charger Quad Battery Charger AC Adapter for Quad Battery AC Adapter* AC Cable Charger Cradle...

  • Page 17: Identifying Model Type

    5. IDENTIFYING MODEL TYPE The printer model is identified as follows: MP-B30-x02JK1x Series Name Interface B: Bluetooth + USB W: Wireless LAN + USB Country/Region* U: USA, Canada E: EU, EFTA, Turkey J: Japan *: The Wireless LAN model only.

  • Page 18: Each Part Of Printer

    6. EACH PART OF PRINTER...
  • Page 19 1 POWER Switch 10 Paper outlet The POWER Switch turns the power on or off. Thermal paper is ejected from here. Two paper The POWER LED lights when turning on the cutters are installed: one is on the printer side, power.

  • Page 20: Led Indication Of Printer

    7. LED INDICATION OF PRINTER  LED Indication of Printer The 3 LEDs of the printer show the printer status. • ERROR LED and POWER LED : Table 7-1 Printer Status • WIRELESS LED Table 7-2 Bluetooth / Wireless LAN Status Table 7-1 Printer Status ERROR LED POWER LED...
  • Page 21 Table 7-2 Bluetooth / Wireless LAN Status Indication WIRELESS LED Wireless Communication Status Lighting Color Pattern Wireless off Connecting Blue Unconnected Blue Blink-2 Initializing wireless communication Blue Blink-4 In pairing mode Blue Blink-3 *1: In the power off charging mode, the wireless is always off. *2: Only for the Bluetooth model and when its Inquiry Response in the Function Settings is set to Pairing Mode.
  • Page 22  Error and Recovery Procedure When an error occurs, the printer stops printing operation. However, the data receiving is enabled. The table below shows errors and their recovery procedures. Table 7-5 Error and Recovery Procedure Priority Error Detail Recovery Procedure The printer automatically resumes The printer suspends charging when the battery temperature...
  • Page 23 *2: When "Charging battery temperature error" or "Connected to AC adapter only / car charger only" occurs, the error is shown by the POWER LED. If the error occurs simultaneously with another error, the errors are shown by POWER LED and ERROR LED respectively. *3: The AC adapter and car charger are only for charging.

  • Page 24: Installing Battery Pack

    8. INSTALLING BATTERY PACK To supply power to the printer, use the battery pack. The AC adapter and car charger are only for charging. Even when the AC adapter or car charger is connected to the printer, the printer cannot print without the battery pack. For connecting the AC adapter, see "14 CHARGING BATTERY PACK".
  • Page 25 (1) Ensure that the printer is off. (2) Insert the tab "a" of the battery pack into the groove "A" of the printer. Figure 8-2 Installing Battery Pack (1) (3) Press the battery pack in the direction of the arrow in Figure 8-3 until the tab "b" of the battery pack locks into the groove "B"...
  • Page 26 Removing Battery Pack (1) Turn off the printer. (2) As shown in Figure 8-4, pressing the lever "c" of the battery pack in the direction of the arrow 1, remove it by pulling up in the direction of the arrow 2. Figure 8-4 Removing Battery Pack HINT •...

  • Page 27: Loading Thermal Paper

    9. LOADING THERMAL PAPER The printer uses the thermal paper roll (hereinafter referred to as thermal paper). Use the thermal paper with printing surface rolled outwards. The function settings of the printer differ depending on the thermal paper. See "11 FUNCTION SETTINGS"...
  • Page 28 (2) Load the thermal paper into the paper holder with its printing surface facing to the thermal head. If the setting direction is wrong, the printer cannot print. Printing surface Figure 9-2 Thermal Paper Setting Direction NOTE ◆ The printer has 2 paper cutters on the paper outlet: one is on the printer side, and the other is on the paper cover side.
  • Page 29 (4) Push firmly the center of the paper cover (the arrow in Figure 9-4) to close the paper cover. Figure 9-4 Paper Cover (5) When the marked paper is used, set MS1-2 (Mark Mode Selection) to Enable. See "11 FUNCTION SETTINGS"...
  • Page 30  Thermal Paper Shape Always use the specified thermal paper. See "21 ACCESSORIES AND CONSUMABLE PARTS" for details. NOTE ◆ Use the thermal paper whose maximum diameter is 51 mm or less. ◆ Use the thermal paper whose maximum width is equal or less than 80 mm +0.5 mm including winding deviation.

  • Page 31: Test Print

    10. TEST PRINT The printer can perform a test print. In the test print, the firmware version, setting values of the function settings, etc. are printed.  Test Print Procedure : Bluetooth Model (1) Install the thermal paper in the printer as instructed in "9 LOADING THERMAL PAPER". Ensure that no error occurs, and then turn off the printer.
  • Page 32 (3) A message of mode selection is printed as shown in Figure 10-3 when the test print has completed. To return to the print-ready status, select "0 : Normal Mode". To select other modes, press the FEED Switch the number of times corresponding to the selected mode number, and then press the POWER Switch.
  • Page 33  Test Print Procedure: Wireless LAN Model (1) Install the thermal paper in the printer as instructed in "9 LOADING THERMAL PAPER". Ensure that no error occurs, and then turn off the printer. (2) Hold the FEED Switch down and press the POWER Switch, then release the POWER Switch first. Release the FEED Switch when the test print has been started.
  • Page 34 (3) A message of mode selection is printed as shown in Figure 10-5 when the test print has completed. To print Wireless LAN information, select "4 : Print WLAN Information". (Press the FEED Switch 4 times, and then press the POWER Switch.) The printer starts preparation for printing Wireless LAN information.
  • Page 35 Table 10-2 Wireless LAN Information Item Description Mode Selected Wireless LAN Operation Mode Radio Selected Wireless LAN Standard Corresponding country US: USA, Canada Country JP: Japan EU: EU, EFTA, Turkey Channel Selected Channel SSID SSID Setting Security Selected Security DHCP Selected DHCP Client Mode (in Client Mode) MAC Address MAC Address...

  • Page 36: Function Settings

    11. FUNCTION SETTINGS This printer can set various functions according to use conditions and intended use. The setting contents are stored in the Memory Switch (hereinafter referred to as MS) in the FLASH memory mounted in the printer, and it is possible to set MS by using the switches or command input. This section describes the setting procedure by using the switches.
  • Page 37 (4) A message for selecting MS to be set is printed as shown in Figure 11-2 when the printer enters the Setting Mode. Press the FEED Switch the number of times corresponding to the selected MS number, and then press the POWER Switch. [MS Selection] 0 : Exit 1 : MS1...
  • Page 38 (6) A message for selecting the setting value of the selected function is printed as a sample shown in Figure 11-4. Press the FEED Switch the number of times corresponding to the selected setting value number, and then press the POWER Switch. [Error Through] 0 : Return to function selection 1 : Enable...

  • Page 39: Connecting To Host Device

    12. CONNECTING TO HOST DEVICE The printer supports the USB interface and the Bluetooth interface or Wireless LAN interface. Selecting Bluetooth interface or Wireless LAN interface depends on the model. Order the model of communication method to use from the following. •...
  • Page 40  USB Interface (1) Ensure that the printer is off. (2) Open the cover of the USB connector on the printer, and connect the USB cable plug to the USB connector as shown in Figure 12-1. Figure 12-1 Printer and USB Cable Connection (3) Turn on the printer, and send data from the host device to the printer.
  • Page 41  Bluetooth Interface (1) When the USB cable is connected to the printer, disconnect it from the printer. (2) Turn on the printer and pair it with the host device. In addition, by using the NFC (Near Field Communication Technology) tag built in the printer, automatic pairing between an NFC-enabled Android device and a printer is possible.
  • Page 42  Wireless LAN Interface (1) When the USB cable is connected to the printer, disconnect it from the printer. (2) Turn on the printer and connect it to the host device wirelessly. In the factory shipment state, the settings are as follows: Mode : Simple AP (simple access point) Standard...

  • Page 43: Installing Belt Clip / Shoulder Strap

    13. INSTALLING BELT CLIP / SHOULDER STRAP The belt clip and the shoulder strap convenient for carrying the printer can be attached to this printer. The belt clip is included with the printer at the factory shipment, but is also available as an optional accessory.
  • Page 44 (5) Install the battery pack in the printer. Figure 13-3 Belt Clip Installation (3) (6) Rotate the belt clip 180 degrees. Figure 13-4 Belt Clip Installation (4) NOTE ◆ When using the belt clip, be sure to install the battery pack in the printer because the belt clip comes off easily from the printer and the printer drops.
  • Page 45  Installing Shoulder Strap (1) Install the strap attachment to the belt clip attachment part. Figure 13-5 Shoulder Strap Installation (1) (2) Install the battery pack and fix the strap attachment. Figure 13-6 Shoulder Strap Installation (2)
  • Page 46 (3) Pass the tip of shoulder strap through the mounting hole of the strap attachment and pass the folded tip through the ring as shown in Figure 13-7. Figure 13-7 Shoulder Strap Installation (3) (4) Pass the tip of shoulder strap through the adjuster hole. Figure 13-8 Shoulder Strap Installation (4)
  • Page 47 (5) As shown in Figure 13-9, install the other side in the same procedure described (3) to (4). Figure 13-9 Shoulder Strap Installation (5) NOTE ◆ Be sure to install the shoulder strap to the printer securely when using it. Dropped printer may cause personal injury or malfunction.

  • Page 48: Charging Battery Pack

    14. CHARGING BATTERY PACK The battery pack can be charged using the printer, cradle or battery charger. By Printer Charged from an AC power supply using the AC adapter. Charged from an accessory socket of a car using the car charger. By Cradle Charged from an AC power supply using the AC adapter.
  • Page 49 Charging in Power On Charging Mode Before connecting the AC adapter, the battery pack should be installed in the printer and the printer is turned on. (1) Install the battery pack in the printer. (2) Turn on the POWER Switch. The POWER LED shows the battery remaining capacity.
  • Page 50 Charging in Power Off Charging Mode Before connecting the AC adapter, the battery pack should be installed in the printer and the printer is turned off. (1) Install the battery pack in the printer. (2) Plug the DC plug of the AC adapter to the power connector of the printer. (3) Plug the AC plug of the AC adapter to an outlet.
  • Page 51 HINT ◆ About communication or printing in charging • Power on charging mode: The printer can communicate or print while charging, but pauses charging in printing. (The POWER LED shows the battery remaining capacity.) Charging resumes when printing is completed, and the POWER LED turns orange. •...
  • Page 52 • Charging may not start if you reconnect the AC plug of the AC adapter to an outlet immediately after unplugging it. In that case, unplug the DC plug of the AC adapter from the power connector of the printer, and resume from DC plug connection.

  • Page 53: Charging By Cradle

    15. CHARGING BY CRADLE Using the cradle, the battery pack can be charged. The cradle is an optional accessory. See "20 SPECIFICATIONS" and "21 ACCESSORIES AND CONSUMABLE PARTS", and be sure to purchase our specified accessories listed on these references. NOTE ◆...
  • Page 54 (1) Connect the DC plug of AC adapter to the power connector of the cradle as shown in Figure 15-2. Fix the cable of the AC adapter to the groove of the cradle. Figure 15-2 Cradle and AC Adapter Connection (2) Plug the AC plug of the AC adapter to an outlet.
  • Page 55 (5) When charging is successfully complete to full charge, the printer goes into one of the following states. • In the case of the power on charging mode: The POWER LED turns green. The printer maintains the power on state. •...
  • Page 56 ◆ Others • The charging time depends on the ambient temperature and the voltage level of the battery pack. Normally, it takes about 4 hours to complete charging after running down the battery pack. • The AC adapter may get a little hot when in use. This is normal and not a malfunction.

  • Page 57: Charging By Car Charger

    16. CHARGING BY CAR CHARGER The battery pack can be charged by connecting a car accessory socket and the printer using the car charger. The car charger is only for charging. Even when the car charger is connected to the printer, the printer cannot print without the battery pack.
  • Page 58  Each Part of Car Charger Figure 16-1 Each Part of Car Charger (CC-A12-A1) 1 DC plug The DC plug is connected to the power connecter of the printer. 2 Cigar plug The cigar plug is connected to a car accessory socket. 3 LED The LED shows the active state.
  • Page 59 Charging in Power On Charging Mode Before connecting the car charger, the battery pack should be installed in the printer and the printer is turned on. Ensure that the car engine is running or in the accessory position. (1) Install the battery pack in the printer. (2) Turn on the POWER Switch.
  • Page 60 Charging in Power Off Charging Mode Before connecting the car charger, the battery pack should be installed in the printer and the printer is turned off. Ensure that the car engine is running or in the accessory position. (1) Install the battery pack in the printer. (2) Plug the DC plug of the car charger to the power connector of the printer.
  • Page 61 HINT ◆ About communication or printing in charging • Power on charging mode: The printer can communicate or print while charging, but pauses charging in printing. (The POWER LED shows the battery remaining capacity.) Charging resumes when printing is completed, and the POWER LED turns orange. •...
  • Page 62 • Charging may not start if you reconnect the cigar plug of the car charger to a car accessory socket immediately after unplugging it. In that case, unplug the DC plug of the car charger from the power connector of the printer, and resume from DC plug connection.

  • Page 63: Charging By Battery Charger

    17. CHARGING BY BATTERY CHARGER The battery pack can be charged using the battery charger. There are 2 battery chargers; one is "PWC-A071-A1" that can charge 1 battery pack, and the other is a quad battery charger "PWC-A074-A1" that can charge maximum 4 battery packs. To use the battery charger, the AC adapter suitable for each is required.
  • Page 64  LED Indication of Battery Charger Table 17-1 Battery Charger Status Battery Pack Status Lighting Color Pattern Battery pack not installed Green Charging completed Green Charging Orange Charging battery temperature error Blink-2 Battery installation error Blink-3 Battery error Blink-4 Hardware error Table 17-2 LED Blink Pattern Status Pattern...
  • Page 65  Connecting Battery Charger and AC Adapter This section describes how to connect the battery charger PWC-A071-A1 and the AC adapter PW-F1215-W1-xx1. Connect the AC cable to the AC adapter for quad battery charger PW-D0940-W2 when using the quad battery charger PWC-A074-A1. When the battery pack has already been installed, remove it from the battery charger.
  • Page 66  Charging Battery Pack by Battery Charger This section describes how to charge the battery pack by the battery charger PWC-A071-A1. The battery pack should be installed to the battery charger in the direction as shown in Figure 17-4. The battery pack cannot be installed if inserted in the wrong direction. Figure 17-4 Battery Pack Orientation (1) Insert the tab "a"...
  • Page 67 (2) Press the battery pack in the direction of the arrow in Figure 17-6 until the tab "b" of the battery pack locks in the groove "B" of the battery charger. Figure 17-6 Battery Pack Installation (2) (3) Make sure that the battery pack is installed in the printer correctly. •...
  • Page 68 HINT • The charging time depends on the ambient temperature and the voltage level of the battery pack. Normally, using the battery charger "PWC-A071-A1", it takes about 4 hours to complete charging after running down the battery pack. Using the quad battery charger "PWC-A074-A1", it takes about 5 hours.
  • Page 69  Mounting to Wall This battery charger can be mounted to a wall with using the bottom holes shown in Figure 17-8. • Recommended screw: pan head screw 3 mm (head shape: φ5.5 mm, head size: 2 mm) Mounting Size 37 ±1 222 ±1 Figure 17-8 Bottom of Battery Charger...

  • Page 70: Printer Maintenance

    18. PRINTER MAINTENANCE The thermal head of the printer does not require user maintenance. When paper powder accumulates, cleaning the thermal head can maintain the print quality for an extended period of time.  Cleaning Thermal Head / Platen (1) Turn off the printer. (2) Remove the battery pack from the printer.

  • Page 71: Troubleshooting

    19. TROUBLESHOOTING Check the following points before requesting for repair:  The power does not turn on • Is the specified battery pack being used? • Is the battery pack sufficiently charged? • Is the battery pack installed correctly?  The printer does not print or connect •...

  • Page 72: Specifications

    20. SPECIFICATIONS  Printer Specifications Item Specification Model MP-B30-B02JK1 (Bluetooth Model) MP-B30-W02JK1x (Wireless LAN Model) Printing method Thermal printing Dot density 8 dots/mm Paper width / Printing width 80 mm / 72 mm (576 dots) (Number of effective dots) Number of characters per line 24 dots ×...
  • Page 73  Battery Pack Specifications (Specified Accessories) Item Specification Model BP-A0720-B1 Battery Lithium ion Rated voltage DC 7.4 V Rated capacity 1950 mAh Operating temperature -20°C to 55°C (-4°F to 131°F) (printing) 0°C to 40°C (32°F to 104°F) (charging) Mass Approx. 119 g ...
  • Page 74  AC Adapter Specifications (For Printer, Cradle and Battery Charger) (Specified Accessories) Item Specification Model PW-F1215-W1-xx1 Input voltage AC100 to 240 V, 50/60 Hz Rated output DC12.0 V, 1.5 A Operating temperature 0°C to 40°C (32°F to 104°F) Dimensions (W × D × H) 32.6 mm ×...
  • Page 75  Specified USB Cable Specifications (Specified Accessories) Item Specification Model IFC-U04-1 Color Black Length Approx. 1000 mm Plug C1 Series "A" plug Plug C2 Series "micro-B" plug  Interface Specifications USB interface specifications Item Specification Version Ver. 2.0 Printer data transmission mode Bulk transfer (12 Mbps) Bluetooth interface specifications Item...
  • Page 76  Sale Destinations Sale destinations for the printer are listed below. Country/Region Bluetooth Model Wireless LAN Model Japan MP-B30-W02JK1J USA, Canada MP-B30-W02JK1U MP-B30-B02JK1 EU, EFTA MP-B30-W02JK1E Turkey Ask your SII sales representative when you want to operate the products in countries/regions other than those listed above. The model differs by country/region.

  • Page 77: Accessories And Consumable Parts

    21. ACCESSORIES AND CONSUMABLE PARTS  Specified Accessories Name Model Battery pack BP-A0720-B1 Cradle CDL-B02K-1 AC adapter PW-F1215-W1-US1 *1 *2 (for printer, cradle and battery charger) PW-F1215-W1-EU1 PW-F1215-W1-GB1 AC adapter (for quad battery charger) PW-D0940-W2 AC cable (for PW-D0940-W2) CB-JP04-18A-E CB-US04-18A-E CB-CE01-18B-E CB-UK01-20A-E...

  • Page 78: Ms Settings List

    22. MS SETTINGS LIST : Default value General Setting 1 Value Function Interface Selection (Interface) USB/Wireless Mark Mode Selection (Mark Mode) Enable Disable Fixed 1-3 to 5 Reserved Data Discard Selection When Error Occurs Enable Disable (Error Through) Auto Activation by AC Selection Enable Disable (Auto Activation by AC)
  • Page 79 General Setting 4 Value Function Unit: 5% Print Density Selection 4-1 to 8 70% to 130% (Print Density) (Default setting : 100%) General Setting 5 Value Function 00000000B: TF50KS-EY 00000001B: PD160R 00000010B: P220VBB-1 Thermal Paper Selection 5-1 to 8 00000011B: Alpha400-2.1 (Thermal Paper) 00000100B: KT48PF 00000101B: P5046...
  • Page 80 General Setting 9 Value Function Automatic Status Response Selection Enable Disable (Auto Status Back) Initialized Response Selection Enable Disable (Init. Response) Reserved Fixed Fixed Reserved Reserved Fixed 9-3 to 8 Reserved Fixed Reserved Fixed Fixed Reserved General Setting 13 Value Function JIS Code 13-1...
  • Page 81 International Character Setting Value Function 00000000B: USA 00000001B: France 00000010B: Germany 00000011B: United Kingdom 00000100B: Denmark I 00000101B: Sweden 00000110B: Italy 00000111B: Spain I 00001000B: Japan International Character Selection 00001001B: Norway (International Character) 00001010B: Denmark II 00001011B: Spain II 00001100B: Latin America 00001101B: Prohibition 00001110B: Prohibition 00001111B: Prohibition...
  • Page 82 Mark Position Correction (Lower 8 bits) Value Function Total of higher 8 bits and lower 8 bits : Mark Position Correction 0 to 2400 dots 21-1 to 8 Lower 8 bits (Default : 160) Mark Position Correction (Higher 8 bits) Value Function Total of higher 8 bits and lower 8 bits :...
  • Page 83 Seiko Instruments Inc. 1-8, Nakase, Mihama-ku, Chiba-shi, Chiba 261-8507, Japan Print System Division Telephone:+81-43-211-1106 Facsimile:+81-43-211-8037 Seiko Instruments USA Inc. Thermal Printer Div. 21221 S. Western Avenue, Suite 250, Torrance, CA 90501, USA Telephone:+1-310-517-7778 Facsimile:+1-310-517-7779 Seiko Instruments GmbH Siemensstrasse 9, D-63263 Neu-lsenburg, Germany Telephone:+49-6102-297-0 Facsimile:+49-6102-297-222 info@seiko-instruments.de...
