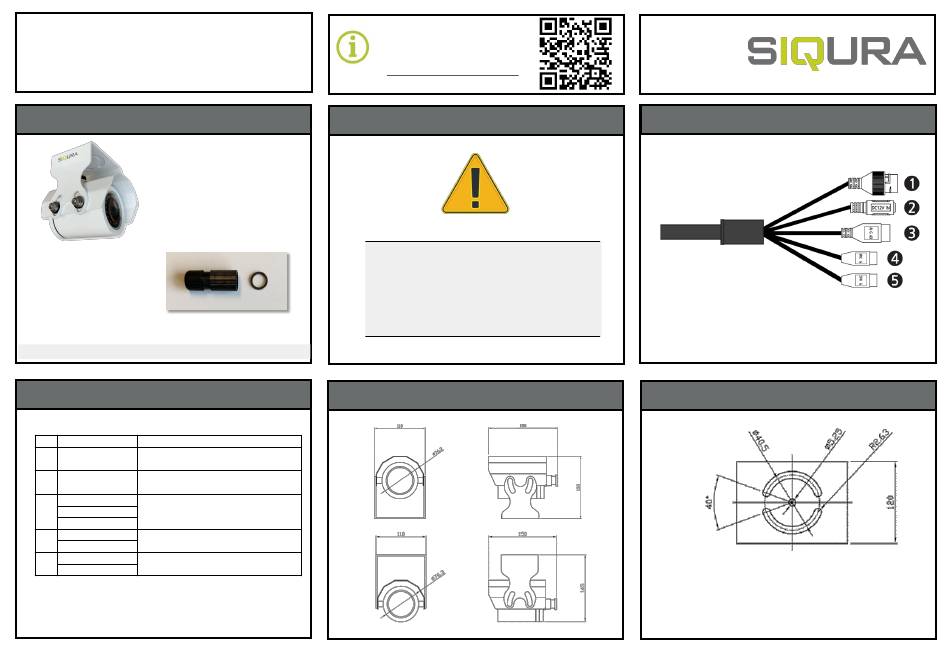

Siqura SA-BL37 Quick Start Manual

SA-BL37
2MP Corrosion proof compact bullet, 3.7mm
Quick Start Guide
Unpack
SA-BL37 Camera Unit
RJ45 water protection (IP66/67)
Note 1: Subject to modification. Actual product and accessories may differ in appearance.
Connector Definition
NO Item Description
Ethernet, RJ-45 port compatible
1 RJ-45
with 10/100Mbps PoE Modular Jack
DC Jack
2 Main Power, DC Jack, 12Vdc
AI: Alarm In
3 G: GND
Alarm input and output, 3pin terminal
AO: Alarm Out
MIC: Audio In
4 Audio line input, 2pin terminal
G: GND
SPK: Audio Out
5 Audio line output, 2pin terminal
G: GND
Table 1 Connector definitions
© Siqura B.V. 2020
Version 1.1 (20201119)
SA-BL37 QSG
Find additional manuals, the datasheet,
the EU Declaration of Conformity, and
the latest firmware for this product at:
Siqura.com/downloads/software
Installation Notices
CAUTION:
INSTALLATION SHALL BE PERFORMED BY QUALIFIED PERSONNEL ONLY.
INSTALLATION SHALL BE IN ACCCORDANCE WITH LOCAL PROCEDURES.
THE CAMERA CONTAINS BATTERIES. DISPOSE OF USED BATTERIES IN
ACCORDANCE WITH LOCAL REGULATIONS.
IF YOU USE AN EXTERNAL POWER SUPPLY, CONTACT SIQURA TO MAKE SURE
THAT THE POWER SUPPLY HAS THE PROPER POWER SPECIFICATIONS.
MAKE SURE THAT THE POWER SUPPLY COMPLIES WITH LPS REQUIREMENTS.
THE CAMERA IS TO BE CONNECTED ONLY TO POE NETWORKS WITHOUT
ROUTING TO THE OUTSIDE PLANT.
Mounting
Upright mount
Ceiling mount
For the connector definitions, see table 1.
Dimensions in mm.
Connectors
Drill diagram
Dimensions in mm.
