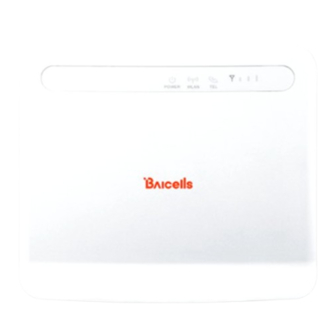

- Page 1 LTE Indoor CPE - EG2013B-M11 USER Manual All rights reserved © Baicells Technologies Co., Ltd.
- Page 2 About This Document This document introduces the installation of Baicells LTE Indoor CPE. Copyright Notice Baicells copyrights this specification. No part of this specification may be reproduced in any form or means, without the prior written consent of Baicells. Disclaimer This specification is preliminary and is subject to change at any time without notice.
-
Page 3: Shipping List
1. Shipping List Make sure you have got the following parts: EG2013B-M11 Quick Guide RJ45 Ethernet cable AC adaptor... -
Page 4: Hardware Introduction
2. Hardware Introduction Indicators Name Status Description Steady On Power On Power No Power Supply Steady On WiFi enabled WLAN WiFi disabled Blanking Data is transmitting. Steady On VoIP having registered VoIP having not registered Steady On The more turn light up, the stronger signal The signal is too weak or no signal SIGNAL The page reload, restore to the factory setting by... - Page 5 Interface and Buttons Name Description USIM card slot Insert the USIM card to the slot. Press “Reset” button for 3s~20s, the CPE will restore to the factory settings. Press “Reset” button Reset Button over 20 seconds, the CPE will enable the escape mechanism.
- Page 6 Channel Bandwidth 10MHz/15MHz/20MHz MAX Output Power 23±1 dBm LTE Standard 3GPP R9 LTE Band Band48 LTE Antenna Gain 6.5 dBi Wi-Fi Specification 802.11b/g/n Frequency 2400MHz~2483.5MHz Wi-Fi Antenna Gain 2 dBi...
-
Page 7: Connect Device
3. Connect Device Insert USIM Card Install USIM card according to following steps: Open the protective cover of the card slot. Insert USIM card into card slot according to the following figure. Close the protective cover of the card slot. CAUTION DO NOT install or uninstall USIM card when the CPE is running. - Page 8 Connect one end of the RJ-45 cable to LAN interface of the CPE, and the other end connect to PC. Insert DC-5V AC adaptor to the power interface. Power on. Connect Network Set CPE according to following steps: Open Internet Browser and type in the default IP address: https://192.168.1.1 In the user name/password text box, type in the default user name and password, admin/admin.
- Page 9 To avoid unauthorized user access to the WLAN, please modify the “WLAN Name” and “WLAN Key (WPA/WPA2)”. For more detail information, refer to help information in the web management page. Enable WLAN function on wireless terminals, and these devices start to search nearby available wireless network.
-
Page 10: Regulatory Compliance
4. Regulatory Compliance FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
