- Page 1 Baicells SRT853L 5G Outdoor CPE Quick Start Guide Baicells Technologies Co.,Ltd.
-
Page 2: Table Of Contents
Listings Device overview ..............................2 Installation Materials and Tools ........................... 4 Installing the SIM Card ............................4 Application Scenario ............................5 ODU Installation ..............................6 Configuration the device via website ........................7 Restore Factory Settings ............................7 Q&A ..................................8 Q: What to do if there is no service? ...................... - Page 3 SRT853L 5G Outdoor CPE Quick Start Guide...
-
Page 4: Device Overview

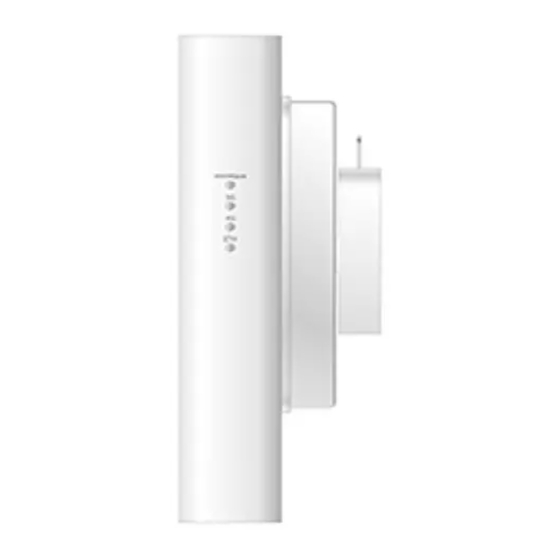

Device overview Your device is for outdoor use. Computer, router or switch can be connected to the device to access the 5G/4G Internet. The following figure is only for your reference. The actual product may be different. 1. mmWave indicate led 2. - Page 5 The LED indicators display the router’s status. Indicator Color Status Function Solid Strong 5G signals and have no dial up Blue Blinking Strong 5G signals and dial up success Solid Medium 5G signals and have no dial up Green Blinking Medium 5G signals and dial up success 5G LED Solid...
-
Page 6: Installation Materials And Tools
Installation Materials and Tools Packing list: Before installing the ODU, verify that you have all the items listed in the packing list. If any of the items is missing or damaged, contact your ODU device vendor. Item ODU CPE Accessories Anchoring screws Hose clamp Ethernet cable... -
Page 7: Application Scenario
Notes: Do not bend or scratch your SIM card, and avoid exposing the SIM card to static electricity, water or dirt. Tighten screws to prevent water from entering the ODU. Application Scenario Connect cables and power on the device as below, and then your PC can access the internet. The LAN interface only can be connected to the ODU. -
Page 8: Odu Installation
ODU Installation 1. Install mounting kits. Installation scenario 1: mounting on the wall Installation scenario 2: mounting on a pole 2. Align the mounting slot with the guide rail and press down. When you hear the click sound, the installation is in place. -
Page 9: Configuration The Device Via Website
3. Connect the Power Adaptor of the ODU with Ethernet cable. See Application Scenario Chapter to connect cables and power on the device. Configuration the device via website 1. Make sure your device, such as PC, is connected to the ODU via RJ45 cable. 2. -
Page 10: Q: What To Do If There Is No Service
1. Log in to the WebUI and click the “Reset” button under the "Management->Reboot & Reset" to restore your device to its factory default settings. 2. It has a pinhole type reset button beside the USB port, press and hold “Reset” button over 3 seconds, the device will restart with restored factory default settings. -
Page 11: Q: What If The Device Is Not Responsive
Q: What If the device is not responsive? A: You can try restoring the device to its default factory settings. To the Owner • Some electronic devices, such as the electronic system of vehicles, are susceptible to electromagnetic interference sent by your device if inadequately shielded. Please consult the manufacturer of your device before using if necessary. -
Page 12: Fcc Compliance
other objects. • Handle your device carefully. Do not drop, bend, or strike it; your device may get damaged. • No dismantling by non-professionals and only qualified technicians can undertake repair work. • An operating temperature range of -40°C to +50°C and humidity range of 5% - 95% are recommended. FCC Compliance This device complies with part 15 of the FCC Rules.
