4.3. Simplicity Configurator
The Simplicity Configurator is a configuration and code generation tool. This utility helps accelerate development
by automatically generating initialization source code to configure and enable the on-chip resources needed by
most design projects. In just a few steps, the wizard creates complete startup code for a specific Silicon Labs MCU.
To create a new Simplicity Configurator project:
1. Click the Create new project link from the welcome screen or go to File
Project.
2. In the Kit drop-down, select C8051F930 Development Kit or None, in the Part drop-down, select
C8051F930, and in the SDK drop-down, select the desired SDK. Click Next.
3. Select Simplicity Configurator Program and click Next.
4. Fill in the Project name and select the desired device. The C8051F930-G-GQ-LQFP device is on the
C8051F930 Target Board. Click Finish.
The Simplicity Configurator project displays properties for each peripheral. To configure a peripheral, click on the
DefaultMode Peripherals tab at the bottom and click on a peripheral. Checking the box for a peripheral will add it
to code generation. Once a peripheral is selected, configure the registers using the Properties view. Select a new
value for a property with either an input box or a drop-down menu and press Enter to set it.

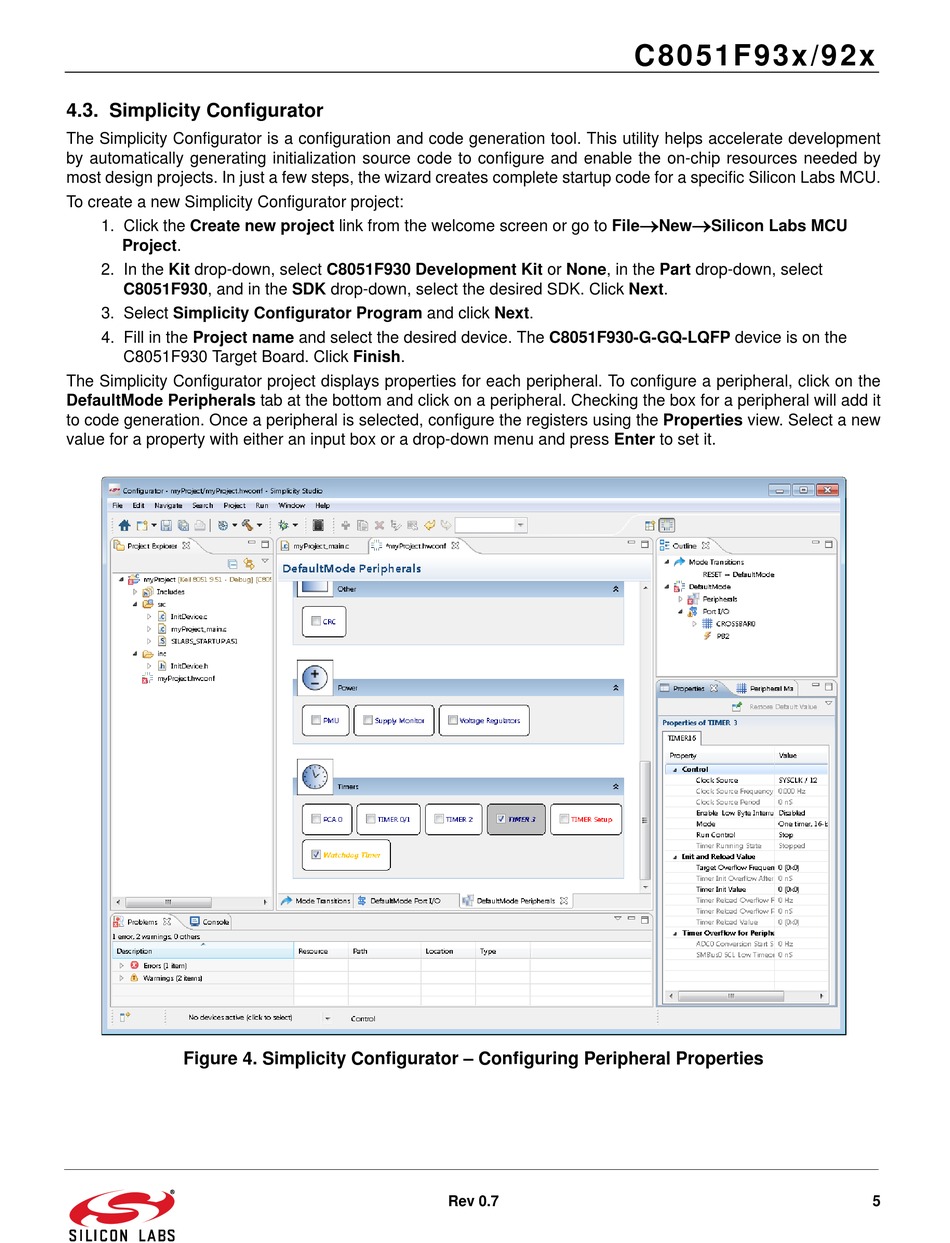

Figure 4. Simplicity Configurator – Configuring Peripheral Properties
