OPERATING MANUAL
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.
Tool Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.31"
Tool Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.38"
Tool Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.00"
Tool Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.36 lb
Maximum Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . 5900 RPM
Maximum Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1200 ft-lbs
Breakaway Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1800 ft-lbs
Sound Pressure Level . . . . . . . . . . . . . . . . . . . . . . . . . . 98.7 dBA
Vibration Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.61 m/s²
Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.6 cfm
Recommended Hose Size . . . . . . . . . . . . . . . . . . . . . . . . . 1/2" ID
Air Inlet Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8" NPT
CAT3225A / CAT3225GA
WARNING INFORMATION
•
WARNING
SPECIFICATIONS
-Save these instructions-
3/4" bluePOWER
3/4" bluePOWER
®
•
1
CAT3225A / CAT3225GA
®

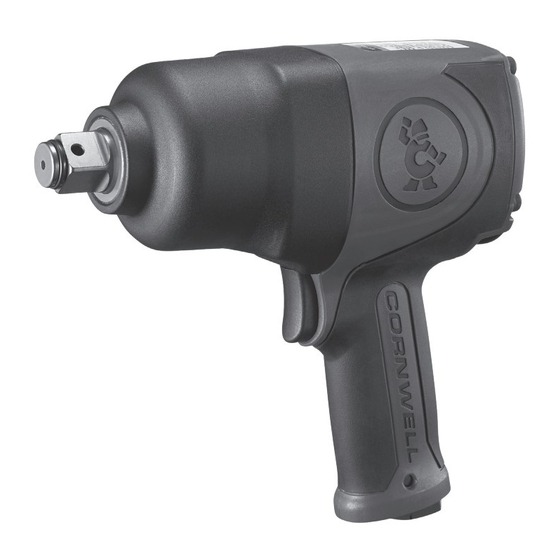

IMPACT WRENCH
IMPACT WRENCH - GREEN
WARNING
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
Copyright © Professional Tool Products, 2021
All rights reserved
05/10/2021
Advertisement
Table of Contents
Related Manuals for Cornwell Tools bluePOWER CAT3225A
Summary of Contents for Cornwell Tools bluePOWER CAT3225A
- Page 1 CAT3225A / CAT3225GA 3/4" bluePOWER ® IMPACT WRENCH 3/4" bluePOWER ® IMPACT WRENCH - GREEN OPERATING MANUAL WARNING INFORMATION PARTS LIST • • WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm.
- Page 2 Use hear ing pro tec tion as rec om mend ed by your em ploy er or OSHA reg u la tion. • Use accessories recommended by Cornwell Tools. • Keep the tool in ef fi cient op er at ing con di tion.
- Page 3 CAT3225A / CAT3225GA 3/4" bluePOWER ® IMPACT WRENCH 3/4" bluePOWER ® IMPACT WRENCH - GREEN OPERATION Air Supply Whip Hose Do Not Install Filter Quick Coupling Nipple Nipple This tool is an impacting tool and not a torque meter. When specific Here torque is required, it must be checked with a torque meter after fitting the fastener with the impact.
- Page 4 CAT3225A / CAT3225GA 3/4" bluePOWER ® IMPACT WRENCH 3/4" bluePOWER ® IMPACT WRENCH - GREEN WARRANTY COVERAGE Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of TWO (2) YEARS from the date of original retail purchase.
- Page 5 CAT3225A / CAT3225GA 3/4" bluePOWER ® IMPACT WRENCH 3/4" bluePOWER ® IMPACT WRENCH - GREEN PARTS LIST ITEM PART NO DESCRIPTION ITEM PART NO DESCRIPTION RS322501 HAMMER CASE ASS'Y (Incl. 102 & 109) RS223825 SCREW (M3x8) RS322502 ANVIL BUSHING * RS322522 C-RING (RTW #21) RS322503 SOCKET RETAINER...
