SPLITMUX Quad Screen 4K 18GB Multiviewer

INSTALLATION

1. Connect each of the HDMI or DVI video sources to the ports on the SPLITMUX marked "HDMI IN x" (x = 1-4).
2. Connect the display to the port marked "HDMI OUT".
3. Connect the power supply to the power jack and plug it in. In approximately 20 seconds, the LED on the SPLITMUX will
illuminate red (standby).
4. Press the switch on the front to power the SPLITMUX ON. Within 20 more seconds the LED will change from red to green
(ON) and the SPLITMUX will be ready to use.
5. For keyboard and/or mouse control of the OSD menu of the SPLITMUX, connect a USB keyboard and/or mouse to a USB type
A port labeled "KYBD/MOUSE" on the SPLITMUX.

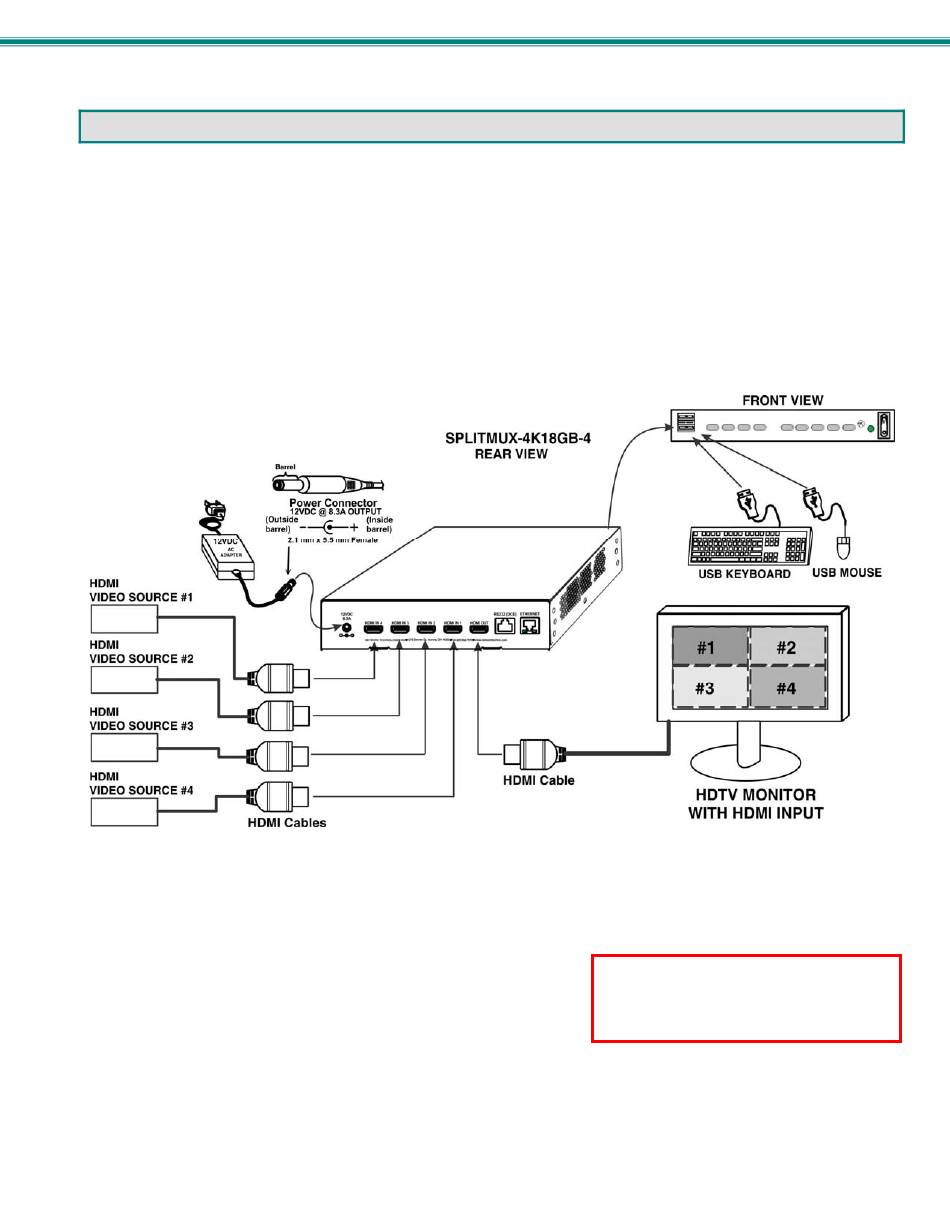

Figure 4- Video Source/Display Connections

Note: If the connected display does not
support an HDMI input (typically it will
have at least one HDMI input port), the
display will not be compatible.
7
