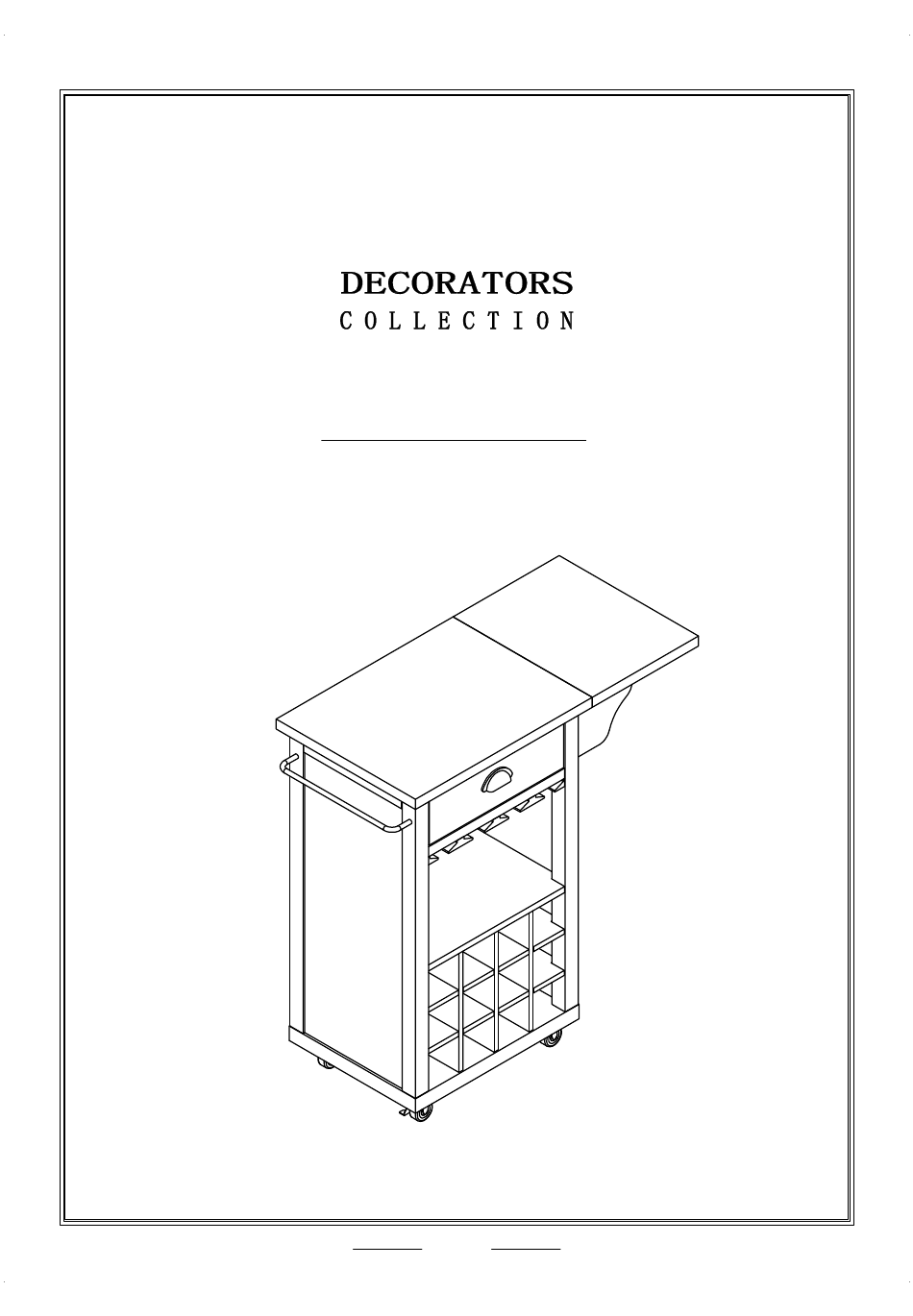

- Page 1 HOME INV# 74004 SK17787A PRESTON KITCHEN CART 30"Hx32"Wx16"D ASSEMBLY INSTRUCTIONS Made In China...
- Page 2 Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts, which may have came loose inside the carton during shipment. Count all parts and material hardware, then compare with parts list to be sure all parts are present.
- Page 3 Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts, which may have came loose inside the carton during shipment. Count all parts and material hardware, then compare with parts list to be sure all parts are present.
- Page 5 HOW TO SEPARATE GLIDES SAFETY RELEASE TAB PRIOR TO ASSEMBLY, WE SUGGEST SEPARATING THE INNER GLIDES FROM THE OUTER-GLIDES, SIMPLY PULL THE LEFT/RIGHT INNER GLIDES FROM THE OUTER GLIDES EXPOSING A SMALL BLACK SAFETY RELEASE TAB, BY PUSHING THE SAFETY RELEASE TAB. YOU WILL BE ABLE TO SEPARATE THE GLIDES.
- Page 6 NOTE: UPON OPENING, THOROUGHLY CLEAN ALL WOOD SURFACES TO REMOVE DUST AND DIRT THAT MAY HAVE SETTLED ONTO THE FINISH DURING SHIPMENT. IN ORDER TO PREVENT DAMAGE DURING ASSEMBLY. PLEASE ASSEMBLE THIS ITEM WITH AT LEAST TWO PEOPLE. NOTE: TURN THE CAM-BOLT SCREWS UNTIL THEY ARE TIGHT, THE SHOULDER SHOULD BE SHOULDER AGAINST THE SURFACE OF THE PART.
- Page 8 FIG 2 ● INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE LEFT SIDE PANEL (B). ● JOIN THE UP FIXED PANEL (D) AND THE DOWN FIXED PANEL (E) TO THE LEFT SIDE PANEL (B) BY USING WOOD DOWEL (a) FIRST. ●...
- Page 9 FIG 3 ● INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE RIGHT SIDE PANEL (C). ● JOIN THE RIGHT SIDE PANEL (C) TO THE UP FIXED PANEL (D) THE DOWN FIXED PANEL (E) AND THE BACK PANEL (F) BY USING WOOD DOWEL (a) FIRST. ●...
- Page 10 FIG 4 ● WINE RACK VERTICAL PANEL (I) INSERTED INTO THE WINE RACK LEVEL PANEL (H). ● INSERT THE WINE RACK VERTICAL PANEL (I) AND THE WINE RACK LEVEL PANEL (H) IN THE ASSEMBLED PART.
- Page 11 FIG 5 ● INSTALL THE WOOD DOWEL (a) INTO THE BOTTOM PANEL (G). ● JOIN THE BOTTOM PANEL (G) TO THE LEFT SIDE PANEL (B) AND THE RIGHT SIDE PANEL (C) BY USING WOOD DOWEL (a) AND THE 1-3/4" FLAT HEAD SCREW (m) FIRST.
- Page 12 FIG 6 ● JOIN THE UNIVERSAL WHEEL ( j & k ) TO THE BOTTOM PANEL (G) BY USING 5/8" FLAT HEAD SCREW (i) FIRST.
- Page 13 FIG 7 ● TIGHTEN THE TOWEL BAR (n) TO THE LEFT SIDE PANEL (B) BY USING THE BOLT (f). ● JOIN THE LEFT SIDE SUPPORT (J) AND THE RIGHT SIDE SUPPORT (K) TO THE RIGHT SIDE PANEL (C) BY USING 1/2" FLAT HEAD SCREW (e) FIRST.
- Page 14 FIG 8 ● INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE TOP PANEL (A). ● JOIN THE TOP PANEL (A) TO THE LEFT SIDE PANEL (B) AND THE RIGHT SIDE PANEL (C) BY USING WOOD DOWEL (a) FIRST. ●...
- Page 15 FIG 9 ● INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE DRAWER FRONT PANEL (L). ● JOIN THE DRAWER LEFT SIDE PANEL (M) AND THE DRAWER RIGHT SIDE PANEL (N) TO THE DRAWER FRONT PANEL (L). ●...
- Page 16 FIG 10 ● JOIN THE DRAWER BACK PANEL (O) TO THE ASSEMBLED DRAWER PART AND TIGHTEN THE DRAWER BACK PANEL (O) BY USING THE 1" FLAT HEAD SCREW (h) THROUGH PRE-DRILLED HOLES ON DRAWER SIDE PANELS. ● TIGHTEN THE HANDLE (l) TO THE DRAWER FRONT PANEL (L) BY USING THE HANDLE BOLT (g).
- Page 17 FIG 11 ● INSERT DRAWER INTO THE ASSEMBLED PART.
